◆ SONY NP-F series battery comparable
◆ 7.2V nominal voltage Li-ion battery
◆ 65Wh / 9.02Ah capacity
◆ 30W / 4A constant power load
◆ Built-in 12V reg. D-tap output
◆ Built-in 25W USB-C input and output
◆ 4-level LED power indicator
◆ Display remaining power info on camera viewfinder
◆ Multiple circuit protections
65Wh NP-F Battery
with D-tap and USB-C

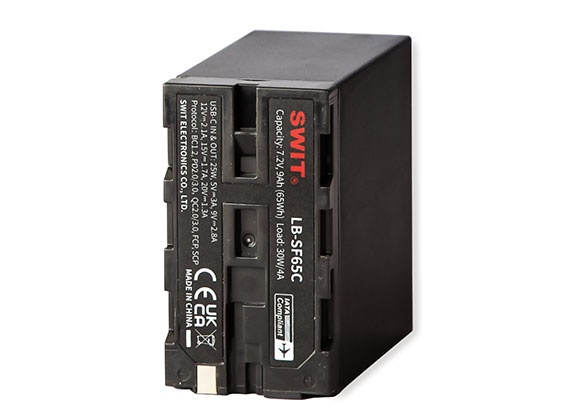

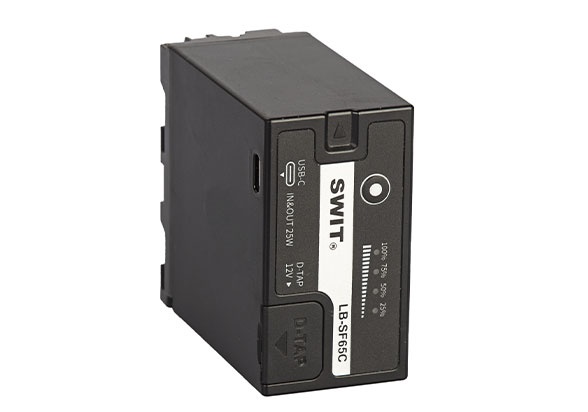

LB-SF65C is a new 65Wh large capacity NP-F
type DV battery with regulated 12V D-tap
output and 25W USB-C in/out, widely
compatible with pro-video gears.
* Please Note this battery can't power SONY cameras.
65Wh Large Capacity
LB-SF65C consists of 6pcs battery cells and has 65Wh/9020mAh large capacity to keep your video devices powered for longer time. The constant power load is 30W/4A.

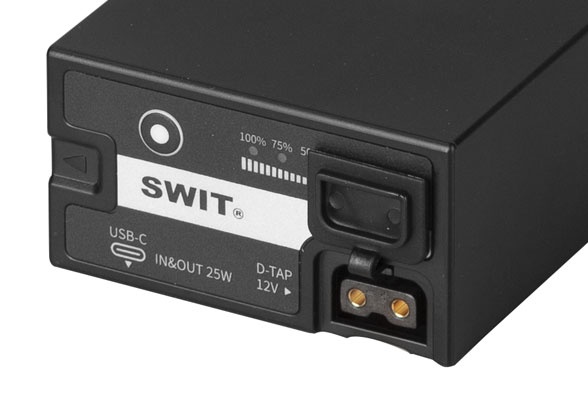

Reg. 12V D-tap Output
The LB-SF65C NP-F battery provides a D-tap power
output socket of regulated 12V voltage, widely
compatible with various kinds of video devices.
* The D-tap has 7.2V to 12V (Reg.) conversion and
it’ s not allowed to charge input via this D-tap socket.

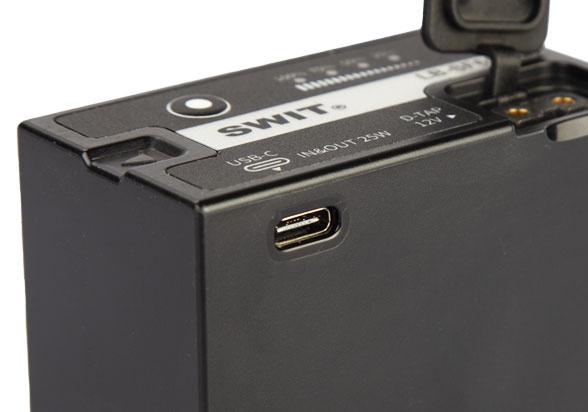

USB-C 25W Output
Fast Charging iPhone 12/13
LB-SF65C provides a USB-C sockets, supports 5V 3A, 9V
2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A, 25W power output
to fast charge iphone 12/13 and all kinds of USB-C smart
phones or tablets, with BC1.2, PD2.0/3.0, QC2.0/3.0,
FCP, SCP multiple protocols.
USB-C 25W Charging Input
You can also charge LB-SF65C by USB-C charger.
Supports PD 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A,
20V 1.3A, 25W power input, which means you can
fully charge the 65Wh battery within 3.5 hours.
4-level Power Indicator
Press the power check bottom, the 4-level
LEDs indicates remaining power percentage.
4-way Charging
LB-SF65C can be charged by any NP-F charger.
Use SWIT LC-D421 4-way charger you can
charge 4 batteries simultaneously, and fully
charging within 5 hours.
Nominal Voltage | 7.2V |
Capacity | 65Wh, 9.02Ah |
Max power load | 30W, 4A |
D-tap | 12V (reg.) 1.7A, 20W |
USB-C | 25W input: 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A 25W output: 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A BC1.2, QC2.0/3.0, PD2.0/3.0, FCP, SCP |
Original batteries | SONY NP-F770, NP-F970 |
Dimension | 71×39×76mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | Net 345g; With package0.35kg |
MSRP
MSRP
MSRP
We provide 1 year conditional warranty, and the following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) Battery performance declines, cannot be charged or any charging errors caused by using third-party chargers.
(3) Battery capacity naturally decreased after a certain cycle times of charging and discharging.
(4) The capacity loss caused by over 6-month’s storage, and not charging the battery to re-active it during the period.
(5) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(6) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
