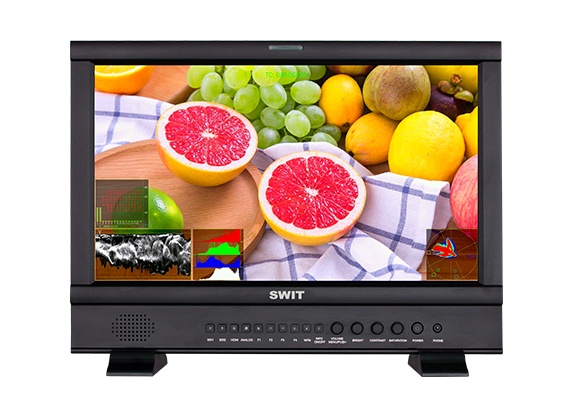

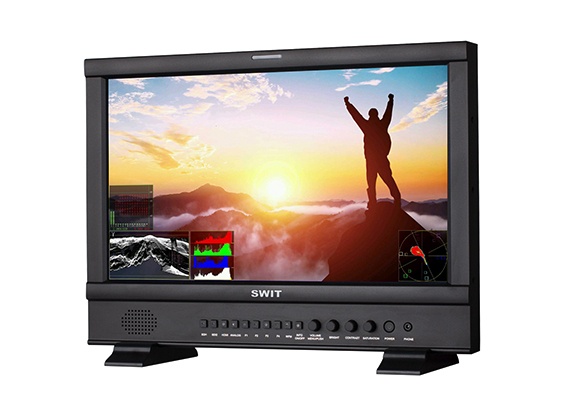

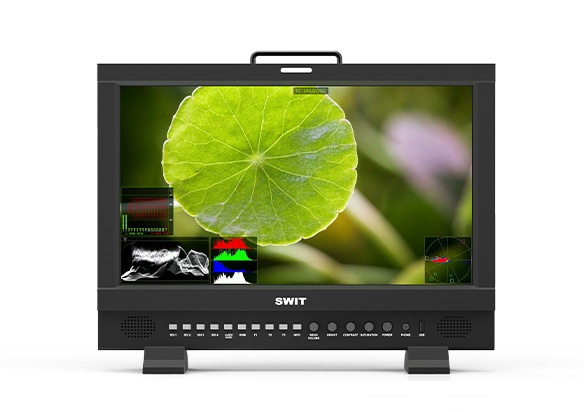

S-1173F 17.3-inch Full HD Waveform Studio LCD Monitor

› 17.3-inch LCD Panel, 1920×1080 resolution

› 2K/3G/HD/SD-SDI( x2 ), HDMI® monitoring

› Y/Pb/Pr, VGA, CVBS monitoring

› 3DLUT 17x17x17 color calibration

› Built-in Multiple De-log 3DLuts

› User LUTs upload by USB

› 16-ch Embedded audio meters with alert

› Select any 2 audio channels to output

› Waveform Y/Cb/Cr/R/G/B and single line

› Vector scope, histogram R/G/B/Y

› Peaking focus assist (red/blue switch)

› AFD, Timecode, H/V delay

› TSL UMD and text TALLY display

› Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1

› False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar

› V-mount / Gold mount battery plate optional

› 19inch Rack install, 7U height

› USB firmware upgrade

Features

17.3-inch Full HD Studio LCD Monitor

AH-IPS LCD panel, LED backlight

S-1173F adopts a 17.3 -inch IPS (In-Plane Switching) LCD panel, Full HD 1920×1080 resolution and LED backlight, 700:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 160° / Vertical: 160°.

Multi-format Input/Output

S-1173F supports:
2K/3G/HD/SD-SDI input×2
2K/3G/HD/SD-SDI loop ×2
HDMI® input ×1
HDMI® loop×1
YUV input ×1
VGA input ×1
CVBS input ×1
CVBS loop ×1
RS485 UMD input×1
RS485 UMD output×1
RS232C UMD input ×1
RS485 GPI input ×1
L/R analog audio input×1



Video Analysis Assistant Pattern

Waveform / Vector scope / Histogram

S-1173F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.

Embedded audio monitoring

Up to 16-ch meters with alert and select output

S-1173F supports SDI-16ch and HDMI®-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from Up/Down/Left/Right, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

UMD and Text-Tally Display

TSL 3.1/4.0 Protocol

S-1173F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD inputs via RS485 or RS232C port and outputs via RS485 port.

Peaking, R/G/B/Mono only, Zebra, False color

Timecode, H/V delay, AFD, Scale Markers

3DLUT Color Calibration

Built-in De-Log LUTs and User LUT upload

Support 17x17x17 3DLUT accurate color calibration. Use professional color analyzer (KONICA MINOLTA CA310 e.g.) and 3DLUT calibration software (SpectralCal CalMAN5 e.g.) to measure and generate 3DLUT cube file to upload to the monitor by USB stick.
The monitor also has built-in camera logs to Rec 709 con- version LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm.
You can import own 3DLUTs to monitor by USB stick.

USB Firmware Upgrade

S-1173F provides a standard USB port for firmware upgrade. Users can download
the latest firmware file to a USB stick, and directly insert into S-1173F monitor to upgrade, without PC connection.

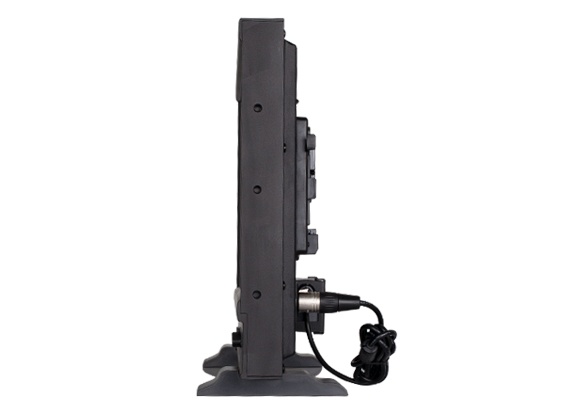

Multiple Power Sources

AC adaptor / V-mount / Gold mount

S-1173F provides a 4-pin XLR socket of DC 11-17V power input, and V-mount or Gold mount plate for outdoor using.

3-color TALLY Light

RS485 input signal

There are three colors for the Tally light: Red, Green and Yellow. Users can define the pins of RS485 port to control the TALLY lights.



Dimension



LCD Performance

Size

17.3inches

Display area

381.89×214.8mm

Resolution

1920×1080

Aspect ratio

16:9 (4:3 adjustable)

Brightness

300cd/m2

Contrast

700:1

Color depth

16.77 million color

Viewing angle

160°(H)∕160°(V)

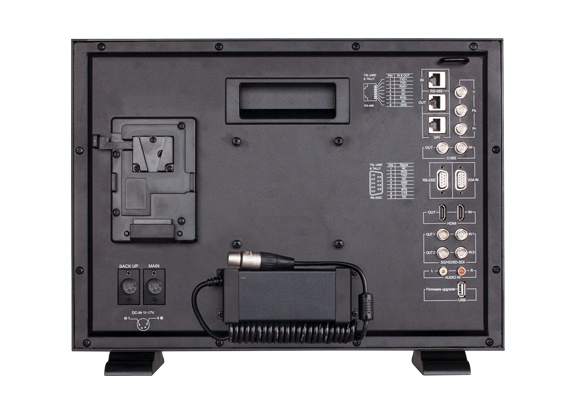

Input

BNC ×2

2k/3G/HD/SD-SDI input×2

BNC ×1

CVBS input

BNC ×3

Y/Pb/Pr input

HDMI® ×1

HDMI® input

RS485 ×2

GPI×1, UMD×1

RS232C ×1

UMD

VGA ×1

VGA input

RCA ×2

L/R audio input

USB ×1

USB input (firmware upgrade)

Output

BNC ×2

2K/3G/HD/SD-SDI Loop output

BNC ×1

CVBS Loop output

HDMI® ×1

HDMI® Loop output

RS485 ×1

UMD×1

3.5mm ×1

SDI/HDMI® embedded audio output, analog audio output

Video Format

CVBS

NTSC∕PAL

SDI

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

1080p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)

HDMI®

480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

Y/Pb/Pr

480i/ 576i / 480p / 576p, 720p (50/60), 1080i (50/60), 1080p (50/60)

VGA

640×480 / 800×600 / 1024×768 / 1152×864 / 1280×768
1280×960 / 1280×1024 / 1600×1200

General

Input voltage

AC: 100V-240V DC: 11V-17V

Power consumption

≤32W

Working temperature

0°C~+40°C

Working humidity

10%~90%

Storage temperature

-15°C~+60°C

Storage humidity

10%~90%

Dimensions

430×310×73mm

Net weight (main body)

Net 4.65kg; With package 7.45kg
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

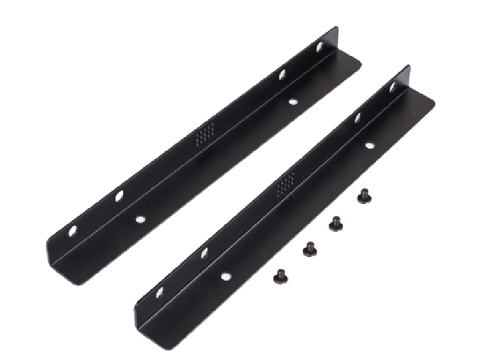

  • 19-inch rack bracket

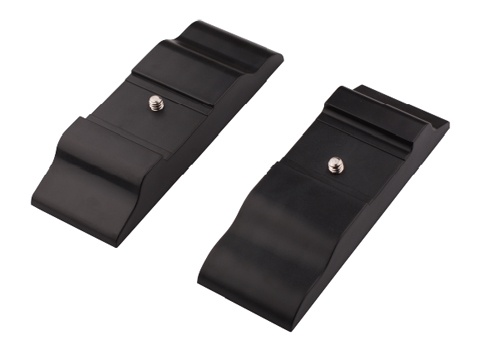

  • Desktop feet

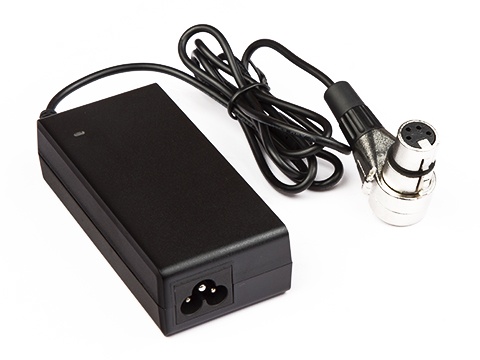

  • AC-DC Adaptor

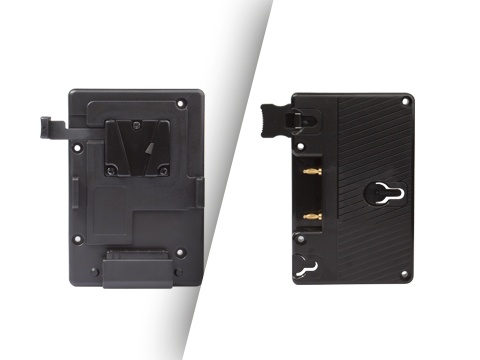

  • S-7004S (V-mount) / S-7004A (Gold mount) plate

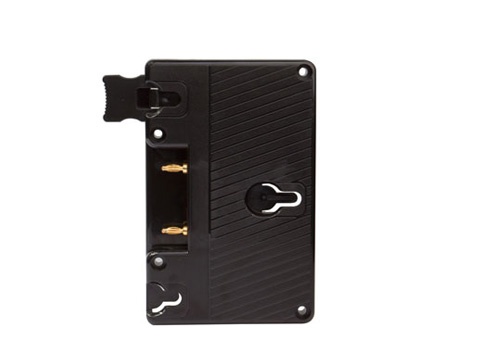

  • S-7004A

    Gold mount plate with 2-pin power connector to plug into the monitor internally, without external DC cable.

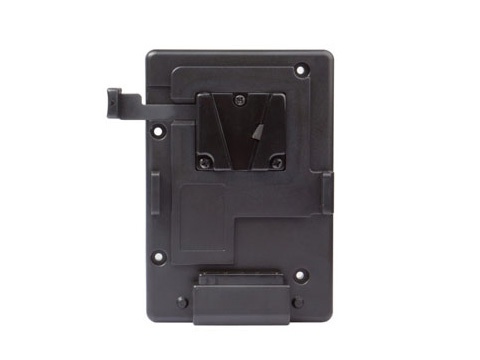

  • S-7004S

    V-mount plate with 2-pin power connector to plug into the monitor internally, without external DC cable.
