› 120pcs RGB + 200pcs White SMD-LEDs
› Edge mounted LEDs, 21mm ultra slim
› No fan, No noise
› 1:1 size, 70W power, 1500Lux @ 1meter
› Time-Division drive tech, ultra bright color light
› CCT/HSI/RGB/CIE/GEL/EFF color modes
› Built-in 20x Rosco and 20x LEE Gels
› 2800K-10000K, G/M±1.00 adjustment
› CRI Ra 96, TLCI 93
› On-board 3.5-inch color LCD visualized color pick
› DMX512 3bit/6bit/7bit color control
› DC 11-34V wide input voltage
› On-board V-mount or Gold mount battery plate
› IOS/Android APP bluetooth control

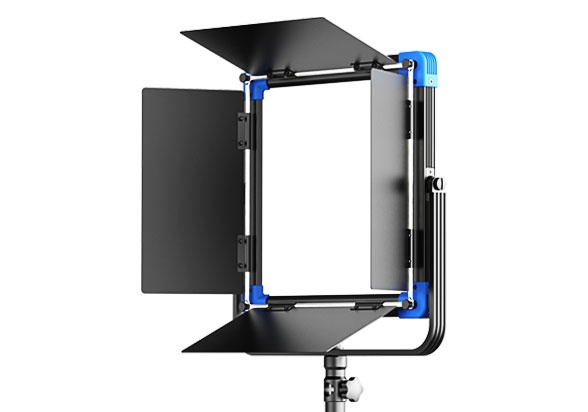

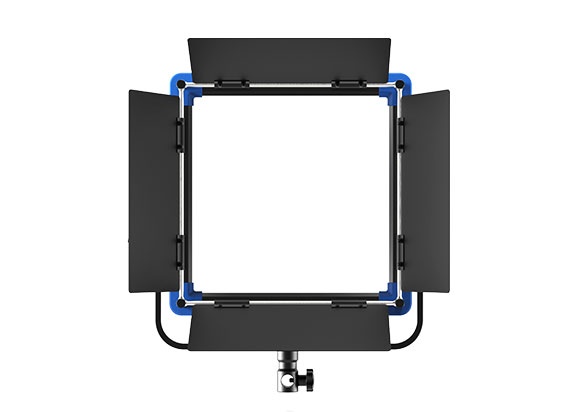

› With 4-leaf barn door and optional 40° honeycomb
70W Ultra Slim RGBW
VANGO-70, the slim portable size 70W
RGBW panel with extreme high color light
output, equivalent to regular 200W RGB
color light intensity, for your flexible video
studio setup.
21mm Ultra Slim and Soft
With SWIT unique Edge Mounted SMD and 90° high
efficient light guide tech, the VANGO-70 has an ultra
slim size to only 21mm thickness, and diffused to
soft light to paint the entire environment.
Time Division Tech, Brighter Color Light
The regular RGB panels are high bright in CCT mode, but much lower in
RGB color mode. That’ s because in a regular RGB light, the RGB color
LED and White LED have fixed rates to share the total power of the light,
and when output color lights, the RGB LEDs use only 1/3 power.
By SWIT unique Time Division Drive tech, full power of the light can be
assigned to RGB color LEDs, and greatly increased the intensity of color
light. The 70W VANGO-70 color light intensity equals to a regular 200W
RGB color light intensity.
IEC 62471 Photobiological Safe Certificated
The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.

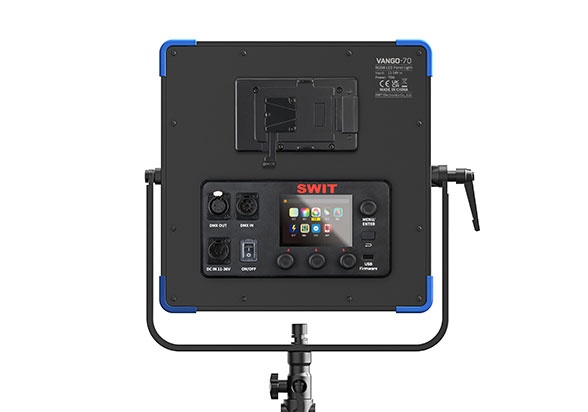

Control Panel
VANGO-70 rear control panel supports 5-pin DMX
in & out, 4-pin XLR DC 11-36V in, and V-mount
battery plate (Gold mount for option), and a large
color LCD with menu and hot keys for convenient
color picking. The USB-A port is for firmware update
or user color profile upload, and to power wireless
DMX receiver.
On-board 3.5-inch Color LCD
Visualized color selection
Bluetooth APP Control
Download “SWIT Console” APP on IOS App Store or Google PLAY, to connect and control VANGO lights via Bluetooth.
SWIT Console APP
The APP control supports CCT, HSI, RGB, CIE color modes, and select preset color GELs and light effects.
LED | 120pcs RGB + 200pcs W SMD LEDs |
illuminance | 1500Lux @ 1m |
Beam angle | 65° |
Color Temperature | 2800K～10000K, G/M±1.00 |
CRI | 96 |
TLCI | 93 |
Power | 70W |
DMX | DMX512, 5pin XLR IN & OUT |
USB | USB-A power out & firmware update |
Input voltage | 4pin XLR, DC 11V～34V IN |
Dimension | 313×313×21mm |
Lighting area | 255×255mm |
weight | Net 4kg with barndoor; With package 6.55kg |
MSRP
MSRP
MSRP
-

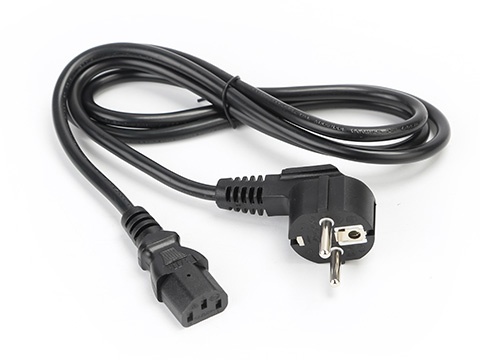

AC power cable
-

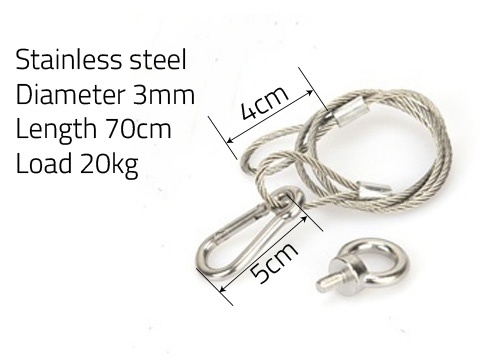

Safety rope and Ring
-

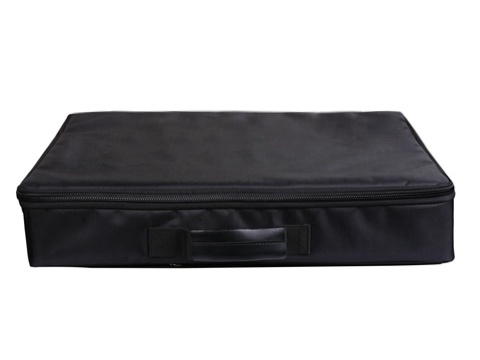

Carrying Bag
-

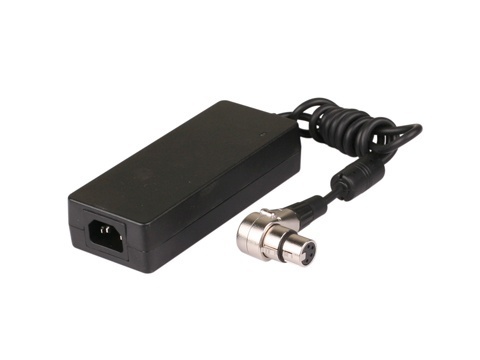

AC-DC Adaptor
-

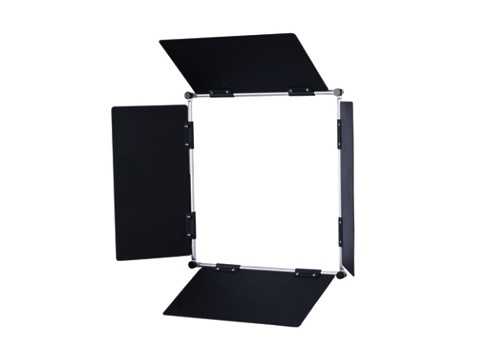

Barn door
-
LA-GE60N

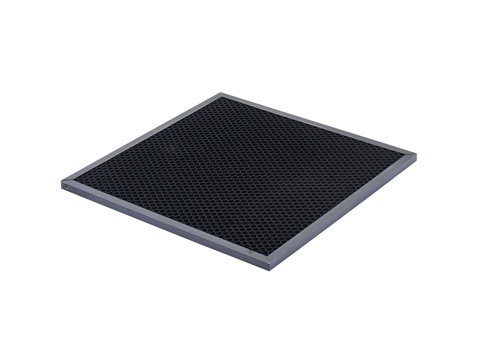

Metal 40° Honeycomb, could be installed together with barndoor kit.
-
VANGO-100
100W 2:1 Ultra Slim RGBW Panel Light
Equivalent to 300W color light, 21mm slim, on board LCD, APP control
