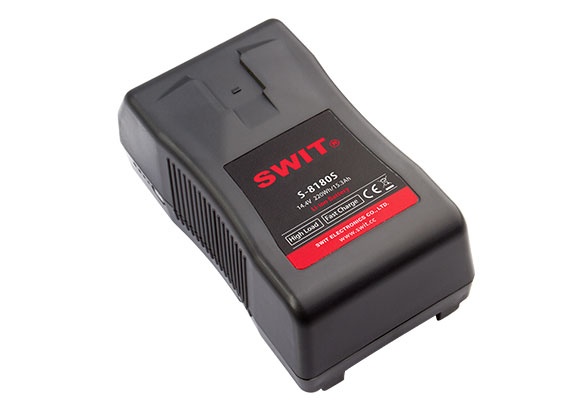

› High-load Li-ion cells
› At least 200W, 16A constant load
› 14.4V, 220Wh capacity
› D-tap output socket
› 4-level LED power indicator
› V-mount connection
› Multiple circuit protections
High-Load Li-ion Cells
At least 200W, 16A constant power output
Normal Li-ion batteries offer 100W/8A output and suitable
for most ENG cameras, but the Cine Cameras such as ALEXA
require around 85W high draw which is too heavy for the
normal Li-ion batteries: the battery life will be reduced if
long time full draw powering. Moreover, if there’re monitor,
lighting work together, and total power will be above 100W,
and the normal batteries can not draw completely.
Using S-8180S high-load battery, you can get at least 200W/16A constant power output, which can drive more
high power cameras, lightings and other equipments easily,
and won’t reduce battery life during long time high power
output.
220Wh/15.3Ah High Capacity
Consists of 24pcs 18650 battery cells, and reach
220Wh/15.3Ah high capacity.
Can run approx 7 hours for normal 30W ENG cameras;
and approx 2.5 hours for ARRI Alexa camera

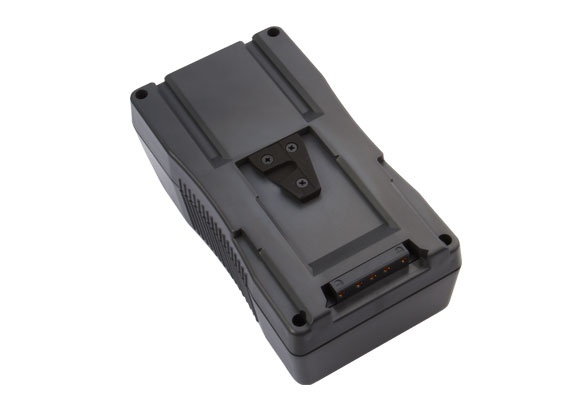

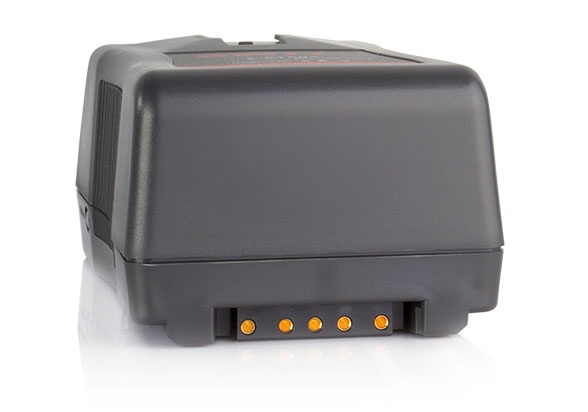

Reliable V-mount Connection
S-8180S is the standard V-mount connection and we adopt the high
quality fiber glass V-wedge that ensures the reliable mounting.
Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8180S
battery, for DC14.4V (Nominate) connection, such as on-camera
lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 120W, 10A.

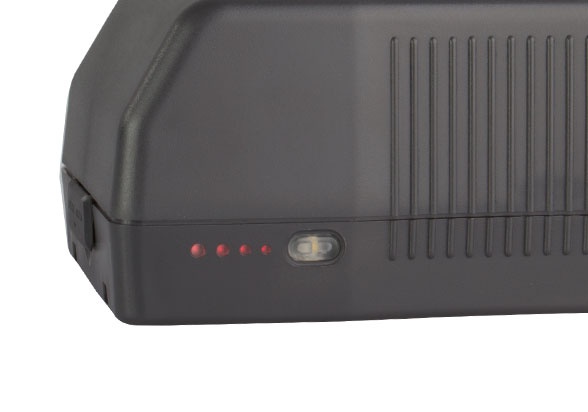

4-level LED Power Indicator
On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity.
You can get a quick view of capacity before using.
Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after
long-term storage due to complete power
drainage.
SWIT batteries adopt a unique low-power
design that could hold the charge for several
years without losing power. There is no need
for regular charge-discharge maintenance,
just effortless, reliable storage when you
need it.
Nominal Voltage | 14.4V |
Capacity | 220Wh/15.3Ah |
Max output power | In total:200W |
| Electrodes:200W,16A | |
| D-tap:120W,10A | |
Mount Type | V-mount |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | Net 1.3kg; With package1.35kg |
Dimensions | 165×90×66mm |
MSRP
$8222
MSRP
$8222
MSRP
$8222
1. Warranty Period
We provide 2 years conditional warranty for batteries.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly, modification, or repair.
(2) Non-Compliant Charging Equipment and Practices
Use of non-original SWIT chargers or uncertified third-party charging accessories;
Use of third-party USB-C chargers without compliant PD protocols;
Use of third-party D-tap charger of reversed polarity connections and cause any damage.
This battery doesn't support charging via D-tap, use any D-tap charger to charge the battery and cause any damage.
(3) Misuse and Physical Damage
Compression, puncture, dropping, impact, collision, water immersion, exposure to high temperatures or direct sunlight, or any other non-normal use not in accordance with the product's intended design.
(4) Use of Damaged or Defective Battery
Continued use of a battery that is damaged, leaking, or exhibiting abnormal overheating without prompt discontinuation.
(5) Natural Capacity Degradation
Reduction in battery capacity resulting from the natural aging process after a certain number of charge/discharge cycles.
(6) Improper Storage and Maintenance
Damage caused by improper storage practices that lead to extended deep discharge or prolonged zero-charge state of the battery.
(7) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(8) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(9) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
