› Square shape design for Cine-cameras
› Max 150W, 12A load
› 2× D-tap output sockets (120W/10A in total)
› 1× USB 5V/2A power output sockets
› OLED display accurate remaining run time
› Multiple circuit protections
Square shape design for Cine-cameras
PB-S series camera batteries are compact designed,
shorter than normal V/Gold mount batteries, and
match perfectly with most of the Cine-cameras.
98Wh Capacity, 150W/12A load
Consists of 12pcs of high class 18650 battery cells, nominal voltage
is 14.4V and reaches 98Wh / 6.8Ah high capacity.
Can run approx 3 hours for normal ENG cameras.
Provides at least 150W/12A high load even at 1% capacity.

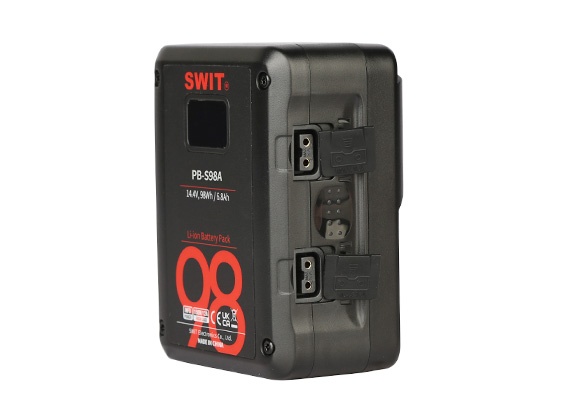

2× D-tap, 1× USB
PB-S98A provides 2x D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.
Digital Power Info
OLED display accurate remaining run time
The build-in OLED can displays remaining power percentage, remaining working time, and battery cycle times.
Battery Protection Display
When any over load, over charging, short circuit, high/low temperature detected, the battery will protect itself and display protection information. You can take steps to re-active battery, to ensure the best battery condition and prolong battery life.
Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after
long-term storage due to complete power
drainage.
SWIT batteries adopt a unique low-power
design that could hold the charge for several
years without losing power. There is no need
for regular charge-discharge maintenance,
just effortless, reliable storage when you
need it.

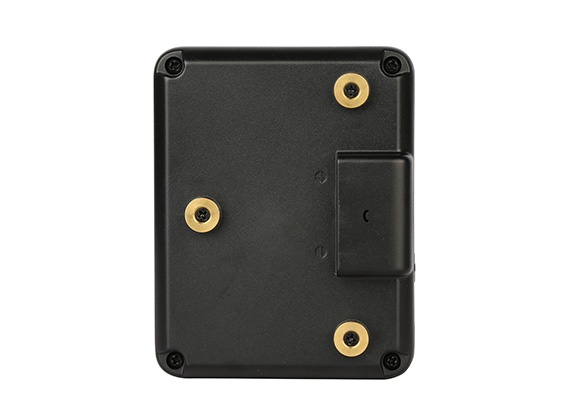

Battery plate | Gold-mount |
Nominal voltage | 14.4V |
Capacity | 98Wh,6.8Ah |
Max output | In total: 150W |
Electrodes: 150W, 12A | |
| USB: 10W, 5V/2A | |
| D-tap: 120W / 10A | |
Dimension | 121×95×62mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | 0.809kg; With package 0.85kg |
Max charging current | 3A |
D-TAP socket number | 2 |
USB socket number | 1 |
MSRP
$8222
MSRP
MSRP
1. Warranty Period
We provide 2 years conditional warranty for batteries.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly, modification, or repair.
(2) Non-Compliant Charging Equipment and Practices
Use of non-original SWIT chargers or uncertified third-party charging accessories;
Use of third-party USB-C chargers without compliant PD protocols;
Use of third-party D-tap charger of reversed polarity connections and cause any damage.
This battery doesn't support charging via D-tap, use any D-tap charger to charge the battery and cause any damage.
(3) Misuse and Physical Damage
Compression, puncture, dropping, impact, collision, water immersion, exposure to high temperatures or direct sunlight, or any other non-normal use not in accordance with the product's intended design.
(4) Use of Damaged or Defective Battery
Continued use of a battery that is damaged, leaking, or exhibiting abnormal overheating without prompt discontinuation.
(5) Natural Capacity Degradation
Reduction in battery capacity resulting from the natural aging process after a certain number of charge/discharge cycles.
(6) Improper Storage and Maintenance
Damage caused by improper storage practices that lead to extended deep discharge or prolonged zero-charge state of the battery.
(7) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(8) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(9) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
