› 14.4V/28.8V Bi-voltage B-mount
› 290Wh high capacity
› 250W constant high load
› 33.6V 100W fast charging
› D-tap 11-16.8V output ×2
› OLED power info display
› Built-in LED torch
› Strong 1.2m drop off proof
› Multiple circuit protections

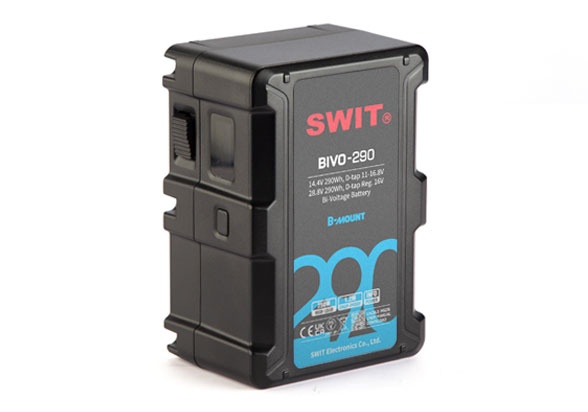

14.4V/28.8V Bi-Voltage
B-mount Battery
BIVO-290 is a 14.4V(10.8-16.8V) and 28.8V
(21.6-33.6V) Bi-voltage B-mount battery, for
ARRI/BMD cameras and various compatible with
regular voltage cameras and cinegears.

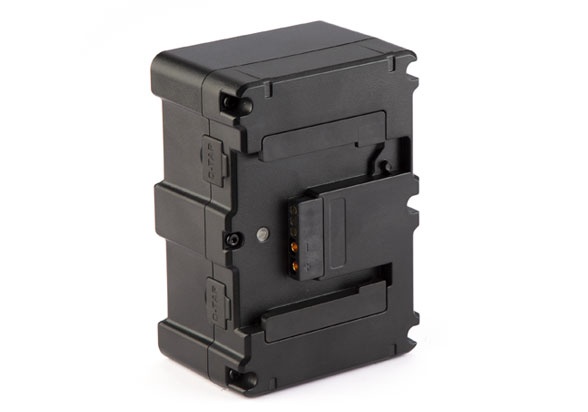

The battery will recognize the ID pin resistor
value of the B-mount plate, and then output
14.4V or 28.8V, without any misuse risks.
290Wh Capacity, 250W Load
BIVO-290 battery has 290Wh large capacity, run
more than 3 hours on ARRI ALEXA 35 camera.
The battery provides at least 250W constant high
load for cine cameras and devices.

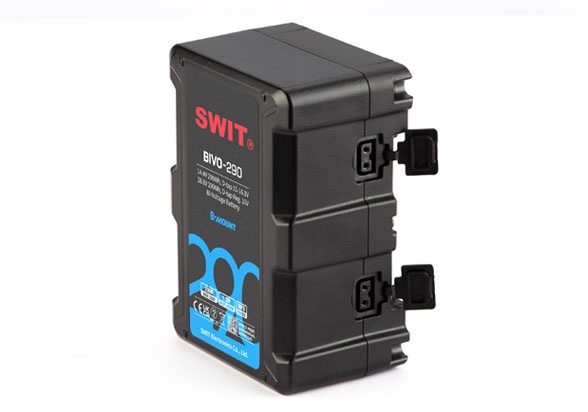

2x D-tap Power Output
BIVO-290 provides with 2x D-tap power sockets.
When the battery works at 14.4V voltage,
the D-tap outputs 11-16.8V;
When the battery works at 28.8V voltage,
the D-tap output regulated 16V,
to power all kinds of camera-top devices.
BIVO Series Family
The BIVO series Bi-voltage B-mount battery famaily has 98Wh, 160Wh, 196Wh, 290Wh, the
different sizes and capacities, for stablizer handheld light weight or long time power selection.

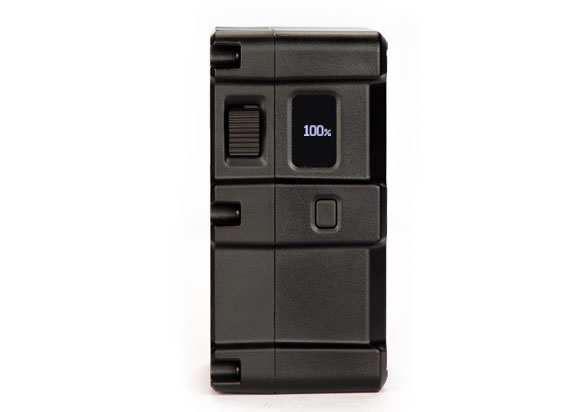

OLED Power Info Display
BIVO-290 battery provides an OLED screen to display battery status and power
information, includes output voltage, power percentage, remaining running time,
and protection warning code if any abnormal detected.
100W Super Fast Charging
You can charge 4x BIVO-290 simultaneously on
SWIT PC-P461B B-mount charger, at 33.6V 3A,
100W super fast charging. The charger will take
approx. 3 hours 50 minutes to fully charge 4x
BIVO-290 batteries.
LED Torch
You can double press the Power Check button to switch on LED
torch on the rear side of the battery, to help you to find B-mount
plate in dark production environment.
Double press the Power Check button again to switch the light
off, and it will be automatically switched off after 30 seconds.
1.2 meters Drop-off Proof
BIVO-290 battery can survive from 1.2 meters
drop-off at any angles, strong and reliable for
filmmakers.
Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after
long-term storage due to complete power
drainage.
SWIT batteries adopt a unique low-power
design that could hold the charge for several
years without losing power. There is no need
for regular charge-discharge maintenance,
just effortless, reliable storage when you
need it.
Voltage | 28.8V (21.6-33.6V) & 14.4V (10.8-16.8V) |
Capacity | 290Wh |
Constant load | (28.8V) 250W, 10A (14.4V) 250W, 20A |
Charging | 33.6V 100W fast charging |
Mount Type | B-mount |
D-tap ×2 | 14.4V status: 10.8-16.8V out, 250W load |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | Net 1.52kg; With package1.6kg |
Dimensions | 144×100×70mm |
MSRP
MSRP
MSRP
-
BC-PD100
D-tap to USB-C 100W Bi-directional
Upgrade camera batteries to adapt USB-C port, 100W constant load
1. Warranty Period
We provide 2 years conditional warranty for batteries.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly, modification, or repair.
(2) Non-Compliant Charging Equipment and Practices
Use of non-original SWIT chargers or uncertified third-party charging accessories;
Use of third-party USB-C chargers without compliant PD protocols;
Use of third-party D-tap charger of reversed polarity connections and cause any damage.
This battery doesn't support charging via D-tap, use any D-tap charger to charge the battery and cause any damage.
(3) Misuse and Physical Damage
Compression, puncture, dropping, impact, collision, water immersion, exposure to high temperatures or direct sunlight, or any other non-normal use not in accordance with the product's intended design.
(4) Use of Damaged or Defective Battery
Continued use of a battery that is damaged, leaking, or exhibiting abnormal overheating without prompt discontinuation.
(5) Natural Capacity Degradation
Reduction in battery capacity resulting from the natural aging process after a certain number of charge/discharge cycles.
(6) Improper Storage and Maintenance
Damage caused by improper storage practices that lead to extended deep discharge or prolonged zero-charge state of the battery.
(7) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(8) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(9) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
