› 14.4V/28.8V Bi-voltage B-mount
› 98Wh fly-friendly capacity
› 150W constant high load
› D-tap 11-16.8V output ×2
› LED power & voltage indicators
› Built-in LED torch
› Strong 1.2m drop off proof
› Multiple circuit protections

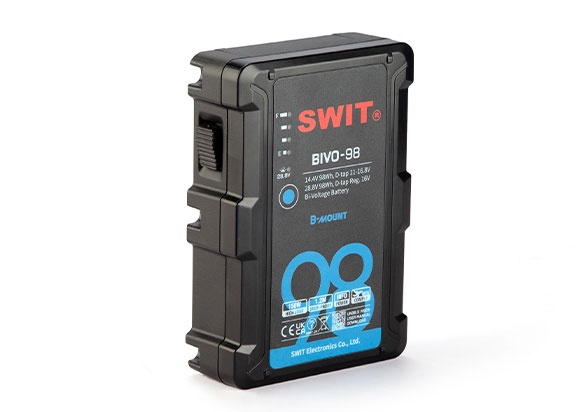

14.4V/28.8V Bi-Voltage
B-mount Battery
BIVO-98 is a 14.4V(11-16.8V) and 28.8V
(22-33.6V) Bi-voltage B-mount battery, for
ARRI cameras and various compatible with
regular voltage cameras and cinegears.
The battery will recognize the ID pin resistor
value of the B-mount plate, and then output
14.4V or 28.8V, without any misuse risks.
98Wh Fly Friendly Capacity
BIVO-98 battery is only 38mm thickness and 668g light weight for handheld shooting. It's 98Wh capacity, run at least 1
hour on ARRI ALEXA 35 camera, and not being
restricted to board airplane.
The battery provides at least 150W constant power
load for cine cameras and devices.

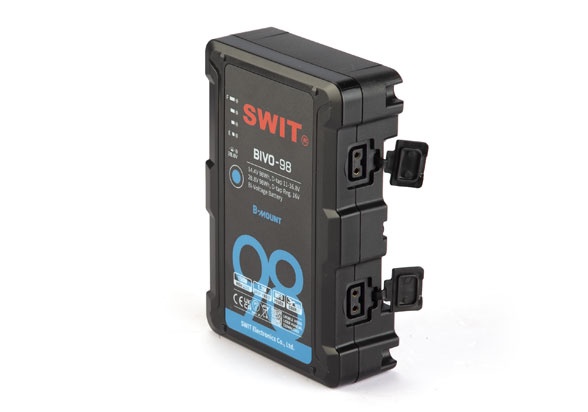

2x D-tap Power Output
BIVO-98 provides with 2x D-tap power sockets.
When the battery works at 14.4V voltage,
the D-tap outputs 11-16.8V;
When the battery works at 28.8V voltage,
the D-tap output regulated 16V,
to power all kinds of camera-top devices.
BIVO Series Family
The BIVO series Bi-voltage B-mount battery famaily has 98Wh, 160Wh, 196Wh, 290Wh, the
different sizes and capacities, for stablizer handheld light weight or long time power selection.
LED Power/Voltage Indicators
BIVO-98 has 4-level LED power indicators and an
independent blue LED to indicate battery voltage.
When the battery attached to B-mount plate, the blue
LED turned on means the battery outputs 28.8V high
voltage, and the blue LED off means the battery is
14.4V regular voltage.
33.6V Fast Charging
You can charge 4x BIVO-98 simultaneously on SWIT
PC-P461B B-mount charger, at 33.6V, 44W fast
charging. The charger will take approx. 3 hours to
fully charge 4x BIVO-98 batteries.
LED Torch
You can double press the Power Check button to switch on LED
torch on the rear side of the battery, to help you to find B-mount
plate in dark production environment.
Double press the Power Check button again to switch the light
off, and it will be automatically switched off after 30 seconds.
1.2 meters Drop-off Proof
BIVO-98 battery can survive from 1.2 meters
drop-off at any angles, strong and reliable for
filmmakers.
Voltage | 28.8V (21.6-33.6V) & 14.4V (10.8-16.8V) |
Capacity | 98Wh |
Constant load | (28.8V) 150W, 6A; (14.4V) 150W, 12A |
Charging | 33.6V 44W fast charging |
Mount Type | B-mount |
D-tap ×2 | 14.4V status: 10.8-16.8V out, 150W load |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | Approx 668g |
Dimensions | 144×100×38mm |
