› High-load Li-ion cells
› At least 200W, 16A constant load
› 14.4V, 220Wh capacity
› D-tap output socket
› 4-level LED power indicator
› Gold mount type connection
› 0.8m drop-off proof
› Multiple circuit protections

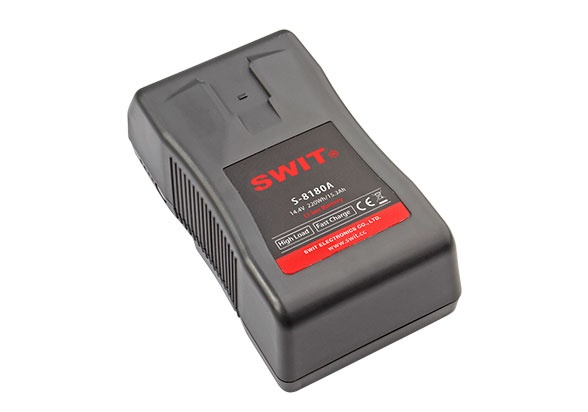

Adopt High-Load Li-ion Cells
Max 200W, 16A constant power output Perfect for high draw power application
Normal Li-ion batteries offer 100W/8A output and suitable
for most ENG cameras, but the Cine Cameras such as
ALEXA require around 85W high draw which is too heavy
for the normal Li-ion batteries: the battery life will be re-
duced if long time full draw powering. Moreover, if there’re
monitor, lighting work together, and total power will be
above 100W, and the normal batteries can not draw
completely.
Using S-8180S high-load battery, you can get MAX 200W/16A constant power output, which can drive more
high power cameras, lightings and other equipments easily,
and won’t reduce battery life during long time high power
output.
220Wh / 15.3Ah High Capacity
Consists of 24pcs 18650 battery cells, and reaches
220Wh / 15.3Ah high capacity.
Can run approx 7 hours for normal 30W ENG cameras;
and approx 2.5 hours for ARRI Alexa camera

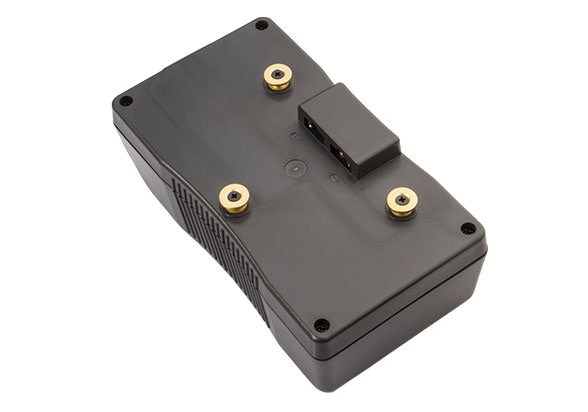

AntonBauer Gold Mount Connection
S-8180A is compatible with AntonBauer Gold mount type power system and we adopt
the high quality connection bolts that ensure the reliable mounting.

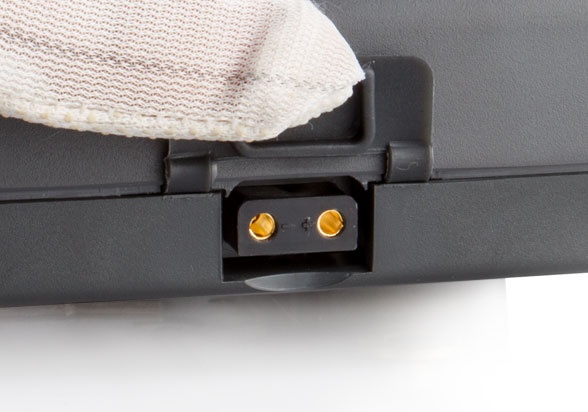

Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8180A
battery, for DC14.4V (Nominate) connection, such as on-camera
lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 120W, 10A.

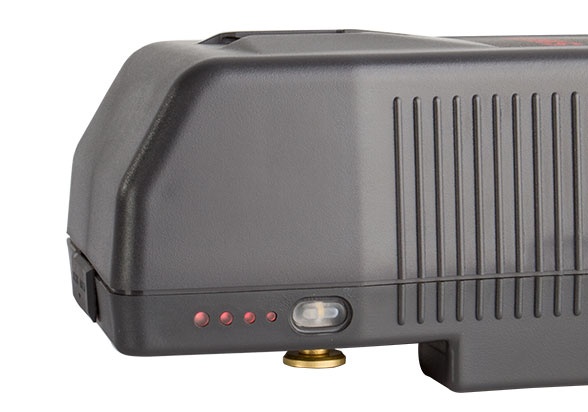

4-level LED Power Indicator
On the side of the battery, there’re 4-level LED power
indicators to check the battery remaining capacity. You
can get a quick view of capacity before using.
Nominal Voltage | 14.4V |
Capacity | 220Wh/15.3Ah |
Max output power | In total:200W |
| Electrodes:200W,16A | |
| D-tap:120W,10A | |
Mount Type | Gold mount |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | 1.3kg; With package 1.35kg |
Dimensions | 165×90×68mm |
MSRP
$8222
MSRP
MSRP
1. Warranty Period
We provide 2 years conditional warranty for batteries.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly, modification, or repair.
(2) Non-Compliant Charging Equipment and Practices
Use of non-original SWIT chargers or uncertified third-party charging accessories;
Use of third-party USB-C chargers without compliant PD protocols;
Use of third-party D-tap charger of reversed polarity connections and cause any damage.
This battery doesn't support charging via D-tap, use any D-tap charger to charge the battery and cause any damage.
(3) Misuse and Physical Damage
Compression, puncture, dropping, impact, collision, water immersion, exposure to high temperatures or direct sunlight, or any other non-normal use not in accordance with the product's intended design.
(4) Use of Damaged or Defective Battery
Continued use of a battery that is damaged, leaking, or exhibiting abnormal overheating without prompt discontinuation.
(5) Natural Capacity Degradation
Reduction in battery capacity resulting from the natural aging process after a certain number of charge/discharge cycles.
(6) Improper Storage and Maintenance
Damage caused by improper storage practices that lead to extended deep discharge or prolonged zero-charge state of the battery.
(7) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(8) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(9) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
