› 720pcs Surface mounted LEDs
› 2:1 size, 100W, 3300Lux @ 1meter
› No fan, no noise
› Half-peak 65° wide beam angle
› 5600K daylight color temperature
› 0-100% flick-free dimming
› CRI Ra 97, TLCI 99, SSI (D55) 75
› DMX512 controlled dimmer
› USB power out for wireless DMX receiver
› LCD display color, dimmer and DMX addr
› PowerCON TRUE1 AC in and loop out

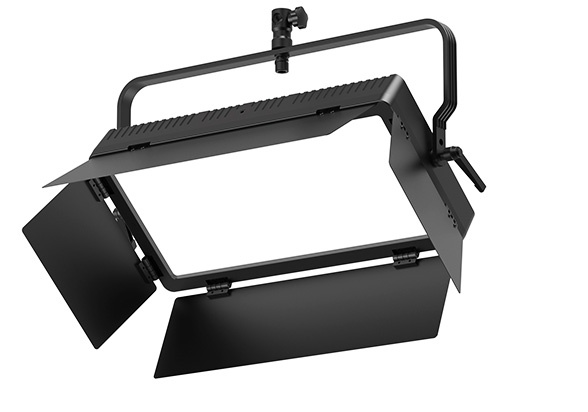

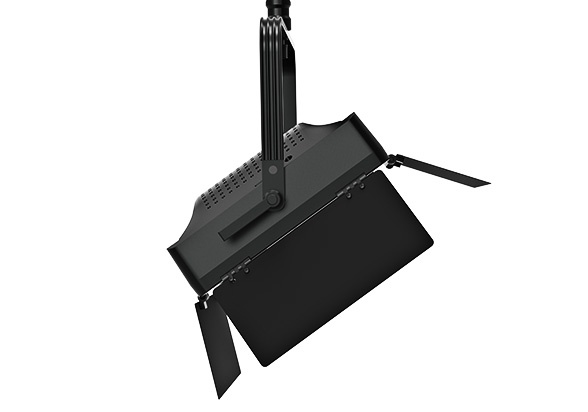

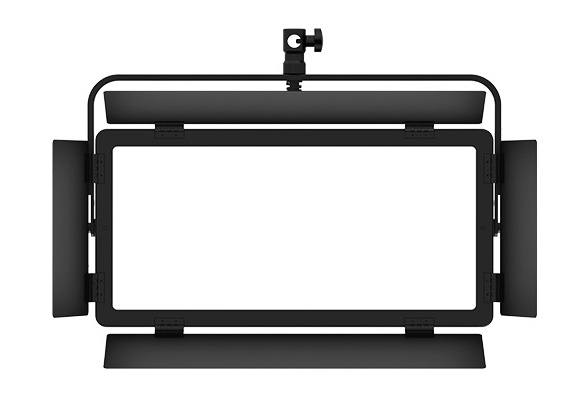

› 4-leaf metal barn doors and Yoke bracket
› Optional 40° honeycomb (LA-G100)
100W Studio Panel LED Light
Brighter, softer, wider beam angle
CL-100 is a 100W 2:1 SMD LED panel light of daylight
color temperature, with DMX control, high CRI/TLCI and
accurate color performance, for broadcast studio,
mobile studio, live streaming studio install applications.
3300 Lux @ 1 meter
CL-100 has 720pcs long life SMD LEDs, outputs 100W power,
feeds 3300Lux luminance at 1 meter distance (center), supports
0 to 100% PWM digital dimming, smoothly and non-flickering.
The SMD LEDs featured high uniformity of illuminance, soft and
bright, an ideal light source for Broadcast studios, green keyer,
live streaming etc.
Wider Beam Angle
The CL-100 SMD LEDs have wider
beam angle comparing to the
traditional DIP LED bulbs. It will
generate an equally spread area light
from center to edge, instead of a
glaring light spot that suddenly
declined from center to edge.
The wider angle equally spread light
produces a nature light environment
in studio.
IEC 62471 Photobiological Safe Certificated
The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.
5600K Daylight Color Temp
CL-100 adopts 4-step MacAdam Ellipse SMD-LEDs,
outputs accruate 5600K color temperature for
daylight studio application.
Accurate Color Render
CRI 97; TLCI 99
CRI (Color Rendering Index) is a measure of the
ability of a light source to reveal the colors of various
objects faithfully in comparison with a natural light
source. And TLCI (Television Lighting Consistency
Index) is special for the color reveal ability by camera
sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while
CL-100 offers the super high CRI at 97 and TLCI at
99, and will not lose the object original colors.

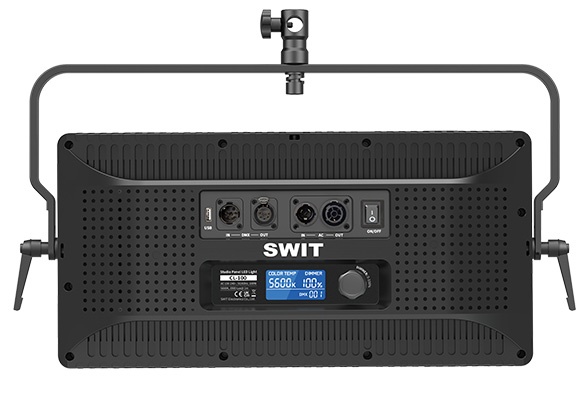

DMX, AC IN & LOOP
CL-100 provides 5-pin XLR DMX512 in and out,
with a 5V USB-A socket to power wireless DMX
receiver. For convenient studio installation, the
CL-100 provides PowerCON True 1 AC in and loop
out sockets, which will loop through more than 25x
CL-100 lights under 220V AC voltage, and 13x
CL-100 lights under 110V voltage.

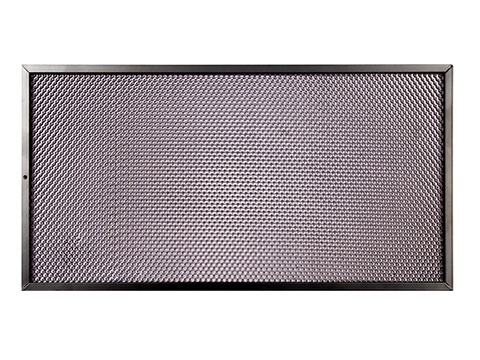

Optional Honeycomb
CL-100 provides a 40° metal honeycomb plate for
optional purchase. The honeycomb can be used
together with barndoors.
Honeycomb Part number: LA-G100
LED | 720pcs SMD LEDs |
Illuminance | 3300Lux @ 1m |
Beam angle | 65° half peak |
Color Temperature | 5600K |
CRI | 97 |
TLCI | 99 |
Power | 100W |
USB | 5V USB-A power out |
DMX | DMX512, 5pin XLR IN & OUT |
AC Power | PowerCON TRUE1 AC 100-240V 50/60Hz input & output |
Dimension | 480×240×87mm; Shipping carton 625×145×400mm |
Lighting area | 435×195mm |
weight | 3.2kg; With package 5.2kg |
MSRP
MSRP
MSRP
-

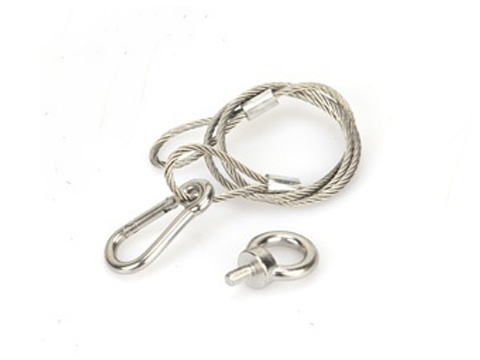

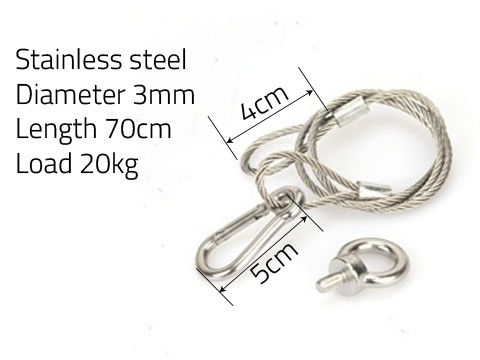

Safety rope and Ring
-

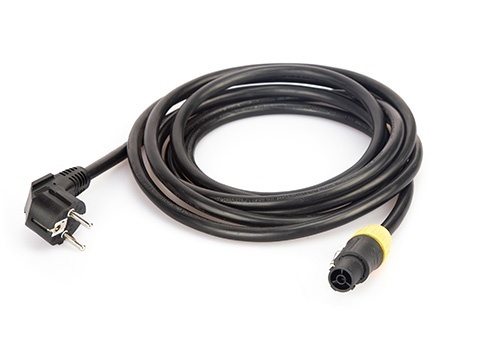

PowerCON TRUE1 AC cable
-
LA-PO100

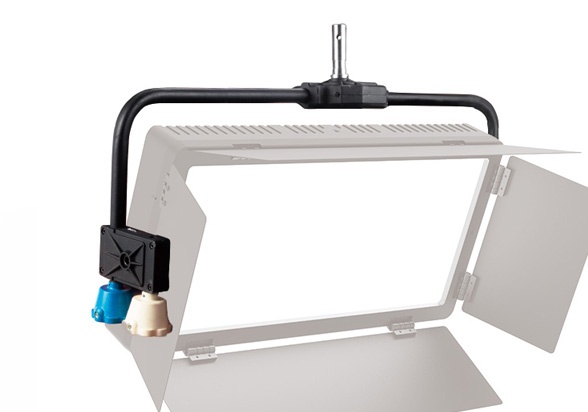

2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. Dedicated size for SWIT CL-100 and CL-100D studio panel lights -
PA-LC20

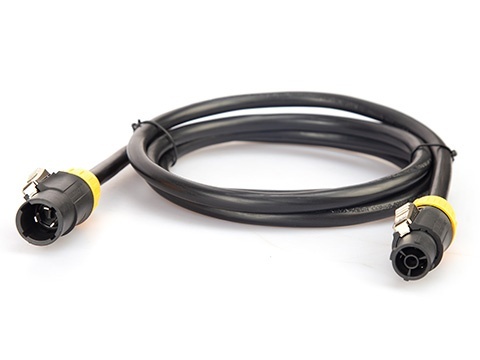

PowerCON TRUE1 loop out cable, 2meters, 16A load, AC 220V: Max 25x CL-100 looped AC 110V: Max 13x CL-100 looped -
LA-G100
Honeycomb 40°, metal, install to the front frame of the light, can work together with barndoors
-
CL-100D
100W Bi-color Studio SMD Panel LED Light
2:1 size, 3300Lux@1m, 2700-6500K, DMX, CRI 97 TLCI 99, AC IN & OUT
