› 100W COB LED Fresnel studio light
› Equivalent to 250W Halogen bulb light
› Fanless, absolutely silent
› 12-26° Flood/Spot angle adjust
› 55,000Lux@1m high bright hard light
› 2700K-6500K continuously adjust
› 0-100% flick-free dimming
› CRI Ra 97, TLCI 99
› DMX512 In & out dimmer control
› Dimmer/Color Temp independent DMX addr
› USB power out for wireless DMX receiver
› LCD display color, dimmer and DMX addr
› Strong filter mounting bracket
› PowerCON TRUE1 AC in and loop out
› 4-leaf metal barn doors and Yoke bracket

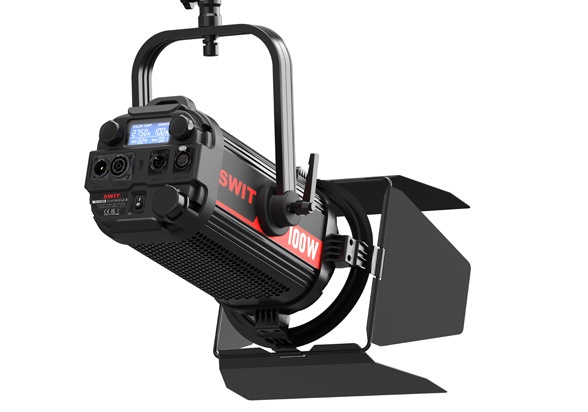

100W Fanless Fresnel Light
250W Halogen Equivalent, absolutely silent
FL-C100D is a 100W Bi-color COB-LED fresnel light,
55,000Lux @1m high bright, equivalent to a 250W halogen bulb light, with DMX control, high
CRI/TLCI and accurate color performance, and no fan,
no noise at all, for broadcast studio, theatre, film set
install applications.
12°-26° Spot/Flood Adjust
FL-C100D outputs 12°-26° beam angle by adjusting
position of LED board internally, 0 to 100% PWM digital
dimming, smoothly and non-flickering.
IEC 62471 Photobiological Safe Certificated
The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.
2700K-6500K Continuous
FL-C100D COB-LED includes100W 2700K and
100W 6500K LED, and can be continuously adjusted
between 2700K and 6500K. The light outputs 100W
at any color temperature.
Accurate Color Render
CRI 97; TLCI 99
CRI (Color Rendering Index) is a measure of the
ability of a light source to reveal the colors of various
objects faithfully in comparison with a natural light
source. And TLCI (Television Lighting Consistency
Index) is special for the color reveal ability by camera
sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while
FL-C100D offers the ultra high CRI at 97 and TLCI at
99, and will not lose the object original colors.

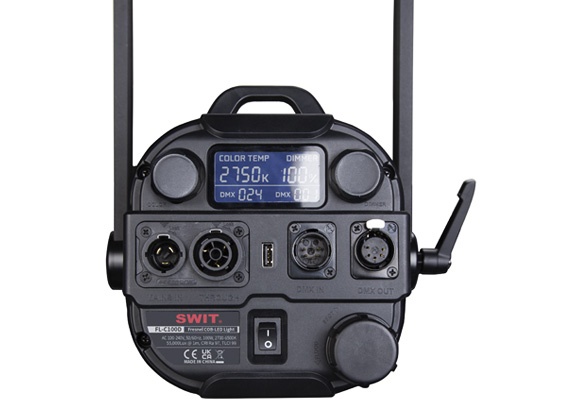

DMX, AC IN & LOOP
FL-C100D provides 5-pin XLR DMX512 in and out, with a 5V USB-A socket to power wireless DMX receiver.
For convenient studio installation, the
FL-C100D provides PowerCON True 1 AC in and
loop out sockets, which will loop through more
than 25x FL-C100D lights under 220V AC voltage,
and 13x FL-C100D lights under 110V voltage.
Independent DMX Addr Setting
The regular Bi-color lights use N and N+1 to set Dimmer and
Color temp DMX addresses, which means 1x light occupy 2x
DMX sliders on the console.
Now the FL-C100D can set independent DMX addresses for
Dimmer and Color temp. For example you can set Color temp
DMX 024 for every light, and Dimmer DMX 001, 002, 003...
sequentially, to save sliders on the console.

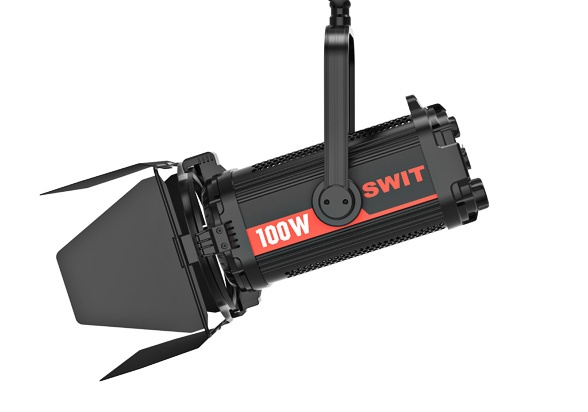

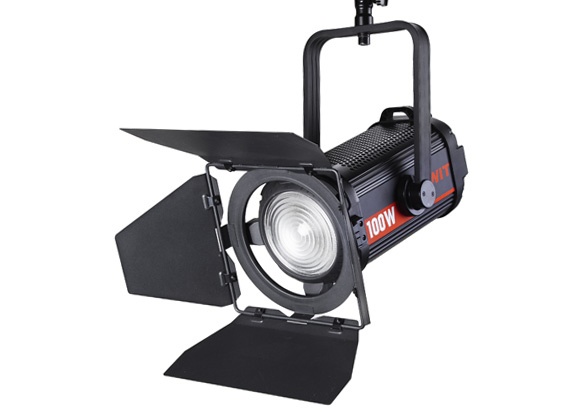

4-leaf Metal Barn Door
FL-C100D is equipped with 4-leaf metal barn
doors, dismountable and rotatable. The light also
provides a special black-out cloth to prevent the
light leakage.

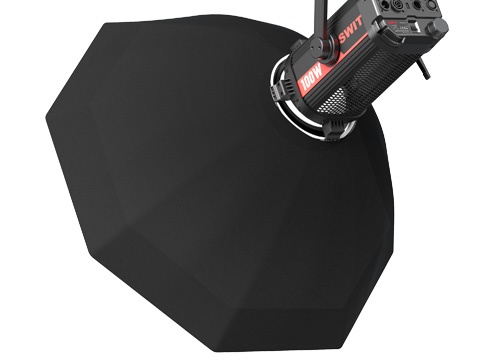

Optional Diffuser Box
Provide Octangle Diffuser Box as optional
accessory. Compatible with all 90mm
diameter fresnel lights includes SWIT
FL-C100, FL-C100D, FL-C200D, FL-C400D,
etc, with dual diffuser layers and eggcrate.
Part Number: LA-BC90.
LED | COB Chip-on-board LED |
Spot angle | 12° - 26° adjust |
Illuminance | 55,000Lux@1m/Spot |
Color Temperature | 2700K - 6500K |
CRI | 97 |
TLCI | 99 |
Power | 100W |
USB | 5V USB-A power out |
DMX | DMX512, 5pin XLR IN & OUT |
AC Power | PowerCON TRUE1 AC 100-240V 50/60Hz input & output |
Dimension | 160×160×364mm; Shipping carton 525×330×315mm |
Weight | 5.2kg; With package 7.8kg |
MSRP
MSRP
MSRP
-

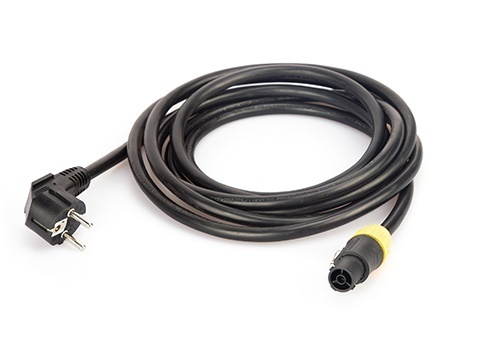

PowerCON TRUE1 AC cable
-
Barn door kit
-

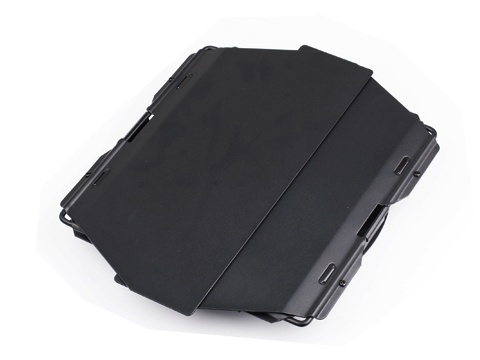

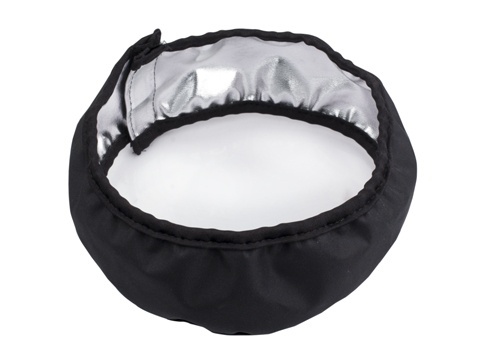

Black out cloth
-

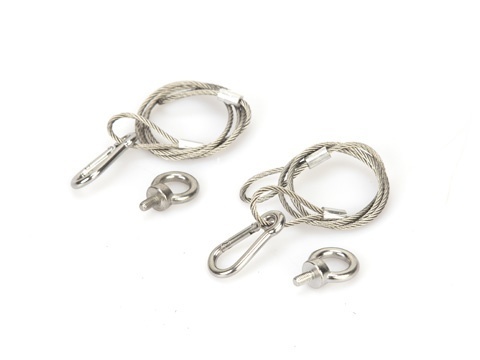

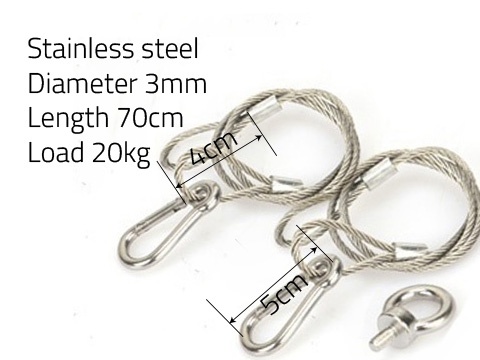

Safety rope
-
LA-BC90
Octangle Diffuser Box with dual diffuser layers and eggcrate, Compatible with all 90mm diameter fresnel lights includes SWIT FL-C100, FL-C100D, FL-C200D, FL-C400D, etc -

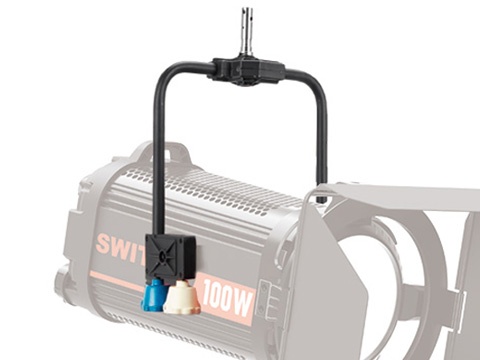

LA-POC100
2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. Dedicated size for SWIT FL-C100 and FL-C100D studio fresnel lights -

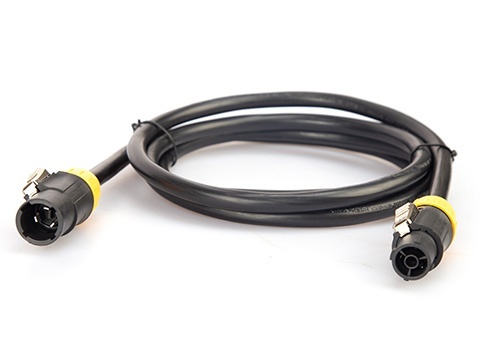

PA-LC20
PowerCON TRUE1 loop out cable, 2meters, 16A load, AC 220V: Max 25x FL-C100D looped AC 110V: Max 13x FL-C100D looped
