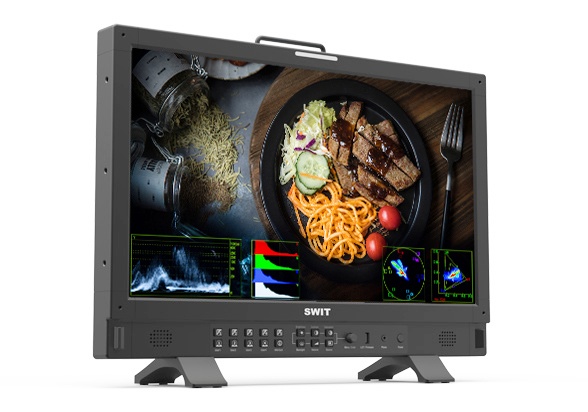

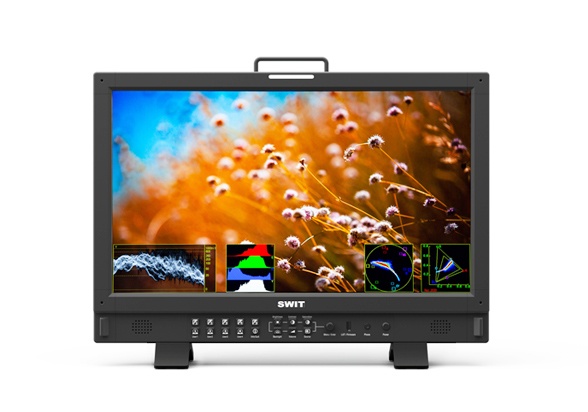

21.5-inch 1000nits HDR

FHD, 100% DCI-P3 QLED Panel

BM-H215HDR adopts a 21.5-inch 1920x1080 QLED panel, 100% DCI-P3 coverage wide color gamut, 1000nits high bright backlight for HDR productions, 1000:1 contrast, H/V 178° viewing angle.

Multi 4K Interfaces

BM-H215HDR provides 4x SDI inputs and 2x SDI loop outputs, supports multiple 4K inputs including:
- 12GSDI Single link 4K;
- 4x3GSDI Quadlink 4K, (SQD and 2SI)
- HDMI® 2.0 (4K60P)

Supports pixel-to-pixel zoom-in the 4K signal to FHD panel.

Display Modes

Supports Single link 4K input including 12GSDI, HDMI®2.0, and Quad link 4x 3GSDI 4K inputs. You can also input 4x independent sources to multiview, or 2x sources Pic-by-Pic or Pic-in-Pic view, supports 12G/6G/3G/HD-SDI and HDMI® 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input.

VICO 1.97 Eye Protect

BM-H215HDR QLED panel has a Quantum Dot layer between LCD screen and its LED backlight, which changes the LED spectrum to reduce blue and balance the R/G/B peak, which will stimulate people’ s cone cells evenly, and reducing visual fatigue effectively.

The VICO (Visual Health and Comfort) testing scores 1.97, A class, to protect your eyes from long time video editting or broadcast studio productions.

HLG/PQ/S-Log3 HDR

BM-H215HDR has native 1000nits high bright backlight, provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Color Gamut selection from LCD native, REC.709, DCI-P3 and REC.2020.

Payload ID Auto Setting

Support input video Payload ID identify and the monitor will automatically set HDR/SDR EOTFs, Color Gamut, Input range, Color space and Color depth according to the Payload ID info.

Multi CG & EOTF Viewing

Supports 1 input source copied to 4 windows and display different HDR/SDR and color gamut simultaneously. You can get correct reference when producing HDR and SDR together.

3DLUT Auto Self-Calibration

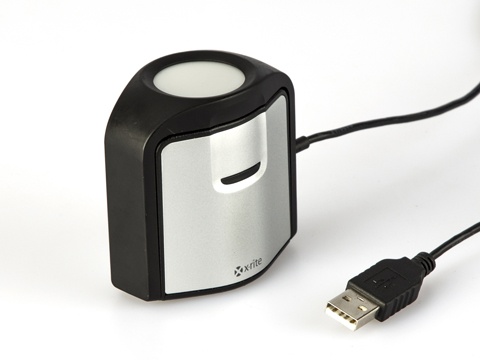

By X-rite i1 or JETI Specbos 1211

With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port. The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically. Calibration time: X-rite i1 15min, Specbos 1211 45min Calibration result: ∆E≤1.0

Audio/Video Zero Latency

Support Zero latency mode (less than 1/100 frame) for lip-sync monitoring.

HDR/SDR De-log LUTs

The monitor has built-in multi camera logs to HLG1000, PQ1000, Rec 709 SDR conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm etc.
You can also upload User LUTs to monitor by USB disk, support 17x17x17 3DLUT cube files.

Multiple Video Analysis Patterns

Audio Patterns

Max 16-ch embedded audio meters display, and select any 2 channels audio to output via speaker or 3.5mm headphone socket.

Moreover, BM-H monitors support Lissajous figures and 5.1 & 7.1 surround sound patterns.

Eye Pattern

Built-in eye pattern to check input video transmission quality via SDI cable, especially the 12GSDI quality.

Webserver IP Remote Control

BM-H215HDR supports webserver remote control by Ethernet LAN connection.
Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.

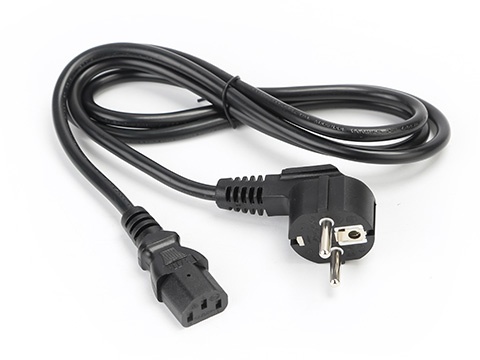

Power Supply

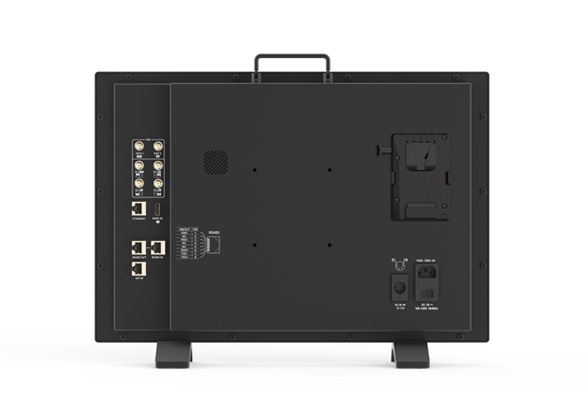

BM-H215HDR consumes 60W power, supports both AC 100-240V input and 4-pin XLR DC 12-17V input, and equipped with a V-mount battery plate on the rear panel. (Gold mount for option)
