FM-215HDR, is a 21.5-inch 4K HDR QD-LED field monitor designed for on-set film production and live streaming. This monitor is a testament to SWIT's commitment to innovation, featuring a Quantum Dot (QD) technology panel that delivers vibrant colors and exceptional brightness, making it an ideal choice for outdoor shoots and live events.
Product Highlights
Quantum Dot Technology: The FM-215HDR showcases a state-of-the-art Quantum Dot LED (QD-LED) panel, offering 1000nits brightness and superior color accuracy. Quantum Dot technology, with its nano-crystal architecture, produces purer and more saturated colors while maintaining brightness and contrast, bringing every frame to life with stunning clarity.
Versatile 4K Input Interfaces: With support for 12G-SDI 4K in and out, 4× 3G-SDI Quadlink 4K input, and HDMI® 2.0 4K input, the FM-215HDR seamlessly integrates with a wide array of professional video equipment, meeting the highest production standards.

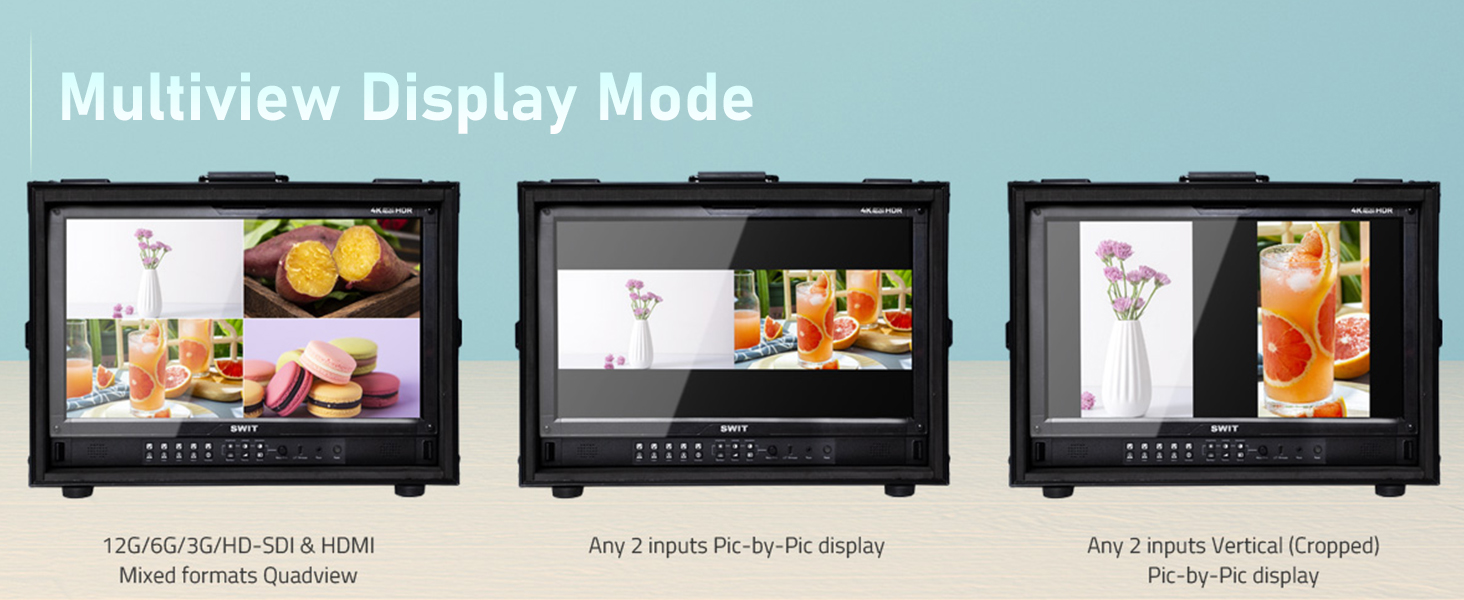

Multi-View Display Modes: Its innovative multi-view capabilities allow users to monitor multiple signal sources simultaneously, including quad view for mixed format inputs, or any two inputs in Picture-by-Picture (PBP) or Picture-in-Picture (PIP) views, along with a vertical (cropped) display mode, providing robust technical support for multi-platform live streaming.

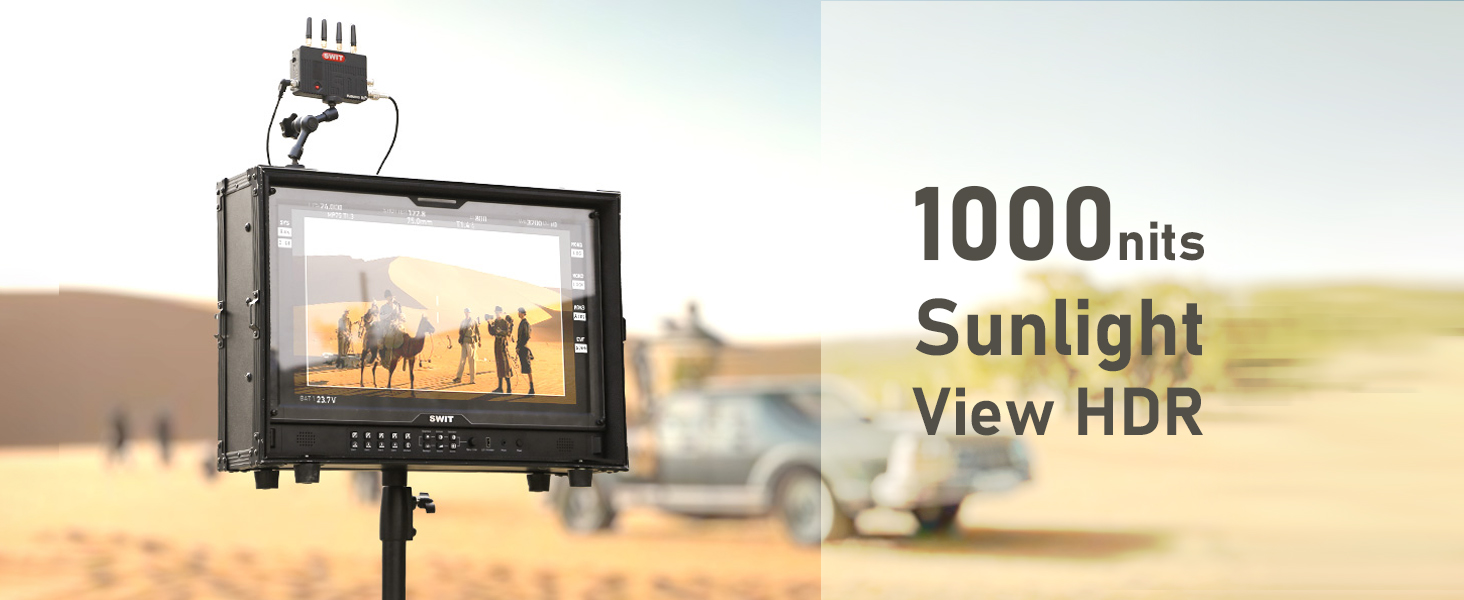

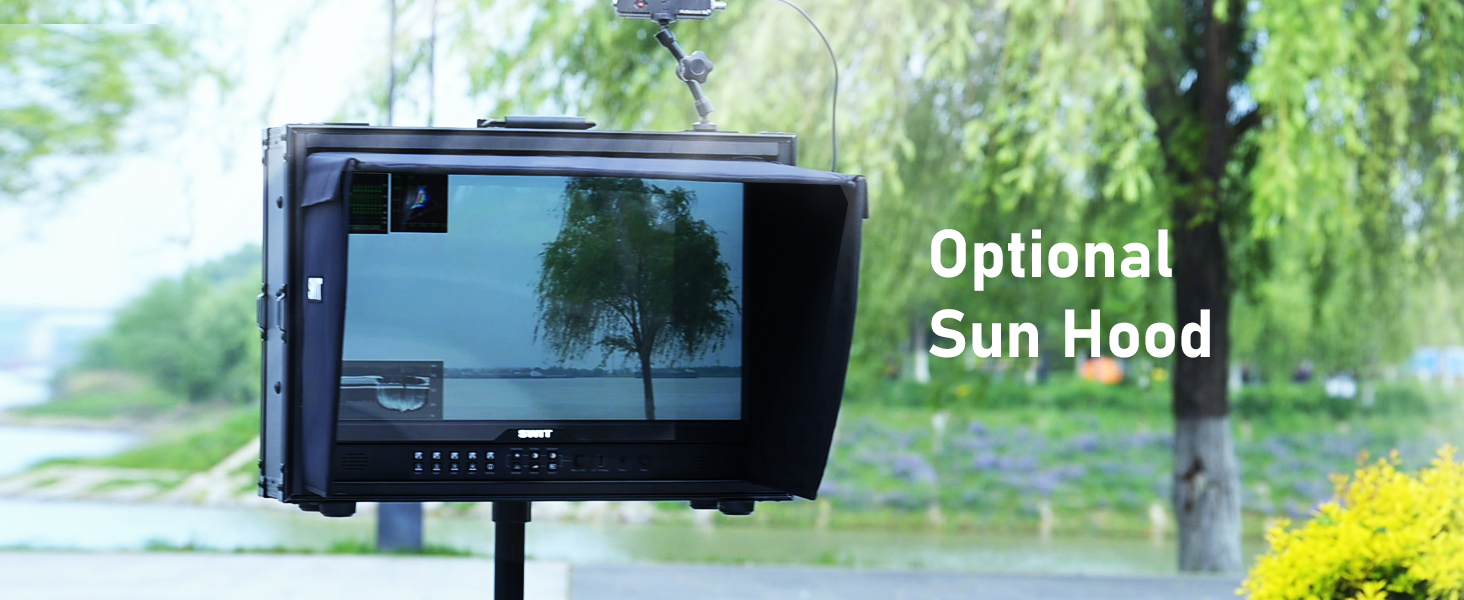

Outdoor Viewability: Designed for outdoor use, the FM-215HDR's high-brightness display remains clearly visible even under direct sunlight,with optional accessories, making it the perfect choice for outdoor filming and live streaming.

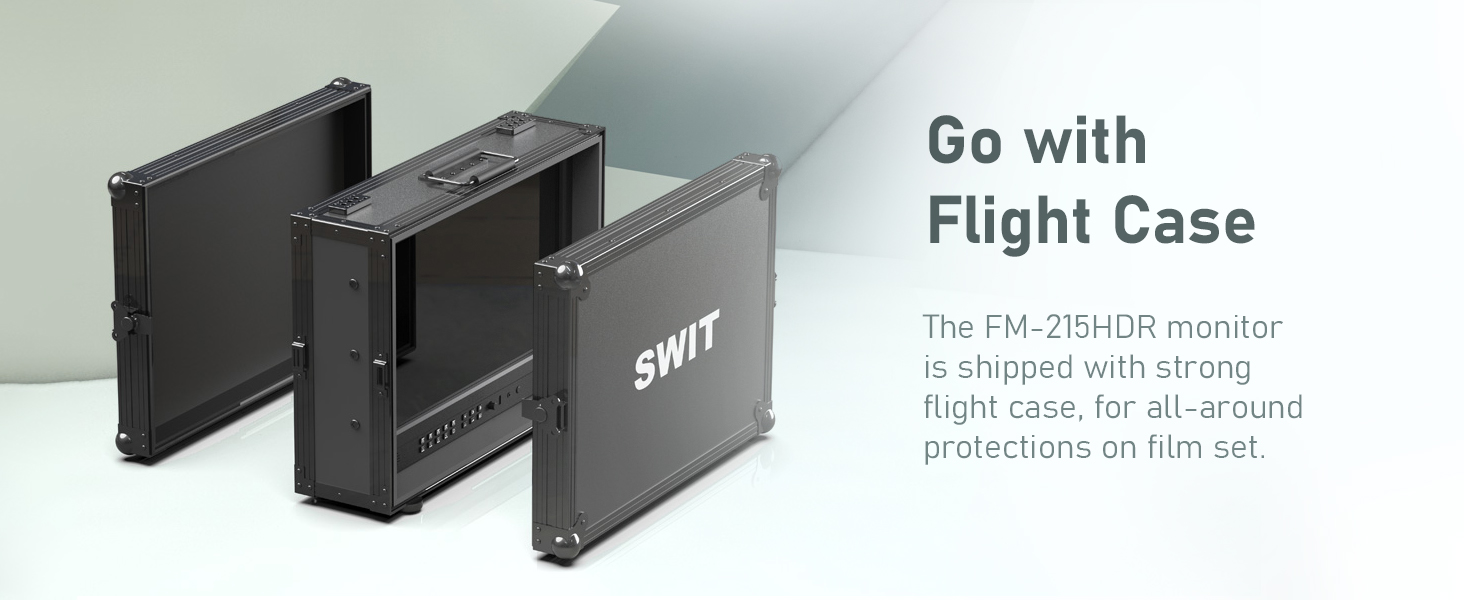

Portable Design: The monitor comes with a robust aluminum flight case and a high-transparency screen protector, making it easy to transport and install while ensuring equipment safety.

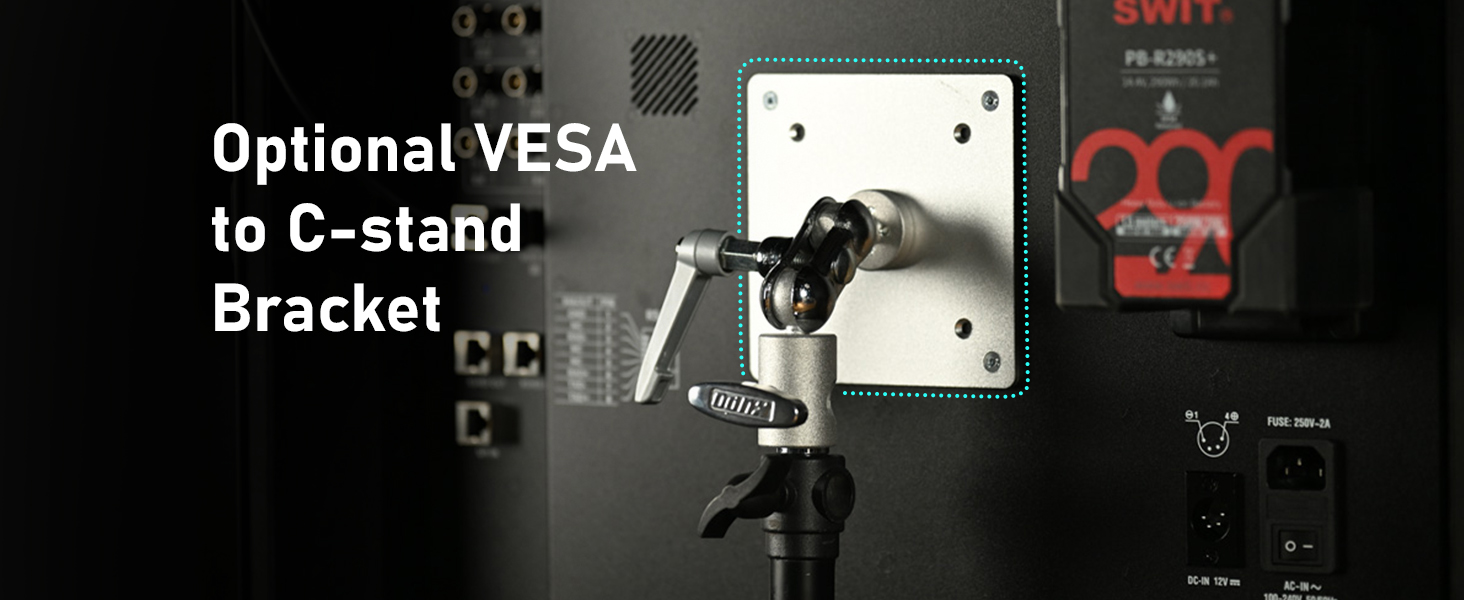

VESA Adapter: Featuring a standard 10×10 VESA mount, the FM-215HDR also offers an optional VESA to 5/8” baby-pin C-stand/light stand adapter for greater installation flexibility.
Technical Specifications
Panel Type: QD-LED
Size: 21.5 inches
Resolution: 1920×1080
Brightness: 1000nits
Contrast Ratio: 1000:1
Color Depth: 10-bit
Signal Processing: 18-bit
Viewing Angle: 178°(H) / 178°(V)
Additional Features
Color Gamut and Gamma: Supports REC.709/DCI-P3/REC.2020 color gamuts and PQ/HLG/S-log3 HDR Gamma, catering to various production standards.
Automatic Settings: Supports Payload ID for automatic color gamut and Gamma setup, simplifying the operational process.
Built-in LUTs: Comes with various Log conversion LUTs and supports user 3D LUT USB uploads for greater creative control.
Signal Processing: 18-bit internal signal processing ensures zero video delay, guaranteeing real-time, precise signal output.
Color Calibration: Built-in 3D LUT calibration software supports fully automatic color calibration, ensuring color accuracy and consistency.
Purchase Information
The FM-215HDR is now available for purchase through the SWIT Global official website SWIT Online or authorized dealers.
https://www.swit.cc/FM-215HDR/on-line.html
*The package includes installation plates, a screen protector, and a flight case.
