PA-701 3-pin XLR Female to Male
› 3-pin XLR female to male cable
› VOLTA-DC1600 24V/48V power output
› VOLTA PRO 48V power output
› TD-R230S 48V power output
› For Skypanel, Orbiter, Aputure lights
› For SWIT Monet, PL-S300H/D lights
› 15A power load
› 2 meters cable length

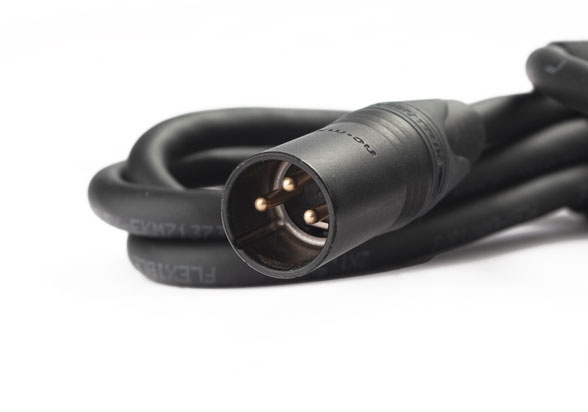

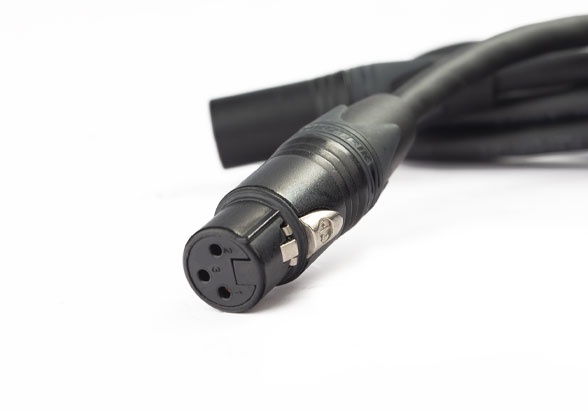

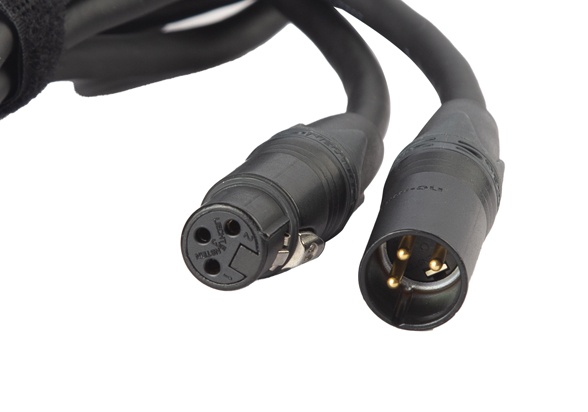

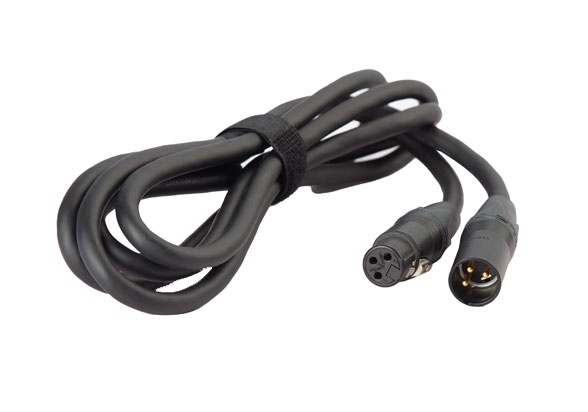

3-pin XLR Male to Female
PA-701 is a 3-pin XLR male to 3-pin XLR female power
cable, with 15A power load and 2 meters cable length.
You can connect to 3-pin XLR DC48V power sources like
SWIT VOLTA-DC1600, VOLTA PRO or TD-R230S, and
supply power to 3-pin XLR devices like ARRI Skypanel X,
PRO, S60/120, Orbiter, Aputure LS600/1200, NOVA
P300/P600, SWIT MONET-400/700, and more.
MSRP
MSRP
MSRP
-
TD-R230S
48V 750W Light Stand Power Adaptor
3-pin 48V 750W and SpeakON 22-33.6V 750W outputs, 25-45mm light stand install
-
VOLTA-DC1600
Modular Add-on Floor Battery
1600Wh large capactiy, 15V/24V/48V/USB-C output, 1700W load, solar panel charging, AC charging, Add-on 1600Wh battery packs.
-
VOLTA PRO
9kWh Modular Power Station
Eurobox standard size, AC 230V 2400W out, DC 48V 800W out ×3, Daisy Chain extension
We provide a 1-year conditional warranty, and the following damages/issues are not covered under warranty:
(1) Any damage or malfunction caused by use, maintenance, or installation not in accordance with the User Manual's instructions, including improper insertion into camera or power device, incorrect polarity connection, cable bending beyond recommended radius, or disassembly/repair without authorization of SWIT.
(2) Any damage caused by using third-party power supplies, batteries, chargers, or accessories that do not comply with the recommended electrical specifications, or by operating the product beyond its rated current, voltage, or load limits as stated in the technical specifications — including but not limited to melted insulation, burnt contacts, internal short circuits, or blown fuses resulting from over-current, over-voltage, or excessive load.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning, flood, etc.) or human factors including crushing, pulling with excessive force, pinching, dropping, or improper storage in contact with sharp or heavy objects.
(4) Any damage or malfunction not caused by the product's design, workmanship, or manufacturing quality — including normal wear and tear of cable jackets, connector plating, strain relief boots, or contact spring tension.
(5) Physical damage to plugs, sockets, connector housings, locking tabs, or terminal pins resulting from violent use, improper insertion/removal, forced connection with incompatible ports, or pulling on the cable body instead of the connector is specifically excluded from warranty coverage. This includes bent, snapped, or cracked plug shells, broken latch mechanisms, separated solder joints from excessive strain, and deformed pin contacts.
(6) Electrical damage (including melted connectors, scorched dummy battery casings, deformed DC jacks, or cable insulation shrinkage) that is determined to be caused by connection to a power source or device exceeding the product's specified voltage, current rating, or duty cycle shall not be covered under this warranty.
