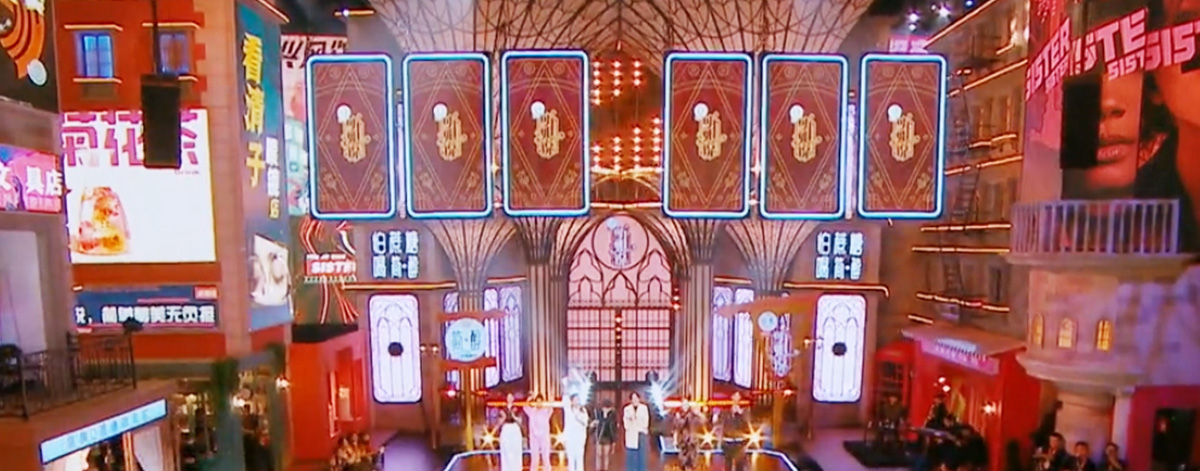

In a talk show television variety program, the production team required wireless video transmission for 16 camera channels to enable more flexible wiring setup and signal routing.
However, the regular wireless video transmission systems can only support 4-6 pairs of simultaneous transmissions in the same location without mutual interference, and can’t handle the program.
While SWIT FLOW series of wireless systems supports up to 22 interference-free simultaneous transmissions, effortlessly meeting the requirement for 16 wireless channels. This makes it the only solution for program production involving multiple wireless channels of this scale.

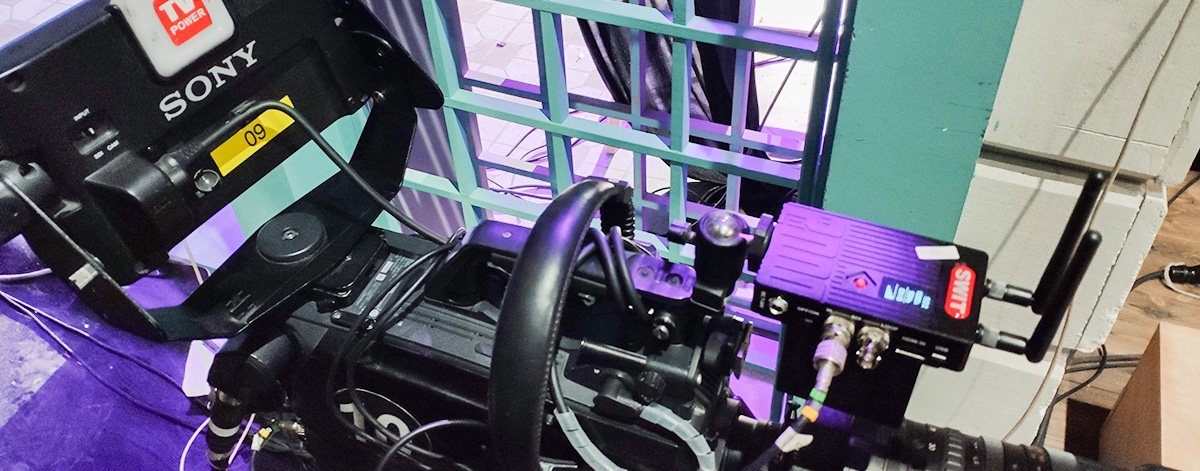

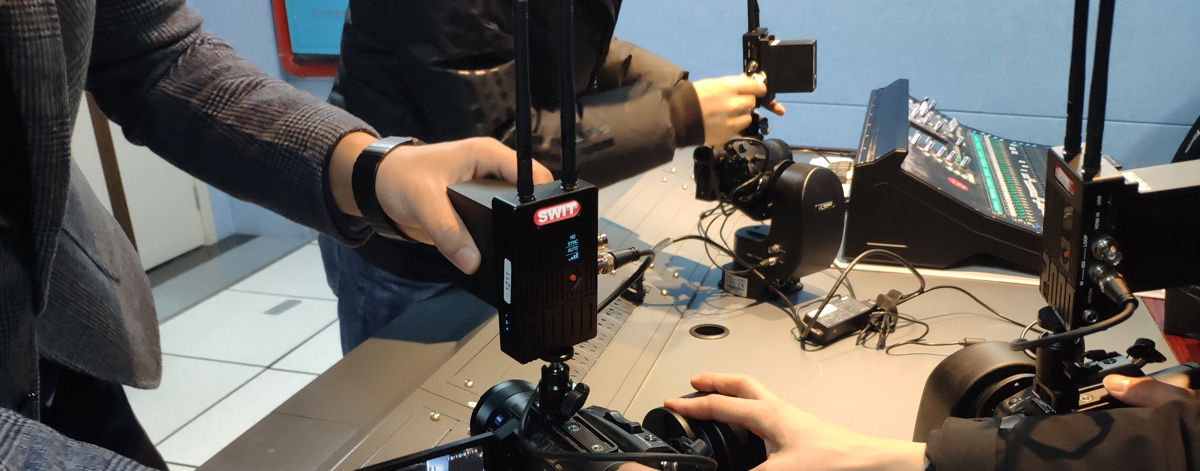

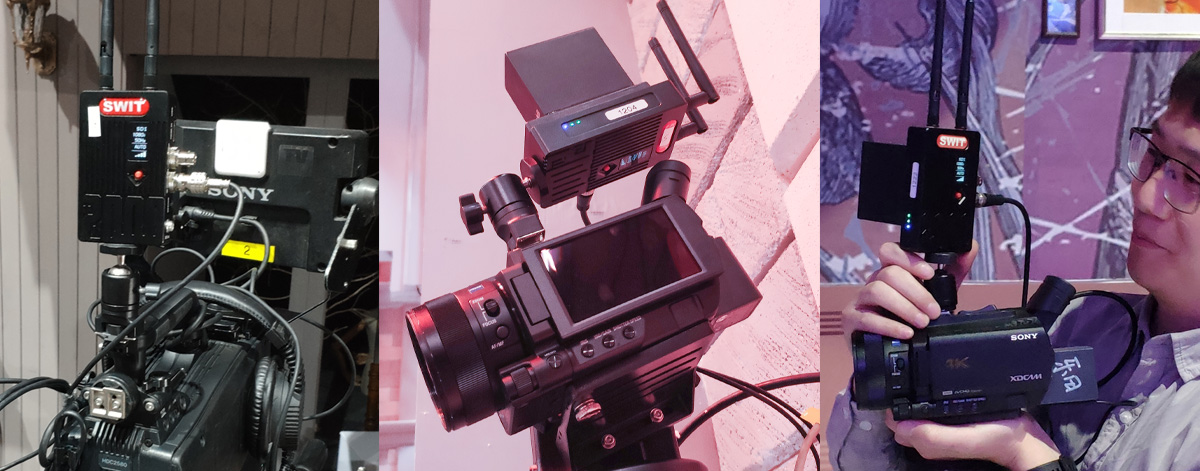

The SWIT FLOW2000 Transmitters set on different cameras

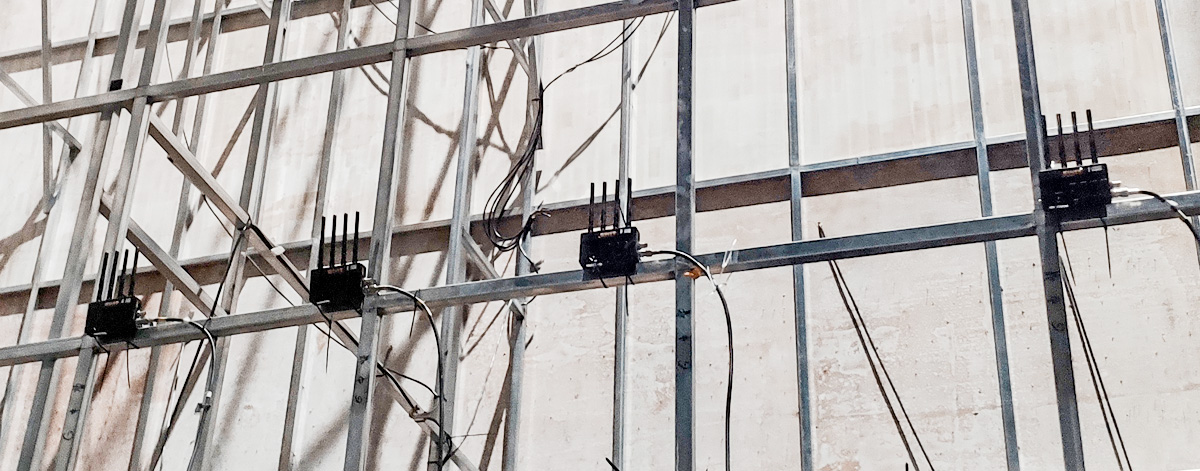

The SWIT FLOW2000 Receivers installed on the back wall

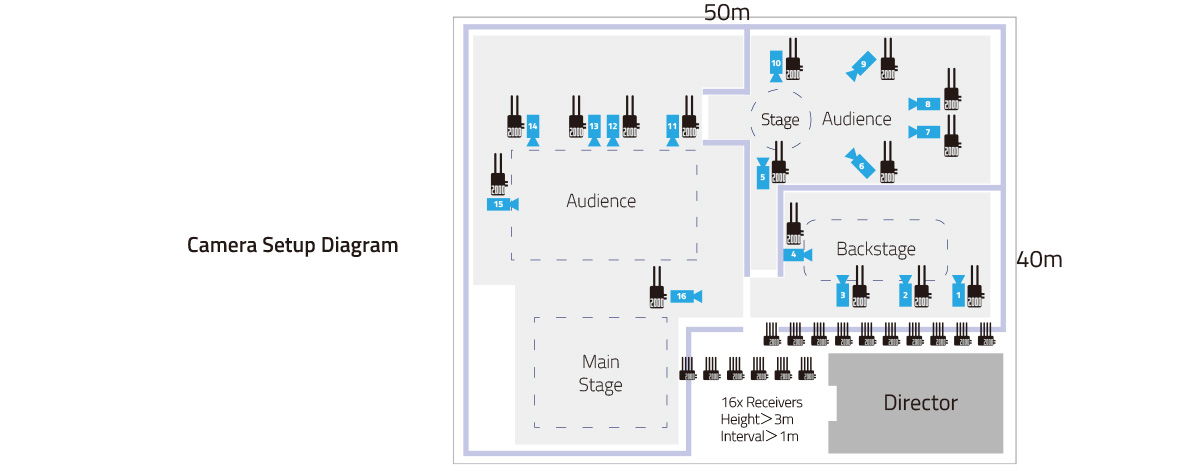

The 16 wireless camera channels setup Diagram

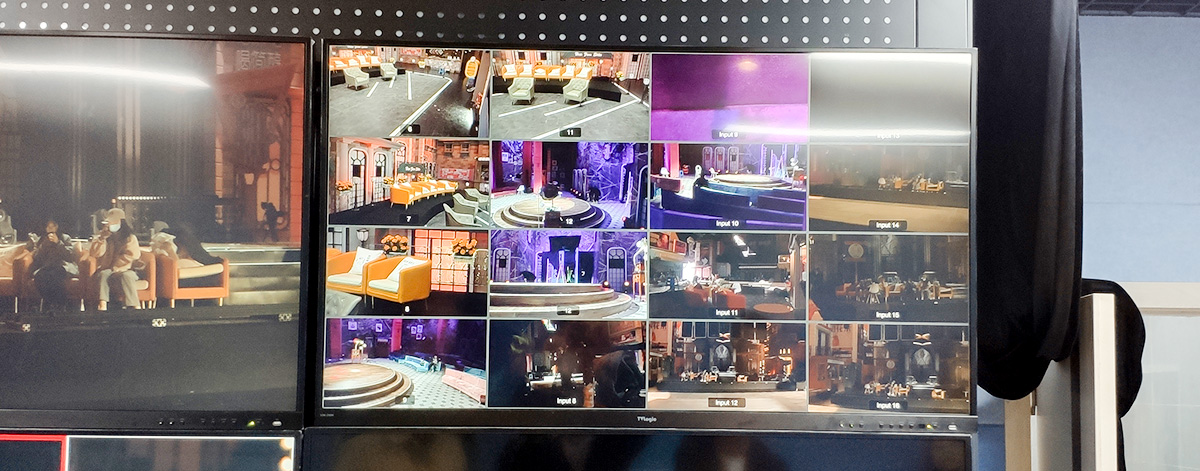

All camera videos are sent to director’s monitor

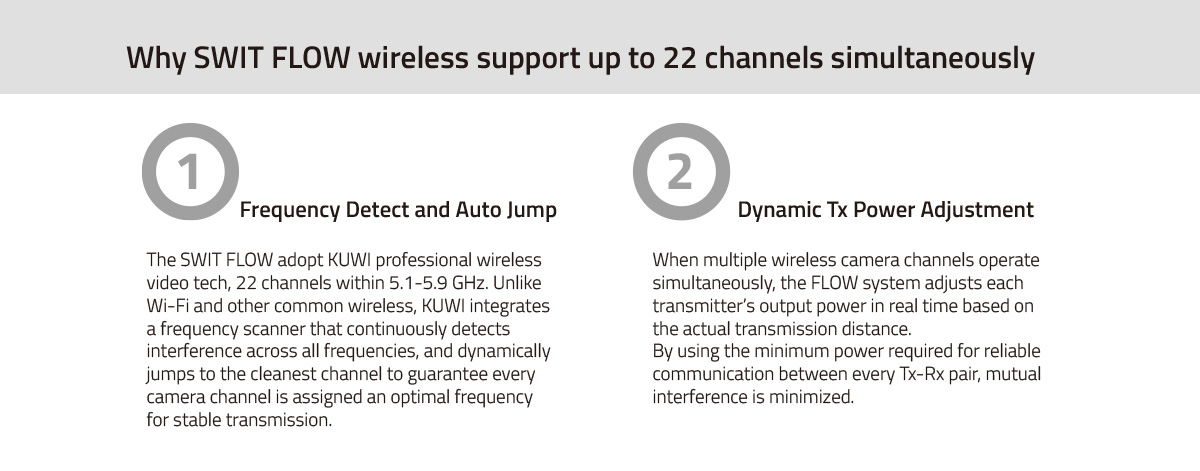

In event production or entertainment live show, the use of multiple wireless camera positions is becoming increasingly common. The SWIT FLOW wireless system operates in the 5.1-5.9GHz license-free frequency band, supports up to 22 pairs of simultaneous transmissions, and offers stable, interference-free performance. This provides more flexible and diverse options for on-site signal transmission setups.

Find the detail info of SWIT FLOW wireless
SDI&HDMI® 500ft/150m Wireless System
SDI&HDMI® 2000ft/600m Wireless System
