› Charging V-mount batteries
› 2-ch simultaneous charging
› 3A charging current per channel
› LED charging indicators
› Support AC to 4-pin XLR output
› Light weight and portable

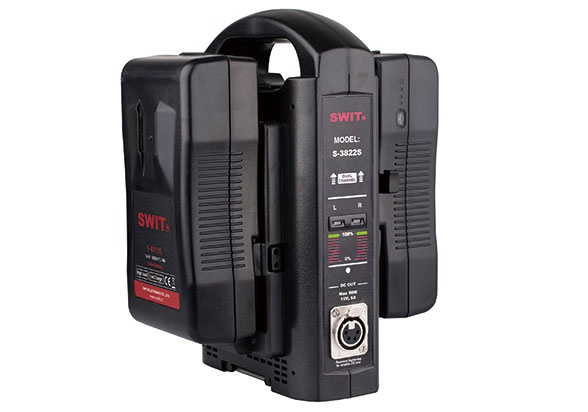

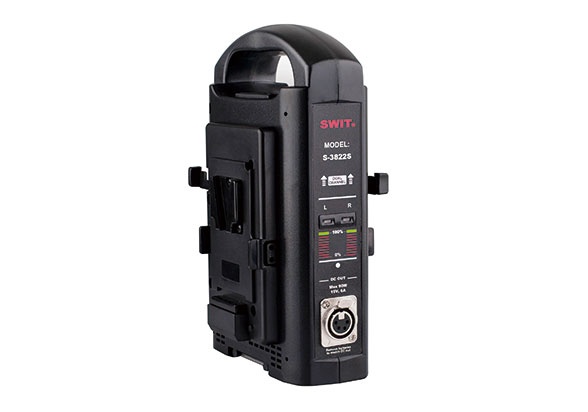

2-ch Simultaneous Charger
Charging current: 3A per channel
The portable charger S-3822S can charge 2 V-mount batteries simulta-
neously. The charging output is DC 16.8V, 3A×2

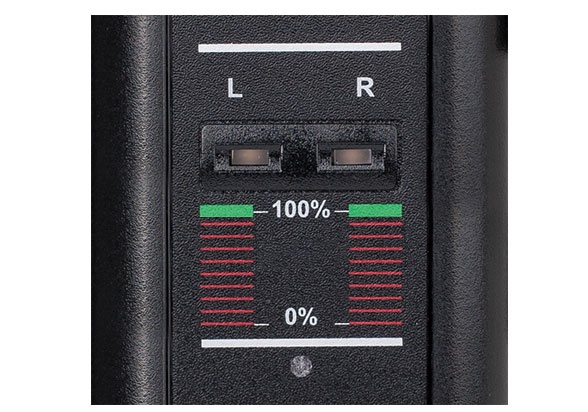

LED Charging Indicators
S-3822S has LED charging indicators on the front panel,
indicates the real time capacity of each channel by different colors:
Red: the battery capacity is below 100%
Green: fully charged
Red flash: the charging may have problem

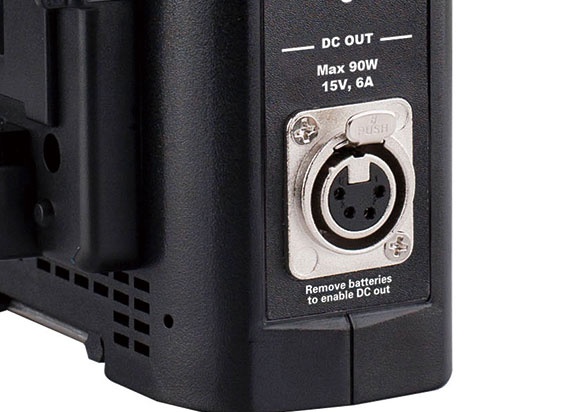

AC-DC Adapting Output
S-3822S has a 4-pin XLR female connector on the front panel.
Connected with SWIT S-7102 XLR female to male cable (optional
purchase), the S-3822S can be used as AC-DC adaptor of DC 15V,
6A, 90W output.
Please note the AC-DC adapting output will not work when battery
is charging.
Input | 100～240VA, 50/60Hz |
Power consumption | Max 136W |
Charging output | DC 16.8V, 3A×2-ch |
Adapting output | DC 15V, 6A |
Operating temperature | -20°C-50°C |
Working humidity | 10%～90% |
Dimensions (without battery mount) | 228mm×140mm×60mm |
| Dimensions (with battery mount) | 228mm×140mm×102mm |
Net weight | Net 1.0kg; With package 1.45kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

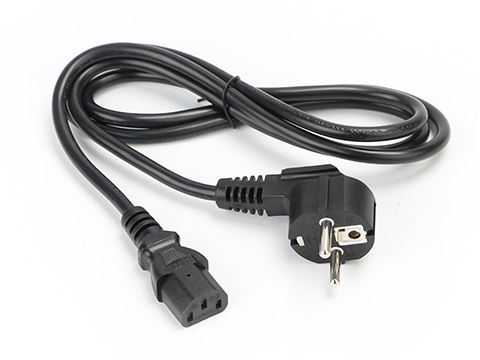

AC power cable
-

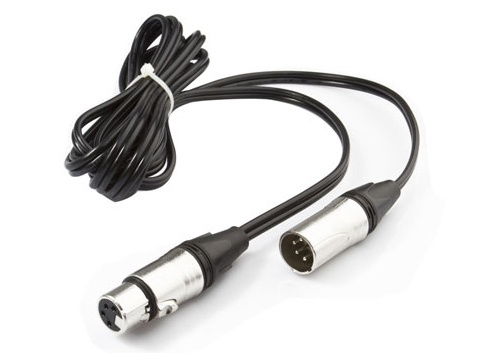

S-7102
4-pin XLR female to male cable, for 4-pin DC adapting output
1. Warranty Period
We provide 2 years conditional warranty for battery chargers.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliant Charging Objects
Use of the charger to charge non-original SWIT batteries or uncertified third-party batteries.
(2) Non-Compliant Power Supply and Operation
Use of mismatched power supply, input voltage exceeding the rated range of AC 100V–240V, power input exceeding the rated capacity, prolonged overcharging, or operation under no-load conditions.
(3) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly or repair; failure to operate the charger in accordance with the prescribed procedures, resulting in damage or safety hazards.
(4) Misuse and Physical Damage
Unauthorized modification, dropping, impact, collision, water immersion, exposure to high temperatures or humid environments, or any other non-normal use not in accordance with the product's intended design.
(5) Use of Damaged or Defective Charger
Continued use of a charger that is damaged, malfunctioning, or exhibiting abnormal overheating without prompt discontinuation.
(6) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(7) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(8) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
