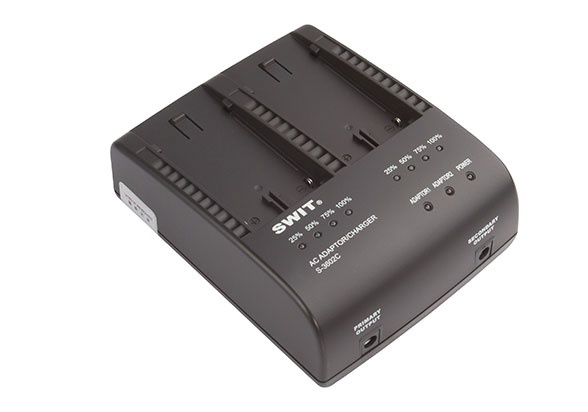

S-3602C 2-ch Canon BP Charger and Adaptor
› Charger for SWIT S-8845 battery
› 2-ch simultaneous charging
› Compatible with Canon BP series DV battery
› 2 DC adapting output sockets
› 4-level LED charging indicators
Canon BP series DV battery Charger

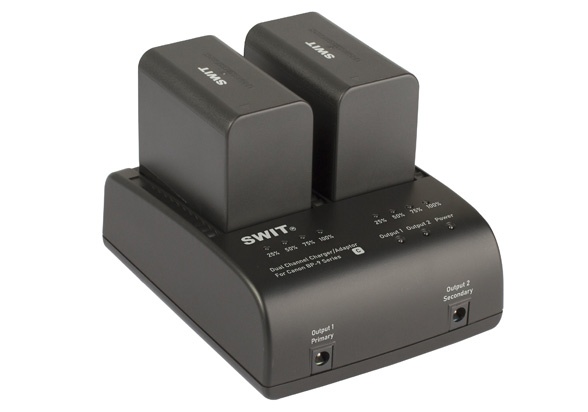

S-3602C is a dual channel charger for SWIT S-8845,
and compatible with Canon BP series DV batteries.

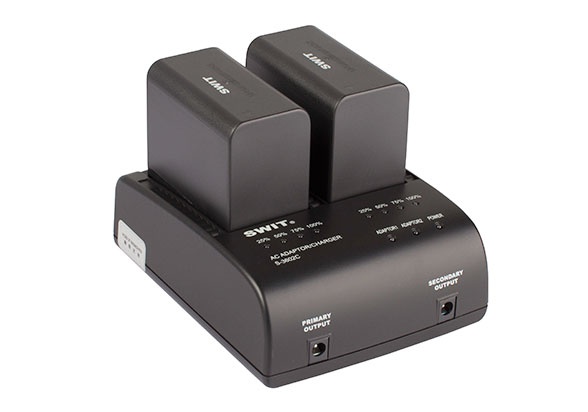

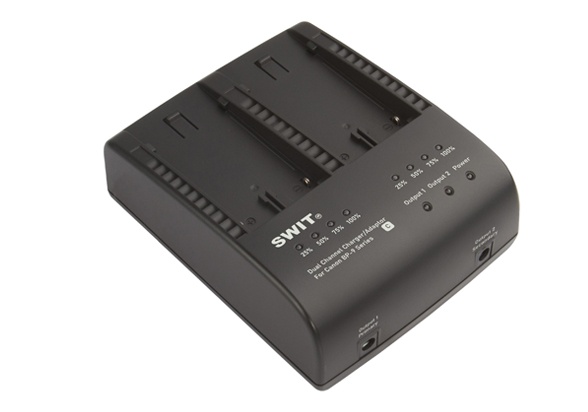

Dual Channel Simultaneous Charging
S-3602C has 2 charging channels, with DC 8.4V, 1.8A charging output for each channel, and can charge 2 batteries
simultaneously.
The 4-level LED charging indicators are provided
for each channel which indicate the real time capacity by percentage
when charging.

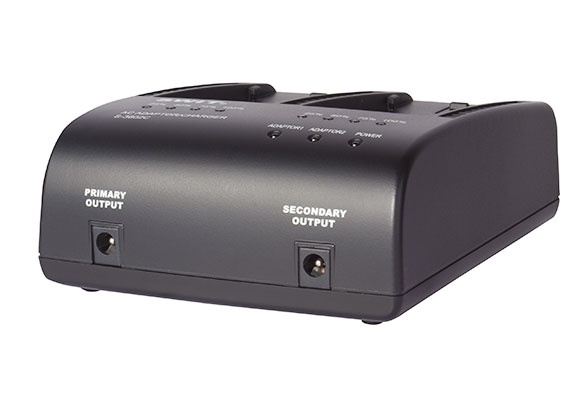

AC-DC Adapting Output

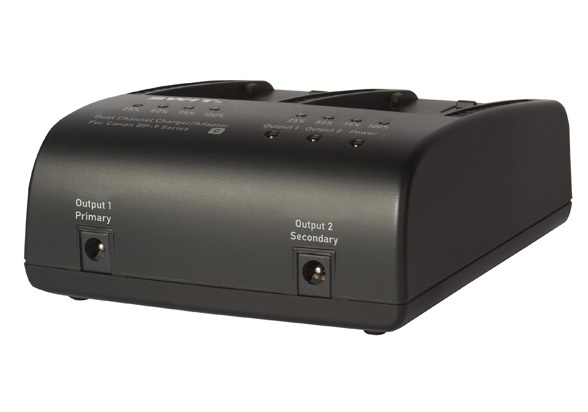

S-3602C has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs work
simultaneously and provides DC 8.4V, 3.5A in total.

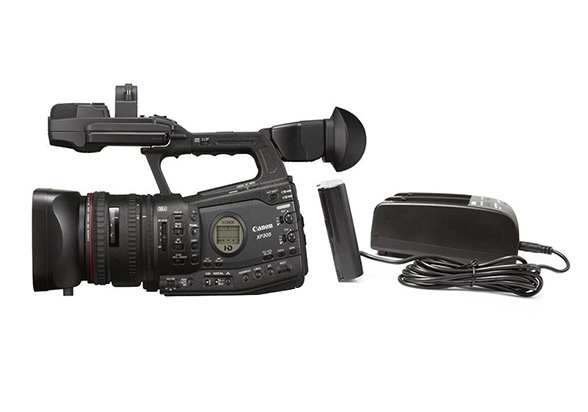

Optional accessory: S-7500C dummy Canon BP series battery adaptor for adapting
Canon DV cameras, or the equipments with Canon BP series battery mounts.
Power input | AC 100V-240V 50/60Hz |
Charging output | DC 7-8.4V, 1.8A×2 |
Adapting output | DC 8.4V, 3.5A |
Applicable battery | S-8845, S-8945 |
Canon BP-945, BP-970G | |

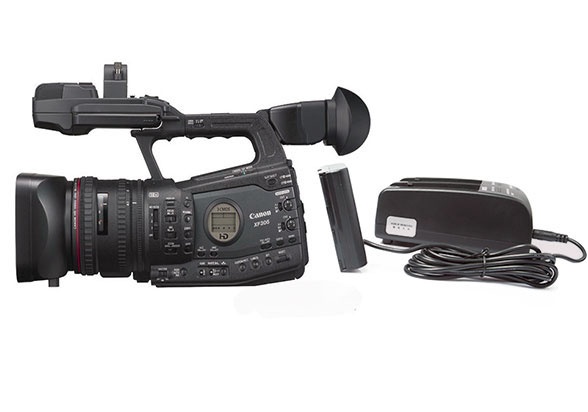

Applicable camera | Canon XF100/105/300/305 |
Canon XH-A1, XL-H1 | |
Dimensions | 136×110×47mm |
Net weight | Net 0.36kg; With package 0.65kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

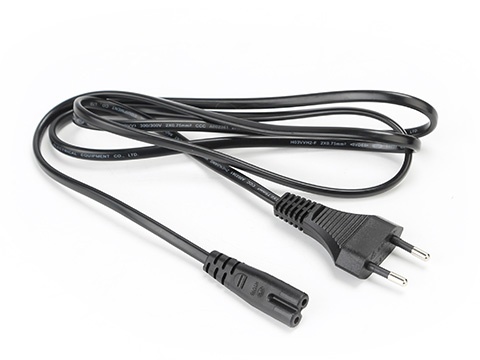

AC power cable
-

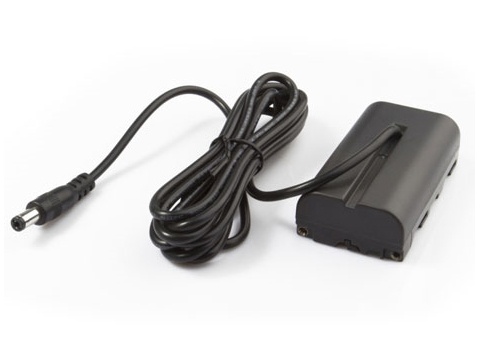

S-7500F
SONY NP-F Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SONY NP-F970/770 fit -
S-7500E
Canon LP-E6 Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon LP-E6 fit -
S-7500P
Panasonic Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Panasonic CGA-D54, VW-VBD58, AG-VBR59 fit -
S-7500C
Canon BP Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon BP-945 BP-970G fit -
S-7500i
JVC SSL Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SSL-JVC50 type fit
We provide 2 years conditional warranty for battery chargers and power adaptors
The following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) Damage caused by input voltage beyond the limited range of AC 100V-240V.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(4) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
