› Chip on board COB LED technology
› 13W, 1100Lux @ 1 meter, dimmerable
› 70W equivalent output
› Single shadow, glareless
› 60° wide beam angle, equally spread
› Cool touch
› 5000K color temperature
› 5600K and 3200K filter
› Color rendering index: 85
› 6-17V wide input voltage
› Interchangeable DV mount and battery
› Glass Fiber strong and durable housing
› Screw and cold shoe mount

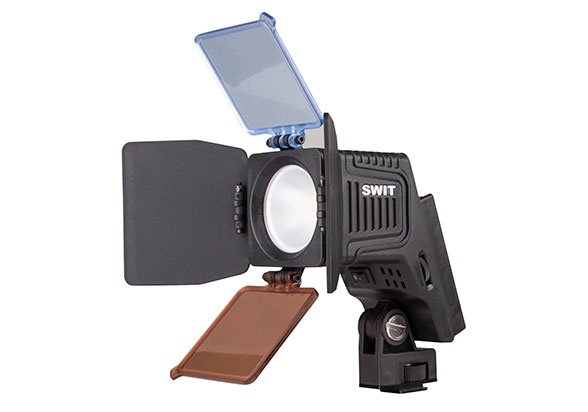

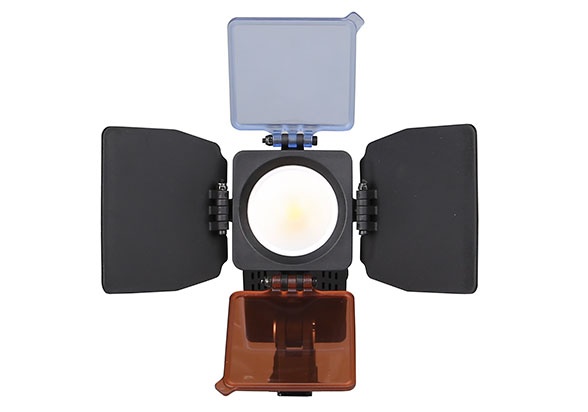

Chip-on-board LED
Brighter and Non-glaring
The S-2070 on-camera LED light adopts the new generation Chip-on-board LED, which integrates the LEDs into a chip with high brightness output but in smaller size, and the most remarkable, it offers a equally spread, soft, glareless light, similar to the traditional Halogen bulb light.
13W Light Output, 70W Equivalent
1100Lux @1 meter distance and 1 meter scale
S-2070 requires only 13W power consumption but can
output bright light equivalents to an 70W halogen bulb.
The illuminance is 1100 Lux at 1 meter distance and 1
meter scale.
60° Wider Beam Angle
Equally spread lights, no visible beam edge
The traditional LED lights use lens to converge and get a higher brightness, but dropped down quickly around, which will generate a visible lighting border in the image. In comparison, the COB LED generates a wider beam angle, equally spread from the center to edge, and suitable for HD shooting.
Glareless light, Single Shadow
The traditional LED array always generates several highlight pots on retina and people will feel glaring, even can’t recover
sight until a few seconds. In comparison, the SWIT COB LED has only one bulb in appearance, and output a non-glaring,
single shadow light, suitable for close interview shooting.
3200K/5000K/5600K Color Temperature
The S-2070 LED has 5000K color temperature and also equipped with a 5600K (Daylight) and a 3200K (Tungsten) color
temperature filter. You can switch the color temperature easily.
6-17V Wide Voltage Power Supply
The S-2070 accepts 6-17V wide voltage input, so you can get power from 14.4V V-mount/Gold Mount batteries or 7.2V DV
batteries.
The light package goes with a D-tap to pole-tap cable (S-7104), to plug into the DC-IN port of S-2070 and get power from
D-tap power output sockets, such as batteries, battery plates, or camera handle. You can also select SWIT pole-tap to pole-tap
DC cable (S-7108) to get power from pole-tap DC adaptors.

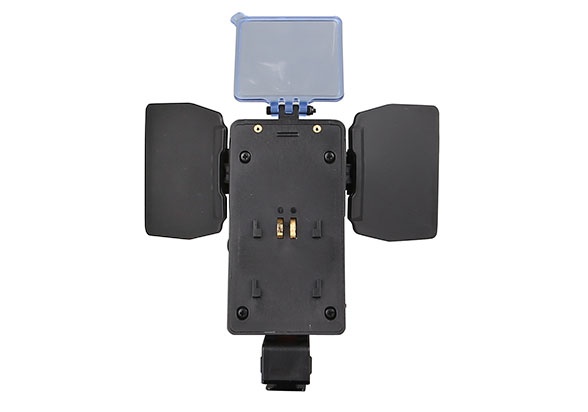

By installing a particular DV battery plate, you can directly mount a 7.2V DV battery onto the rear of the S-2070 light.

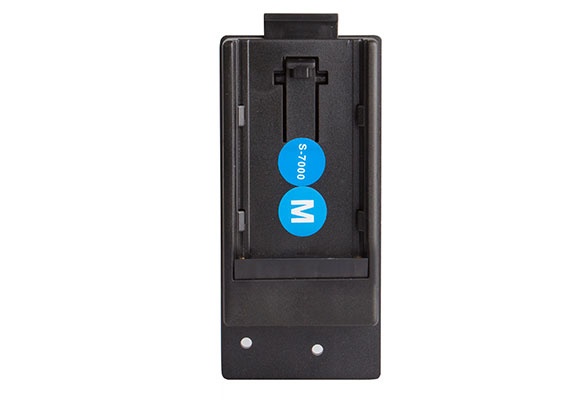

Interchangeable DV plates
You can power the S-2070 by most popular DV batteries,
via the easy interchangeable DV battery plates. We
supply the following DV plates for optional:
S-7004F | SONY NP-F970/770 |
S-7004U | SONY BP-U60/U30 |
S-7004D | Panasonic CGA-D54/D28, VW-VBD58, AG-VBR59 |
S-7004B | Panasonic VW-VBG6 |
S-7004J | JVC BN-V428U |
S-7004V | JVC BN-VF823 |
S-7004I | SSL-JVC50 |
S-7004C | Canon BP-945/970G |
S-7004E | Canon LP-E6 |
Power by Special Compact Battery
By optional purchased battery S-8040
If you want a compact battery power solution, you may choose SWIT S-8040 Li-ion battery to instead of the DV plates and DV batteries.
The S-8040 is specially used for SWIT S-2041 and S-2070 lights, with 7.2V, 21Wh/3Ah capacity, and can run nearly 1 hour and 40
minutes on S-2070.
The S-8040 has a 4-level power indicators and a pole-tap charging input socket. You can use SWIT portable Pole-tap charger S-3010D
to charger S-8040.
Dimmer control
S-2070 has a dimmer controller to adjust the light
output from 10%-100%. The color temperature
will not change during the dimmer controlling.

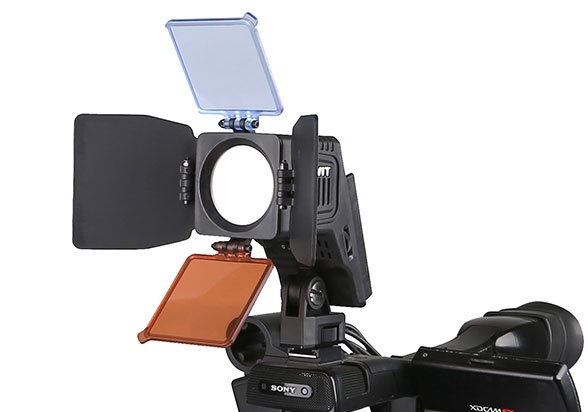

Easy Installation
Both cold-shoe and screw
S-2070 offers a dual purpose installation base, that can be
fixed to camera via both cold shoe and 1/4” screw head.
Input voltage | DC 6V-17V |
Power consumption | 13W |
Halogen equivalent | 70W |
Beam Angle | H60°/ V60° |
Color temperature | 5000K and 5600K/3200K switchable |
Color rendering index | 85 |
Illuminance | 1100Lx @ 1m distance and 1m diameter scale |
Power connector | DC IN socket, DV mount connection |
Working temperature | -10℃~+40℃ |
Storage temperature | -20℃~+55℃ |
Dimensions | 108×80×133mm |
weight | Net 274g; With package 0.8kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

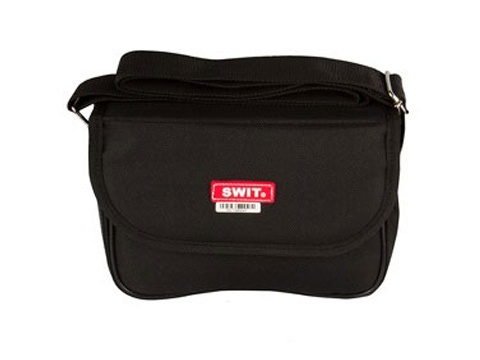

Bag
-
Optional purchase S-7004 battery plate (U/F/D/B/C/V/I/E selection)
-

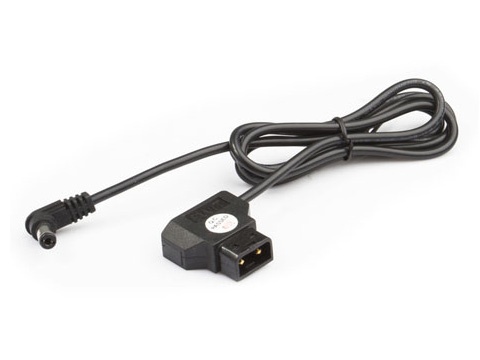

S-7104
Pluged into D-tap socket and output DC via 5.5mm pole-tap -

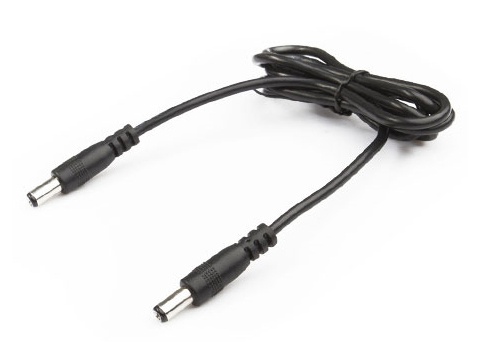

S-7108
DC cable with both ends of 5.5mm Pole-tap connector -

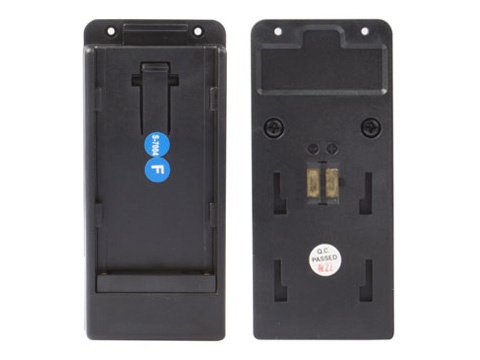

S-7004F
SONY NP-F DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -

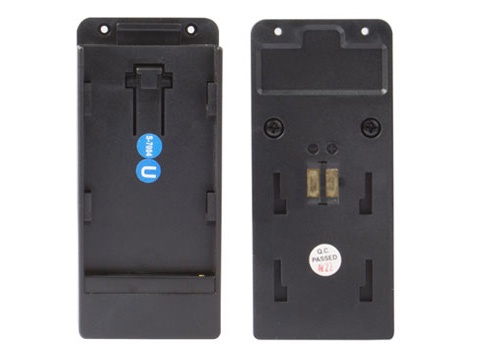

S-7004U
SONY BP-U DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -

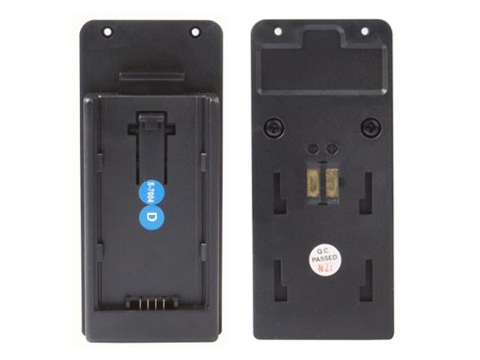

S-7004D
Panasonic CGA/VBD DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -

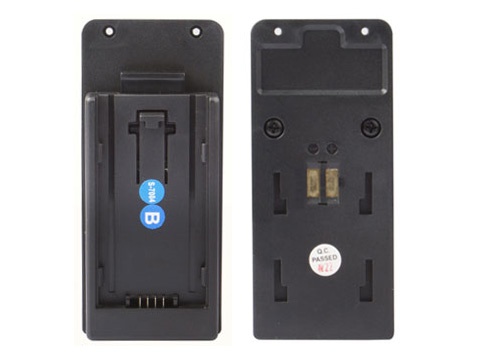

S-7004B
Panasonic VBG DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -
S-7004C
Canon BP DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -

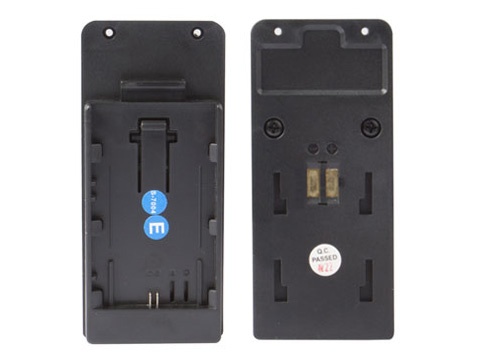

S-7004E
Canon DSLR Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -

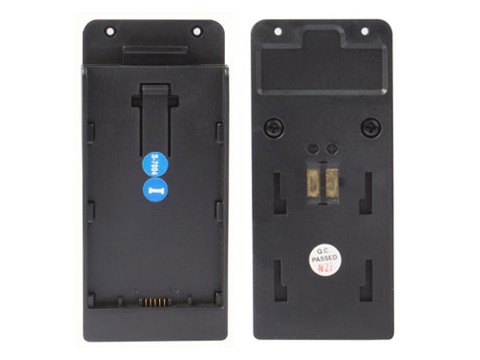

S-7004i
JVC SSL DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -

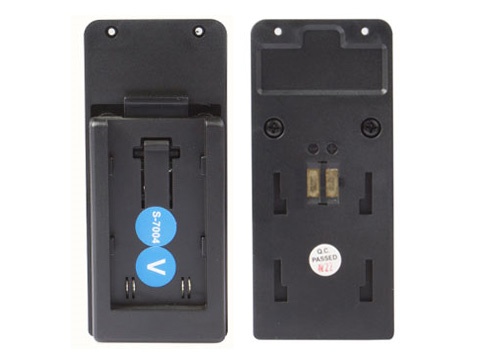

S-7004V
JVC BN-VF DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
