› 1024pcs of ultra bright LEDs
› 50,000hrs long lifetime
› 70W, Max 5100Lux @ 1m distance
› 60° beam angle
› 10%-100% flick-free dimming
› 5600K daylight output, 3200K output with filter
› LCD touch screen, display and adjust brightness dimming
› Power by V/Gold mount battery or AC-DC adaptor
› U-shape support and lighting tripod mount

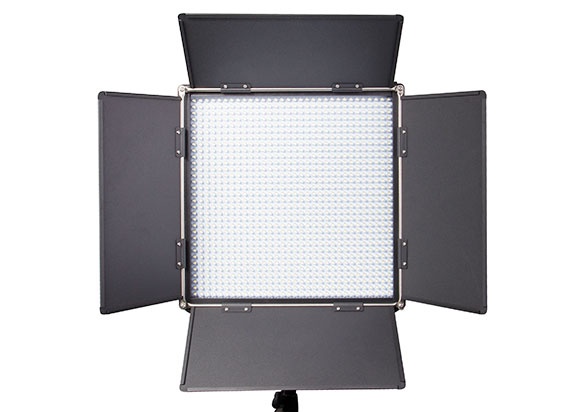

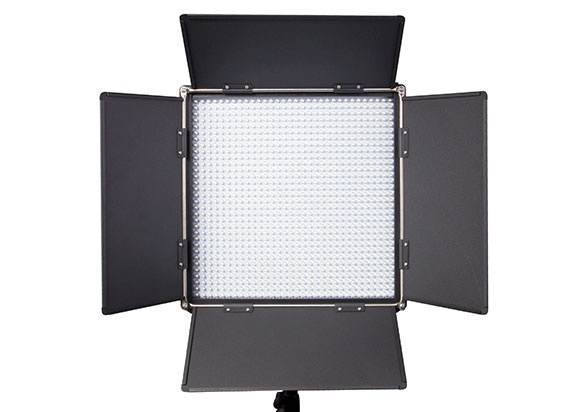

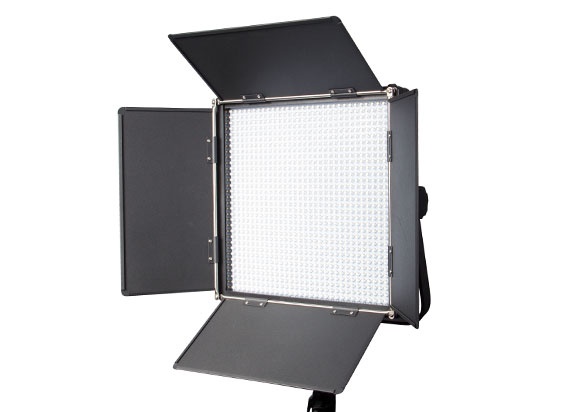

1024 LEDs Panel Light
S-2120D is a portable studio light,
adopts 1024 advanced LEDs of 5600K
color temperature, which can last in
excess of 50,000 hours and requires no
spare filament bulbs.
Strong but Light weight Housing
Adopted high intensity thermoplastic ABS
plastic housing, only 2.7kg weight and
effectively maximized heat dissipation.
The metal barn doors are strong enough to
protect LED bulbs.
5100 Lux @ 1 meter
S-2120D feeds 5100 Lux illuminance at 1 meter
distance, while consumes less than 70W power.
5600K color temperature
Change to 3200K by filter
S-2120D provides constant 5600K color temperature by
the LED itself, and can be changed to 3200K by inserting a
color temperature filter.

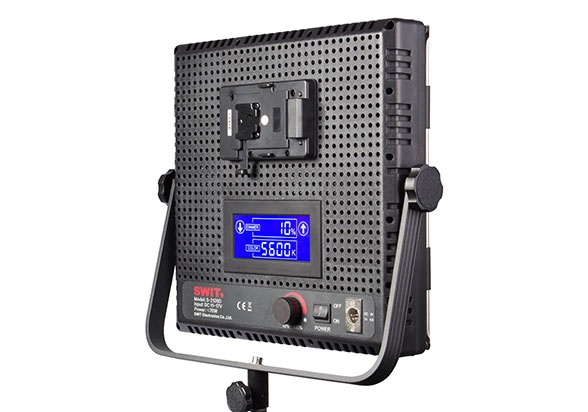

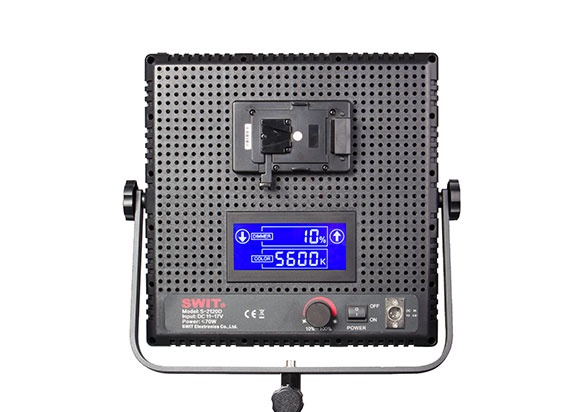

Touch screen display and control
Dimmer control
The rear LCD touch screen can display the current dimmer value in
percentage, and you can press the up/down arrows on the screen
to adjust the lighting output.
You can also directly revolve the knob to adjust the illuminance.
The light output is non-flick during dimming.
DC 11-17V Power Supply
By V/Gold mount battery or AC-DC adaptor
The S-2120D is equipped with a V-mount camera battery plate on the rear panel. (Gold mount plate optional)
It also provides a 4-pin XLR DC input socket, to power the
light by the AC-DC adaptor.
Lighting Tripod Mount
S-2120D has a U-shape bracket, rotatable,
and can be fixed on lighting tripod steadily.
LED | 1024PCS of ultra bright LEDs |
illuminance | 5100Lux/m |
Beam angle | 60° |
Color Temperature | 5600K, or 3200K by filter |
Power | ≤70W |
Working voltage | DC 11-17V, 4-pin XLR socket |
External power | V-mount plate |
Dimension | 403(W)×450(H)×95(D)mm |
weight | Net 2.7kg; With package 5.1kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
