› 60W super bright COB LED light
› Equivalent to 200W Halogen bulb light
› 15°-60° Spot/Flood adjustable
› 2700K-8000K continuously adjustable
› 0-100% flick-free dimming
› Super high CRI Ra 95, TLCI 97
› DMX512 controlled color, dimmer, angle
› LCD display color, dimmer and DMX
› Silent mode by fans switching off
› LED overheat detection and protection
› 4-leaf metal barn doors
› U-shape and lighting stand mount

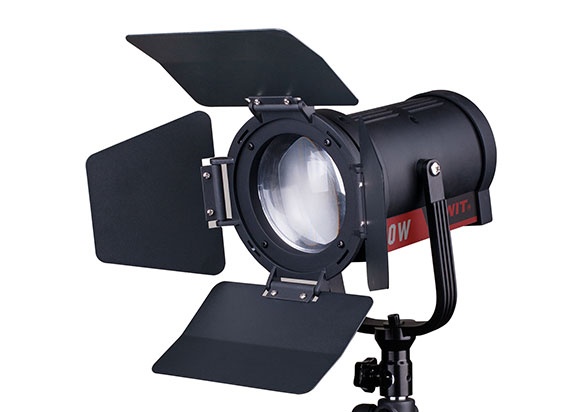

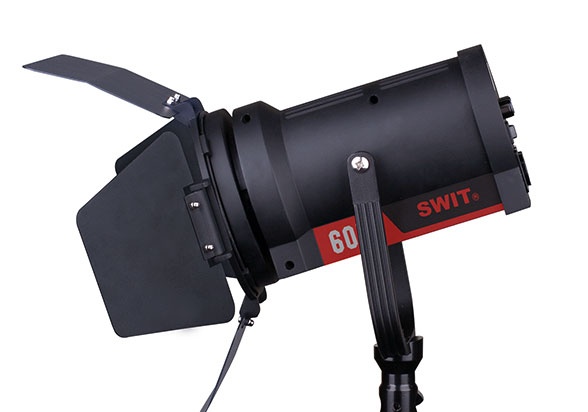

60W Portable LED Spot Light
200W Halogen Equivalent long-life COB-LED
FL-C60D portable LED spot light adopts Chip-On-Board LEDs
of 50,000 hours lifetime, 60W power, equivalent to a 200W halogen bulb light. It's bi-color, DMX adjusting
focus angle, as the key light of interview light kit or field video
productions.
Spot /Flood Adjust
15° - 60° Electromotion/DMX adjust
FL-C60D outputs 15° - 60° beam angle adjusting by
Electromotion knob or DMX. The illuminance is as high
as 25000Lux @ 1 meter. The following output
illuminances at different distances are for reference:
IEC 62471 Photobiological Safe Certificated
The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.
Bi-color temperature
2700K-8000K continuously adjustable
FL-C60D COB-LED alternated with 2700K and 8000K LEDs, and the output color temperature can be continuously adjustable
between 2700K and 8000K.
Accurate Color Reveal
CRI Ra 95; TLCI 97
CRI (Color Rendering Index) is a measure of the ability of
a light source to reveal the colors of various objects
faithfully in comparison with a natural light source. And
TLCI (Television Lighting Consistency Index) is special for
the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while
FL-C60D offers the super high CRI at 95 and TLCI at 97,
and will not lost the object original colors.

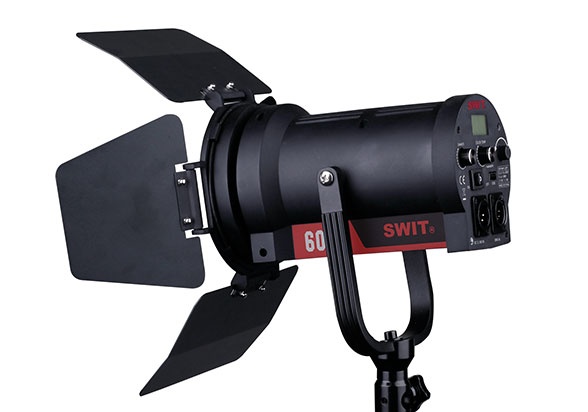

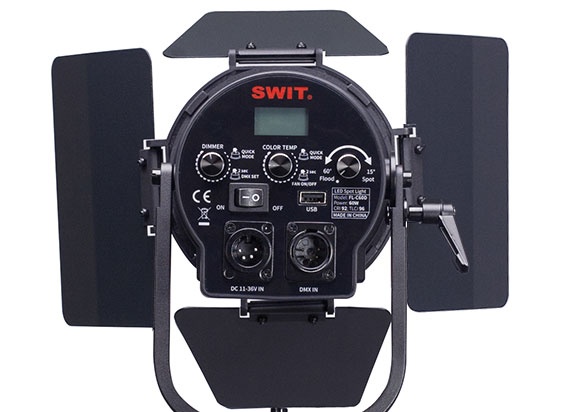

LCD Display and Control
Press knobs to enter Quick Adjusting Mode
FL-C60D has 3 knobs to control dimmer, color temperature and
spot angle. The Dimmer and Color Temperature knobs can be
pressed down to enter quick adjusting mode, and long pressed
down to enter DMX address setting and Fan on/off control.
DMX512 Channels
Dimmer, Color temperature and Spot angle
FL-C60D adopts standard 5-pin DMX input, supports
DMX512 protocol, and adjusts dimmer, color temperature
and spot angle by DMX controller.
FL-C60D occupies 3 DMX addresses:
n = Dimmer 0-100%
n+1 = Color temperature 2700-8000K
n+2 = Spot angle 15°-60°
Long press the Dimmer knob for 2 seconds, to enter DMX
address setting.
USB Power Output
To power the Wireless DMX Receiver
FL-C60D provides a 5V USB power output socket,
to power the SWIT Pocket Wireless DMX Receiver.
Refer to: LA-WR8 Pocket Wireless DMX controller
11-36V Wide Input Voltage
4-pin XLR DC input, provide V/Gold mount plate
FL-C60D supports 11-36V wide range voltage input,
with 4-pin XLR DC socket, and provides with
V-mount or Gold mount plate adaptor to fix onto
light stand, and power the light by D-tap to 4-pin
XLR DC cable.
Beam angle | 15°- 60° |
Max illuminance | 1m: Spot 25000Lux,Flood 4000Lux |
2m: Spot 6250Lux,Flood 1000Lux | |
3m: Spot 2700Lux,Flood 445Lux | |
Color temperature | 2700K～8000K |
CRI | 95 |
TLCI | 97 |
USB out | 600mA |
Power | Approx. 60W |
Working voltage | DC11V～36V |
Dimensions | 111×120×235mm; Shipping carton 370×260×390mm |
weight | Net 2.1kg; With package 5.6kg |
Single Light Package
MSRP
$8222

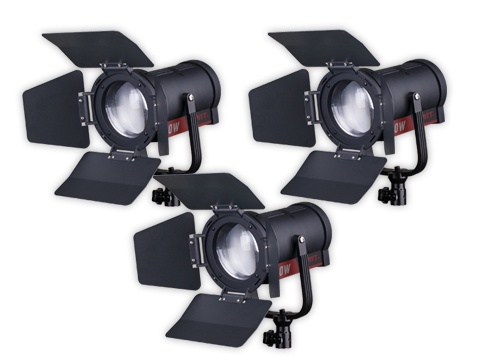

3-Light Kit Package
MSRP
$8222
MSRP
$8222
-

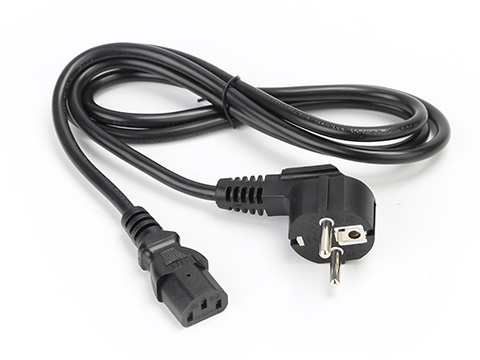

AC power cable
-

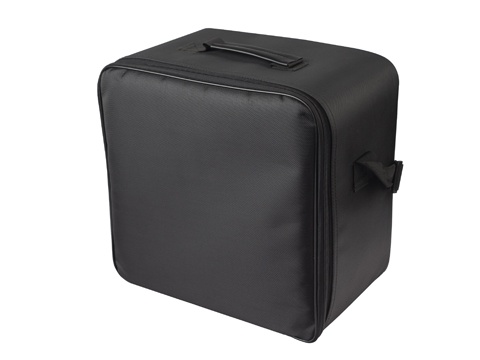

Bag
-

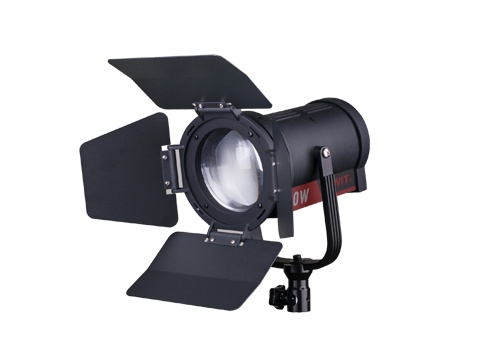

FL-C60D Light
-

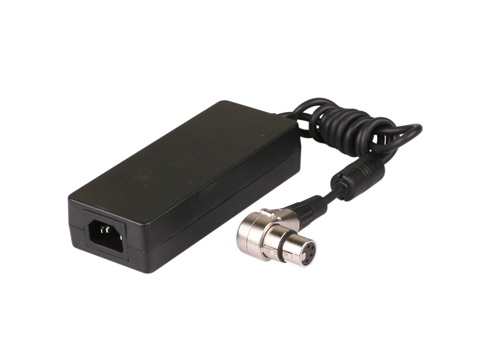

AC-DC Adaptor
-
S-7200S V-mount plate with clamp
-

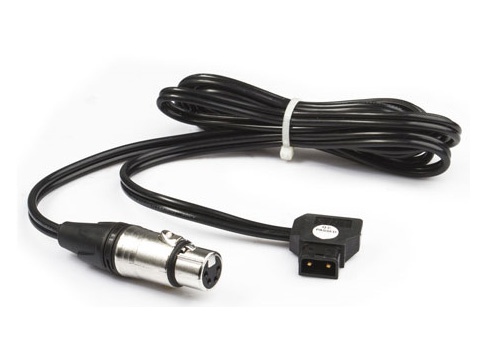

S-7101 D-tap to 4-pin XLR cable
-
AC power cable
-

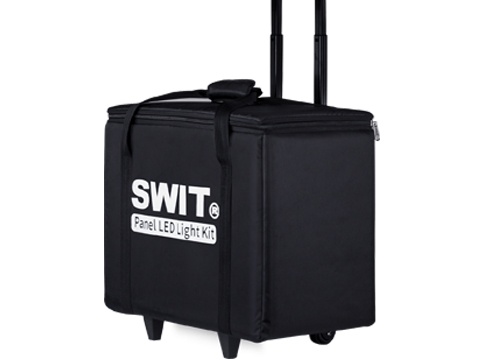

Trolley Case
-

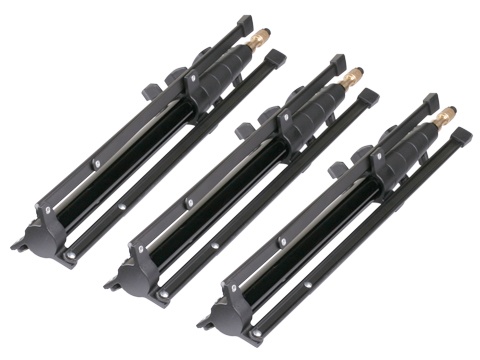

Light Stand x3
-

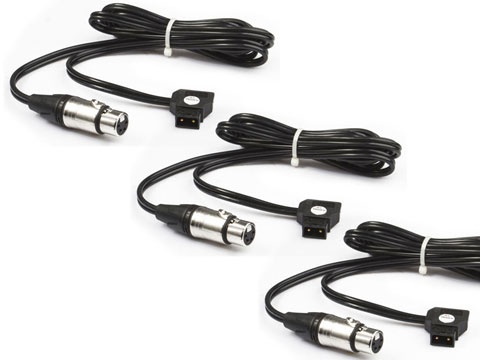

S-7101 D-tap to 4-pin XLR cable x3
-

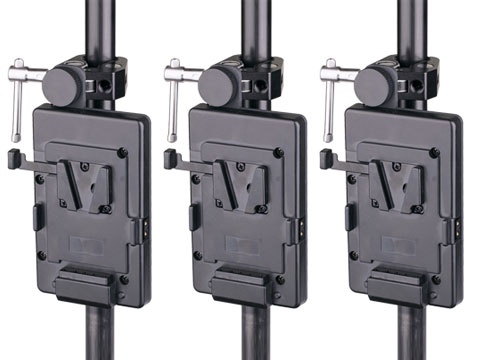

S-7200S V-mount plate with clamp x3
-

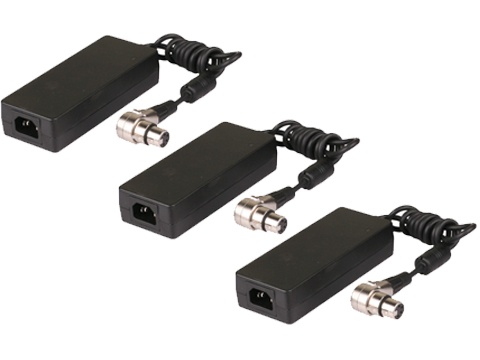

AC-DC Adaptor x3
-
FL-C60D Light x3
-

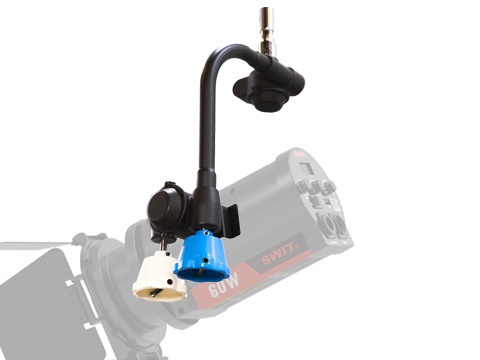

LA-POC60
2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. Dedicated size for SWIT FL-C60D fresnel light. -
S-7101
Pluged into D-tap socket and output DC via 4-pin XLR connector -

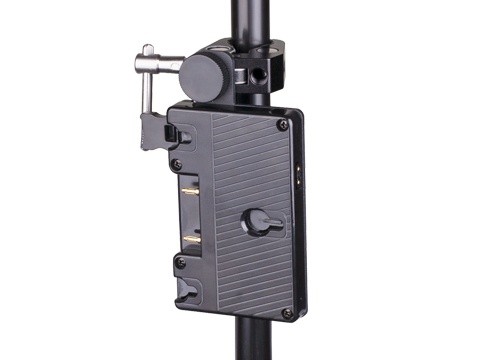

S-7200A
Gold mount plate with Clamp, to install on 25-45mm diameter C-stand / Light tripod, with 1xD-tap socket to output battery DC voltage. -

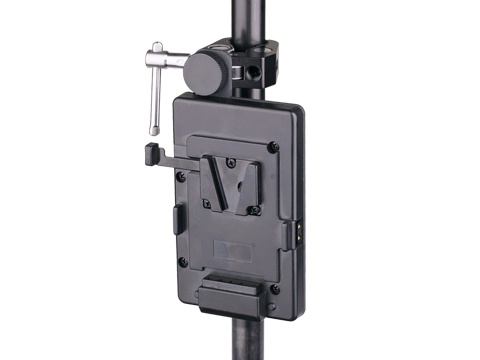

S-7200S
V-mount Plate With Clamp, to install on 25-45mm diameter C-stand / Light tripod, with 1x D-tap socket to output battery DC voltage.
1. Warranty Period
We provide 1 year conditional warranty for lighting products.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents, including but not limited to damage to LED emitters, circuits, or housings, personal injury, or property loss, are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with Operating Procedures
Operation, installation, or removal of equipment and accessories not in accordance with the User Manual; forcible removal of connection cables or power cables; obstruction of heat dissipation vents; direct visual exposure to LED emitters; failure to follow the prescribed sequence for startup/shutdown or wiring.
(2) Non-Compliant Power Supply and Accessories
Use of non-original SWIT power supplies, power cables, chargers, optical accessories, or other uncertified third-party accessories; powering the product with third-party power adaptors; use of extension cables or power adaptors with mismatched rated parameters.
(3) Unauthorized Modification and Repair
Unauthorized disassembly, modification, or repair of the equipment; tampering with core components or circuits; failure to contact SWIT authorized after-sales service upon equipment malfunction, resulting in unauthorized repair or aggravated damage by non-authorized personnel.
(4) Misuse and Adverse Environmental Conditions
Damage resulting from dropping, impact, compression, puncture, water immersion, exposure to high temperatures or direct sunlight, extreme cold, humidity, excessive dust, or other non-normal use environments or human-inflicted damage.
(5) Failure to Address Abnormal Conditions
Continued operation despite abnormal conditions such as overheating, abnormal odor, or abnormal noise, resulting in damage or safety incidents; use of damaged or malfunctioning accessories or batteries in violation of regulations.
(6) Out-of-Specification and Incompatible Use
Operation beyond the equipment's rated parameters; use in incompatible systems or environments; failure to implement protective measures during outdoor use, resulting in damage from severe weather conditions.
(7) Force Majeure and External Factors
Damage caused by irresistible factors (including but not limited to earthquake, flood, or typhoon), sudden voltage fluctuations, or external circuit short circuits.
(8) Natural Wear and Tear
Normal aging of LED emitters, wear of accessories, and other natural degradation of the product.
(9) Improper Storage
Failure to store equipment and accessories in accordance with prescribed specifications, resulting in moisture ingress, dust accumulation, or component corrosion.
(10) Non-Authentic Products and Ineligibility
Products not purchased through official SWIT channels, or products with altered or missing serial numbers that preclude verification of authenticity and warranty eligibility.
(11) Liability Disclaimer
All risks and consequences arising from improper use, human factors, or external factors shall be borne entirely by the user.
(12) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
