◆ 14.4V nominal voltage Li-ion battery
◆ Compatible with SONY BP-U batteries
◆ Display power info in camera (some new models)
◆ 98Wh / 6.8Ah capacity
◆ Built-in 14.4V D-tap output / Charging input
◆ Built-in 5V/2A USB output
◆ 4-level LED power indicator
◆ Multiple circuit protections
◆ Compatible with Blackmagic PYXIS 6K/12K

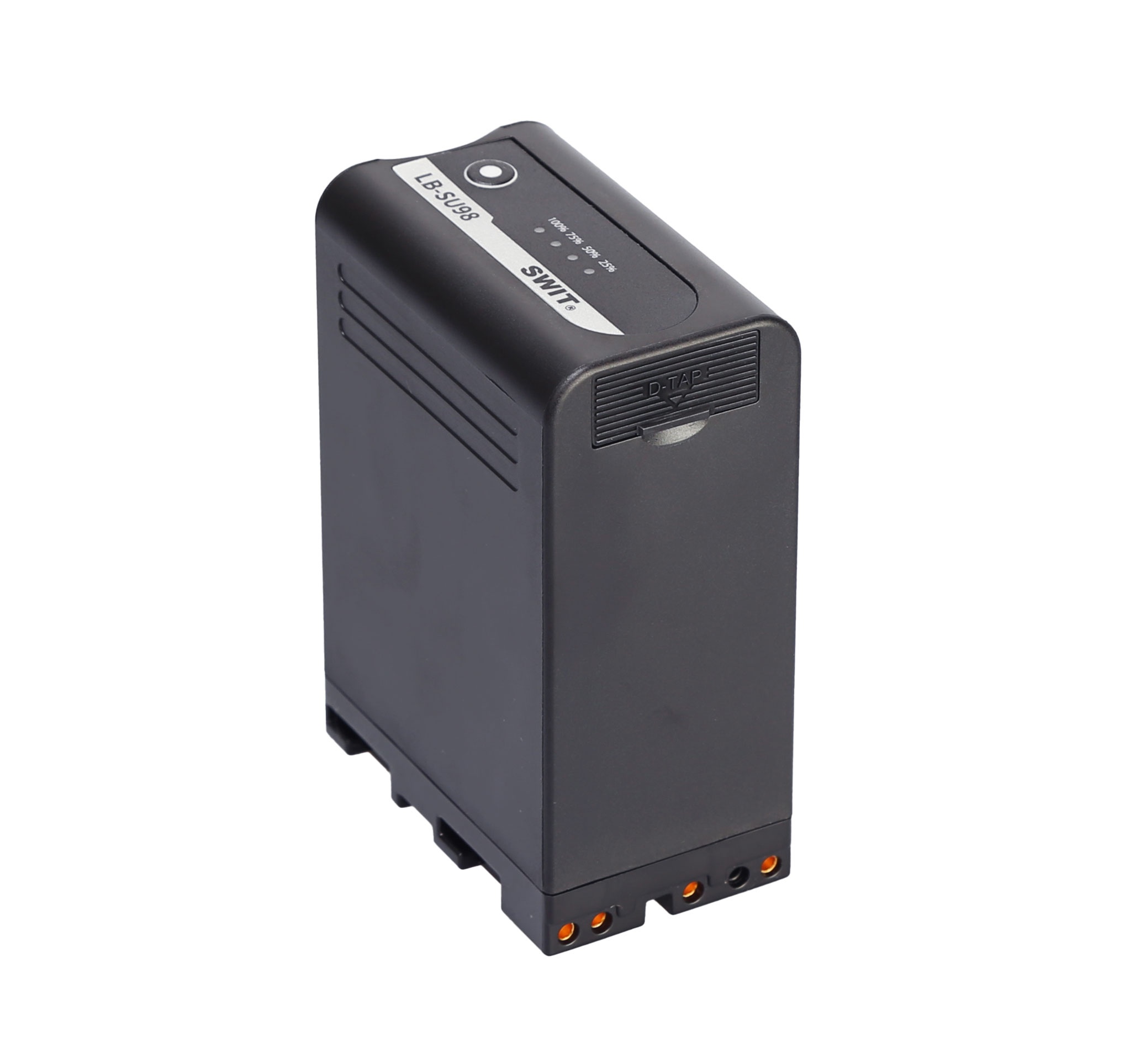

SONY BP-U type Battery
LB-SU98 is the replacement battery for Sony BP-U60, compatible with SONY Camcorder PXW-FX6 / FX9 / FS7 / FS5, PXW-Z200, HXR-NX800, PXW-Z380 / Z280 / Z190 / X280, with Blackmagic PYXIS 6K/12K.
98Wh / 6.8Ah High Capacity
With 14.4V nominal voltage, the LB-SU98 has 98Wh /
6.8Ah capacity, and can run approx. 3 hours on SONY
PXW-FX9 camera.

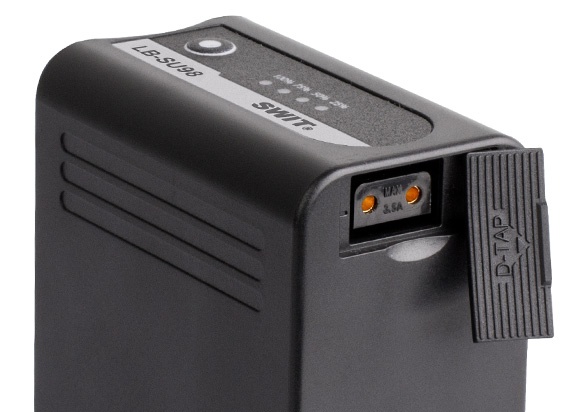

Built-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the side of LB-SU98
battery, for DC14.4V (Nominate) connection. You can connect
on-camera LED light, monitor or wireless transmitter on the
D-tap socket, and get power simultaneously with camera.
The Max power from D-tap is 70W, 6A.
The D-tap socket can also be used as charging input, by SWIT
portable charger PC-U130B/B2.

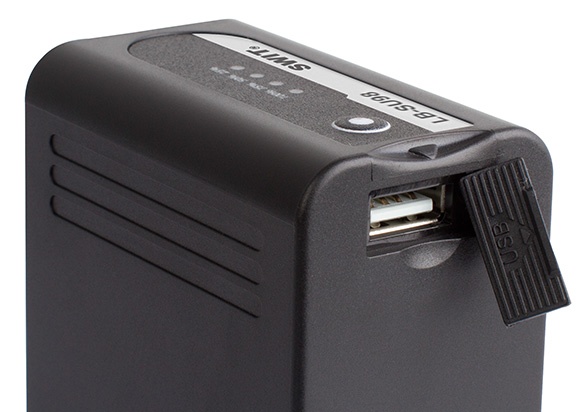

Built-in 5V/2A USB Socket
Connect your USB devices like smart phone or pad to the USB socket of LB-SU98, press the power check button, and
then the battery will start to output 5V/2A power to charge
your devices.

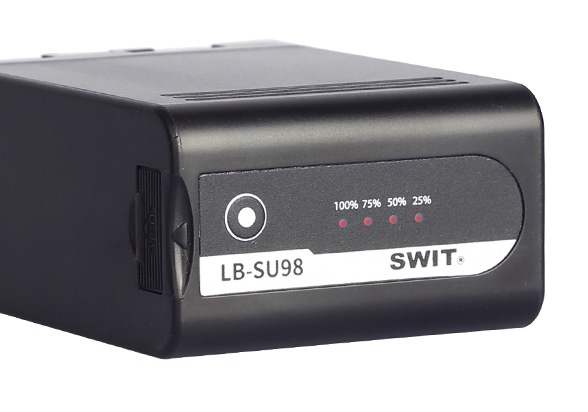

LED Power Indicator
The LB-SU98 battery has the 4-level LED power
indicators to check the battery remaining capacity.
You can get a quick view of capacity before using.
The power check button can also be used to trigger
USB charging.
Easy Charging
The LB-SU98 can be charged on SWIT 2-ch charger S-3602U or 4-ch charger LC-D421. And you can also use SWIT PC-U130B/B2 Portable
D-tap Charger for LB-SU98.
By S-3602U/LC-D421 will take about 4 hours and 30 minutes to
charge from empty to 100%.
By PC-U130B/B2 will take 2 hours and 50 minutes to fully charge.
Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after
long-term storage due to complete power
drainage.
SWIT batteries adopt a unique low-power
design that could hold the charge for several
years without losing power. There is no need
for regular charge-discharge maintenance,
just effortless, reliable storage when you
need it.
Nominal Voltage | 14.4V |
Capacity | 98Wh, 6.8Ah |
Max output power | Total: 70W, 6A |
Pins: 70W, 6A | |
| D-tap: 70W, 6A | |
| USB: 10W, 5V/2A | |
Compatible cameras | SONY PXW-FX6, FX9 |
| SONY PXW-Z380, Z280, Z190 | |
| SONY PXW-Z200, HXR-NX800 | |
| SONY PXW-FS5, FS7 | |
| SONY PXW-X280 | |
Blackmagic PYXIS 6K/12K | |
Dimension | 70×42×96mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | Net 464g; With package0.45kg |
MSRP
MSRP
MSRP
-
LB-SU75
SONY BP-U Camcorder Battery Pack
75Wh, for SONY Z380/Z280, FX6/FX9, HXR-NX800, Blackmagic PYXIS, etc; D-tap output, USB output; LED power indicators,
1. Warranty Period
We provide 1 year conditional warranty for batteries.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly, modification, or repair.
(2) Non-Compliant Charging Equipment and Practices
Use of non-original SWIT chargers or uncertified third-party charging accessories;
Use of third-party D-tap charger of reversed polarity connections and cause any damage.
(3) Misuse and Physical Damage
Compression, puncture, dropping, impact, collision, water immersion, exposure to high temperatures or direct sunlight, or any other non-normal use not in accordance with the product's intended design.
(4) Use of Damaged or Defective Battery
Continued use of a battery that is damaged, leaking, or exhibiting abnormal overheating without prompt discontinuation.
(5) Natural Capacity Degradation
Reduction in battery capacity resulting from the natural aging process after a certain number of charge/discharge cycles.
(6) Improper Storage and Maintenance
Damage caused by improper storage practices that lead to extended deep discharge or prolonged zero-charge state of the battery.
(7) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(8) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(9) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
