◆ 14.4V nominal voltage Li-ion battery
◆ Compatible with SONY BP-U batteries
◆ Display power info in camera (some new models)
◆ 75Wh / 5.2Ah capacity
◆ Built-in 14.4V D-tap output / Charging input
◆ Built-in 5V/2A USB output
◆ 4-level LED power indicator
◆ Multiple circuit protections
◆ Compatible with Blackmagic PYXIS 6K/12K

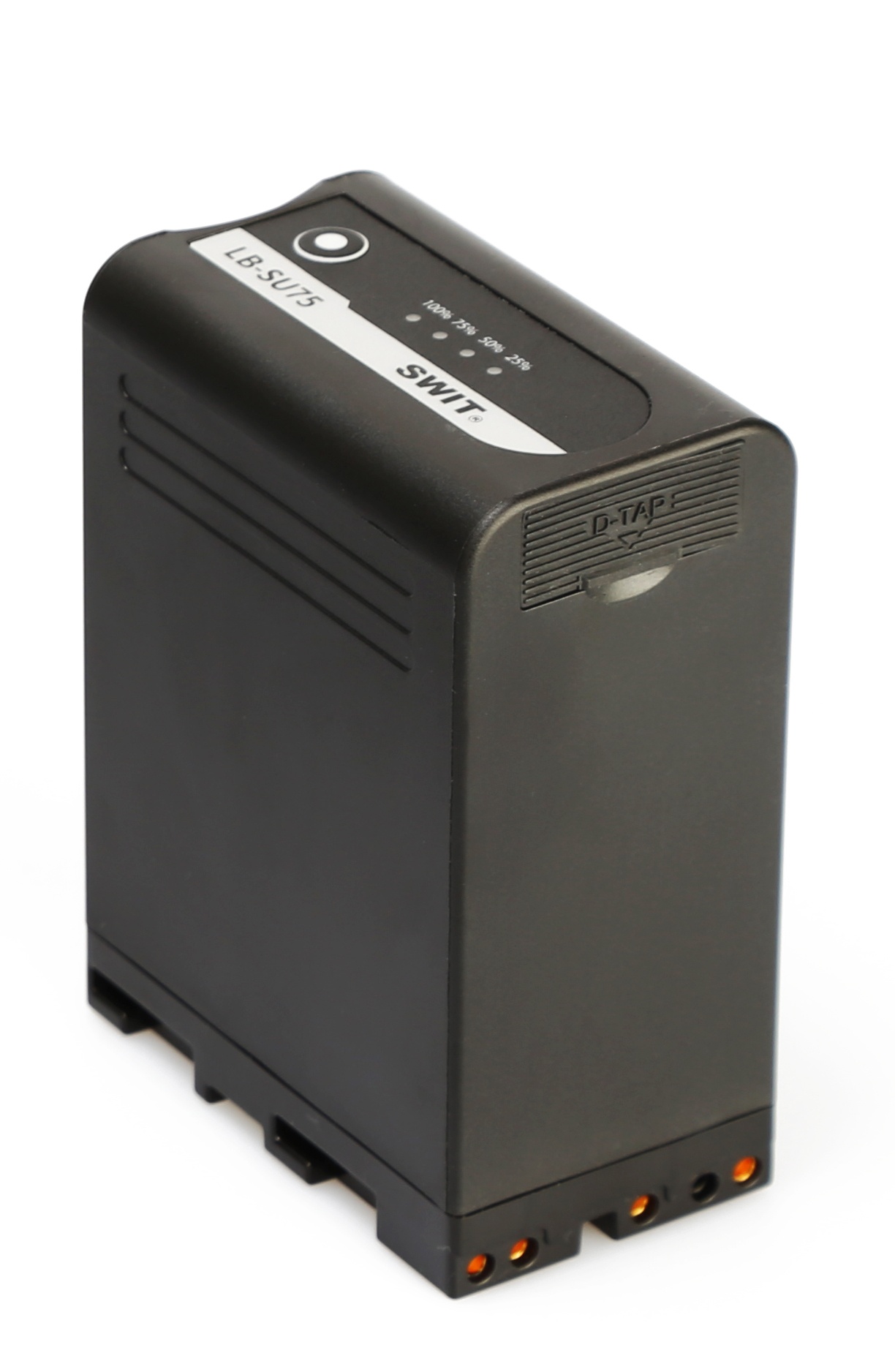

SONY BP-U type Battery
LB-SU75 is the replacement battery for Sony
BP-U60, compatible with SONY Camcorder PXW-FX6 / FX9 / FS7 / FS5, PXW-Z200, HXR-NX800, PXW-Z380 / Z280 / Z190 / X280, Blackmagic PYXIS 6K/12K, etc.
75Wh / 5.2Ah High Capacity
With 14.4V nominal voltage, the LB-SU75 has 75Wh / 5.2Ah capacity, and can run approx. 2 hours 50 minutes on SONY
PXW-Z280 camera.

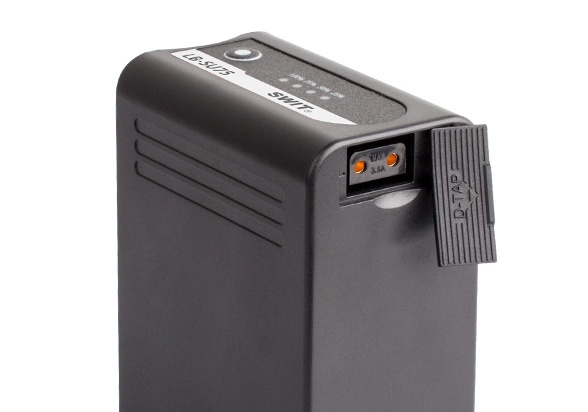

Built-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the side of LB-SU75
battery, for DC14.4V (Nominate) connection. You can connect
on-camera LED light, monitor or wireless transmitter on the
D-tap socket, and get power simultaneously with camera.
The Max power from D-tap is 50W, 4A.
The D-tap socket can also be used as charging input, by SWIT
portable charger PC-U130B/B2.

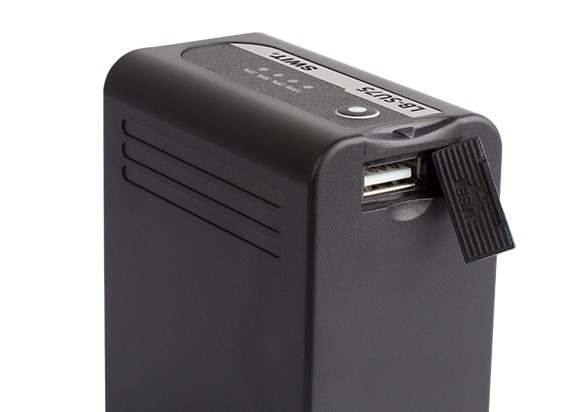

Built-in 5V/2A USB Socket
Connect your USB devices like smart phone or pad to the USB socket of LB-SU75, press the power check button, and
then the battery will start to output 5V/2A power to charge
your devices.

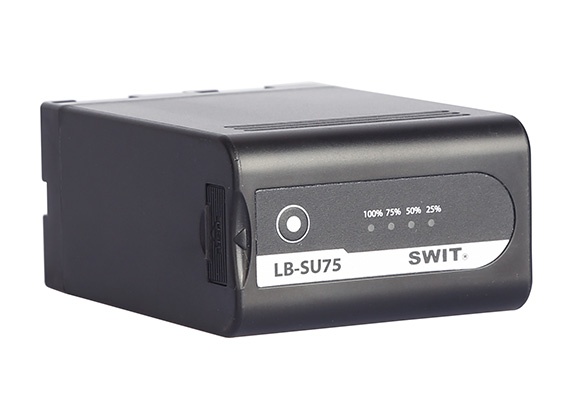

LED Power Indicator
The LB-SU75 battery has the 4-level LED power
indicators to check the battery remaining capacity.
You can get a quick view of capacity before using.
The power check button can also be used to trigger
USB charging.
Easy Charging
The LB-SU75 can be charged on SWIT 2-ch charger S-3602U or 4-ch charger LC-D421. And you can also use SWIT PC-U130B/B2 Portable
D-tap Charger for LB-SU75.
By S-3602U/LC-D421 will take about 3 hours and 30 minutes to
charge from empty to 100%.
By PC-U130B/B2 will take 2 hours and 10 minutes to fully charge.
Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after
long-term storage due to complete power
drainage.
SWIT batteries adopt a unique low-power
design that could hold the charge for several
years without losing power. There is no need
for regular charge-discharge maintenance,
just effortless, reliable storage when you
need it.
Nominal Voltage | 14.4V |
Capacity | 75Wh, 5.2Ah |
Max output power | Total: 50W, 4A |
Pins: 50W, 4A | |
| D-tap: 50W, 4A | |
| USB: 10W, 5V/2A | |
Compatible cameras | SONY PXW-FX6, FX9 |
| SONY PXW-Z380, Z280, Z190 | |
| SONY PXW-Z200, HXR-NX800 | |
| SONY PXW-FS5, FS7 | |
| SONY PXW-X280 | |
Blackmagic PYXIS 6K/12K | |
Dimension | 70×42×96mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | 430g; With package 0.45kg |
