› IP54 water/dust proof
› Strong 1.5m drop off proof
› 14.4V, 290Wh capacity
› 250W, 20A constant high load
› 6A fast charging support
› 8-LED digital power indicators
› SONY/RED viewfinder power info display
› D-tap power output socket

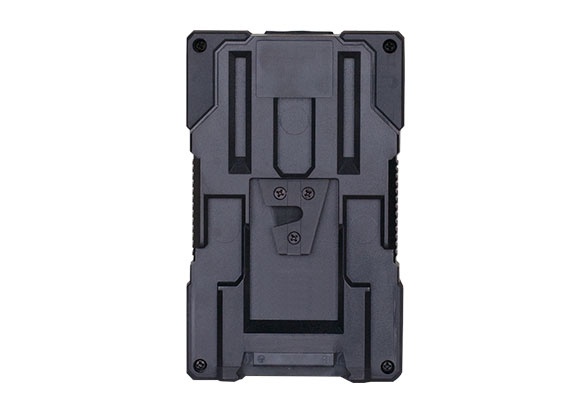

› V-mount connection
› Multiple circuit protections
Heavy Duty Battery
High load & IP54 waterproof

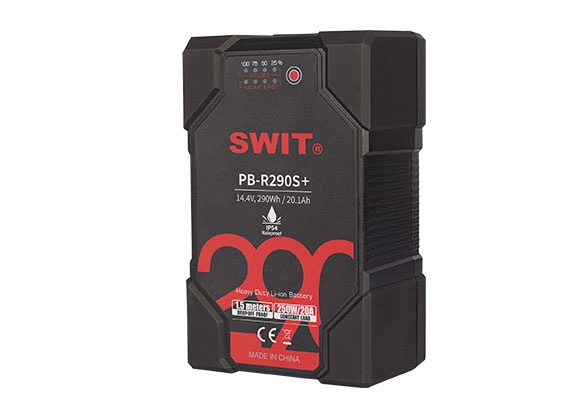

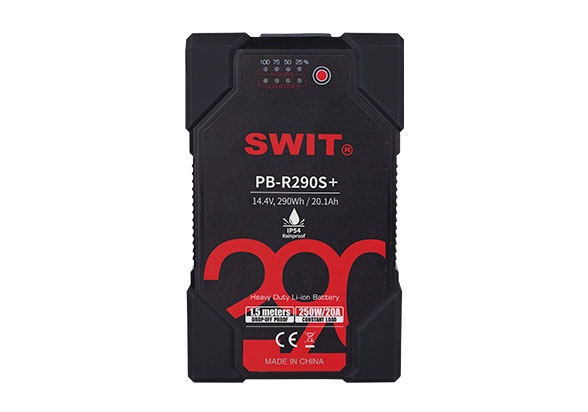

PB-R290S+ is a 290Wh V-mount battery, for
Cine and ENG cameras, with dual housing heavy duty sealed structure, IP54 rainproof, 1.5m drop-off
proof. The battery supports high load, fast
charging and digital power info display, for field applications.
IP54 Waterproof
1.5 meters drop-off proof
PB-R290S+ has dual housing sealed structure to support IP54 waterproof in rain, snow and other inclement weather. The dual housing with rubber cover is also strong enough to survive from 1.5 meters any angles drop-off.
290Wh / 20.1Ah Capacity
Consists of 24pcs high class 18650 battery cells,
and reaches 290Wh / 20.1Ah high capacity.
Can run approx 11 hours for normal ENG cameras,
and approx 3.5 hours for ARRI ALEXA.
High Load for Cine Cameras
250W / 20A constant load
PB-R290S+ provides at least 250W/20A high load
even at 1% capacity (Peak load up to 305W), to drive high power Cine cameras and on-camera devices together. The high
load cells will also ensure battery life comparing to
normal load batteries if long time full load output.
Over current protection: 24A.
6A Fast Charging
Using SWIT 6A fast charger
PB-R290S+ supports 6A fast charging by SWIT PC-P461S or S-3812S fast charger, to save more than 50%
charging time. The 290Wh PB-R290S+ battery
can be charged from 0 to 80% after 2.5 hours,
and fully charged within 3.8 hours.
Digital Power Info
8-LED + SONY&RED viewfinder info
PB-R290S+ has the innovative 8-LED power indicators.
When free or charging, the LEDs will indicate current
capacity percentage, and when battery is discharging,
the LEDs will display the remaining running time at the
current discharging power, accurate to 15 minutes.
Meanwhile, the battery pack adopts intelligent SMBUS
that compatible with both SONY and RED camera info
system, and can display remaining minutes on camera
viewfinder.

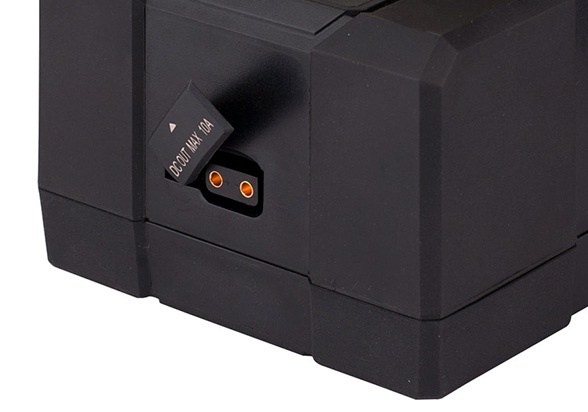

D-tap Socket
A D-tap DC output socket is equipped on the top side
of the battery pack, to power the other on-camera
equipments together.
The Max output current of D-tap is 10A.
Nominal Voltage | 14.4V |
Capacity | 290Wh/20.1Ah |
Constant load | 250W / 20A |
Max charging current | 6A fast charging |
IP class | IP54 |
Mount Type | V-mount |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | Net 1.51kg; With package1.65kg |
Dimensions | 162×101×69mm |
