› V-mount battery charger
› 4-ch simultaneous charging
› 3A per channel quick charging
› 2x 15V/6A 4-pin XLR DC output
› LED charging indicators for each channel
4-ch Simultaneous Quick Charger
For V-mount batteries
PC-P430S can charge 4pcs V-mount camera
batteries simultaneously. The charging
output is DC16.8V, 3A each channel.

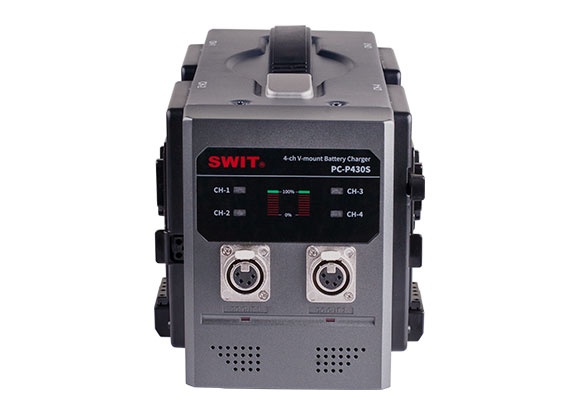

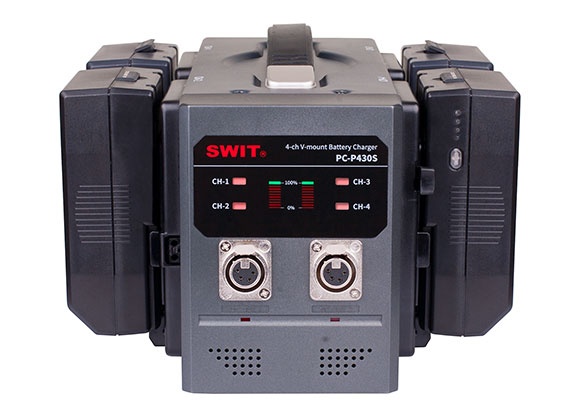

LED Charging Indicators
The PC-P430S has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors:
Display Red: Battery is charging, capacity below 80%;
Display Yellow: Battery is charging, capacity above 80%;
Display Green: Charging finished.
AC-DC Adapting Output
PC-P430S has 2x 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable (optional purchase), the PC-P430S can be used as AC-DC adaptor of 2-ch DC 15V, 6A, 90W simultaneous output.
*Please note the AC-DC adapting output will not work when battery is charging.
Power | Max276W |
Input | AC100V-240V 50/60Hz |
Charging Output | DC 16.8V, 3A×4 |
Adapting Output | DC 15V, 6A×2 |
Dimensions | 285×144×173mm |
Net weight | Net 3.27kg; With package 3.8kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-
AC power cable
-

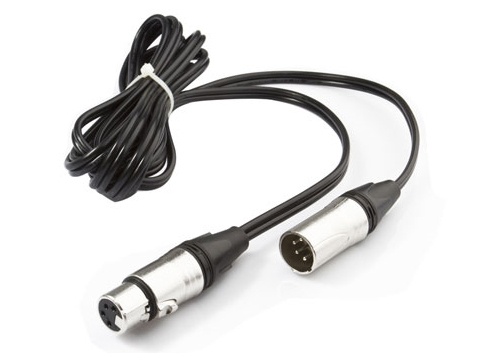

S-7102
4-pin XLR female to male cable, for 4-pin DC adapting output
-
PC-P460S
4x6A Super Fast V-mount Charger
4-ch simultaneous charging with 6A super fast charging current; color LCD screen
1. Warranty Period
We provide 2 years conditional warranty for battery chargers.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliant Charging Objects
Use of the charger to charge non-original SWIT batteries or uncertified third-party batteries.
(2) Non-Compliant Power Supply and Operation
Use of mismatched power supply, input voltage exceeding the rated range of AC 100V–240V, power input exceeding the rated capacity, prolonged overcharging, or operation under no-load conditions.
(3) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly or repair; failure to operate the charger in accordance with the prescribed procedures, resulting in damage or safety hazards.
(4) Misuse and Physical Damage
Unauthorized modification, dropping, impact, collision, water immersion, exposure to high temperatures or humid environments, or any other non-normal use not in accordance with the product's intended design.
(5) Use of Damaged or Defective Charger
Continued use of a charger that is damaged, malfunctioning, or exhibiting abnormal overheating without prompt discontinuation.
(6) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(7) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(8) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
