› Li-ion battery of 7.2V nominal voltage
› For Panasonic AU-EVA1, AG-DVX200, etc
› Comparable to Panasonic VW-VBD58
› Comparable to Panasonic AG-VBR59
› Can be charged by Panasonic DE-A88
› Can be charged by SWIT S-3602D
› 70Wh / 9800mAh capacity
› 4-level LED power indicator
› 7.2V Pole-tap DC output
› 5V/1A USB charging output
› Multiple circuit protections
Panasonic EVA1,DVX200 Compatible
Similar battery for Panasonic VW-VBD58/AG-VBR59

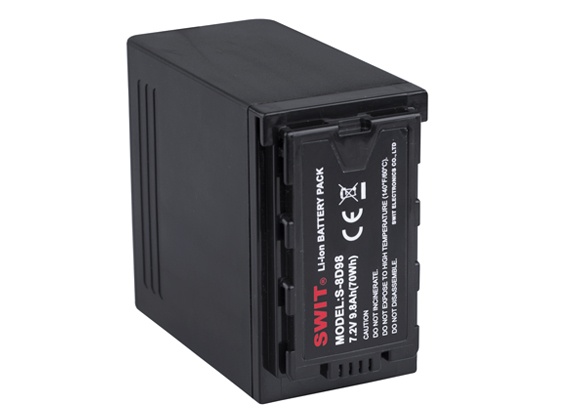

S-8D98 is the replacement battery for Panaso-
nic VW-VBD58 or AG-VBR59, compatible with
Panasonic AU-EVA1, AG-DVX200 and AJ-PX-
270/285, etc.
70Wh/9800mAh Capacity
With 7.2V nominal voltage, the S-8D98 has
70Wh / 9800mAh capacity, and can run more than 3 hours on AU-EVA1
camcorder.
Build-in Pole-tap DC Socket
For DC output or Charging input
A 5.5/2.1mm pole-tap DC output socket is equipped on the S-8D98 battery, for DC 7.2V (Nominate) connection. You can connect
on-camera LED light, monitor or wireless transmitter on the pole-tap socket, and get power simultaneously with camera.
The Max power from the pole-tap is 30W, 4A.
Build-in 5V/1A USB Socket
Use S-8D98 as Power Station to your cell phone!
It’s rather a fantastic function to have a USB socket on the
DV battery!
Connect your smart phone or pad to the USB socket, press
the “Check” button, and then the S-8D98 starts to output
5V/1A power to charge your devices!

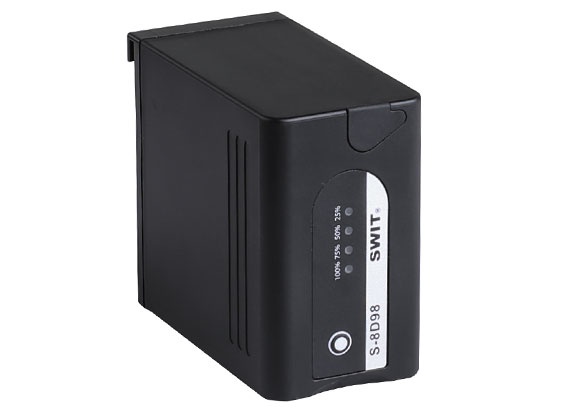

4-level LED Power Indicator
The S-8D98 battery has the 4-level LED power
indicators to check the battery remaining capacity.
You can get a quick view of capacity before using.

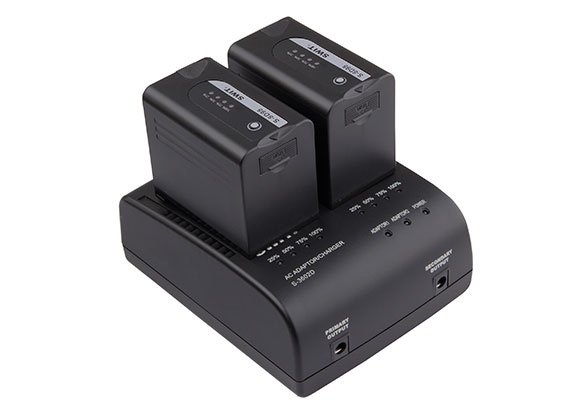

Easy Charging
The S-8D98 can be charged on Panasonic original charger
DE-A88, and SWIT also provides the Dual channel charger
S-3602D or 4-ch charger LC-D421 for S-8D98, will take about 6 hours to charge from
empty to 100%.
Nominal Voltage | 7.2V |
Capacity | 70Wh, 9800mAh |
Max output power | Total: 30W, 4A |
Pins: 25W,3.5A | |
| Pole-tap: 30W, 4A | |
| USB: 5W (5V / 1A) | |
Compatible cameras | Panasonic AU-EVA1 |
| Panasonic AG-DVX200 | |
| Panasonic AJ-PX270 | |
Panasonic AJ-PX285 | |
Dimension | 41×70×83mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | Net 337g; With package0.35kg |
