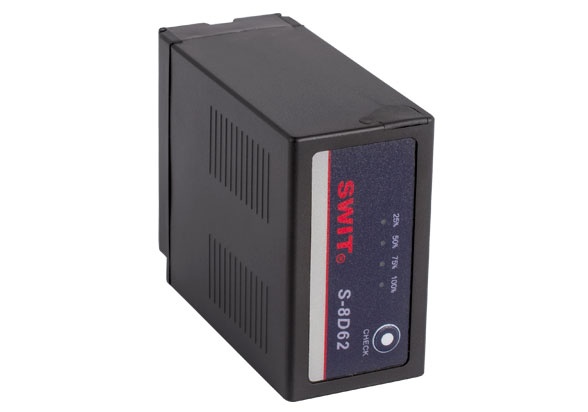

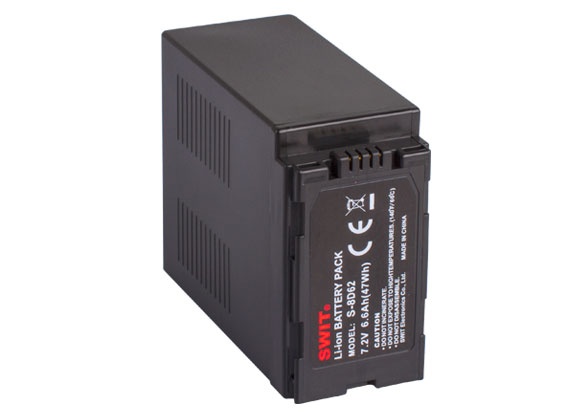

S-8D62 Panasonic CGA Series DV Camcorder Battery Pack
› Li-ion battery pack of 7.2V nominal voltage
› Comparable to Panasonic CGA series DV batteries
› 47Wh / 6.6Ah capacity
› 4-level LED power indicator
› 7.2V Pole-tap DC output
› Multiple circuit protections
Panasonic CGA series Replacement battery
Similar battery as Panasonic CGA-D54S
S-8D62 is the replacement battery for Panasonic
CGAD54S, compatible with Panasonic AG-HVX200,
AG-HPX250, AG-DVX100, etc.
47Wh / 6.6Ah Capacity
With 7.2V nominal voltage, the S-8D62 has 47Wh / 6.6Ah capacity,
and can run approx 3 hours on AG-HPX250, and 6.5 hours on AG-DVX100
camcorder when LCD monitor is on.
Build-in Pole-tap DC Output Socket
A 5.5/2.1mm pole-tap DC output socket is equipped on the side of S-8D62 battery, for DC 7.2V (Nominate) connection. You can connect on-camera LED light,
monitor or wireless transmitter on the pole-tap socket, and get power simultaneously with camera.
The Max power from the pole-tap is 30W, 4A.

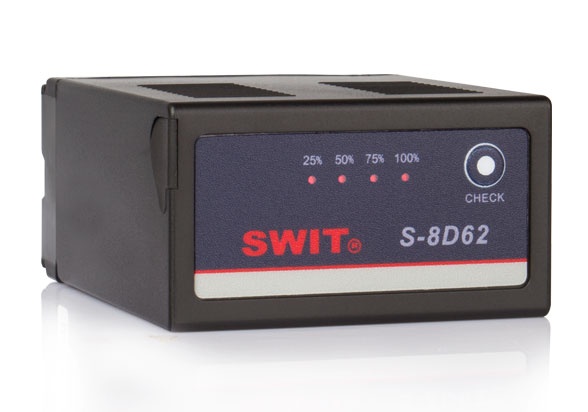

4-level LED Power Indicator
The S-8D62 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.
Easy Charging

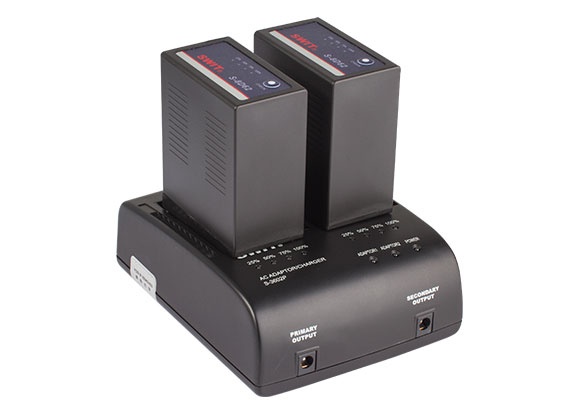

The S-8D62 can be charged on SWIT Dual channel charger S-3602D or SWIT 4-ch charger LC-D421.
It takes about 4 hours and 30 minutes to charge from empty to 100%.
Nominal Voltage | 7.2V |
Capacity | 47Wh, 6.6Ah |
Max output power | Total: 30W, 4A |
Pins: 25W,3.5A | |
| Pole-tap: 30W, 4A | |
Compatible cameras | Panasonic AG-HVX200/201 |
| Panasonic AG-HPX250 | |
| Panasonic AG-DVX100 | |
Dimension | 66×37×82mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | Net 300g; With package0.32kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
1. Warranty Period
We provide 1 year conditional warranty for batteries.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly, modification, or repair.
(2) Non-Compliant Charging Equipment and Practices
Use of non-original SWIT chargers or uncertified third-party charging accessories;
Use of third-party 5.5/2.1 barrel DC head charger of reversed polarity connections and cause any damage.
(3) Misuse and Physical Damage
Compression, puncture, dropping, impact, collision, water immersion, exposure to high temperatures or direct sunlight, or any other non-normal use not in accordance with the product's intended design.
(4) Use of Damaged or Defective Battery
Continued use of a battery that is damaged, leaking, or exhibiting abnormal overheating without prompt discontinuation.
(5) Natural Capacity Degradation
Reduction in battery capacity resulting from the natural aging process after a certain number of charge/discharge cycles.
(6) Improper Storage and Maintenance
Damage caused by improper storage practices that lead to extended deep discharge or prolonged zero-charge state of the battery.
(7) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(8) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(9) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
