› 1152pcs ultra bright long-life LEDs
› SMD Surface mounted LED technology
› 64° half peak wide beam angle
› 150W power, 5500Lux @ 1meter
› No fan, no noise
› Smooth exponential dimming curve
› 2700K-6500K continuously adjustable
› Color rendering CRI 97, TLCI 99, SSI(D55)73
› DMX512 controlled color and dimmer
› LCD display color and dimmer value
› Protection grade IP20
› Power by V/Gold mount battery or AC adaptor
› 4-leaf metal barn doors and Yoke bracket
› Optional 40° honeycomb

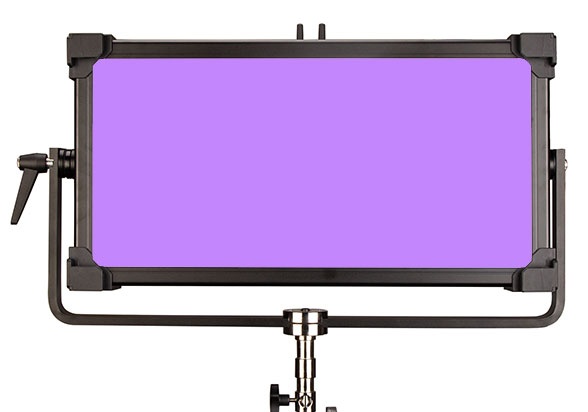

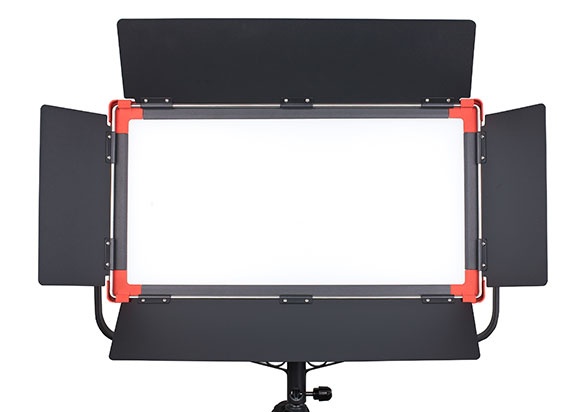

150W Ultra Bright Panel Light
PL-S150D is a 2:1 size 150W Bi-color SMD LED
panel light with high intensity, smooth dimmer curve,
high CRI/TLCI/SSI, for both broadcast studio and field setup.
5500Lux@1m Super Bright
PL-S150D provides 150W light output and as high as 5500Lux at 1 meter illuminance, twice brighter than regular 100W LED panels with the same size, works perfectly in broadcast studio setup especially the large 4K studios that request brighter panel lights comparing
to HD studios, to reproduce more HDR details.
Exponential Dimming Curve
To produce smooth light output when dimming
at low intensity range, PL-S150D provides a
non-linear exponential dimming curver, and the 1%
dimmer equals to only 0.3% of the full intensity,
to match with the sensitivity of human eyes.
IEC 62471 Photobiological Safe Certificated
The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.
No Fan, No Noise
The active cooling system of PL-S150D
ensures 150W high bright output with no
fan or louver, to provide a silent video
production environment.
2700K-6500K Continuously Adjustment
PL-S150D consists of 150W of 2700K LED and 150W of 6500K LED, and
outputs 150W power at any color temperature from 2700K to 6500K.
CRI 97; TLCI 99
PL-S150D adopts high end surface mounted
LEDs with super high Color Rendering Index
(CRI) Ra 97, and Television Lighting Consistency
Index (TLCI) 99. Objects will keep their original
colors exactly under the light.
SSI 73 (D55)
SSI (Academy Spectral Similarity Index) is an evaluation
of light color rendering in 4K broadcast studios, by
comparing the spectral power distributions of a test
light fixture with a reference light source.
PL-S150D CIE D55 (comparing with sunlight) SSI scores
73, a high score to the LED light.

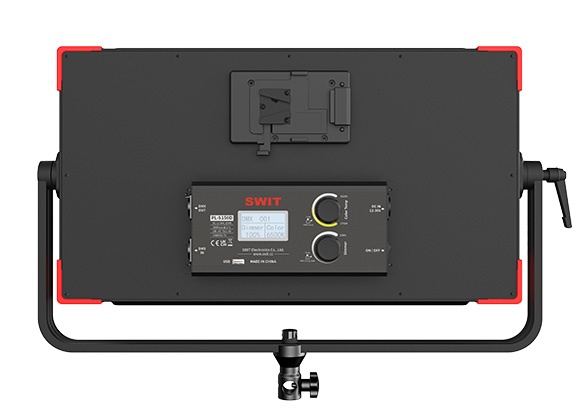

Control Info Display
The rear LCD screen can display dimmer
percentage, color temperature, DMX address
and Group channel.
Long press dimmer knob to set DMX address,
and long press color temp knob to switch
between DMX consoler mode and Group
interactive control mode.
5-pin DMX IN & OUT
PL-S150D provides 5-pin XLR DMX512 in & out,
and a 5V USB-A port to power the wireless DMX
receivers.
The DMX address n= dimmer, n+1=color temp
DC and Battery Power
PL-S150D supports 3-pin XLR DC 12-36V
wide range input, and an on-board V-mount
plate to power by batteries. The standard
package provides an AC-DC adaptor and can
be fixed to the V-mount plate.
Optional Honeycomb
The standard barndoors can be easily
disassmbled from the light and exchanged
to a 40° honeycomb LA-GS150, optional
purchase.
LED | 1152pcs SMD LEDs |
illuminance | 5500Lux @ 1m |
Beam angle | 64° half peak |
Color Temperature | 2700K ～ 6500K |
Color Render | CRI Ra 97; TLCI 99; SSI(D55) 73 |
IP Rating | IP20 |
Power | 150W |
Working voltage | DC12V～36V |
Dimension | 543×301×58mm; Shipping carton 680×150×480mm |
Lighting area | 484×242mm |
weight | Net 5.8kg; With package 8.5kg |
MSRP
MSRP
MSRP
-

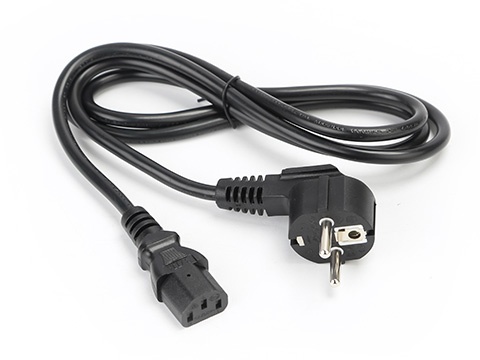

AC power cable
-

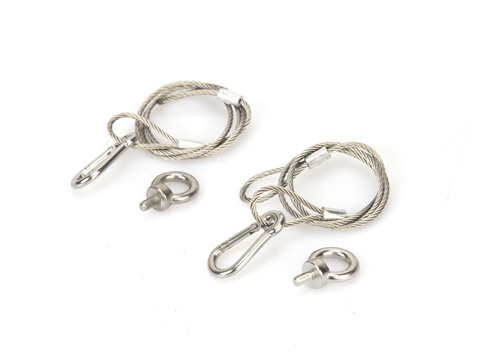

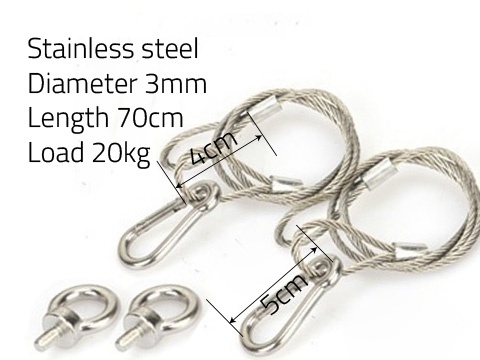

Safety rope x2; Ring ×2
-

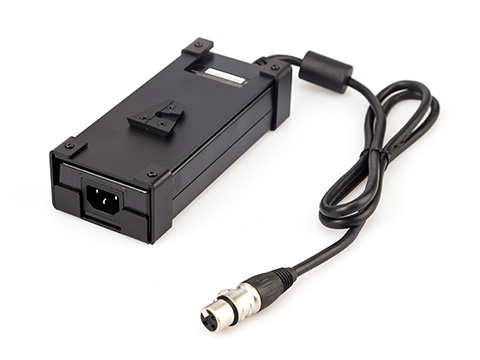

AC-DC Adaptor
-

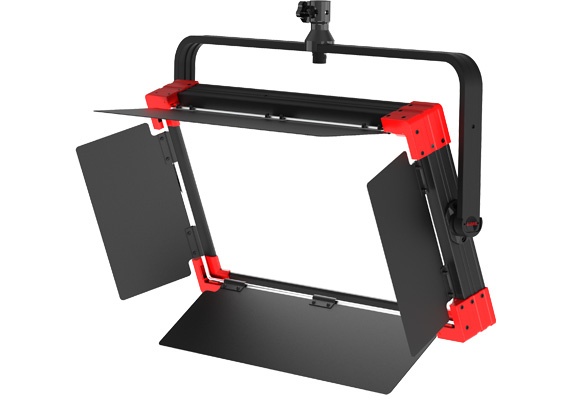

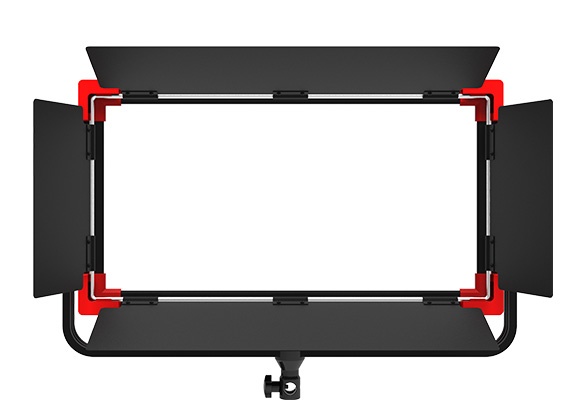

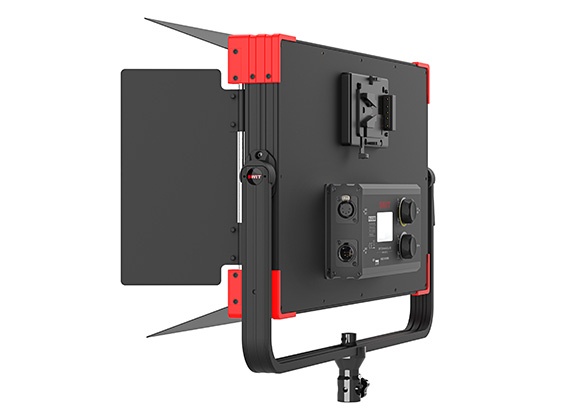

Barn door kit
-

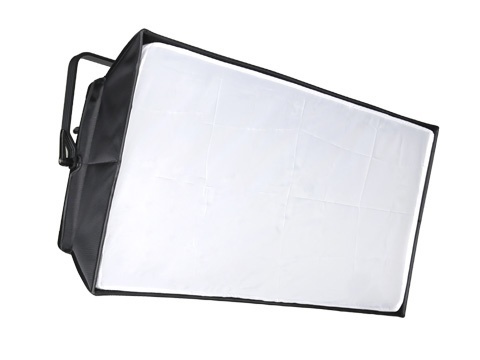

LA-BX300
Softbox diffuser, 5500Lux@1m on PL-S150D，PL-S300D -

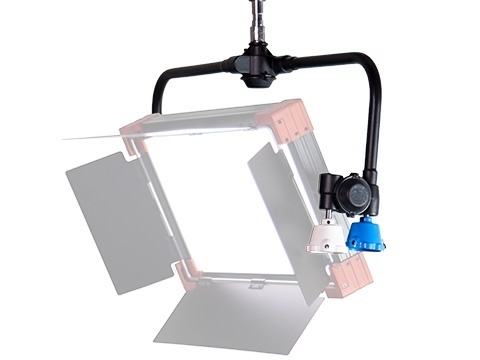

LA-POS150
2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. Compatible with PL-S150D, PL-S300D, PL-S300H -

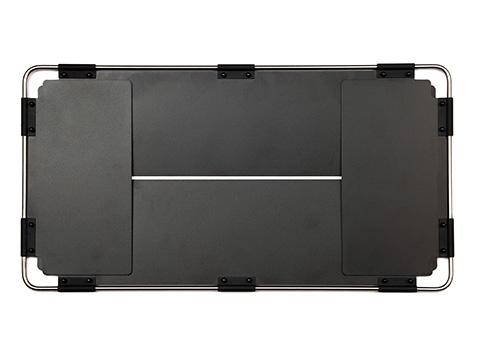

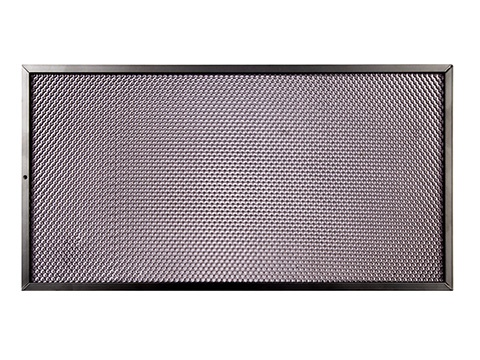

LA-GS150
40° HoneyComb, to replace the standard barndoor kit, quick assemble and disassemble.
