› 1152pcs ultra bright long-life LEDs
› Surface mounted LED technology
› 70° wide beam angle with diffuser
› 3200K-5600K continuously adjustable
› 100W power, 2500Lux @ 1meter
› 10%-100% flick-free dimming
› Super high CRI Ra 93, TLCI 97
› DMX512 controlled color and dimmer
› LCD display color and dimmer value
› Power by V-mount battery or AC-DC adaptor
› 4-leaf metal barn doors
› Strong all-metal housing
› U-shape support and lighting tripod mount

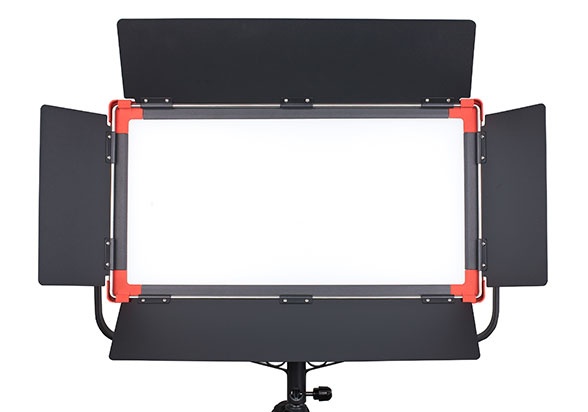

1152pcs Surface Mounted LEDs
Area light, soft and glareless
S-2430C is a studio panel LED light, with surface mounted
LED technology, includes 1152pcs ultra bright LEDs. The
build-in diffuser generates an equally spread area light of
70° effective wide beam angle, which is an ideal light
source for broadcast studio and field video productions.
Bi-color temperature
3200K-5600K continuously adjustable
S-2430C alternated with 5600K and 3200K LEDs, and the output color temperature can be continuously adjustable between 3200K
and 5600K.
2500 Lux @ 1 meter
10-100% flick-free dimming
S-2430C outputs 100W power, feeds 2500Lux luminance at
1 meter distance (center), supports 10% to 100% PWM digital
dimming, smoothly and non-flickering.
High Color Reveal Ability
CRI Ra 93; TLCI 97
CRI (Color Rendering Index) is a measure of the ability of a light source
to reveal the colors of various objects faithfully in comparison with a
natural light source. And TLCI (Television Lighting Consistency Index) is
special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while S-2430C offers the
super high CRI at 93 and TLCI at 97, and will not lose the object original
colors.
DMX512 Control
Dimmer and Color temperature
S-2430C adopts standard 5-pin DMX in/out port, supports
DMX512 protocol, and adjusts dimmer and color temperature
by DMX controller.
The dimmer and color temperature occupy 1 DMX address
respectively.

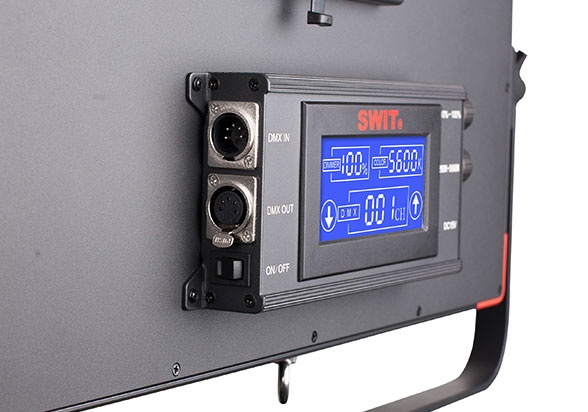

LCD screen display
Dimmer / color temperature value, DMX address
The rear LCD screen can display the current
dimmer percentage, color temperature value,
and supports touch control to set DMX address.

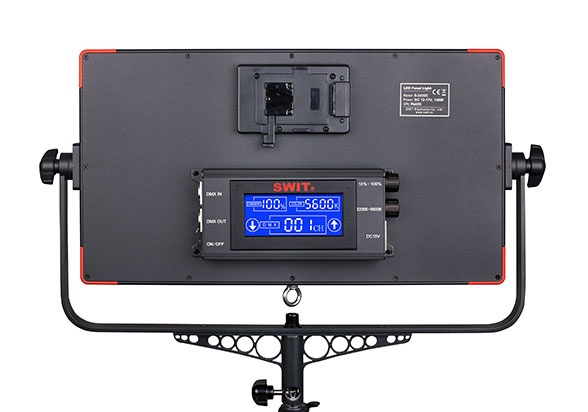

DC 12-17V Power Supply
By V-mount battery / AC-DC adaptor
S-2430C supports 12-17V 4-pin XLR DC input, and
equipped with a battery plate to power by V-mount
battery, or powered by AC-DC adaptor.
The AC-DC adaptor is supplied with a V-wedge, so
that you can fix the adaptor onto V-mount plate of
the light.

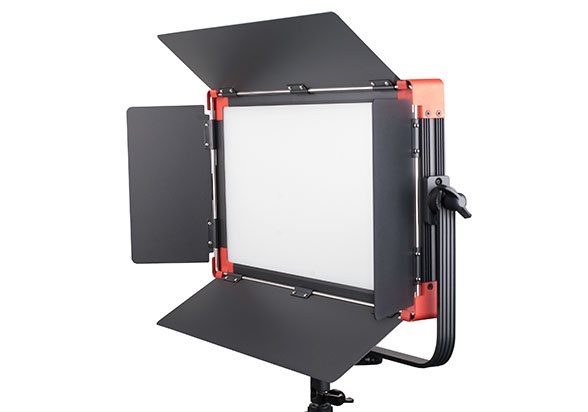

4-leaf Metal Barn Door
Easy to disassemble
S-2430C has all-metal housing, and equipped with a 4-leaf metal
barn door, snap on install, and easy to disassemble.
U-shape Bracket
Dual security rope
S-2430C supplied with a U-shape bracket for
lighting tripod install or celling hanging install.
The product package provides 2x steel security
rope for both light body and U-shape bracket.
LED | 1152pcs SMD LEDs |
illuminance | 2500Lux @ 1m |
Beam angle | 70°(50% bounded) |
Color Temperature | 5600K±300K ～ 3200K±200K |
CRI | 93 |
TLCI | 97 |
Power | 100W |
Working voltage | DC12V～17V |
Dimension | 630×440×83mm |
Lighting area | 477×237mm |
weight | Net 5.8kg; With package 10.8kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

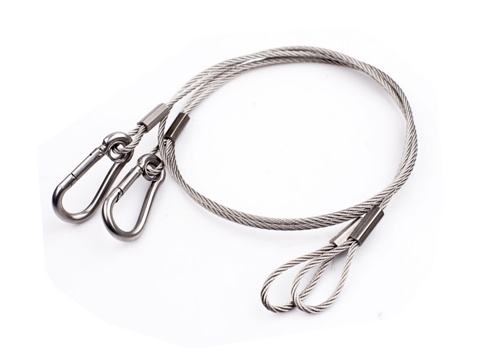

Safety Rope x2
-

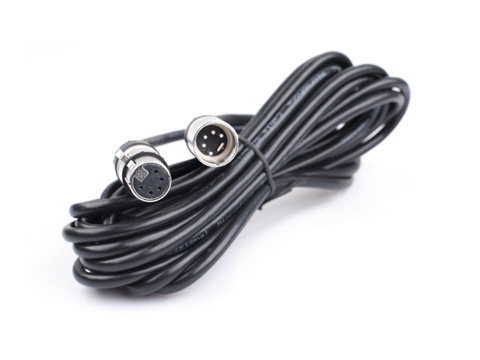

5-pin DMX cable
-

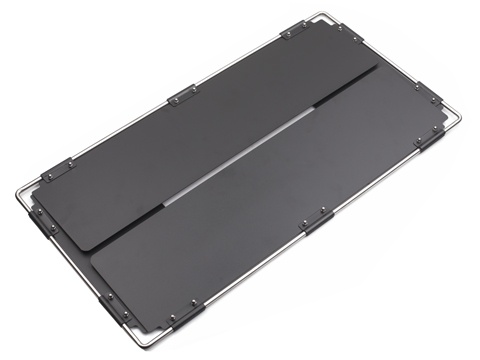

Barn door kit
-

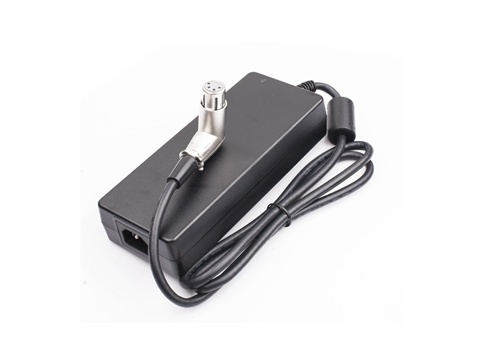

AC-DC Adaptor
-

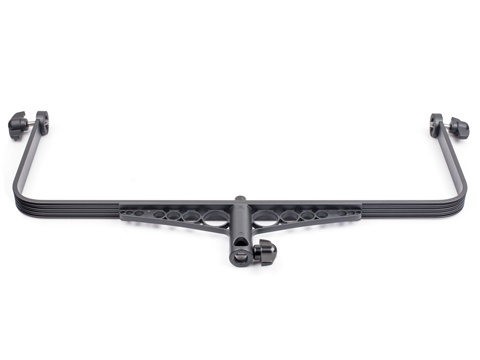

U bracket
