› 576pcs ultra bright long-life LEDs
› Surface mounted LED technology
› 70° wide beam angle with diffuser
› 3200K-5600K continuously adjustable
› 50W power, 1250Lux @ 1meter
› 10%-100% flick-free dimming
› Super high CRI Ra 96, TLCI 97
› DMX512 controlled color and dimmer
› LCD display color and dimmer value
› Power by V-mount battery or AC-DC adaptor
› 4-leaf metal barn doors
› Strong all-metal housing
› U-shape support and lighting tripod mount

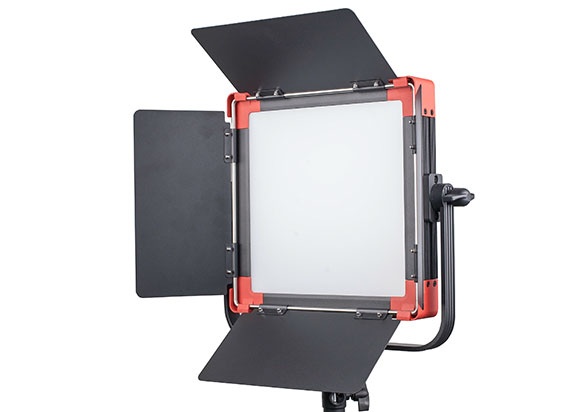

576pcs Surface Mounted LEDs
Area light, soft and glareless
S-2440C is a studio panel LED light, with surface mounted
LED technology, includes 576pcs ultra bright LEDs. The
build-in diffuser generates an equally spread area light of
70° effective wide beam angle, which is an ideal light
source for broadcast studio and field video productions.
Bi-color temperature
3200K-5600K continuously adjustable
S-2440C alternated with 5600K and 3200K LEDs, and the output color temperature can be continuously adjustable between 3200K
and 5600K.
1250 Lux @ 1 meter
10-100% flick-free dimming
S-2440C outputs 50W power, feeds 1250Lux luminance at 1
meter distance (center), supports 10% to 100% PWM digital
dimming, smoothly and non-flickering.
High Color Reveal Ability
CRI Ra 96; TLCI 97
CRI (Color Rendering Index) is a measure of the ability of a light source
to reveal the colors of various objects faithfully in comparison with a
natural light source. And TLCI (Television Lighting Consistency Index) is
special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while S-2440C offers the
super high CRI at 96 and TLCI at 97, and will not lose the object original
colors.
DMX512 Control
Dimmer and Color temperature
S-2440C adopts standard 5-pin DMX in/out port, supports
DMX512 protocol, and adjusts dimmer and color temperature
by DMX controller.
The dimmer and color temperature occupy 1 DMX address
respectively.

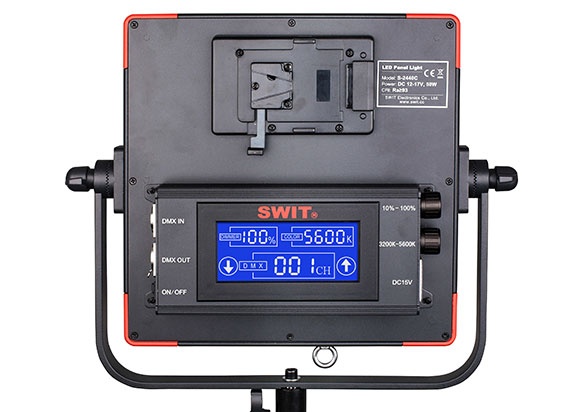

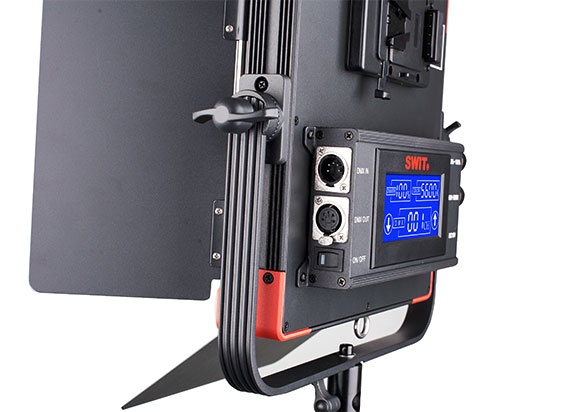

LCD screen display
Dimmer / color temperature value, DMX address
The rear LCD screen can display the current
dimmer percentage, color temperature value,
and supports touch control to set DMX address.
DC 12-17V Power Supply
By V-mount battery / AC-DC adaptor
S-2440C supports 12-17V 4-pin XLR DC input, and
equipped with a battery plate to power by V-mount
battery, or powered by AC-DC adaptor.
The AC-DC adaptor is supplied with a V-wedge, so
that you can fix the adaptor onto V-mount plate of
the light.

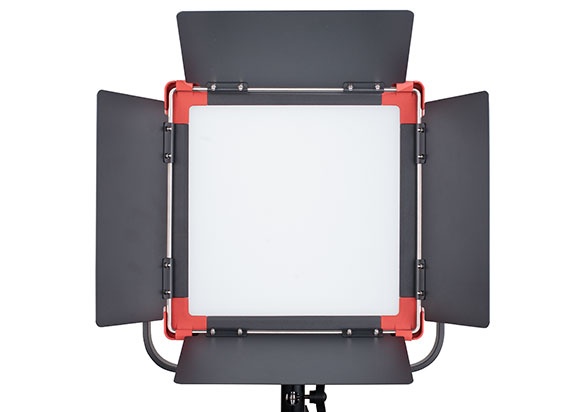

4-leaf Metal Barn Door
Easy to disassemble
S-2440C has all-metal housing, and equipped with a 4-leaf metal
barn door, snap on install, and easy to disassemble.
U-shape Bracket
Dual security rope
S-2440C supplied with a U-shape bracket for
lighting tripod install or celling hanging install.
The product package provides 2x steel security
rope for both light body and U-shape bracket.
LED | 576pcs SMD LEDs |
illuminance | 1250Lux @ 1m |
Beam angle | 70°(50% bounded) |
Color Temperature | 5600K±300K ～ 3200K±200K |
CRI | 96 |
TLCI | 97 |
Power | 50W |
Working voltage | DC12V～17V |
Dimension | 395×375×83mm |
Lighting area | 237×237mm |
weight | 4.1kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

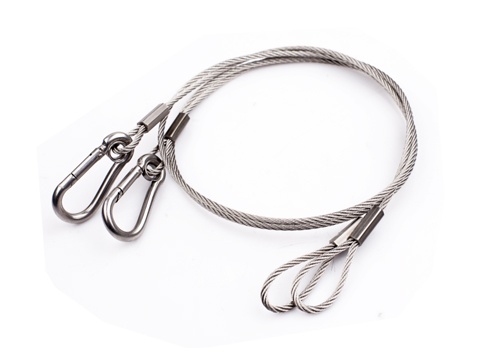

Safety Rope x2
-

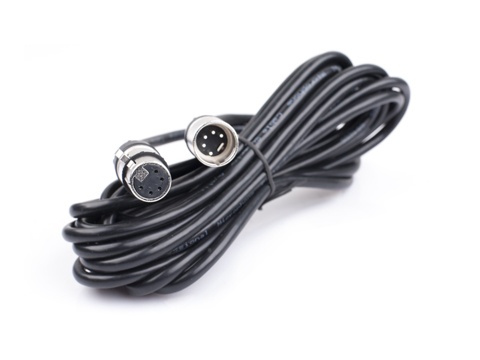

5-pin DMX cable
-

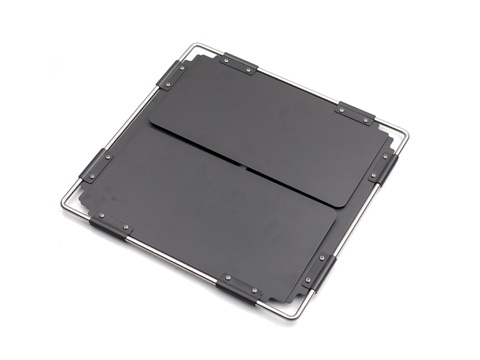

Barn door kit
-

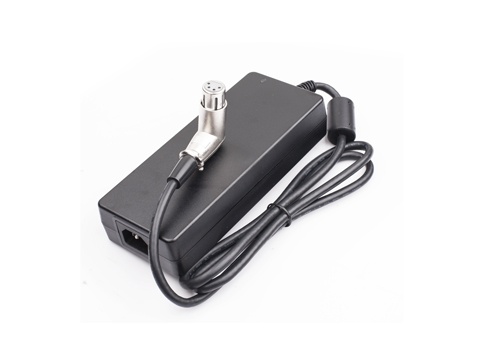

AC-DC Adaptor
-

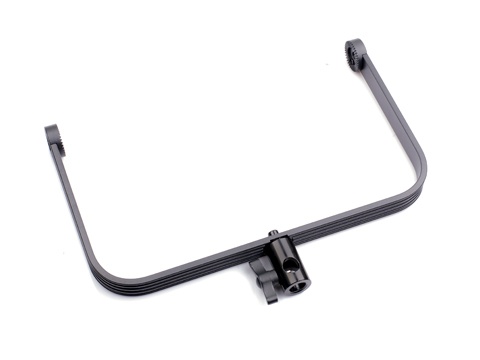

U bracket
1. Warranty Period
We provide 1 year conditional warranty for lighting products.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents, including but not limited to damage to LED emitters, circuits, or housings, personal injury, or property loss, are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with Operating Procedures
Operation, installation, or removal of equipment and accessories not in accordance with the User Manual; forcible removal of connection cables or power cables; obstruction of heat dissipation vents; direct visual exposure to LED emitters; failure to follow the prescribed sequence for startup/shutdown or wiring.
(2) Non-Compliant Power Supply and Accessories
Use of non-original SWIT power supplies, power cables, chargers, optical accessories, or other uncertified third-party accessories; powering the product with third-party power adaptors; use of extension cables or power adaptors with mismatched rated parameters.
(3) Unauthorized Modification and Repair
Unauthorized disassembly, modification, or repair of the equipment; tampering with core components or circuits; failure to contact SWIT authorized after-sales service upon equipment malfunction, resulting in unauthorized repair or aggravated damage by non-authorized personnel.
(4) Misuse and Adverse Environmental Conditions
Damage resulting from dropping, impact, compression, puncture, water immersion, exposure to high temperatures or direct sunlight, extreme cold, humidity, excessive dust, or other non-normal use environments or human-inflicted damage.
(5) Failure to Address Abnormal Conditions
Continued operation despite abnormal conditions such as overheating, abnormal odor, or abnormal noise, resulting in damage or safety incidents; use of damaged or malfunctioning accessories or batteries in violation of regulations.
(6) Out-of-Specification and Incompatible Use
Operation beyond the equipment's rated parameters; use in incompatible systems or environments; failure to implement protective measures during outdoor use, resulting in damage from severe weather conditions.
(7) Force Majeure and External Factors
Damage caused by irresistible factors (including but not limited to earthquake, flood, or typhoon), sudden voltage fluctuations, or external circuit short circuits.
(8) Natural Wear and Tear
Normal aging of LED emitters, wear of accessories, and other natural degradation of the product.
(9) Improper Storage
Failure to store equipment and accessories in accordance with prescribed specifications, resulting in moisture ingress, dust accumulation, or component corrosion.
(10) Non-Authentic Products and Ineligibility
Products not purchased through official SWIT channels, or products with altered or missing serial numbers that preclude verification of authenticity and warranty eligibility.
(11) Liability Disclaimer
All risks and consequences arising from improper use, human factors, or external factors shall be borne entirely by the user.
(12) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
