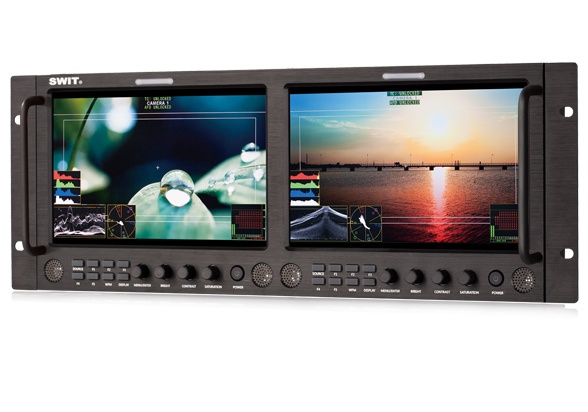

› 9-inch IPS LCD Panel ×2
› 1920×1200 resolution, 1000:1 contrast
› 19-inch 4U rack mounting, ±30° rotatable
› 2K/3G/HD/SD-SDI, HDMI®, CVBS monitoring
› 16-ch Embedded audio meters with alert
› Select any 2 audio channels to output
› Waveform Y/Cb/Cr/R/G/B and single line
› Vector scope, histogram R/G/B/Y
› AFD, H/V delay, R/G/B/Mono, False color
› TSL UMD and text TALLY display
› Zebra stripes, Peaking focus assist
› SDI timecode display
› Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
› TALLY light and GPI control
› USB firmware upgrade
9-inch IPS LCD
IPS panel with LED backlight
The M-1093F adopts 2× 9-inch IPS (In-Plane Switching) LCD panels, with Full HD 1920×1200 resolution and LED
backlight, 1000:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°

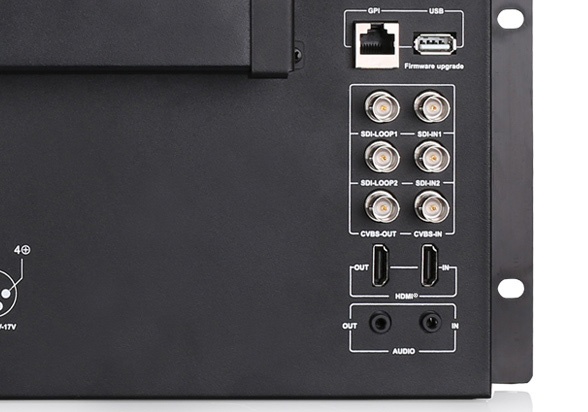

Input/Output Interfaces
SDI / HDMI® / CVBS / Analog Audio
Each LCD of M-1093F supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 2
HDMI® 1.3 input × 1
HDMI® 1.3 loop output × 1
CVBS input × 1
CVBS loop output × 1
3.5mm analog audio input × 1
3.5mm analog audio output × 1

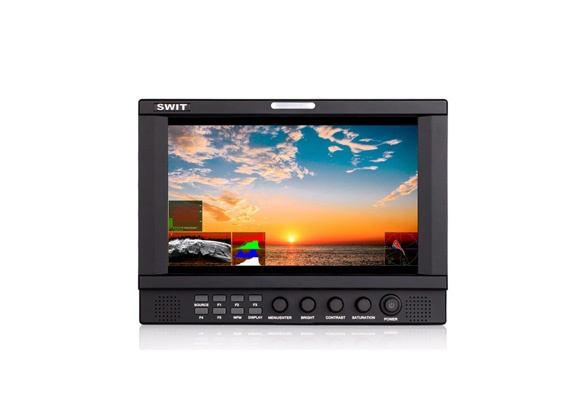

Video Analysis Assistant Pattern
Waveform / Vector scope / Histogram
M-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the
digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display
position (Up/Down/Left/Right), size, color, and translucence.
Embedded audio monitoring
Up to 16-ch meters with alert and select output
M-1093F supports SDI-16ch and HDMI®-8ch embedded audio meters
display, with marks and audio abnormal alert info. Users can also
select any 2 channels audio to output via 3.5mm socket or speakers.
The audio meter pattern position can be selected from one of four
corners, and you can select to display only 2 channels, 8 channels, and
full 16 channels. Also scale markers, alert info, and translucent of the
audio meter pattern are selectable.
UMD and Text-Tally Display
TSL 3.1 / 4.0 Protocol
M-1093F supports UMD and Text-Tally display of TSL
3.1/4.0 protocol, with 1-126 TSL address selection,
and Max 8 letters displayed. The UMD/TALLY signal
inputs via RJ45(RS485) port on the rear panel of the
monitor.
Peaking, R/G/B/Mono only, Zebra, False color
Timecode, H/V delay, AFD, Scale Markers
3-color TALLY Light
RJ45(RS485) input signal
There are front TALLY lights of Red, Green and Yellow colors on each screen, and users can
define the pins of RJ45 port to control the TALLY lights.
USB Firmware Upgrade
The monitor provides a standard USB port on the
rear panel, for firmware upgrade. Users can
download the latest firmware file to a USB stick,
and directly insert into M-1093F monitor to
upgrade, without PC connection.
Power Supply

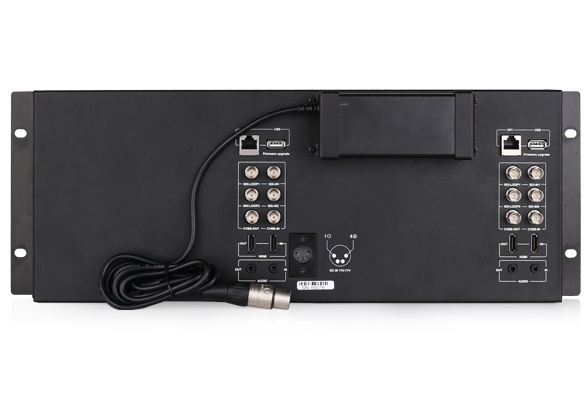

M-1093F provides a 4-pin XLR
socket of DC 6.5-24V power
input, for the both 2 screens,

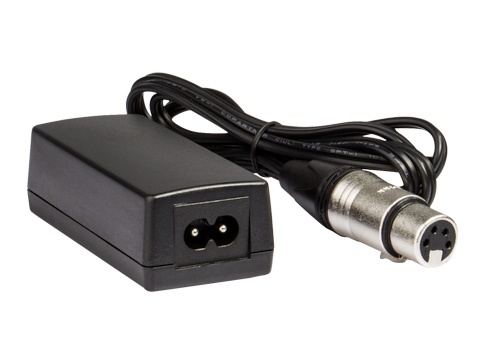

and an AC-DC adaptor is
attached on the rear panel of
the monitor.

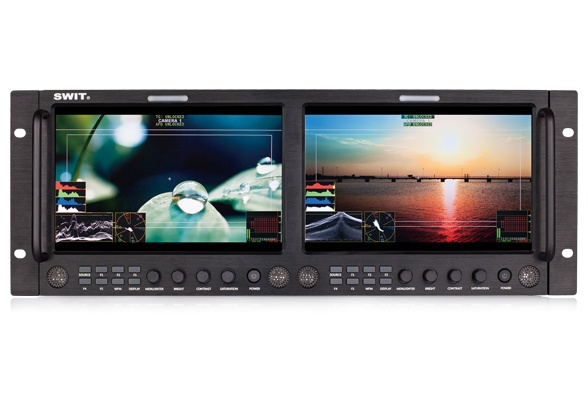

Installation
M-1093F is standard 19” rack mount fixing, occupies 4U height. The monitor is ±30° up and down rotatable when
installed on racks.
LCD Performance
Size | 9 inches ×2 |
Display area | 191.52×119.70mm |
Resolution | 1920×1200 |
Aspect ratio | 16:9 (4:3 adjustable) |
Brightness | 450cd/m2 |
Contrast | 1000:1 |
Color | 16.77 million colors |
Viewing angle | Horizontal: 170°; Vertical: 170° |
Input(Each LCD)
BNC ×2 | 2K/3G/HD/SD-SDI input×2 |
BNC ×1 | Composite input |
HDMI® ×1 | HDMI® input |
3.5mm ×1 | Analog audio input |
Output(Each LCD)
BNC ×2 | 2K/3G/HD/SD-SDI loop output |
BNC ×1 | Composite loop output |
HDMI® ×1 | HDMI® loop output |
3.5mm ×1 | SDI, HDMI®, Analog audio output |
Video Format
SDI | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080i (60 / 59.94 / 50) | |
| 1080p (60 / 59.94 / 50) | |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
HDMI® | 480i/ 576i / 480p / 576p |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
CVBS | NTSC / PAL |
General
Input voltage | DC 6.5V-24V |
Power consumption | ≤36W |
Working temperature | 0°C～+40°C |
Working humidity | 10%～90% |
Storage temperature | -15°C～+60°C |
Storage humidity | 10%～90% |
Dimensions | 484×177×112.8mm |
Net weight (main body) | Net 2.8kg; With package 3.6kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

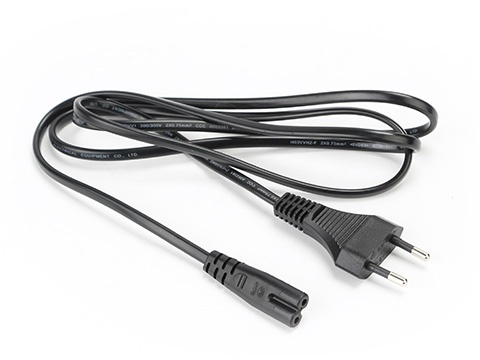

AC power cable
-
AC-DC Adaptor
1. Warranty Period
We provide 2 years conditional warranty for monitors (1 year for LCD panel).
