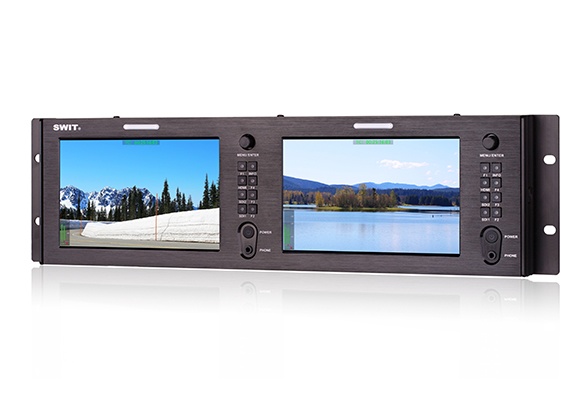

M-1073H Dual 7-inch FHD Rack LCD Monitor

› Dual 7” non-glaring LCD, 1920×1200

› 19-inch 3U rack mount, ±30° rotatable

› 2K/3G/HD/SD-SDI input & loop output

› HDMI 2.0 (4K60p) input & loop output

› 16-ch embedded audio meters with alert

› Select any 2 audio channels to output

› 9 steps quick zoom-in and mapping

› Focus assist with precision adjustment

› Build-in multi-camera logs to Rec.709

› User 3DLUT cube file import by USB

› On-screen TALLY display and GPI

› Zebra stripes, False color, R/G/B/Mono

› H/V delay, AFD, Timecode display

› Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1

› USB firmware upgrade

Features

7-inch Full HD LCD

TFT panel with LED backlight

The M-1073H adopts dual 7-inch LCD panels with LED backlight, The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°

Input/Output Interfaces

3G-SDI、4K-HDMI®

Each LCD of M-1073H supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 1
HDMI® 2.0 (4K60p) input × 1
HDMI® 2.0 (4K60p) loop output × 1
3.5mm SDI/HDMI® embedded audio output × 1

3DLUT Log to Rec709

User LUT cube import

M-1073H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm. You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.

Embedded audio monitoring

Up to 16-ch meters with alert and select output

M-1073H supports SDI-16ch and HDMI®-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

Peaking, R/G/B/Mono only, Zebra, False color

Timecode, H/V delay, AFD, Scale Markers

On-screen Tally

M-1073H supports on-screen TALLY display, and the TALLY control signal inputs via GPI(RS485) port on the rear panel of the monitor.

USB Firmware Upgrade

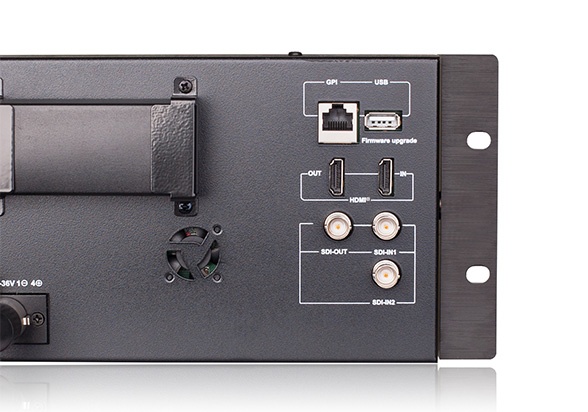

The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into M-1073H monitor to upgrade, without PC connection.

Power Supply

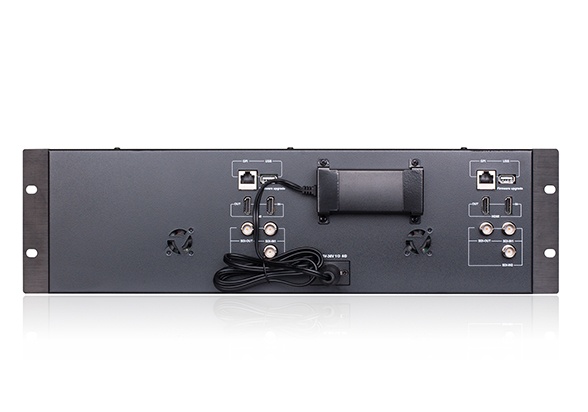

M-1073H provides DC 6.5-36V power input socket, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor.

Installation

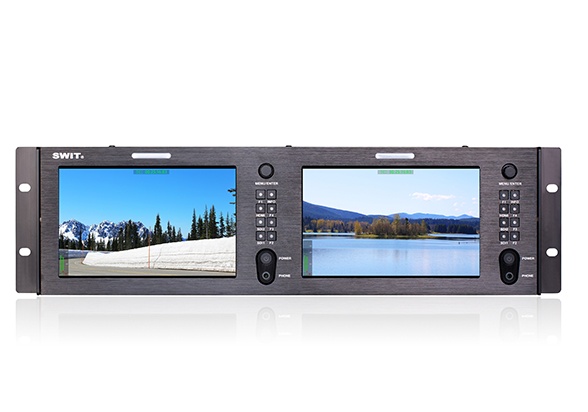

M-1073H is standard 19” rack mount fixing, occupies 3U height. The monitor is ±30° up and down rotatable when installed on racks.

LCD Performance

Size

7 inches x2

Display area

151.2×94.5mm

Resolution

1920×1200

Aspect ratio

16:9 (4:3 adjustable)

Brightness

400cd/m2

Contrast

1000:1

Color

16.77 million colors

Viewing angle

Horizontal: 160°; Vertical: 160°

Input(Each LCD)

BNC ×2

2K/3G/HD/SD-SDI input

BNC ×1

HDMI® 2.0 input

USB ×1

LUT upload and Firmware upgrade

RS485 ×1

GPI (Tally) input

Output(Each LCD)

BNC ×1

2K/3G/HD/SD-SDI loop output

HDMI® ×1

HDMI® 2.0 loop output

3.5mm ×1

SDI, HDMI® embedded audio output

Video Format

SDI

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

2048×1080i (60 / 59.94 / 50)
1080p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)

HDMI®

4096×2160p (60 / 50 / 30 / 25 / 24)
3840×2160p (60 / 50 / 30 / 25 / 24)
480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

General

Input voltage

DC 6.5V-36V

Power consumption

18-26W

Working temperature

0°C~+50°C

Working humidity

10%~90%

Storage temperature

-15°C~+60°C

Storage humidity

10%~90%

Dimensions

484×130×82mm

Net weight (main body)

Net 2.4kg; With package 2.7kg
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

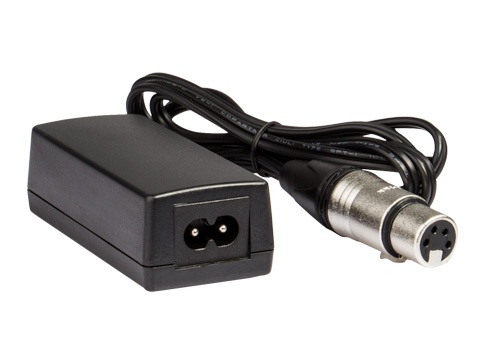

  • AC-DC Adaptor

  • S-1093F

    9-inch Full HD Reference LCD Monitor

    1920×1200 full HD, 2K/3G/HD/SD-SDI, HDMI®, CVBS monitoring; Waveform/Vector scope, 16-ch embedded audio meters, focus assist, etc

    $8222
  • M-1093F

    Dual 9-inch FHD Waveform Rack LCD Monitor

    1920×1200 Full HD 19" 4U; 2K/3G/HD/SD-SDI, HDMI®, CVBS, 16-ch audio meters, TSL UMD, Peaking, Time code, Zebra

    $8222
  • S-1073F

    7-inch FHD Camera-top LCD Monitor

    1920×1200 full HD Optical bonding LCD, All Metal housing, 2K/3G/HD/SD-SDI in and loop, HDMI in and convert to SDI out; Waveform/Vector scope, 16-ch embedded audio meters, focus assist, etc

    $8222
  • M-1093H

    Dual 9-inch FHD Rack LCD Monitor

    1920×1200 Full HD 19" 4U; 2K/3G/HD/SD-SDI, HDMI®, CVBS, 2-ch audio meters, TSL UMD, Peaking, Time code, Zebra

    $8222
