› 160W ultra bright COB LED light
› 20°-70° Spot/Flood adjustable
› 3000K-8000K continuously adjustable
› 0-100% flick-free dimming
› Super high CRI Ra 95, TLCI 95
› DMX512 controlled color and dimmer
› LCD display color and dimmer value
› Silent mode by fans switching off
› LED overheat detection and protection
› 4-leaf metal barn doors
› Strong all-metal housing
› U-shape support and lighting tripod mount

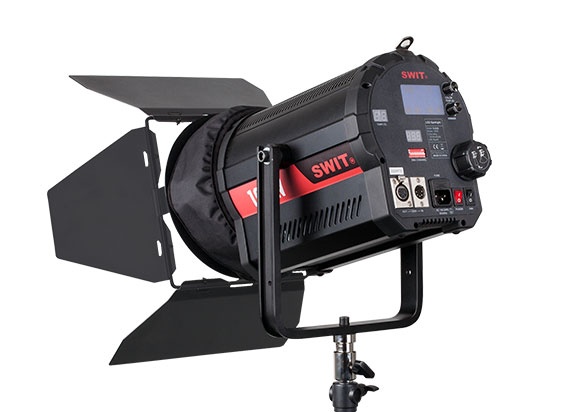

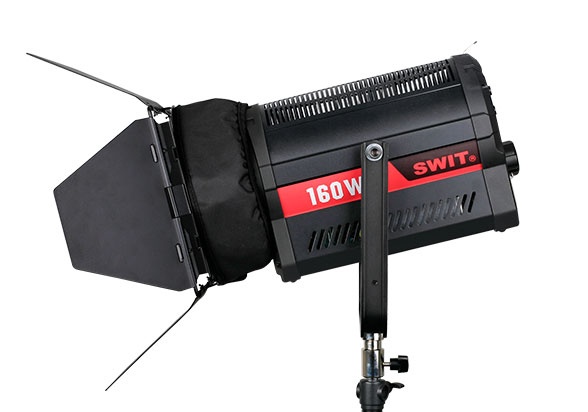

160W LED Spot Light
Ultra-bright and long-life
S-2320 is a studio LED spot light, with
Chip-on-board LEDs of 50,000 hours lifetime,
and generates 160W light output, which is an
ideal light source for broadcast studio and
field video productions.
Spot /Flood Adjust
20° - 70° beam angle
S-2320 outputs 20° - 70° beam angle by
adjusting position of the LED board, and
0-100% non-flickering dimmable.
Bi-color temperature
3000K-8000K continuously adjustable
S-2320 LED board alternated with 3000K and 8000K LEDs, and the output color temperature can be continuously adjustable between
3000K and 8000K.
High Color Reveal Ability
CRI Ra 95; TLCI 95
CRI (Color Rendering Index) is a measure of the ability of a
light source to reveal the colors of various objects faithfully in
comparison with a natural light source. And TLCI (Television
Lighting Consistency Index) is special for the color reveal
ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while S-2320
offers the super high CRI at 95 and TLCI at 95, and will not
lose the object original colors.
DMX512 Control
Dimmer and Color temperature
S-2320 adopts standard 5-pin DMX in/out port, supports
DMX512 protocol, and adjusts dimmer and color temperature
by DMX controller.
The dimmer and color temperature occupy 1 DMX address
respectively.

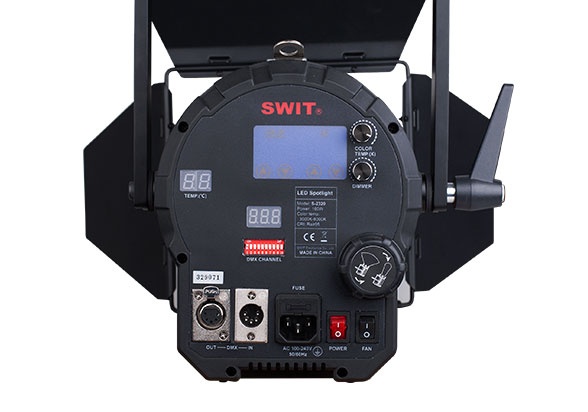

LCD screen display
Dimmer / color temperature value
The rear LCD screen can display the current dimmer
percentage, color temperature value, and set DMX
address, supports touch control to adjust and set.
Silent Mode
Switch off fans
S-2320 adopts silent fans to radiate heat, which will not affect
normal shooting environment to record audio.
While in strictly silent required broadcast environment, S-2320 can
be switched to “Silent Mode” to turn off the fans. Anyway, during
the Silent Mode running, when the light detected temperature over
75 degree, it will be switched off automatically to pretect the LED.
Sleep Mode
Quick recover brightness
S-2320 supports “Sleep Mode”: you can switch off the light
by pressing the DIMMER knob, to enter Sleep Mode. And
press the DIMMER knob again; the S-2320 can be quickly
light up to the previous dimmer value.

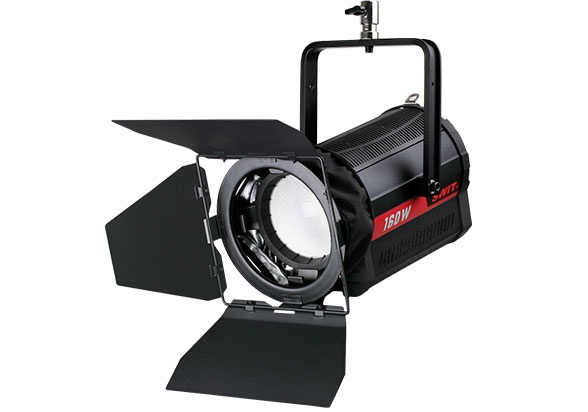

4-leaf Metal Barn Door
With black-out cloth
S-2320 is equipped with 4-leaf metal barn doors,
dismountable and rotatable. Meanwhile, the light
provides a special black-out cloth to prevent the
light leakage.
Beam angle | 20°- 70° |
Max illuminance | 3m: Spot 5000Lux,Flood 880Lux |
5m: Spot 1790Lux,Flood 320Lux | |
7m: Spot 910Lux,Flood 160Lux | |
Color temperature | 3000K～8000K |
CRI | ≥95 |
TLCI | ≥95 |
Power | 160W |
Working voltage | AC 100-240V 50/60Hz |
Dimensions | 390×320×370mm; Shipping carton 590×390×370mm |
weight | Net 5kg; With package 9.4kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

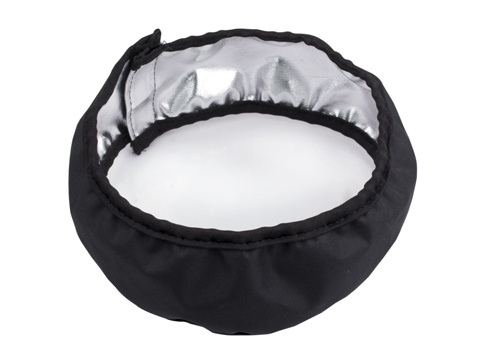

Black out cloth
-

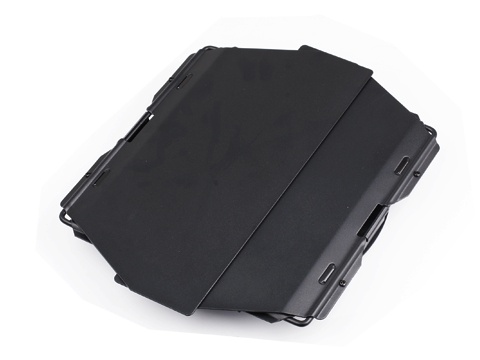

Barn door kit
-

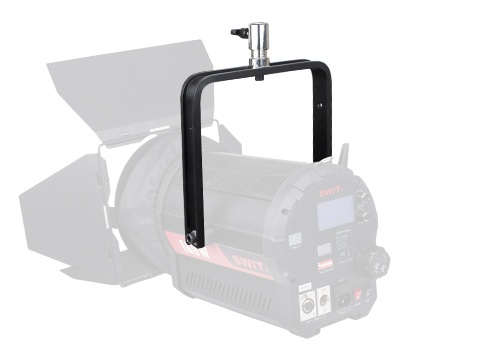

U bracket
