› 900pcs ultra bright long-life LEDs
› SMD Surface mounted LED technology
› 120° wide beam angle, half peak 65°
› 2700K-6500K continuously adjustable
› 60W power, 2000Lux @ 1meter
› 0-100% flick-free dimming
› No Fan, No Noise
› Super high CRI 98, TLCI 99
› DMX512 controlled color and dimmer
› LCD display color and dimmer value
› Strong filter mounting bracket
› Power by V/Gold mount battery or AC adaptor
› Protection grade IP20

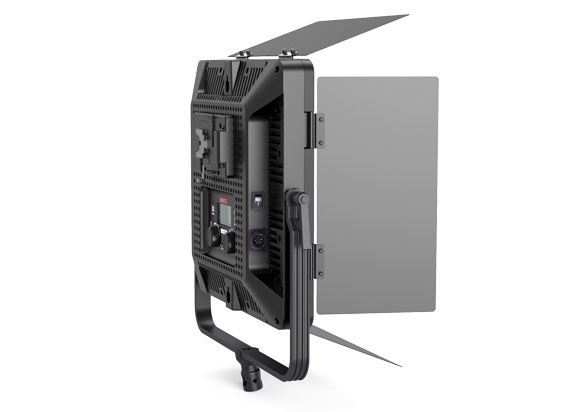

› 4-leaf metal barn doors and Yoke bracket
› Optional 40° honeycomb

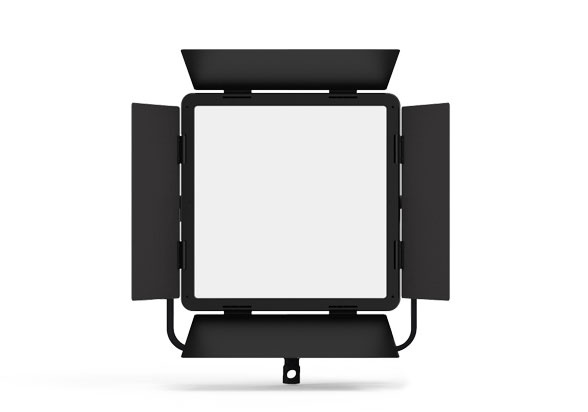

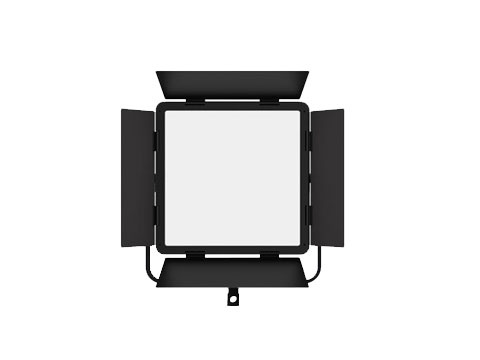

SMD LED Studio Light
Brighter, softer, wider beam angle
CL-60D is a 60W 1:1 Bi-color SMD LED panel light,
with DMX control, high CRI/TLCI and accurate color
performance, for broadcast studio, mobile studio,
live streaming studio or interview kit applications.
900pcs Surface Mounted LEDs
CL-60D adopts 900pcs SMD LEDs, featured:
(1) higher uniformity of illuminance;
(2) wider beam angle;
(3) higher color rendering index;
(4) Softer and Brighter;
(5) longer life time,
which is an ideal light source for Broadcast studios, green
keyer, interview kit, live streaming etc.
2000 Lux @ 1 meter, Fanless
CL-60D outputs 60W power, 2000Lux luminance
at 1 meter distance (center), supports 0 to 100% PWM
digital dimming, smoothly and non-flickering.
The active cooling system ensures high bright output with no fan or louver, to provide a silent video production environment.
Wider Beam Angle
The SMD LEDs have wider beam angle
comparing to the traditional DIP LED bulbs.
It will generate an equally spread area light
from center to edge, instead of a glaring
light spot that suddenly declined from
center to edge.
The wider angle equally spread light produces a nature light environment in studio.
IEC 62471 Photobiological Safe Certificated
The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.
Bi-color temperature
2700K-6500K continuously adjustable
CL-60D alternated with 60W 2700K LEDs and 60W 6500K LEDs, and can be continuously adjusted between 2700K and 6500K, 50K step.
Accurate Color Render
CRI 98; TLCI 99
CRI (Color Rendering Index) is a measure of the
ability of a light source to reveal the colors of various objects faithfully in comparison with a natural
light source. And TLCI (Television Lighting Consis-
tency Index) is special for the color reveal ability by
camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while
CL-60D offers the super high CRI at 98 and TLCI at
99, and will not lose the object original colors.

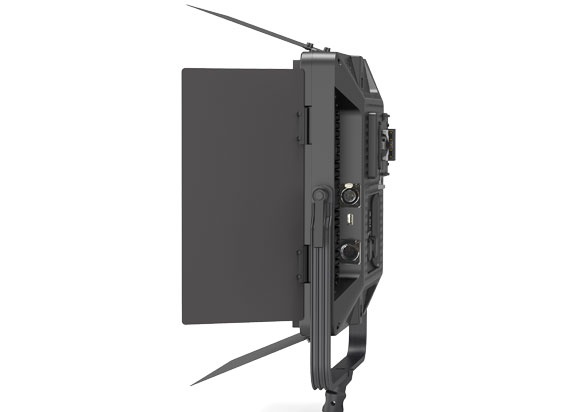

DMX512 Control
5pin XLR in and out
DMX address: N= Dimmer; N+1= Color temp
Provides a 5V USB power output socket.
You can use SWIT LA-WR8 Pocket Wireless DMX
controller and power the wireless DMX adaptor
by the on board USB socket.
Press and hold dimmer knob for 2 seconds to
enter DMX address setting from 001 to 512.

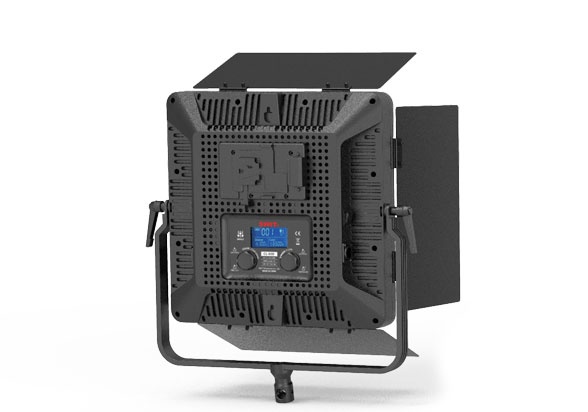

LCD screen display
Dimmer / color temp / DMX address
The rear LCD screen can display the current
dimmer percentage, color temperature value,
DMX channel and CH channel, and remaining
battery indications.
DC 11-17V Power Supply
By V-mount battery or AC-DC adaptor
(AC 100-240V.50/60Hz）
CL-60D supports 11-17V voltage input, with 4-pin
XLR DC socket, and equipped with V-mount or Gold
mount plate to power by batteries. (The default bat-
tery plate is V-mount.)

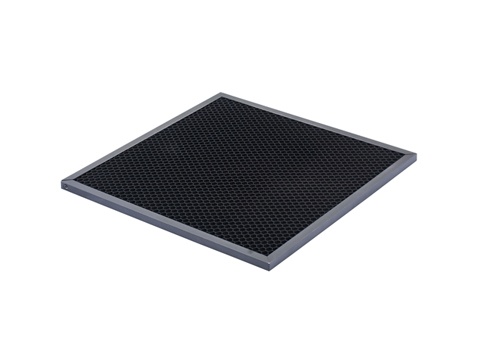

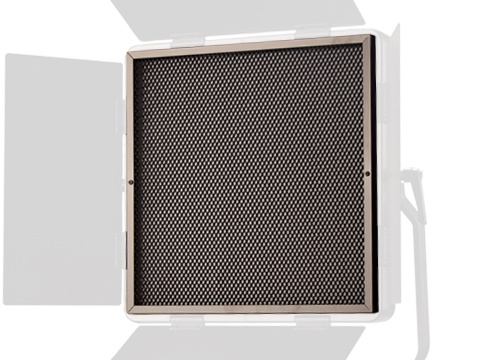

Optional Honeycomb
CL-60D provides a 40° metal honeycomb plate for
optional purchase. The honeycomb can be used
together with barndoors.
Honeycomb Part number: LA-G60
LED | 900pcs SMD LEDs |
illuminance | 2000Lux @ 1m |
Beam angle | 120° (Half-Peak 65°) |
Color Temperature | 2700K ～ 6500K |
Color Render | CRI Ra 98; TLCI 99 |
IP Rating | IP20 |
Power | 60W |
Working voltage | DC11V～17V |
Dimension | 354×354×73.5mm |
Lighting area | 310×310mm |
weight | Net 3.2kg; With package 6.3kg |
MSRP
MSRP
MSRP
-

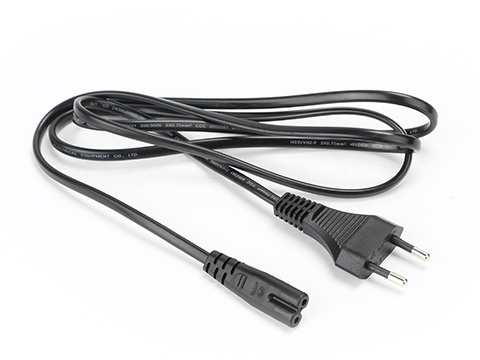

AC power cable
-
CL-60D light
-

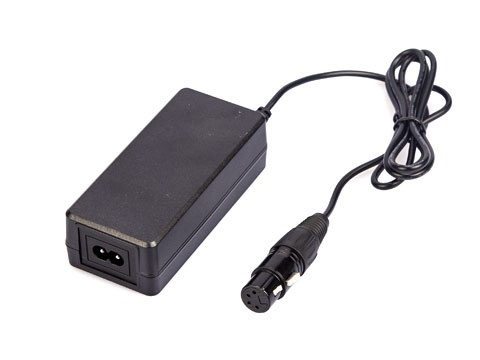

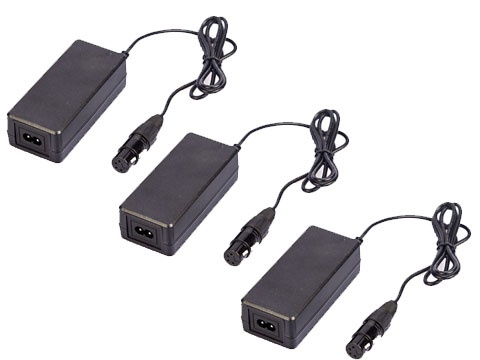

AC-DC Adaptor
-

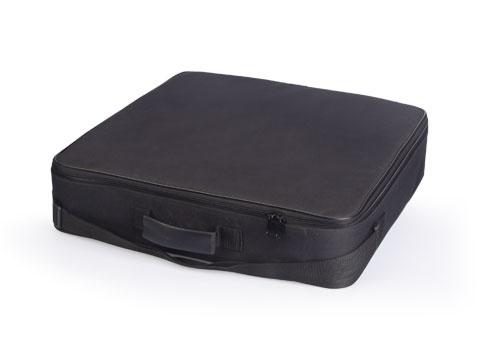

Bag
-

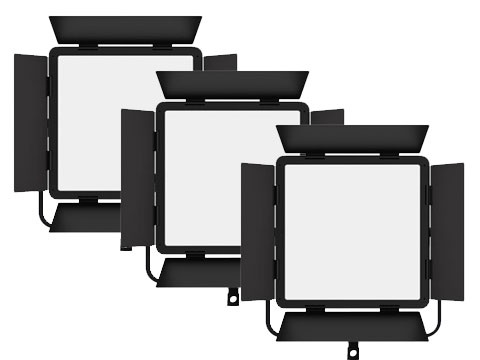

CL-60D Light x3
-
AC-DC Adaptor x3
-

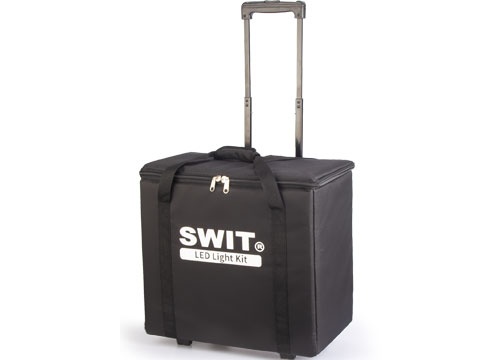

Trolley Case
-

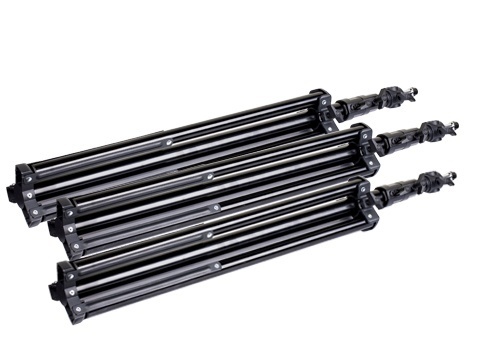

Light stand x3
-

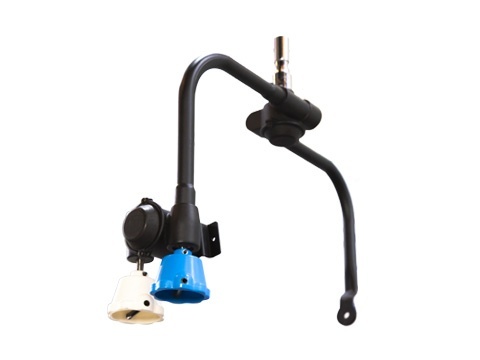

LA-PO60
2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. -

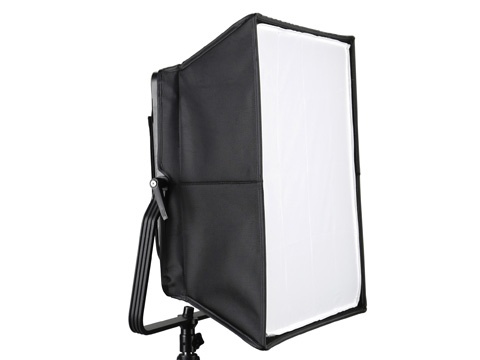

LA-BX60
Diffusing box for CL-60D. Disassemble the barn doors first and then install diffusing box. -
LA-G60
Honeycomb 40°, metal, install to the front frame of the light, can work together with barndoors
