› 180pcs RGB + 300pcs White SMD-LEDs
› Edge mounted LEDs, 21mm ultra slim
› 3x0.5' Long ratio, 100W power, 1800Lux @ 1meter
› No fan, No noise
› Time-Division drive tech, ultra bright color light
› CCT/HSI/RGB/CIE/GEL/EFF color modes
› Built-in 20x Rosco and 20x LEE Gels
› 2800K-10000K, G/M±1.00 adjustment
› CRI Ra 96, TLCI 93
› On-board 3.5-inch color LCD visualized color pick
› DMX512 3bit/6bit/7bit color control
› DC 11-34V wide input voltage
› On-board V-mount or Gold mount battery plate
› IOS/Android APP bluetooth control

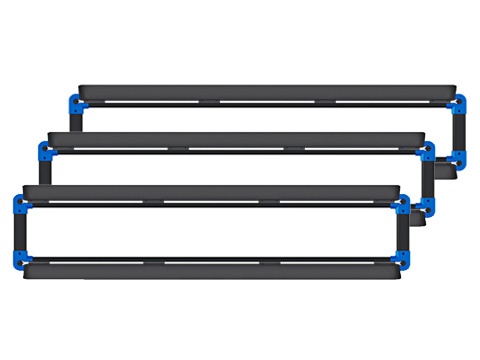

› With 2-leaf metal barn doors
› Provide portable 3-light kit
100W Long Ratio Ultra Slim RGBW
VANGO-100L, the slim portable size 100W RGBW panel of 3x0.5’ Long Ratio size and with extreme high color light output, equivalent to regular 300W RGB color light intensity, for your flexible video studio setup.

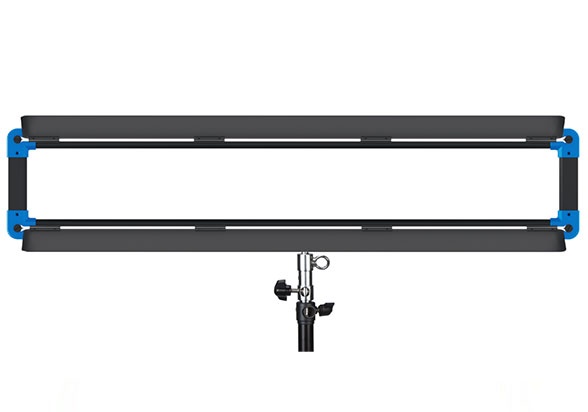

3x0.5’ Long Ratio, 21mm Ultra Slim
With SWIT unique Edge Mounted SMD and 90° high efficient light
guide tech, the VANGO-100L has a ultra slim size to only 21mm
thickness, and diffused to soft light to paint the entire environment.
Time Division Tech, Brighter Color Light
The regular RGB panels are high bright in CCT mode, but much lower in
RGB color mode. That’ s because in a regular RGB light, the RGB color
LED and White LED have fixed rates to share the total power of the light,
and when output color lights, the RGB LEDs use only 1/3 power.
By SWIT unique Time Division Drive tech, full power of the light can be
assigned to RGB color LEDs, and greatly increased the intensity of color
light. The 100W VANGO-100L color light intensity equals to a regular
300W RGB color light intensity.
IEC 62471 Photobiological Safe Certificated
The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.

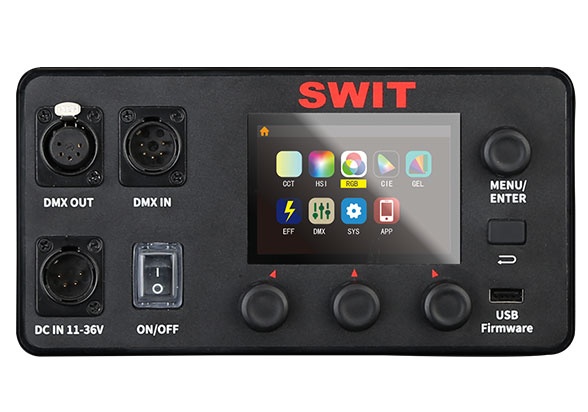

Control Panel

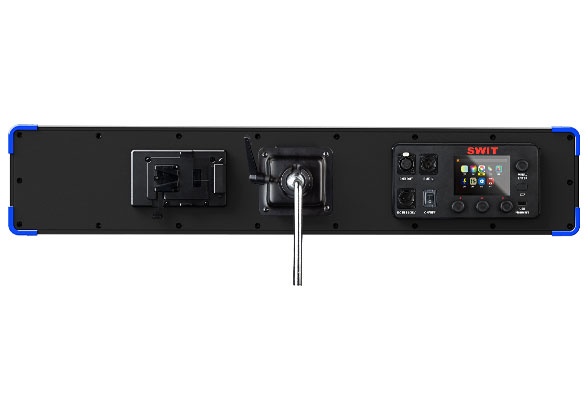

VANGO-100L rear control panel supports 5-pin DMX in & out, 4-pin XLR DC 11-36V in, and V-mount battery plate (Gold mount for option), and a large color LCD with menu and hot keys for convenient color picking. The USB-A port is for firmware update or user color profile upload, and to power wireless DMX receiver.
On-board 3.5-inch Color LCD
Visualized color selection
Bluetooth APP Control
Download “SWIT Console” APP on IOS App Store or Google PLAY, to connect and control VANGO lights via Bluetooth.
SWIT Console APP
The APP control supports CCT, HSI, RGB, CIE color modes, and select preset color GELs and light effects.

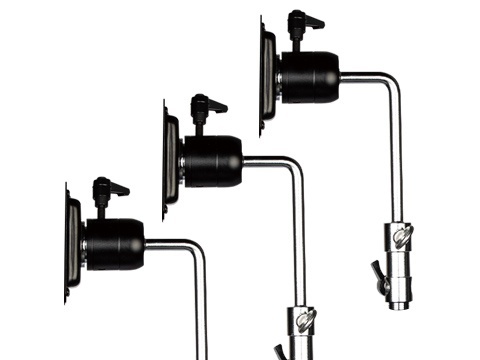

Swanneck Strong Ball Head
VANGO-100L provides a strong swanneck ball head for light stand mounting, both junior pin male and baby pin female.
Single Light Package
The single light package includes:
1x VANGO-100L light with barndoor
1x Swanneck ball head connector
1x AC-DC adaptor
1x Carrying bag
3-Light Kit Package
The 3-light kit package includes:
3x VANGO-100L lights with barndoor
3x Swanneck ball head connectors
3x AC-DC adaptors
3x Light stands
1x Trolley case
Ceiling Hoisting Version
VANGO-100LH
Provide a specialized short bracket for ceiling hoisting,
which can bring the light fixture as close to the ceiling as possible, support ±90° tilt and 360° rotate.
The studio hoisting version SKU: VANGO-100LH
LED | 180pcs RGB + 300pcs W SMD LEDs |
illuminance | 1800Lux @ 1m |
Beam angle | 65° |
Color Temperature | 2800K～10000K, G/M±1.00 |
CRI | 96 |
TLCI | 93 |
Power | 100W |
DMX | DMX512, 5pin XLR IN & OUT |
USB | USB-A power out & firmware update |
Input voltage | 4pin XLR, DC 11V～34V IN |
Dimension | 839×163×21mm |
Lighting area | 780×104mm |
weight | Net 5.7kg with barndoor; With package 9.7kg |
On-location Package
MSRP
Ceiling Hoisting
MSRP
MSRP
-

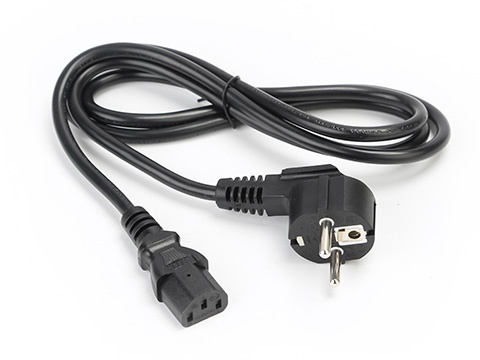

AC power cable
-

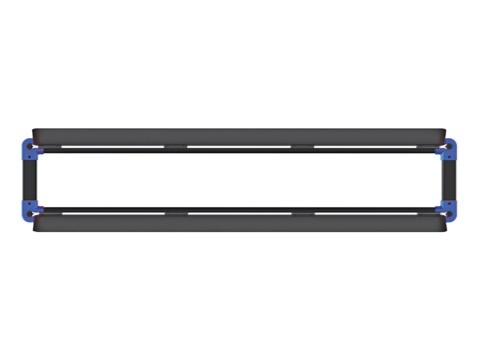

VANGO-100L with barndoor
-

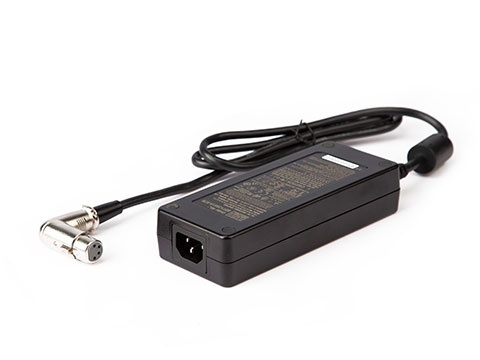

AC-DC Adaptor
-

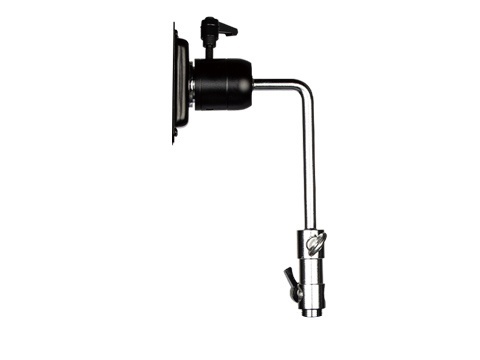

Swanneck ball head
-

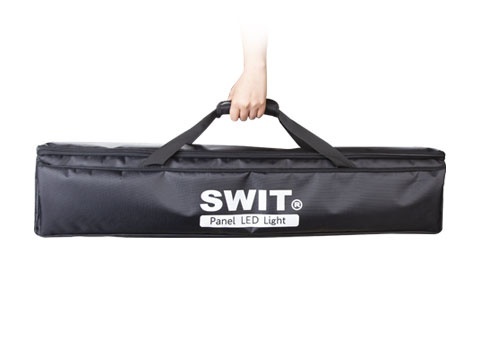

Carrying Bag
-

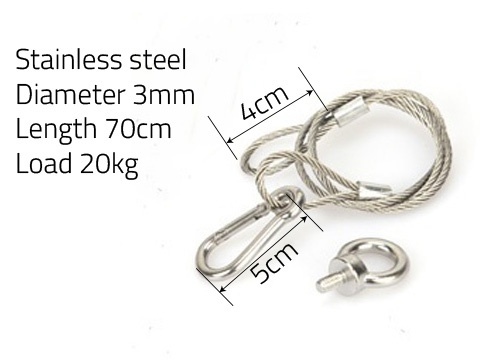

Safety rope and ring
-
AC power cable
-

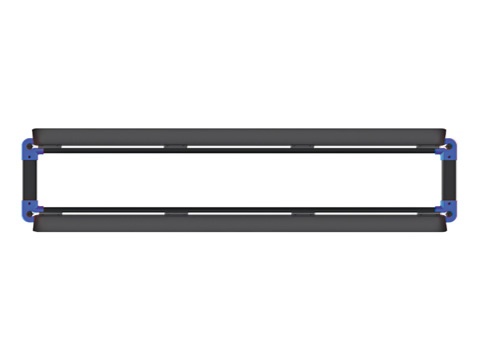

The light with barndoors
-
AC-DC Adaptor
-

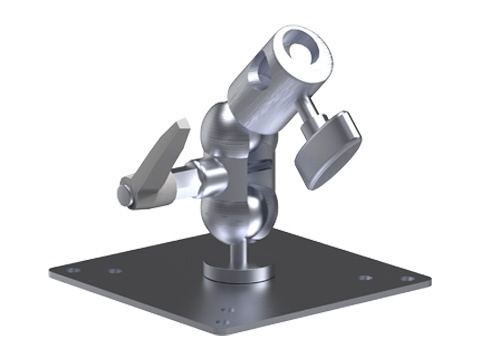

LA-V10 Short hoisting bracket
-

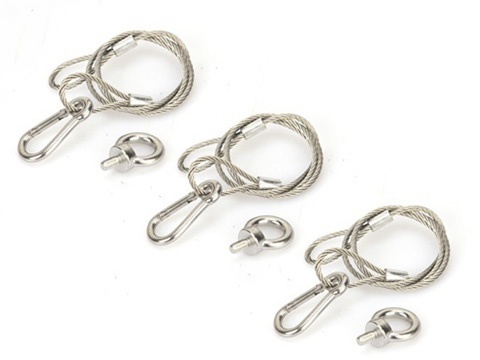

Safety rope and ring x3
-

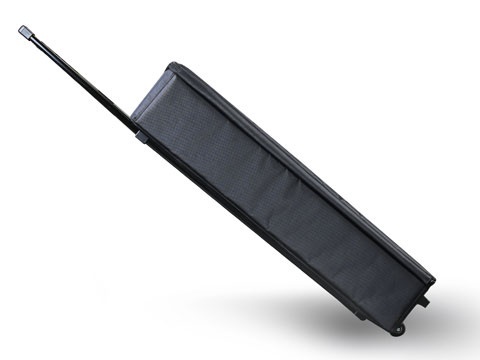

Trolley Case
-

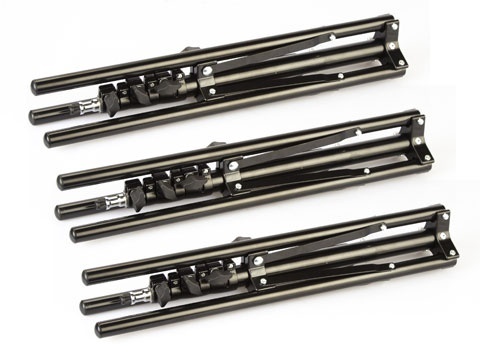

Light stand x3
-
Swanneck ball head x3
-

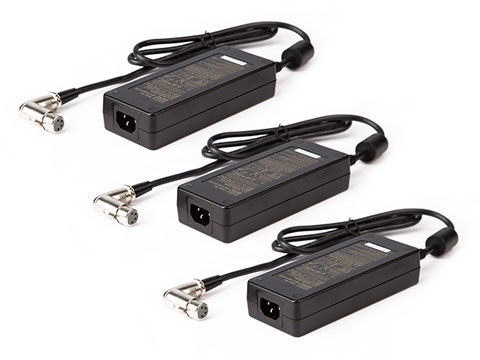

AC-DC Adaptor x3
-
VANGO-100L with barndoor x3
-
PL-E90L
90W Bi-color Long Ratio LED Panel
0.5×3 feet size, 2000Lux @1m, 2700-6500K, DMX, CRI 99 TLCI 99
-
VANGO-70
70W 1:1 Ultra Slim RGBW Panel Light
Equivalent to a 200W color light, 21mm slim, on board LCD, APP control
-
VANGO-100
100W 2:1 Ultra Slim RGBW Panel Light
Equivalent to 300W color light, 21mm slim, on board LCD, APP control
