› Li-ion, 14.4V, 130Wh capacity
› D-tap output socket
› 200W/16A power output
› 4-level LED power indicator
› V-mount connection
› Multiple circuit protections

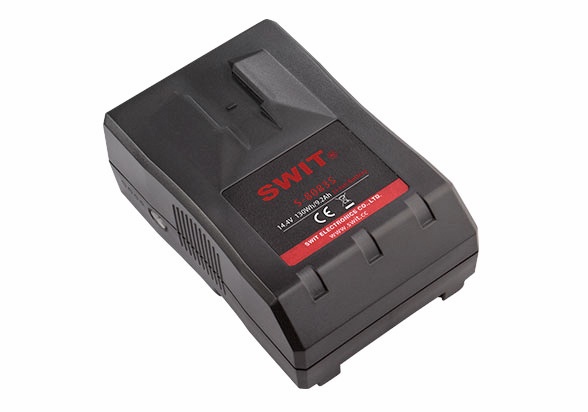

V-mount Camera Battery
S-8083S is the V-mount rechargeable Li-ion battery
pack for professional video cameras. It’s compact
design, smaller in size.
130Wh / 9.2Ah Capacity
Consists of 12pcs 18650 battery cells, and reaches
130Wh/9.2Ah high capacity.
Run approx 4 hours for normal 30W ENG cameras.

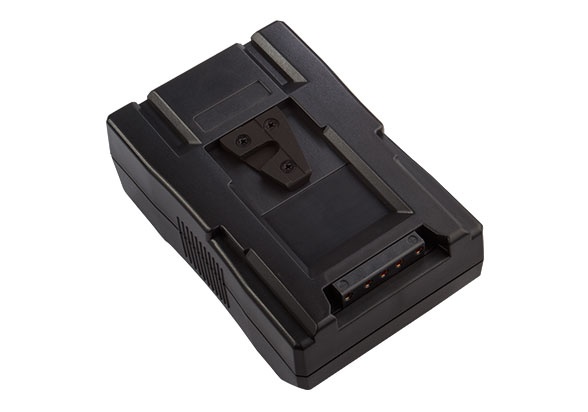

Reliable V-mount Connection
S-8083S is the standard V-mount
connection and we adopt the high quality
fiber glass V-wedge that ensures the reliable
mounting.

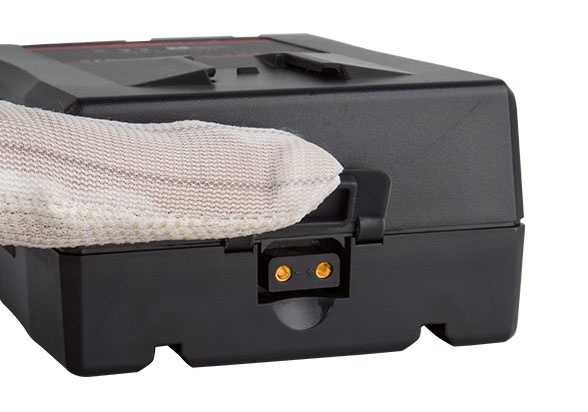

Build-in D-tap DC Output Socket
D-tap DC output socket is equipped on the top side of S-8083S
battery, for DC14.4V (Nominate) connection, such as on-camera
lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 100W, 8A.

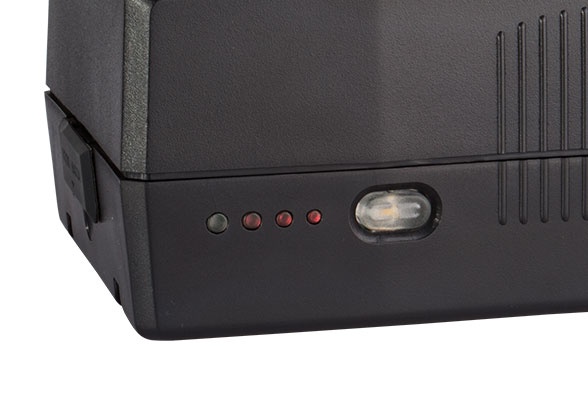

4-level LED Power Indicator
On the side of the battery, there’re 4-level LED power indicators to check the
battery remaining capacity. You can get a quick view of capacity before using.
Nominal Voltage | 14.4V |
Capacity | 130Wh/9.2Ah |
Max output power | In total:200W |
| Electrodes:200W,16A | |
| D-tap:120W,10A | |
Mount Type | V-mount |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | Net 0.8kg; With package0.82kg |
Dimensions | 134×88×52mm |
MSRP
MSRP
MSRP
1. Warranty Period
We provide 2 years conditional warranty for batteries.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly, modification, or repair.
(2) Non-Compliant Charging Equipment and Practices
Use of non-original SWIT chargers or uncertified third-party charging accessories;
Use of third-party USB-C chargers without compliant PD protocols;
Use of third-party D-tap charger of reversed polarity connections and cause any damage.
This battery doesn't support charging via D-tap, use any D-tap charger to charge the battery and cause any damage.
(3) Misuse and Physical Damage
Compression, puncture, dropping, impact, collision, water immersion, exposure to high temperatures or direct sunlight, or any other non-normal use not in accordance with the product's intended design.
(4) Use of Damaged or Defective Battery
Continued use of a battery that is damaged, leaking, or exhibiting abnormal overheating without prompt discontinuation.
(5) Natural Capacity Degradation
Reduction in battery capacity resulting from the natural aging process after a certain number of charge/discharge cycles.
(6) Improper Storage and Maintenance
Damage caused by improper storage practices that lead to extended deep discharge or prolonged zero-charge state of the battery.
(7) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(8) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(9) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
