› 14.4V, 420Wh/29.4Ah large capacity
› 250W/20A constant load, 305W peak load
› 100W/6A fast charging support
› 2x D-tap power sockets, 150W load
› 5-LED digital power indicators
› Multiple circuit protections
ONE BATTERY, ONE DAY

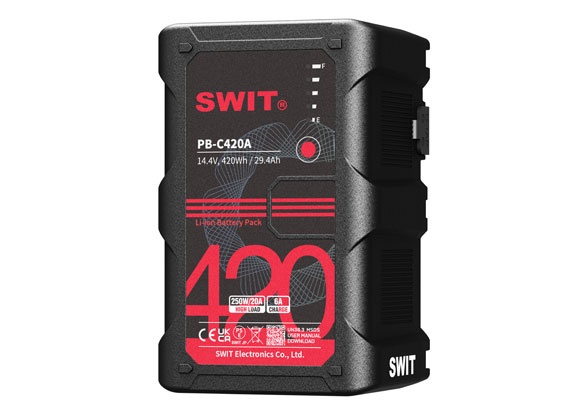

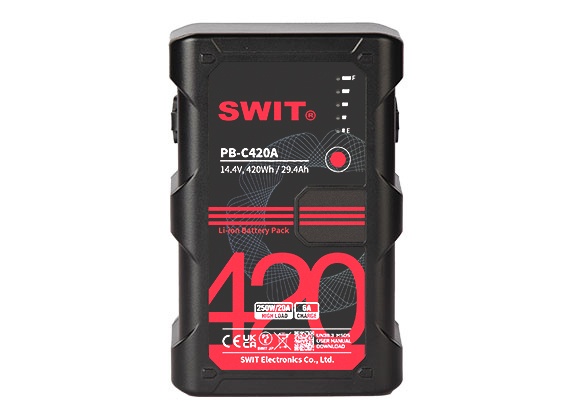

PB-C420A reaches the world’s largest capacity:
420Wh of handheld V-mount battery, long time
power supply for cameras, monitors, lights and
many power hungry devices of broadcast and
film industry.
14.4V, 420Wh, 2x D-tap
PB-C420A consists of 24pcs Li-ion cells, 14.4V nominal
voltage, 420Wh, 29.4Ah large capacity, and provides

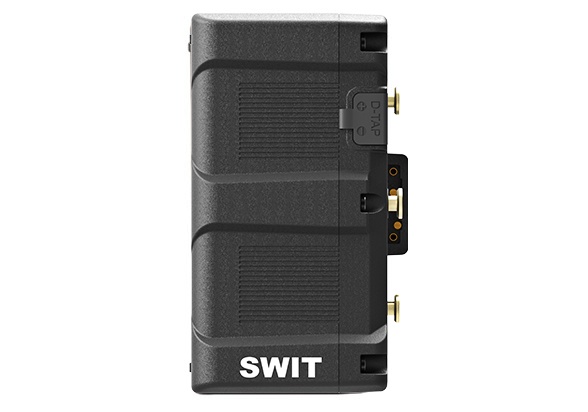

with 2x D-tap sockets at left and right side, for
camera-top devices.
250W Constant High Load
PB-C420A outputs at least 250W/20A high load even
at 1% capacity (Peak load up to 305W), to drive high
power Cine cameras and on-camera devices together.
The high load cells will also ensure battery life
comparing to normal load batteries if long time full
load output. Over current protection: 24A.
100W 6A Fast Charging
PB-C420A supports 100W/6A fast charging
to save more than 50% charging time. The
420Wh battery can be charged from 0 to 80%
after 3.9 hours, and fully charged within 5.3
hours.
Reliable SWIT Quality
The PB-C420A internal controller supports
multiple protection circuit, to detect any
abnormal conditions includes over load, over
charging, over discharging, high temperature,
short circuit, etc, and actively protect the
devices from potential safely issue. SWIT
battery will always be your reliable choice.
Nominal Voltage | 14.4V |
Capacity | 420Wh/29.4Ah |
Power Load | 250W / 20A constant, 305W peak |
Charging | DC 16.8V, 6A |
D-tap | 2x D-tap 150W/10A in total |

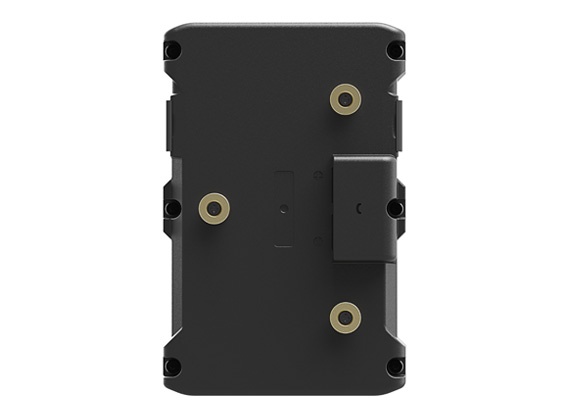

Mount Type | Gold mount |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | Net 2.07kg; With package2.15kg |
Dimensions | 155×101×83mm |
MSRP
MSRP
MSRP
1. Warranty Period
We provide 2 years conditional warranty for batteries.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly, modification, or repair.
(2) Non-Compliant Charging Equipment and Practices
Use of non-original SWIT chargers or uncertified third-party charging accessories;
Use of third-party USB-C chargers without compliant PD protocols;
Use of third-party D-tap charger of reversed polarity connections and cause any damage.
This battery doesn't support charging via D-tap, use any D-tap charger to charge the battery and cause any damage.
(3) Misuse and Physical Damage
Compression, puncture, dropping, impact, collision, water immersion, exposure to high temperatures or direct sunlight, or any other non-normal use not in accordance with the product's intended design.
(4) Use of Damaged or Defective Battery
Continued use of a battery that is damaged, leaking, or exhibiting abnormal overheating without prompt discontinuation.
(5) Natural Capacity Degradation
Reduction in battery capacity resulting from the natural aging process after a certain number of charge/discharge cycles.
(6) Improper Storage and Maintenance
Damage caused by improper storage practices that lead to extended deep discharge or prolonged zero-charge state of the battery.
(7) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(8) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(9) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
