› 4-ch simultaneous charging
› 6A charging for SWIT ≥160Wh batteries
› 3A charging for other batteries
› 3.5-inch color LCD info display
› Top large charging indicators

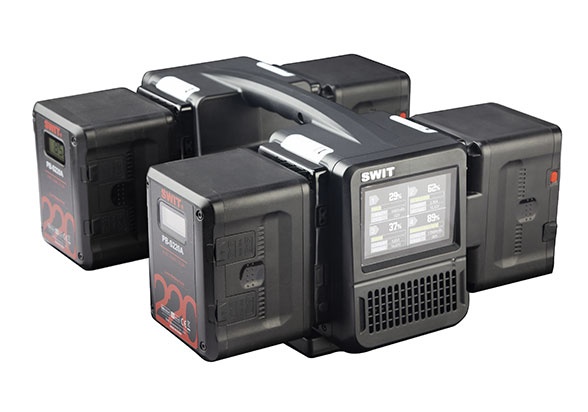

4x6A Super Fast Charger
PC-P461A can charge 4 Gold mount batteries simultaneously at Max 6A fast charging current, save up to 60% charging time comparing to normal chargers.
SWIT over 160Wh batteries support 6A fast charging:
PB-R160A, PB-R290A, PB-S220A, S-8183A, S-8180A, S-8113A;
And for other batteries, the charging current will limit to 3A.
Charging Time Comparation

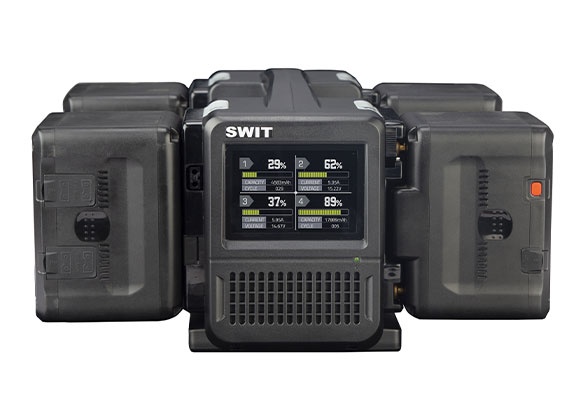

3.5-inch Color LCD Display
PC-P461A provides a 3.5-inch color LCD panel to display charging progress, charging current and voltage.
Top Charging Indicators
Besides LCD screen info, you can check the charging status at a glance by the 4 large size indicators on the top of the charger.
Red on: 0-80%
Green flashing: 81%-99%
Green on: 100% fully charged
Red flashing: Charging error, check LCD info

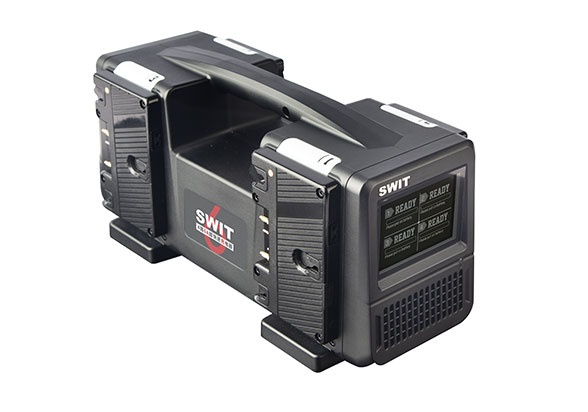

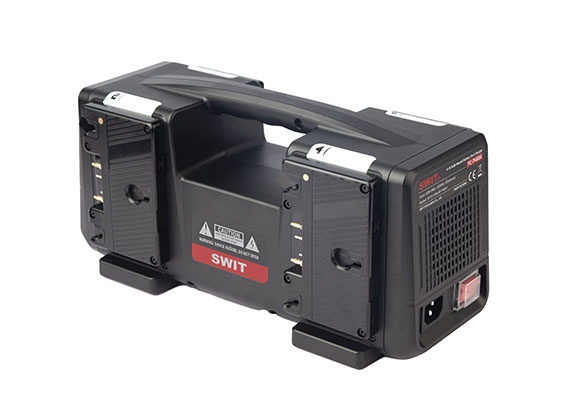

Light Weight and Portable
The 4 channel fast charger PC-P461A has minimized
the size and weight, and the new handle design makes
the charger solid and easy to carry.
Power | Max 450W |
Input | AC100V-240V 50/60Hz |
Output | DC 16.8V, 6Ax4 for SWIT ≥160Wh batteries DC 16.8V, 3A×4 for other batteries |
Applicable battery | Gold mount battery |
Dimensions | 330×135.6×162mm |
Net weight | Net 2.43kg; With package 3.3kg |
MSRP
MSRP
MSRP
-

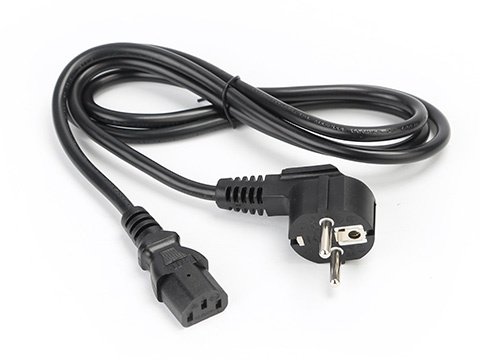

AC power cable
-
S-8183A+
270Wh High Load Gold Mount Battery Pack
High Load Li-ion cells with Max 250W, 20A constant output; D-tap DC output, LED power indicators
1. Warranty Period
We provide 2 years conditional warranty for battery chargers.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliant Charging Objects
Use of the charger to charge non-original SWIT batteries or uncertified third-party batteries.
(2) Non-Compliant Power Supply and Operation
Use of mismatched power supply, input voltage exceeding the rated range of AC 100V–240V, power input exceeding the rated capacity, prolonged overcharging, or operation under no-load conditions.
(3) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly or repair; failure to operate the charger in accordance with the prescribed procedures, resulting in damage or safety hazards.
(4) Misuse and Physical Damage
Unauthorized modification, dropping, impact, collision, water immersion, exposure to high temperatures or humid environments, or any other non-normal use not in accordance with the product's intended design.
(5) Use of Damaged or Defective Charger
Continued use of a charger that is damaged, malfunctioning, or exhibiting abnormal overheating without prompt discontinuation.
(6) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(7) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(8) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
