› 4-ch simultaneous fast charging
› Charge both 14.4V and 28.8V V-mount batteries
› 100W/6A for SWIT 14.4V & ≥160Wh batteries
› 100W/3A for SWIT 28.8V & ≥160Wh batteries
› 50W/3A for other batteries
› 3.5-inch color LCD info display
› Battery cycle times display
› Top large charging indicators

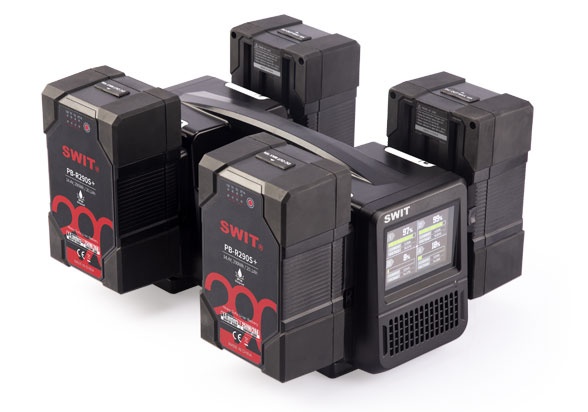

4x100W Fast Charger for both 14.4V and 28.8V batteries
PC-P461S can charge 4 V-mount batteries simultaneously, support both 14.4V and 28.8V nominal voltage batteries. Super fast charging 100W/6A for 14.4V batteries, and 100W/3A for 28.8V batteries, save up to 60% charging time comparing to normal chargers.
SWIT ≥160Wh batteries support 100W fast charging, for less capacity or other brand batteries, the charging current will limit to 50W/3A.
Charging Time Comparation

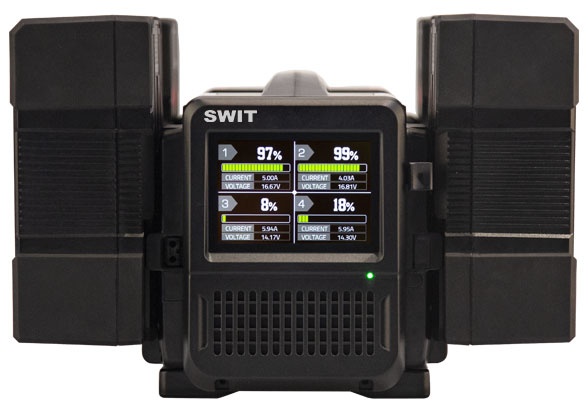

3.5-inch Color LCD Display
PC-P461S provides a 3.5-inch color LCD panel to display charging progress, charging current and voltage.
For batteries with SMBUS info, it will display real time capacity and battery cycle times as well.
Top Charging Indicators
Besides LCD screen info, you can check the charging status at a glance by the 4 large size indicators on the top of the charger.
Red on: 0-80%
Green flashing: 81%-99%
Green on: 100% fully charged
Red flashing: Charging error, check LCD info

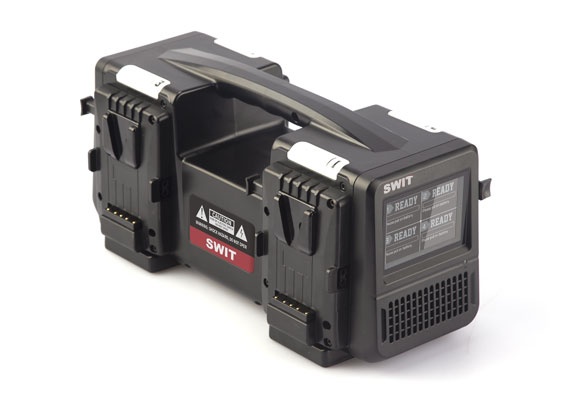

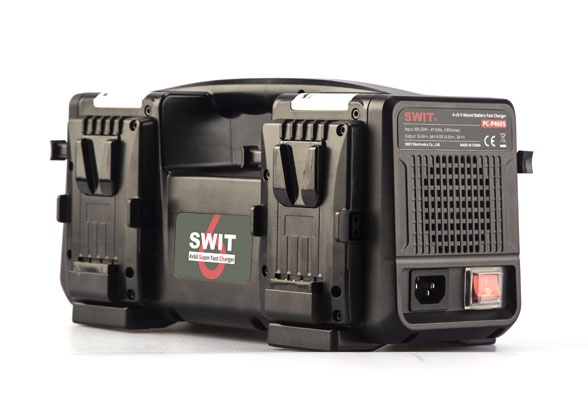

Light Weight and Portable
The 4 channel fast charger PC-P461S has minimized
the size and weight, and the new handle design makes
the charger solid and easy to carry.
Power | Max 450W |
Input | AC100V-240V 50/60Hz |
Output | DC 16.8V, 6Ax4 (SWIT 14.4V & ≥160Wh batteries) DC 33.6V, 3A×4 (SWIT 28.8V & ≥160Wh batteries) DC 16.8V, 3A×4 (Other batteries) |
Applicable battery | V-mount battery |
Dimensions | 330×153×162mm |
Net weight | Net 2.43kg; With package 3.3kg |
MSRP
MSRP
MSRP
-

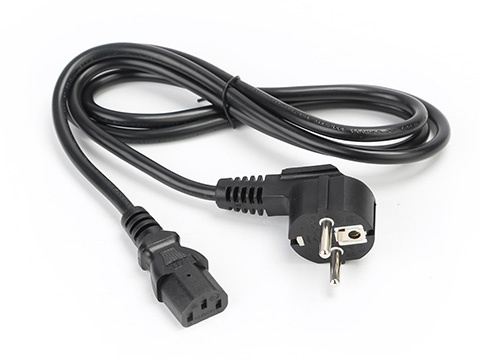

AC power cable
-
PB-R160S+
160Wh Heavy Duty IP54 Battery Pack
200W/16A load, IP54 waterproof, 1.5m drop-off proof, 6A fast charging
-
PB-R290S+
290Wh Heavy Duty IP54 Battery Pack
250W/20A load, IP54 waterproof, 1.5m drop-off proof, 6A fast charging
-
S-8183S+
270Wh High Load V-mount Battery Pack
High Load Li-ion cells with Max 250W, 20A constant output; D-tap DC output, LED power indicators
1. Warranty Period
We provide 2 years conditional warranty for battery chargers.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliant Charging Objects
Use of the charger to charge non-original SWIT batteries or uncertified third-party batteries.
(2) Non-Compliant Power Supply and Operation
Use of mismatched power supply, input voltage exceeding the rated range of AC 100V–240V, power input exceeding the rated capacity, prolonged overcharging, or operation under no-load conditions.
(3) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly or repair; failure to operate the charger in accordance with the prescribed procedures, resulting in damage or safety hazards.
(4) Misuse and Physical Damage
Unauthorized modification, dropping, impact, collision, water immersion, exposure to high temperatures or humid environments, or any other non-normal use not in accordance with the product's intended design.
(5) Use of Damaged or Defective Charger
Continued use of a charger that is damaged, malfunctioning, or exhibiting abnormal overheating without prompt discontinuation.
(6) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(7) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(8) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
