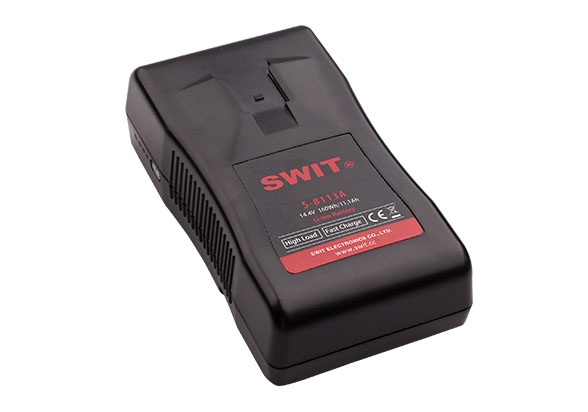

› Li-ion, 14.4V, 160Wh large capacity
› At least 200W, 16A constant load
› D-tap output socket
› 4-level LED power indicator
› Gold mount type connection
› Multiple circuit protections
Adopt High-Load Li-ion Cells
Normal Li-ion batteries offer 100W/8A output and suitable for
most ENG cameras, but the Cine Cameras such as ALEXA require
around 85W high draw which is too heavy for the normal Li-ion
batteries: the battery life will be reduced if long time full draw
powering. Moreover, if there’re monitor, lighting work together,
and total power will be above 100W, and the normal batteries
can not draw completely.
Using S-8113A high-load battery, you can get MAX 200W/16A
constant power output, which can drive more high power camer-
as, lightings and other equipments easily, and won’t reduce bat-
tery life during long time high power output.
160Wh / 11.1Ah High Capacity
Consists of 16pcs 18650 battery cells, and reaches
160Wh/11.1Ah high capacity.
Run approx 5 hours for normal 30W ENG cameras.
6A Fast Charging
S-8113A supports 6A fast charging, to save more
than 50% charging time, can be charged from 0
to 80% after 1.5 hours, and fully charged within
2.5 hours.

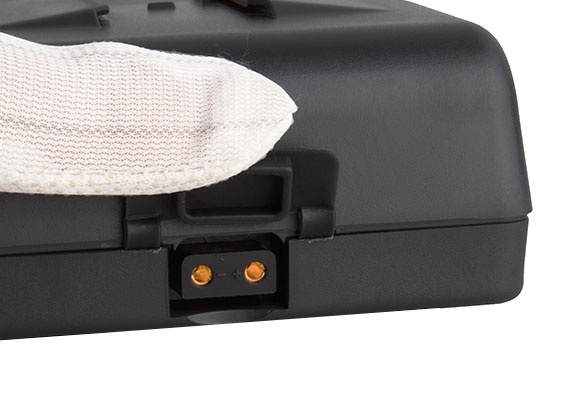

Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8113A
battery, for DC14.4V (Nominate) connection, such as on-camera
lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 120W, 10A.

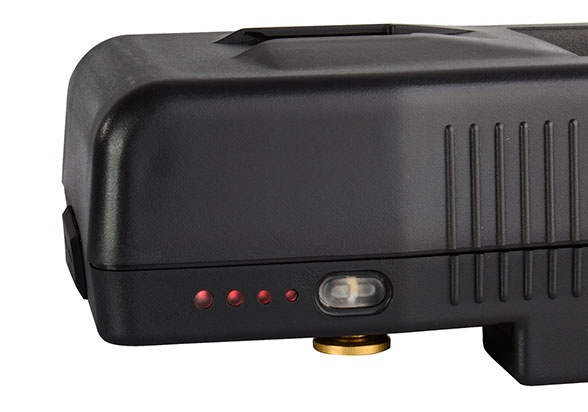

4-level LED Power Indicator
On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity.
You can get a quick view of capacity before using.
Nominal Voltage | 14.4V |
Capacity | 160Wh/11.1Ah |
Max output power | In total:200W |
| Electrodes:200W,16A | |
| D-tap:120W,10A | |
Mount Type | Gold mount |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | Net 0.9kg; With package1.04kg |
Dimensions | 165×90×53mm |
