› 1152pcs ultra bright long-life SMD-LEDs
› 3x0.5' long ratio, close to the ceiling install
› 150W power, 4800Lux @1m ultra bright
› No fan, no noise
› 69° half peak wide beam angle soft light
› Smooth exponential dimming curve
› 2700K-6500K continuously adjustable
› Color rendering CRI 97, TLCI 99, SSI(D55)73
› IEC 62471 Photobiological Safety certificate
› DMX512 controlled color and dimmer
› LCD display color and dimmer value
› 3-pin XLR DC12-36V in, with AC adaptor
› On-board V-mount battery plate
› Protection grade IP20
› 360° ball head free angle hoisting bracket
› 2-leaf metal barn doors
› Optional 2-cup pantilt Pole Operated Yoke
150W 3×0.5’ Long Ratio
For Low Ceiling Studios
The PL-S150L is a 150W bi-color panel LED light with a 3×0.5’ size long ratio design. It can be mounted as close to the ceiling as possible, making it perfect for low-ceiling studios where space is limited.
Close to the Ceiling Install
The regular 2×1’size panel will encroach too much height spaces when installed in low ceiling studios, and interfere with camera lens framing.
While the PL-S150L 3×0.5’ long ratio light will minimize the height occupancy, maintain an inconspicuous presence, maximize the shooting angles for small-space studios.

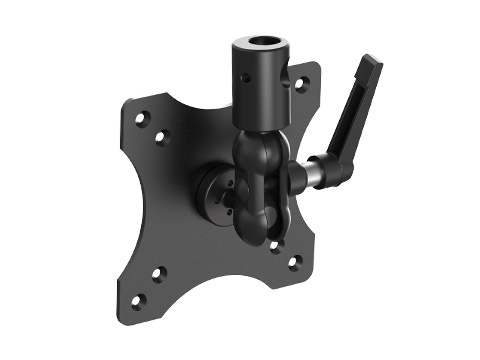

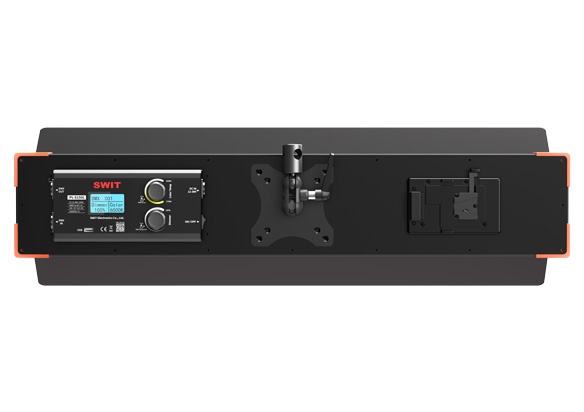

Pantilt Free Adjustable Bracket
The PL-S150L provides a 360° pan and tilt ball head bracket, which allows for convenient and free adjustment of the installation angle.
4,800Lux @ 1m High Bright and Soft
The 150W soft light produces high illuminace of 4,800Lux @1m, 69° half-peak, can be applied as head light, key light, or background light in studios, comference hall, etc.
Exponential Dimming Curve
To produce smooth light output when dimming at low intensity range, PL-S150L provides a non-linear exponential dimming curver, and the 1% dimmer equals to only 0.3% of the full intensity, to match with the sensitivity of human eyes.
IEC 62471 Photobiological Safe Certificated
The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.
No Fan, No Noise
In low-ceiling studios, any fan noise is unacceptable. SWIT advanced heat dissipation design enables full-power operation without fans and ensuring absolute silence, to guarantee a quiet environment for audio recording in small-space studios.
2700K-6500K Continuously Adjustment
PL-S150L consists of 150W of 2700K LED and 150W of 6500K LED, and outputs 150W power at any color temperature from 2700K to 6500K.
CRI 97; TLCI 99; SSL(D55)73
PL-S150L adopts high end surface mounted LEDs with super high Color Rendering Index (CRI) Ra 97, Television Lighting Consistency Index (TLCI) 99, and CIE D55 (comparing with sunlight) SSI scores 73. Objects will keep their original colors exactly under the light.

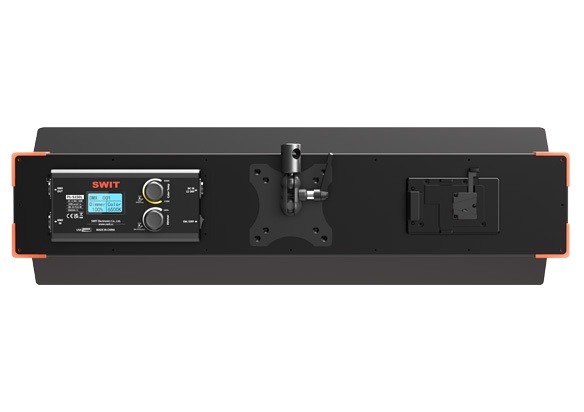

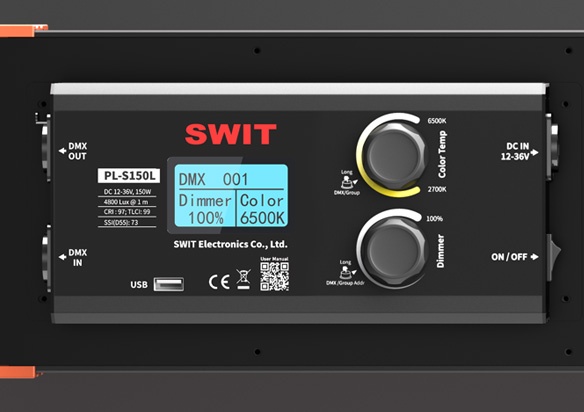

Control and Display
The rear LCD screen can display dimmer percentage, color temperature, DMX address and Group channel.
Long press dimmer knob to set DMX address, and long press color temp knob to switch between DMX consoler mode and Group interactive control mode.
3-Pin XLR DC12-36V In
PL-S150L supports 3-pin XLR DC 12-36V wide range input, and an on-board V-mount plate to power by batteries. The standard package provides an AC-DC adaptor and can be fixed to the V-mount plate.

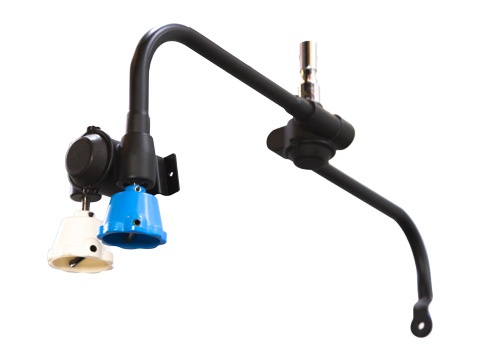

Optional Pole-Operated Yoke
PL-S150L provides a 2 control cups pan and tilt Pole-operated Yoke for optional purchase, 5/8" baby-pin female & 1-1/8" junior pin male head.
LED | 1152pcs SMD LEDs |
Illuminance | 4800Lux @ 1m |
Beam angle | 69° half peak |
Color Temperature | 2700K ～ 6500K |
Color Render | CRI Ra 97; TLCI 99; SSI(D55) 73 |
IP Rating | IP20 |
Power | 150W |
Working voltage | DC12V～36V, with AC100-240V adaptor |
Dimension | 837×159×107mm |
Lighting area | 778×100mm |
Weight | Net 4.8kg; With package 8kg |
MSRP
MSRP
MSRP
-

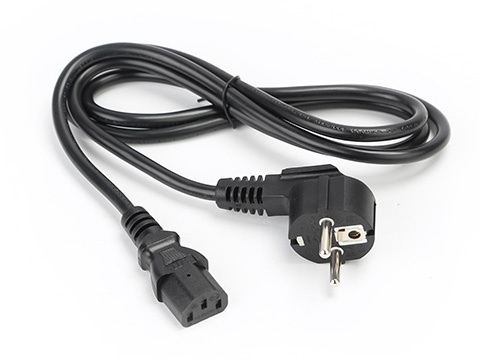

AC power cable
-
Hoisting bracket
-

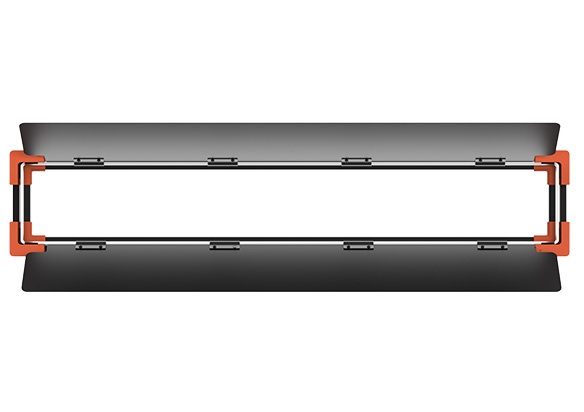

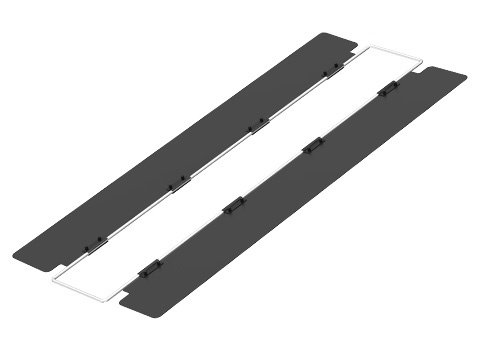

Barndoor
-

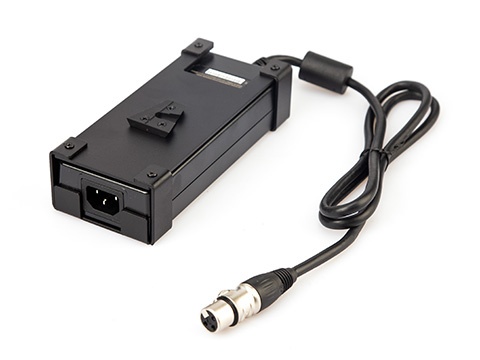

AC-DC adaptor
-

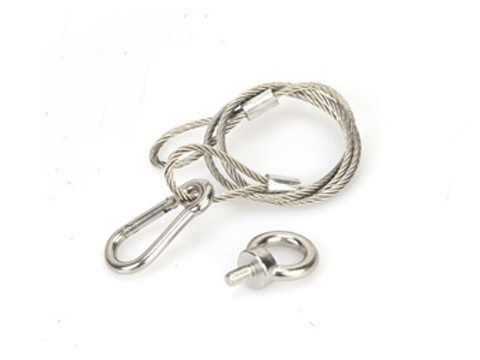

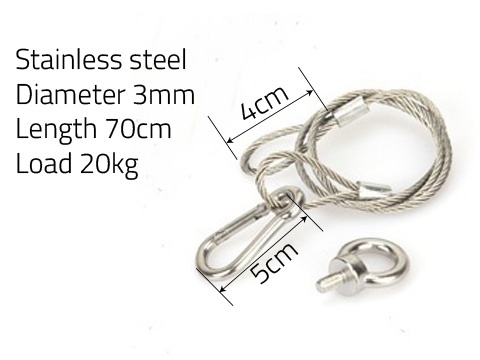

Safety rope and Ring
-

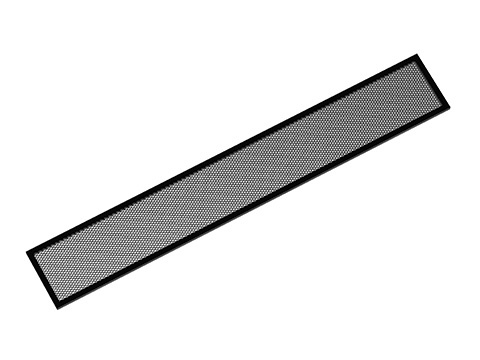

LA-GS150L
40° HoneyComb, to replace the standard barndoor kit, quick assemble and disassemble. -
LA-POS150L
2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head.
-
PL-E90L
90W Bi-color Long Ratio LED Panel
0.5×3 feet size, 2000Lux @1m, 2700-6500K, DMX, CRI 99 TLCI 99
-
VANGO-100L
100W Long Ratio Ultra Slim RGBW Light
3x0.5 size, Equivalent to 300W color light, 21mm slim, on board LCD, APP control
-
PL-S300D
300W Bi-color Studio SMD Panel LED Light
2:1 size, 10000Lux@1m ultra bright, 2700-6500K, DMX, CRI 97 TLCI 99, True1 AC IN & OUT
-
PL-S300H
300W Hard Bi-color Studio Panel LED Light
47,000Lux@1m ultra bright, large studio applications
