› Portable HDMI® to 3G/HD/SD-SDI Converter
› 1 HDMI® input, 2 SDI output, 1 analog audio input
› Embed HDMI® audio into SDI output
› Embed Analog audio into SDI output
› Power/input/output status indicator
› Pole-tap 6-18V DC power input
› Heavy duty aluminium housing
› Bottom screw threads for installing

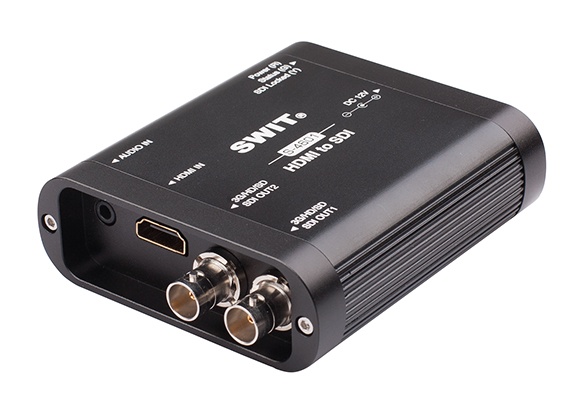

Portable Mini Converter
HDMI® to SDI
S-4601 is a mini converter for
HDMI® to SDI conversion, widely
used on broadcasting the HDMI®
video source, supports up to
1080p 50/60 HDMI® converted to
3Gb/s SDI.

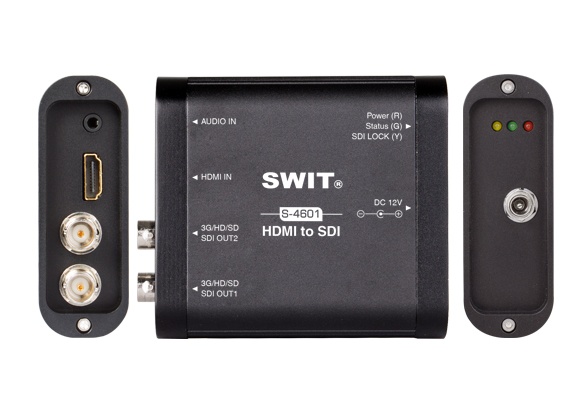

Input and Output
S-4601 offers:
1× HDMI® Type-A input
2× 3G/HD/SD-SDI output (Reclocked)
1× 3.5mm audio input
(The HDMI® to SDI supports the same
format conversion only.)
S-4601 features low SDI jitter and SDI
re-clocking so that you can use the
longest SDI cable lengths and maintain
pristine quality images.
Embed HDMI®/Analog audio into SDI output
The HDMI® audio ch-1 & ch-2
can be embedded into SDI to
output. And when there’s
analog audio input via
3.5mm socket, the stereo
analog audio can be
embedded into SDI to output.
The audio supports 48kHz
sample rate.

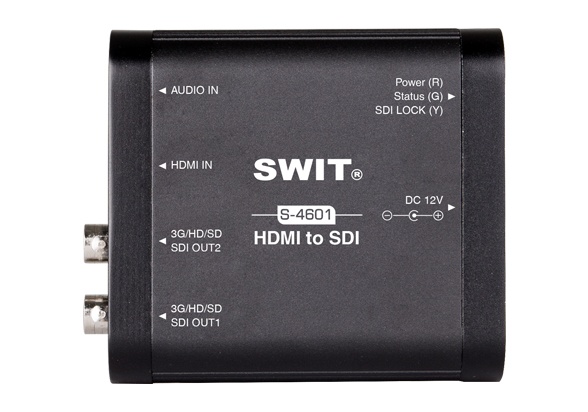

Status Indicators
Power / Input / Output
S-4601 provides 3 LED indictors, to
check if the power is connected, and
if the input/output signal is
delivered.
Power Supply
The mini converter is powered by pole-tap DC socket. The package includes an
AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing
The S-4601 mini converter adopts
unibody aluminium alloy housing,
strong for field using and protects the
BNC connectors effectively.

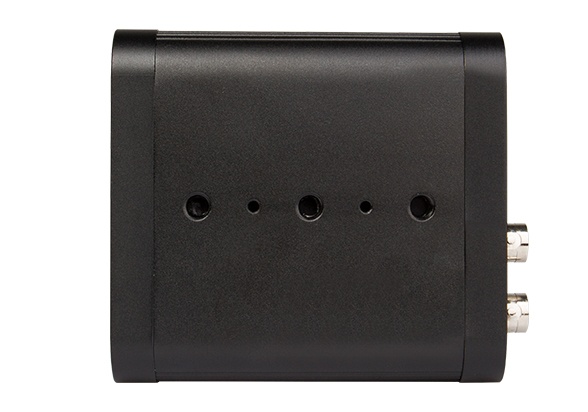

Installation
S-4601 provides the bottom 1/4-inch screw threads for fixing on cameras, and an
installing plate is supplied in the package, for fixing on wall and binding the
BNC/HDMI® cables.
Input
HDMI® ×1 | HDMI® input |
3.5mm×1 | Analog audio input |
Output
BNC ×2 | Converted 3G/HD/SD-SDI output |
Video Format
SDI | 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
HDMI® | 1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| 480i / 576i | |
Audio | 48KHz Sync |
General
Power | ≤3W |
Working Voltage | DC 6-18V |
Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% |
Dimensions | 98×84×29 mm |
Net weight | Net 210g; With package 0.5kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

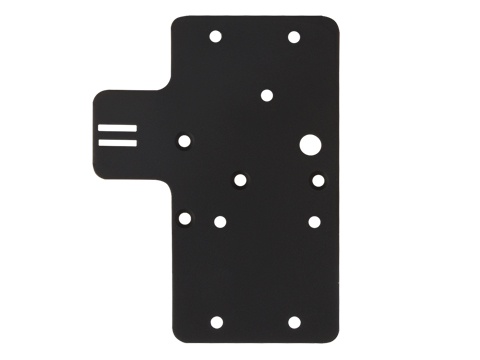

Installation plate
-

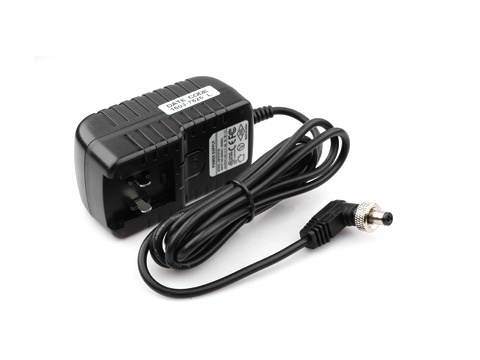

AC-DC Adaptor
