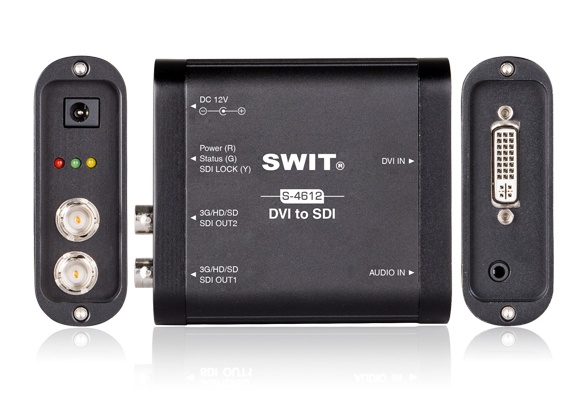

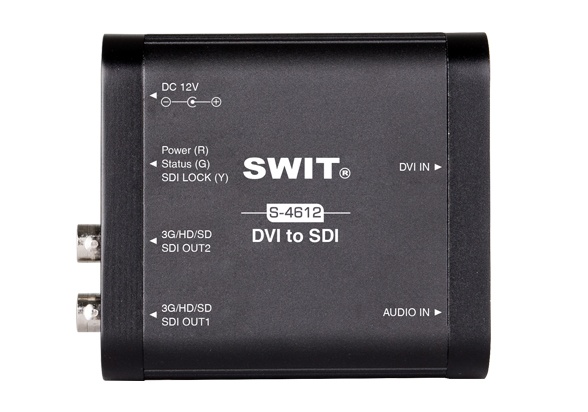

S-4612 DVI to SDI Converter

› Portable DVI to 3G/HD/SD-SDI Converter

› 1 DVI input, 1 analog audio input, 2 SDI output

› Embed Analog audio into SDI output

› Power/input/output status indicator

› Pole-tap 6-18V DC power input

› Heavy duty aluminium housing

› Bottom screw threads for installing

Features

Portable Mini Converter

DVI (DVI-D, 18+1) to SDI

S-4612 is a mini converter for DVI to SDI conversion, (DVI-D, 18+1 connector), which can be widely used for DVI video source to deliver and broadcast, support up to 1080p 50/60 format DVI to convert to SDI.

Input and Output

S-4612 offers:
1× DVI-D (18+1) input
2× 3G/HD/SD-SDI output (Reclocked)
1× 3.5mm audio input
(The DVI to SDI supports the same format conversion only.)

S-4612 features low SDI jitter and SDI re-clocking so that you can use the longest SDI cable lengths and maintain pristine quality images.

Embed Analog audio into SDI output

Analog audio input and embed to SDI

S-4612 support 3.5mm analog audio input, and can be embedded into SDI to output. The audio supports 48kHz sample rate.

Status Indicators

Power / Input / Output

S-4612 provides 3 LED indictors, to check if the power is connected, and if the input/output signal is delivered.

Power Supply

Pole-tap DC input

The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

Heavy Duty Housing

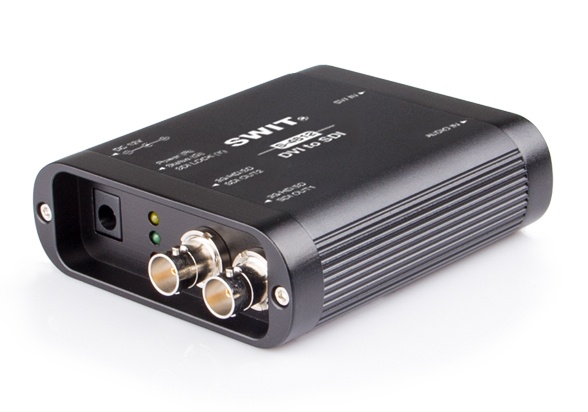

The S-4612 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.

Installation

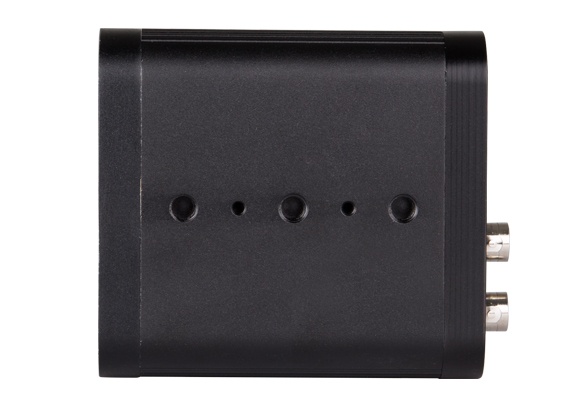

S-4612 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and binding the BNC/DVI cables.

Input

DVI-D ×1

DVI input

3.5mm×1

Analog audio input

Output

BNC ×2

Converted 3G/HD/SD-SDI output

Video Format

SDI

1080p (60 / 59.94 / 50)

1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)

DVI

1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
480i / 576i

Audio

48KHz Sync

General

Power

≤3W

Working Voltage

DC 6-18V

Working Environment

Temperature: 0°C-+70°C, Humidity:10%-90%

Dimensions

98×84×29 mm

Net weight

Net 207g; With package 0.5kg
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

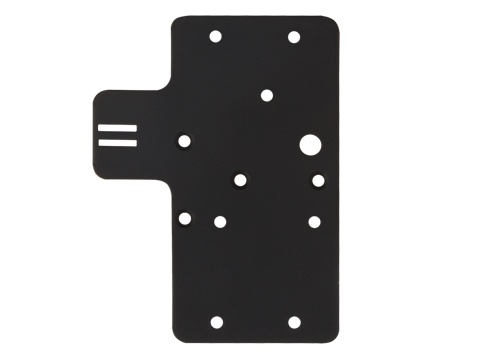

  • Installation plate

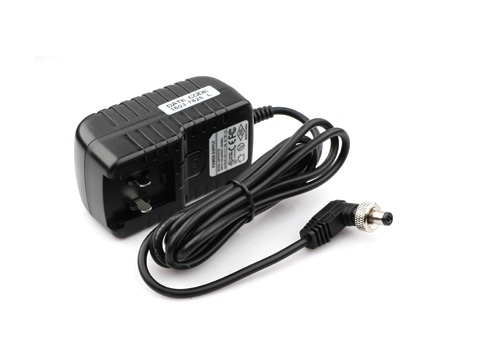

  • AC-DC Adaptor
