› Chip Array LED technology
› Single shadow, glareless
› Super high CRI =96
› 30W, 1500Lux @ 1 meter, dimmable
› 60° wide beam angle, equally spread
› Fresnel lens, raise to 5000Lux@1m
› 2800K-6000K continuously adjustable
› 6-17V wide input voltage
› D-tap power lead
› Glass Fiber strong and durable housing
› Screw and cold shoe mount

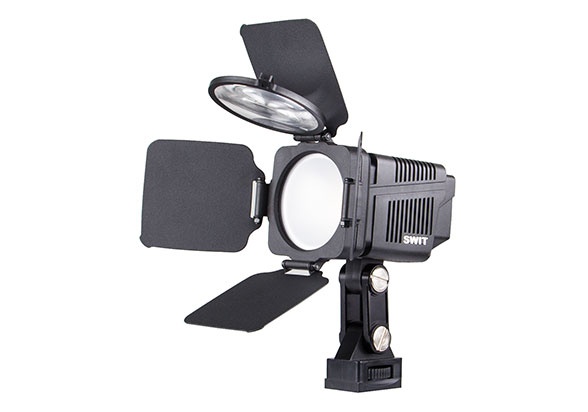

Chip-on-board LED
Brighter and Non-glaring
The S-2060 on-camera LED light adopts the new generation Chip-on-board LED, which integrates the LEDs into a chip with high brightness output but in smaller size, and the most remarkable, it offers a equally spread, soft, glareless light, similar to the traditional Halogen bulb light.
Super High CRI
Color Rendering Index value: 96
CRI (Color Rendering Index) is a measure of the ability of a light
source to reveal the colors of various objects faithfully in comparison
with a natural light source. Max value Ra=100.
The normal LED light has Ra 80-85 CRI, while S-2060 offers the
super high CRI value of Ra 96, comparable to the traditional halogen
bulb light, and will not lose the object original colors.
1500Lux high illuminance
Area light source
S-2060 generate 1500Lux center illuminance at 1 meter
distance, equivalent to a 110W halogen bulb.
And the COB LED generate an area light source,
more equal and soft than the LED bulb array, and people
will not feel glaring when being close interviewed.
60° Wider Beam Angle
Equally spread lights, no visible beam edge
The traditional LED lights can get a high brightness center light, but will dropped down quickly around, which will generate a
visible lighting border in the image. In comparison, the S-2060 COB LED generates a 60° wider beam angle, equally spread from the center to edge, and
suitable for HD shooting.

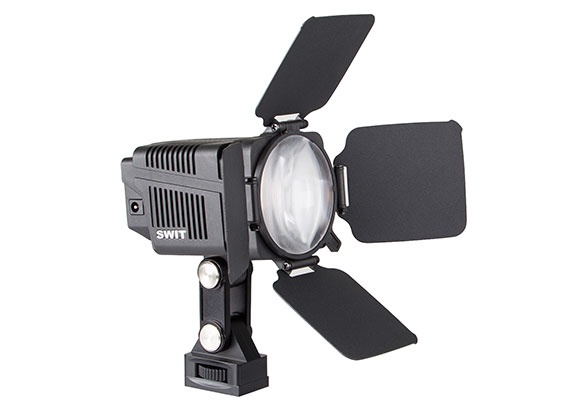

Fresnel Focus Lens
Raise the center illuminance to 5000Lux
S-2060 offers a Fresnel focus lens, to increase the
center illuminance to 5000Lux, and the beam angle
will be contracted to 23°.
10-100% Dimmable
One knob revolve

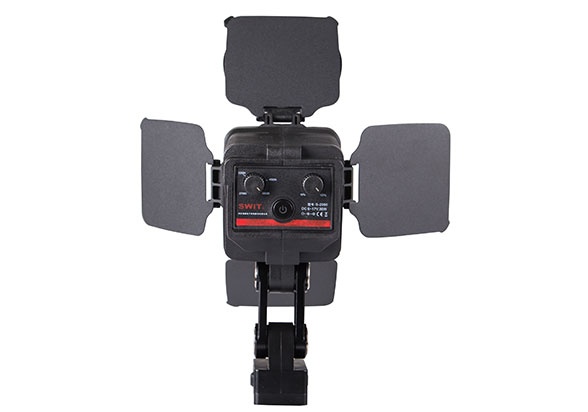

The dimmer knob is on the rear panel of the light,
and can be adjust from 10% to 100% illuminance.
The light output is flick free when dimming, and
color temperature stays stable.
Color Temperature Adjust
2800K-6000K continuously adjustable
The S-2060 has bi-color COB LEDs, and the color temperature can be continuously adjusted from 2800K to 6000K,
by revolving the knob on the rear panel of the light.
6-17V Wide Voltage Power Supply
The S-2060 accepts 6-17V wide voltage input, so you can get power from 14.4V V-mount/Gold Mount batteries or 7.2V DV
batteries.
The light package goes with a D-tap to pole-tap cable (S-7104), to plug into the DC-IN port of S-2060 and get power from
D-tap power output sockets, such as batteries, battery plates, or camera handle. You can also select SWIT pole-tap to pole-tap
DC cable (S-7108) to get power from pole-tap DC adaptors.
Easy Installation
Both cold-shoe and screw
S-2060 can be fixed on camera via 1/4” screw head, and the
package also goes with a spare cold shoe part for
users to change the screw connector to cold shoe.
Tilt Angle Adjustment
When installed on ENG cameras, the light head angle can be adjusted forward and backward, up and down, by the connection rod base.
Removable and interchange with color filter or diffuser cover
S-2060 has 4 leaf all metal barn doors, strong and durable.
The barn doors are bayonet mount design, can be revolve and
take down like camera lens. S-2060 will provide color filter and
diffuser cover accessories to be installed on.
Input voltage | DC 6V-17V |
Power consumption | 30W |
Halogen equivalent | 110W |
Beam Angle | H60°/ V60° |
Color temperature | 2800K-6000K continuous adjustment |
Color rendering index | 96 |
Illuminance | 1500Lux @ 1m (without lens) |
5000Lux @ 1m (with lens) | |
Power connector | D-tap cable |
Working temperature | -10℃~+40℃ |
Storage temperature | -20℃~+55℃ |
Dimensions | 120×86×121mm |
weight | Net 530g; With package 1.05kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

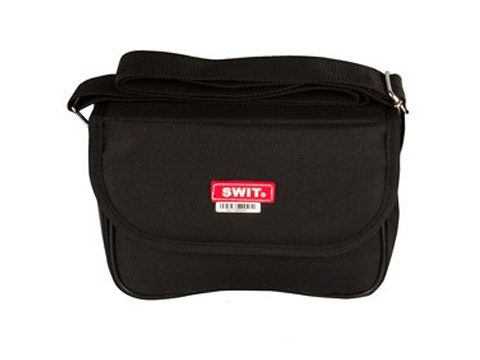

Bag
-

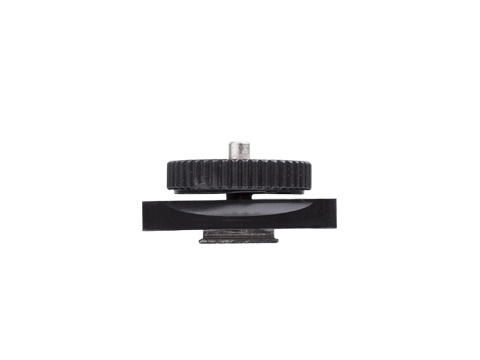

Cold shoe Base
-

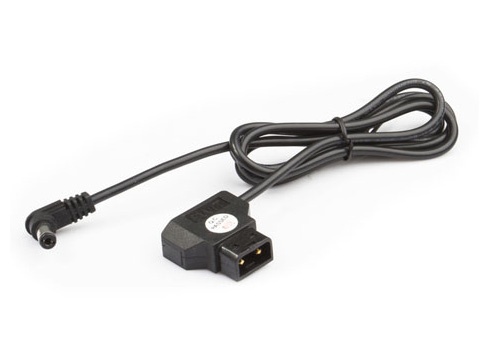

S-7104 D-tap to Pole tap cable
-

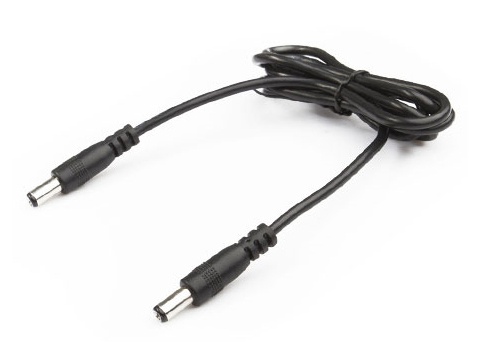

S-7108
DC cable with both ends of 5.5mm Pole-tap connector
1. Warranty Period
We provide 1 year conditional warranty for lighting products.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents, including but not limited to damage to LED emitters, circuits, or housings, personal injury, or property loss, are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with Operating Procedures
Operation, installation, or removal of equipment and accessories not in accordance with the User Manual; forcible removal of connection cables or power cables; obstruction of heat dissipation vents; direct visual exposure to LED emitters; failure to follow the prescribed sequence for startup/shutdown or wiring.
(2) Non-Compliant Power Supply and Accessories
Use of non-original SWIT power supplies, power cables, chargers, optical accessories, or other uncertified third-party accessories; powering the product with third-party power adaptors; use of extension cables or power adaptors with mismatched rated parameters.
(3) Unauthorized Modification and Repair
Unauthorized disassembly, modification, or repair of the equipment; tampering with core components or circuits; failure to contact SWIT authorized after-sales service upon equipment malfunction, resulting in unauthorized repair or aggravated damage by non-authorized personnel.
(4) Misuse and Adverse Environmental Conditions
Damage resulting from dropping, impact, compression, puncture, water immersion, exposure to high temperatures or direct sunlight, extreme cold, humidity, excessive dust, or other non-normal use environments or human-inflicted damage.
(5) Failure to Address Abnormal Conditions
Continued operation despite abnormal conditions such as overheating, abnormal odor, or abnormal noise, resulting in damage or safety incidents; use of damaged or malfunctioning accessories or batteries in violation of regulations.
(6) Out-of-Specification and Incompatible Use
Operation beyond the equipment's rated parameters; use in incompatible systems or environments; failure to implement protective measures during outdoor use, resulting in damage from severe weather conditions.
(7) Force Majeure and External Factors
Damage caused by irresistible factors (including but not limited to earthquake, flood, or typhoon), sudden voltage fluctuations, or external circuit short circuits.
(8) Natural Wear and Tear
Normal aging of LED emitters, wear of accessories, and other natural degradation of the product.
(9) Improper Storage
Failure to store equipment and accessories in accordance with prescribed specifications, resulting in moisture ingress, dust accumulation, or component corrosion.
(10) Non-Authentic Products and Ineligibility
Products not purchased through official SWIT channels, or products with altered or missing serial numbers that preclude verification of authenticity and warranty eligibility.
(11) Liability Disclaimer
All risks and consequences arising from improper use, human factors, or external factors shall be borne entirely by the user.
(12) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
