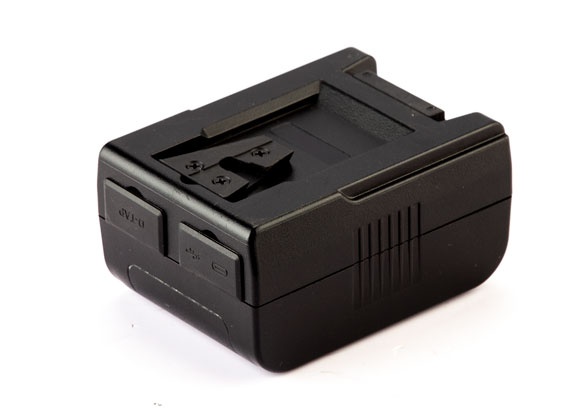

› Tiny V-mount battery, Pocket fit
› Support RED V-Raptor install
› 140Wh/9.7Ah high capacity
› 150W/12A constant high load
› 1x D-tap output & charging input
› 1x USB-A 5V/2A output
› 1x USB-C 48W input & 65W output
› 4-step LED power indicator
› Power info for both SONY & RED
› Wire-Free internal technic
› Strong 1.2 meters drop-off proof
› Multiple circuit protections

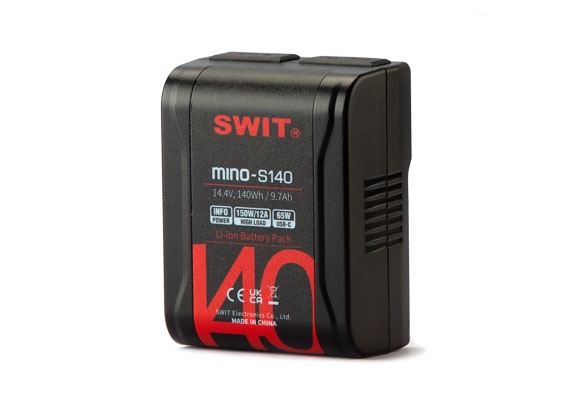

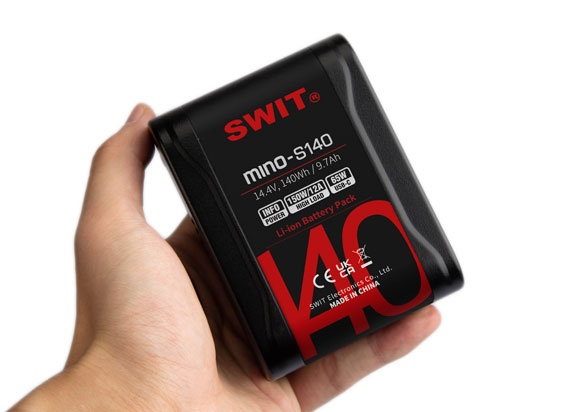

Tiny Size 140Wh Battery
The smallest 140Wh V-mount battery you’ve
ever seen!
MINO-S140 is a pocket fit size large capacity
battery with 65W USB-C socket, for cameras,
monitors, accessories, tablets, laptops and all
kinds of devices in the filmset.
150W/12A High Load
MINO-S140 consists of 8 high capacity cells,
with 140Wh/9.7Ah high capacity, and support
at least 150W/12A constant high load output,
for high power cine cameras and lights.
A Little Bigger, Much More Capacity
Comparing with the hot selling SWIT 98Wh Pocket V-mount battery, the new MINO-S140
provides 43% more capacity, but still with tiny size for convenient carrying.

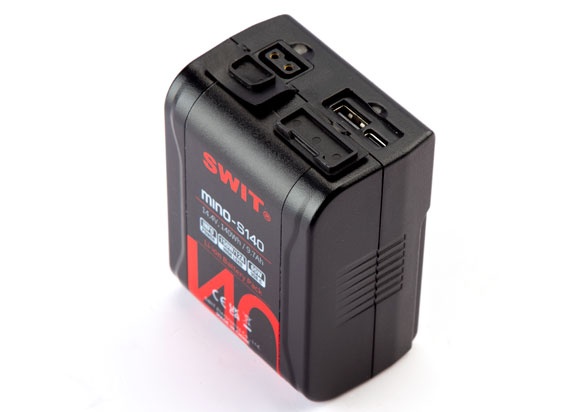

D-tap, USB-A and USB-C
The tiny size MINO-S140 didn't compromize on DC
sockets.
D-tap x1 - 120W/10A high load (Support charging input)
USB-A x1 - 5V/2A output
USB-C x1 - 65W output and 48W charging input
USB-C 48W Charging Input
MINO-S140 battery can be charged by USB-C
charger, supports PD 5V 2.4A, 9V 2.4A, 12V 2.4A,
15V 2.4A and Max 20V 2.4A, which means you can
fully charge the 140Wh battery within 3.5 hours.
USB-C 65W Power Output
You can power laptop via USB-C by MINO-S140 battery
on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0,
FCP, SCP multiple protocols.
(For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)
Wire-Free Internal Tech
MINO-S140 has innovative “Wire-Free” internal technic.
All the cells, D-tap, USB-A, USB-C, power indicator
devices are directly soldered onto PCB, no connecting
wires, to reduce internal resistance effectively, and
make the circuit stable, safe, and reliable.
Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after
long-term storage due to complete power
drainage.
SWIT batteries adopt a unique low-power
design that could hold the charge for several
years without losing power. There is no need
for regular charge-discharge maintenance,
just effortless, reliable storage when you
need it.
Battery plate | V-mount |
Nominal voltage | 14.4V |
Capacity | 140Wh, 9.7Ah |
Power IN&OUT | Electrodes: 150W 12A out, 16.8V 3A in |
D-tap: 120W 10A out, 16.8V 3A in | |
| USB-A: 10W, 5V/2A out | |
USB-C: Max 65W out, 5V/9V/12V/15V/20V(Max) 3.25A BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP Max 48W in, 5V/9V/12V/15V/20V(Max) 2.4A | |
Dimension | 105×79.6×55.5mm (Fit RED Raptor) |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | Net 0.71kg; With package0.75kg |
MSRP
MSRP
MSRP
1. Warranty Period
We provide 2 years conditional warranty for batteries.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly, modification, or repair.
(2) Non-Compliant Charging Equipment and Practices
Use of non-original SWIT chargers or uncertified third-party charging accessories;
Use of third-party USB-C chargers without compliant PD protocols;
Use of third-party D-tap charger of reversed polarity connections and cause any damage.
This battery doesn't support charging via D-tap, use any D-tap charger to charge the battery and cause any damage.
(3) Misuse and Physical Damage
Compression, puncture, dropping, impact, collision, water immersion, exposure to high temperatures or direct sunlight, or any other non-normal use not in accordance with the product's intended design.
(4) Use of Damaged or Defective Battery
Continued use of a battery that is damaged, leaking, or exhibiting abnormal overheating without prompt discontinuation.
(5) Natural Capacity Degradation
Reduction in battery capacity resulting from the natural aging process after a certain number of charge/discharge cycles.
(6) Improper Storage and Maintenance
Damage caused by improper storage practices that lead to extended deep discharge or prolonged zero-charge state of the battery.
(7) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(8) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(9) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
