› 4-ch simultaneous fast charging
› Charge pure 28.8V B-mount batteries
› Charge 14.4V/28.8V Bi-voltage B-mount batteries
› 33.6V/3A 100W super fast charging
› 3.5-inch color LCD info display
› Battery cycle times display
› Top large charging indicators

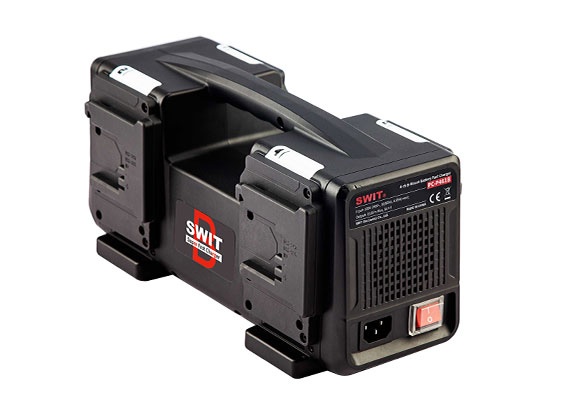

4x100W Super Fast Charger

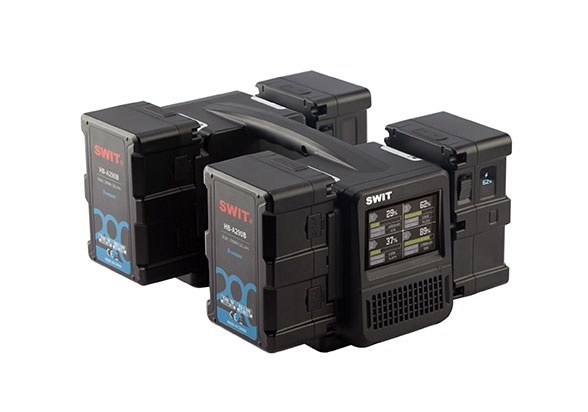

PC-P461B can charge 4x B-mount batteries simultaneously at 33.6V/3A, 100W per channel super fast charging speed, save up to 60% charging time comparing to normal chargers.
Compatible with pure 28.8V B-mount batteries and 14.4V/28.8V bi-voltage B-mount batteries.
Charging Time
To charge 4x 290Wh B-mount batteries, the
PC-P461B will take only 2 hours 30 minutes
to charge to 80%, and take 3 hours 50 minutes
to fully charge.

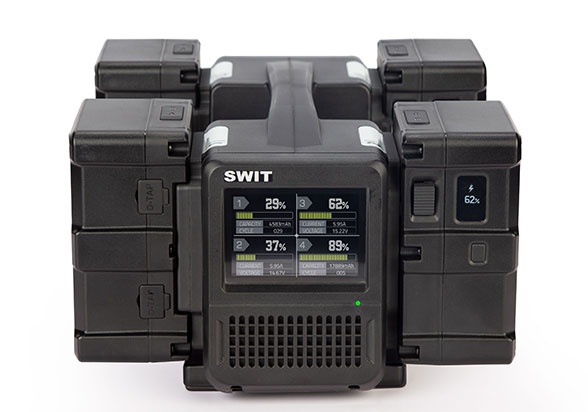

3.5-inch Color LCD
PC-P461B provides a 3.5-inch color LCD panel
to display charging progress, charging current
and voltage, and battery cycle times of each
channel.
Top Charging Indicators
Besides LCD screen info, you can check the
charging status at a glance by the 4 large size
indicators on the top of the charger.
Red on: 0-80%
Green flashing: 81%-99%
Green on: 100% fully charged
Red flashing: Charging error, check LCD info

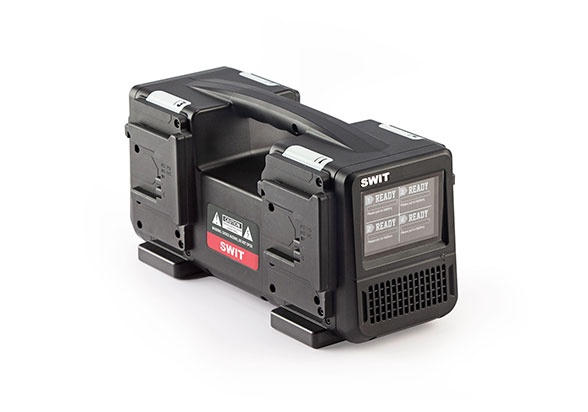

Light Weight and Portable
The 4 channel fast charger PC-P461B has minimized
the size and weight, and the new handle design makes
the charger solid and easy to carry.
Power | Max 450W |
Input | AC100V-240V 50/60Hz |
Output | DC 33.6V, 3A×4 |
Applicable battery | B-mount battery |
Dimensions | 330×153×162mm |
Net weight | Net 2.43kg; With package 3.3kg |
MSRP
MSRP
MSRP
-

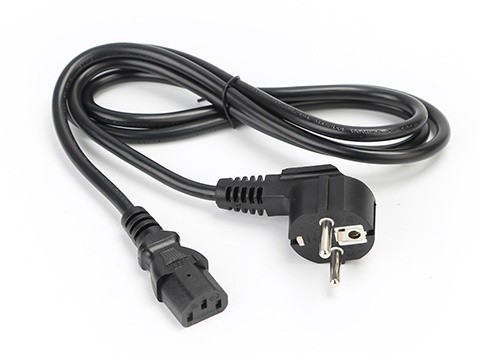

AC power cable
-
HB-A290B
290Wh 28.8V B-mount Battery Pack
ALEXA35/ALEXA 265/Blackmagic URSA Cine battery, 250W/10A high load, D-tap 16V x2, USB-C 60W in&out, OLED power info
1. Warranty Period
We provide 2 years conditional warranty for battery chargers.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliant Charging Objects
Use of the charger to charge non-original SWIT batteries or uncertified third-party batteries.
(2) Non-Compliant Power Supply and Operation
Use of mismatched power supply, input voltage exceeding the rated range of AC 100V–240V, power input exceeding the rated capacity, prolonged overcharging, or operation under no-load conditions.
(3) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly or repair; failure to operate the charger in accordance with the prescribed procedures, resulting in damage or safety hazards.
(4) Misuse and Physical Damage
Unauthorized modification, dropping, impact, collision, water immersion, exposure to high temperatures or humid environments, or any other non-normal use not in accordance with the product's intended design.
(5) Use of Damaged or Defective Charger
Continued use of a charger that is damaged, malfunctioning, or exhibiting abnormal overheating without prompt discontinuation.
(6) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(7) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(8) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
