◆ 14.4V nominal voltage Li-ion battery
◆ Compatible with SONY BP-U batteries
◆ Display power info in camera (some new models)
◆ 90Wh / 6.2Ah capacity
◆ Built-in 14.4V D-tap output / Charging input
◆ Built-in 45W USB-C input and output
◆ 4-level LED power indicator
◆ Multiple circuit protections
◆ Compatible with Blackmagic PYXIS 6K/12K

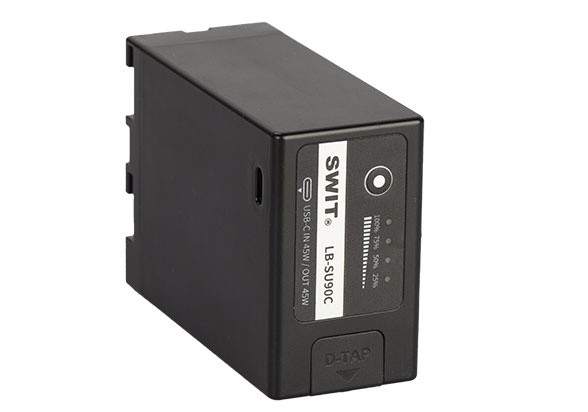

90Wh SONY BP-U Battery
with D-tap and USB-C
LB-SU90C is a new 90Wh large capacity BP-U
type DV battery with D-tap output and 45W
USB-C in/out, for SONY PXW FS5/FS7,
PXW-FX6/FX9, PXW-Z200, HXR-NX800, PXW-Z380/Z280/X280, Blackmagic PYXIS 6K/12K, etc.
90Wh Large Capacity
LB-SU90C consists of 8pcs battery cells,
14.4V nominal voltage, 90Wh/6200mAh
large capacity to keep cameras powered
for longer time. The constant power load
is 70W/6A.

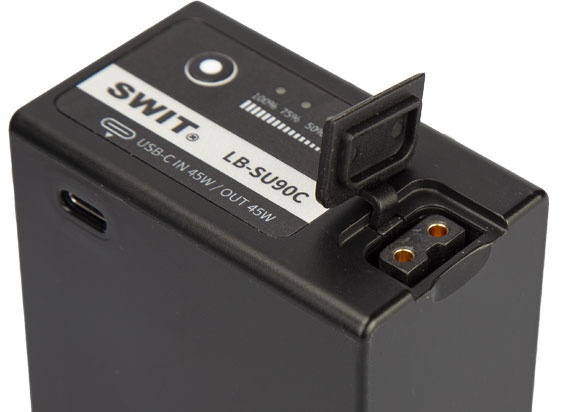

14.4V D-tap Power Socket
The LB-SU90C BP-U battery provides a D-tap power
socket of 11-16.8V voltage, 70W/6A high load for
various kinds of video devices. You can also charge the
battery via the D-tap socket by SWIT PC-U130B2.

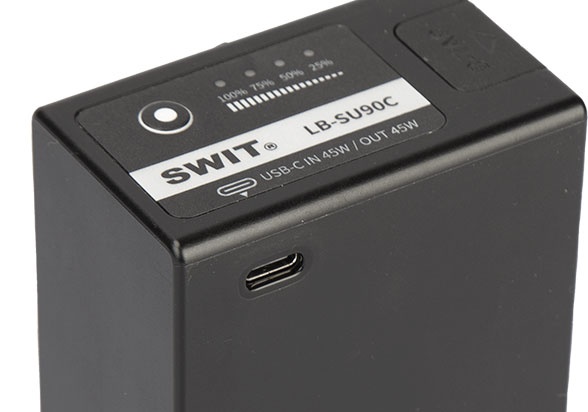

USB-C 45W for Laptop
LB-SU90C provides a USB-C socket of
5V/9V/12V/15V/20V(Max) 2.25A, 45W power
output for various kinds of laptop, tablets or
smart phones, supports BC1.2, PD2.0/3.0,
QC2.0/3.0, FCP, SCP multiple protocols.
(For Macbook 13, Macbook Pro 13/15, ThinkPad
New S2/T470/X270, Dell XPS 13/Latitude, HP
Spectre x360-13/EliteBook Folio G1, Samsung
Chromebook Plus, Google Pixelbook, Huawei
Matebook, etc)
USB-C 45W Charging Input
You can also charge LB-SU90C by USB-C charger.
Supports 5V/9V/12V/15V/20V(Max) 2.25A, 45W
power input, which means you can fully charge the
90Wh battery within 3 hours.

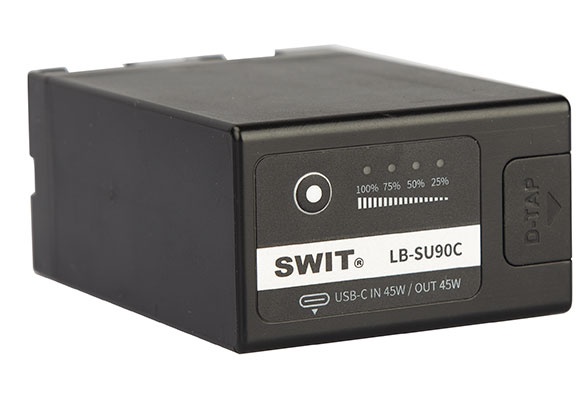

4-level Power Indicator
Press the power check bottom, the 4-level
LEDs indicates remaining power percentage.
4-way Charging
LB-SU90C can be charged by SWIT S-3602U
2-way charger, SWIT PC-U130B2 D-tap charger,
or LC-D421 4-way charger. By the LC-D421, You
can charge 4 batteries simultaneously, and fully
charging within 3.5 hours.
Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after
long-term storage due to complete power
drainage.
SWIT batteries adopt a unique low-power
design that could hold the charge for several
years without losing power. There is no need
for regular charge-discharge maintenance,
just effortless, reliable storage when you
need it.
Nominal Voltage | 14.4V |
Capacity | 90Wh, 6.2Ah |
Max power load | 70W, 6A |
D-tap | 14.4V, 70W, 6A |
USB-C | 45W input: 5V/9V/12V/15V/20V, 2.25A 45W output: 5V/9V/12V/15V/20V, 2.25A BC1.2, QC2.0/3.0, PD2.0/3.0, FCP, SCP |
Original batteries | SONY BP-U30, BP-U60, BP-U100 |
Compatible cameras | SONY PXW FX6/FX9, PXW-Z380/Z280/X280 PXW-Z200, HXR-NX800, PXW-FS5/FS7, etc Blackmagic PYXIS 6K/12K |
Dimension | 70×42×96mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | Net 462g; With package0.5kg |
