› Square shape design for Cine-cameras
› 290Wh, 20.1Ah large capacity
› At least 200W, 16A constant load
› 4× D-tap output sockets
› All 4x D-tap support charging input
› 1× USB 5V/2A power output sockets
› 100W 6A super fast charging
› OLED display accurate remaining run time
› Display power info in both SONY & RED
› Multiple circuit protections
Square shape design for Cine-cameras
PB-S series camera batteries are compact
designed, shorter than normal V/Gold
mount batteries, and match perfectly with
most of the Cine-cameras.
290Wh / 20.1Ah Capacity
Consists of 24pcs of high class 18650 battery cells, nominal
voltage is 14.4V and reaches 290Wh / 20.1Ah high capacity.
Can run approx 10 hours for normal ENG cameras and approx
3.5 hours for ARRI ALEXA.
High Load for Cine Cameras
At least 200W / 16A load
PB-S290S provides at least 200W/16A high load
even at 1% power, to drive high power Cine cameras and on-camera devices together. The high
load cells will also ensure battery life comparing to
normal load batteries if long time full load output.

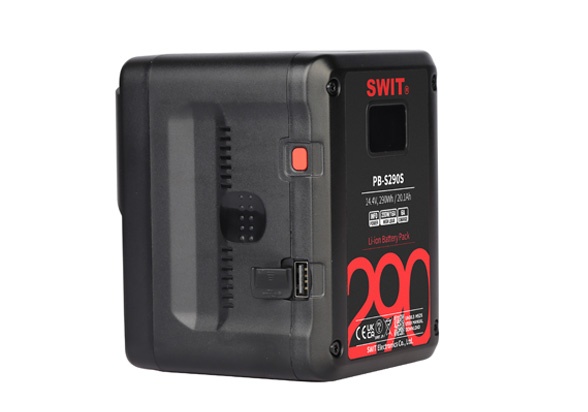

4× D-tap, 1× USB
PB-S290S provides 4x D-tap output sockets with 10A/120W load, and all of them support charging input. The USB-A socket output 5V/2A.
100W 6A Fast Charging
Using SWIT 6A fast charger
PB-S290S supports 6A fast charging by SWIT PC-P461S or S-3812S fast charger, to save more than 50%
charging time. The 290Wh PB-S290S battery can be
charged from 0 to 80% after 2.5 hours, and fully
charged within 3.8 hours.
Digital Power Info

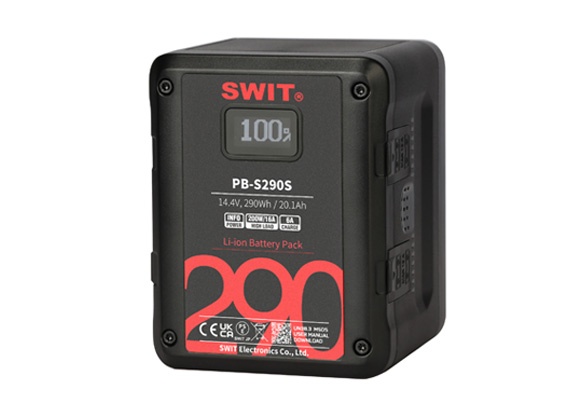

OLED display accurate remaining run time
The build-in OLED can displays remaining power percentage, remaining working time, and battery cycle times, and
support viewfinder info display on both SONY and RED cameras.
Battery Protection Display
When any over load, over charging, short circuit, high/low temperature detected, the battery will protect itself and display protection information. You can take steps to re-active battery, to ensure the best battery condition and prolong battery life.
Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after
long-term storage due to complete power
drainage.
SWIT batteries adopt a unique low-power
design that could hold the charge for several
years without losing power. There is no need
for regular charge-discharge maintenance,
just effortless, reliable storage when you
need it.
Model | PB-S290S |

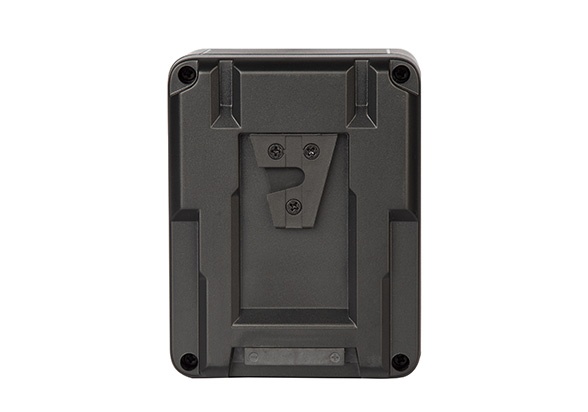

Battery plate | V-mount |
Nominal voltage | 14.4V |
Capacity | 290Wh, 20.1Ah |
Max output | In total: 200W |
Electrodes: 200W,16A | |
| USB:10W, 5V/2A | |
| D-tap: 120W / 10A | |
Dimension | 121×95×96mm |
Charging Temperature | 0-40°C |
Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | 1.44kg; With package 1.6kg |
Max charging current | 6A |
D-TAP socket number | 4 |
USB socket number | 1 |
MSRP
MSRP
MSRP
-
PB-S146S
146Wh Multi-sockets Digital Battery Pack
Compact designed, match perfectly with Cine-cameras, OLED power info, 1xUSB 2xD-tap
1. Warranty Period
We provide 2 years conditional warranty for batteries.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly, modification, or repair.
(2) Non-Compliant Charging Equipment and Practices
Use of non-original SWIT chargers or uncertified third-party charging accessories;
Use of third-party USB-C chargers without compliant PD protocols;
Use of third-party D-tap charger of reversed polarity connections and cause any damage.
This battery doesn't support charging via D-tap, use any D-tap charger to charge the battery and cause any damage.
(3) Misuse and Physical Damage
Compression, puncture, dropping, impact, collision, water immersion, exposure to high temperatures or direct sunlight, or any other non-normal use not in accordance with the product's intended design.
(4) Use of Damaged or Defective Battery
Continued use of a battery that is damaged, leaking, or exhibiting abnormal overheating without prompt discontinuation.
(5) Natural Capacity Degradation
Reduction in battery capacity resulting from the natural aging process after a certain number of charge/discharge cycles.
(6) Improper Storage and Maintenance
Damage caused by improper storage practices that lead to extended deep discharge or prolonged zero-charge state of the battery.
(7) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(8) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(9) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
