› Tiny V-mount battery, Pocket fit
› Support RED V-Raptor install
› 70Wh/4.9Ah high capacity
› 100W/8A constant power load
› 1x D-tap output & charging input
› 1x USB-A 5V/2A output
› 1x USB-C 35W input & 65W output
› 4-step LED power indicator
› Power info for both SONY & RED
› Wire-Free internal technic
› Strong 1.2 meters drop-off proof
› Multiple circuit protections

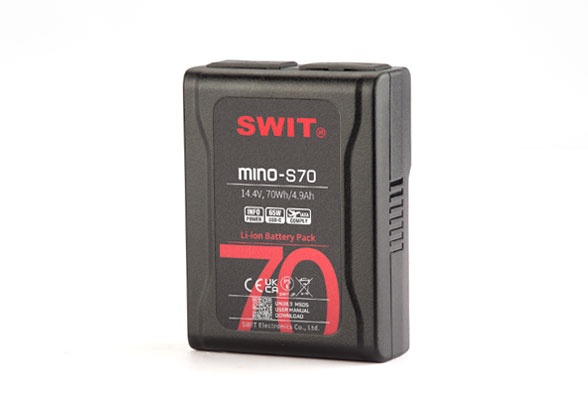

Tiny Size 70Wh V-mount
MINO-S70 is a pocket fit tiny size V-mount battery
for handheld cameras, monitors and other camera
gears. It powers RED V-raptor for at least 1 hour
and offers minimum weight for stablizer installation.

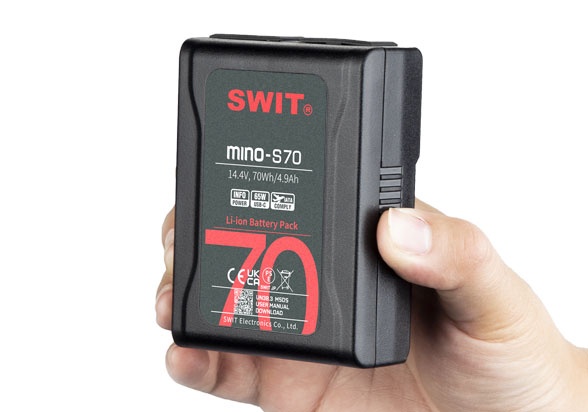

Thinner and Light Weight

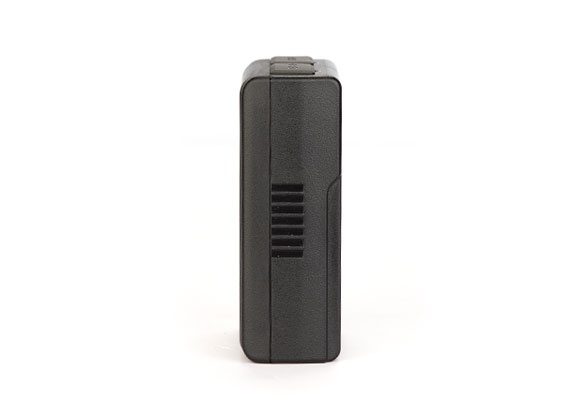

The MINO-S70 is 37mm thickness, standard
V-mount connector, and only 419g light weight
for handheld camera gears.
70Wh, 100W/8A Load
MINO-S70 consists of 4 high capacity cells, with
70Wh/4.9Ah high capacity, and support at least
100W/8A constant high load output.

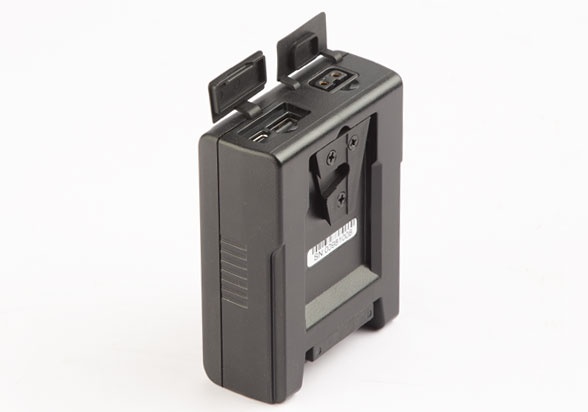

D-tap, USB-A and USB-C
The tiny size MINO-S70 didn't compromize on DC sockets.
D-tap x1 - 100W/8A load (Support charging input)
USB-A x1 - 5V/2A output
USB-C x1 - 65W output and 35W charging input
USB-C 35W Charging Input
MINO-S70 battery can be charged by USB-C charger,
supports PD 5V/9V/12V/15V/20V(Max) 1.75A, 35W charging
input, which means you can fully charge the 70Wh battery
within 2.5 hours.
USB-C 65W Power Output
You can power laptop via USB-C by MINO-S70 battery on the filmset.
Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V
3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.
(For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook
E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with
USB-C ports)
Wire-Free Internal Tech
MINO-S70 has innovative “Wire-Free” internal technic.
All the cells, D-tap, USB-A, USB-C, power indicator
devices are directly soldered onto PCB, no connecting
wires, to reduce internal resistance effectively, and
make the circuit stable, safe, and reliable.
Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after
long-term storage due to complete power
drainage.
SWIT batteries adopt a unique low-power
design that could hold the charge for several
years without losing power. There is no need
for regular charge-discharge maintenance,
just effortless, reliable storage when you
need it.
Battery plate | V-mount |
Nominal voltage | 14.4V |
Capacity | 70Wh, 4.9Ah |
Power IN&OUT | Electrodes: 100W 8A out, 16.8V 3A in |
D-tap: 100W 8A out, 16.8V 3A in | |
| USB-A: 10W, 5V/2A out | |
USB-C: Max 65W out, 5V/9V/12V/15V/20V(Max) 3.25A BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP Max 35W in, 5V/9V/12V/15V/20V(Max) 1.75A | |
Dimension | 105×79.6×37mm (Fit RED Raptor) |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | Net 0.41kg; With package0.45kg |
MSRP
MSRP
MSRP
-
MINO-S140
140Wh Pocket V-mount Battery Pack
USB-C 48W in, 65W out, 150W/12A high load, D-tap, wire-free internal tech
-

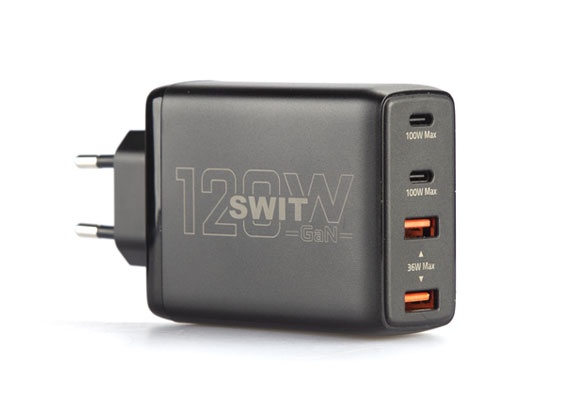

UC-2120
120W USB-C/A GaN Charger
2xUSB-C+2xUSB-A, 120W Max, Charge camera batteries with USB-C ports.
-
UC-2065
65W USB-C/A GaN Travel Charger
Ultra portable, with US/EU/UK plugs for travel, charge camera batteries, laptop and smart devices
1. Warranty Period
We provide 2 years conditional warranty for batteries.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly, modification, or repair.
(2) Non-Compliant Charging Equipment and Practices
Use of non-original SWIT chargers or uncertified third-party charging accessories;
Use of third-party USB-C chargers without compliant PD protocols;
Use of third-party D-tap charger of reversed polarity connections and cause any damage.
This battery doesn't support charging via D-tap, use any D-tap charger to charge the battery and cause any damage.
(3) Misuse and Physical Damage
Compression, puncture, dropping, impact, collision, water immersion, exposure to high temperatures or direct sunlight, or any other non-normal use not in accordance with the product's intended design.
(4) Use of Damaged or Defective Battery
Continued use of a battery that is damaged, leaking, or exhibiting abnormal overheating without prompt discontinuation.
(5) Natural Capacity Degradation
Reduction in battery capacity resulting from the natural aging process after a certain number of charge/discharge cycles.
(6) Improper Storage and Maintenance
Damage caused by improper storage practices that lead to extended deep discharge or prolonged zero-charge state of the battery.
(7) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(8) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(9) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
