› 100W COB LED Fresnel studio light
› Fanless, absolutely silent
› 12-26° Flood/Spot angle adjust
› 60,000Lux@1m high bright hard light
› 5600K daylight color temperature
› 0-100% flick-free dimming
› CRI Ra 96, TLCI 97
› DMX512 In & out dimmer control
› USB power out for wireless DMX receiver
› LCD display color, dimmer and DMX addr
› PowerCON TRUE1 AC in and loop out
› 4-leaf metal barn doors and Yoke bracket

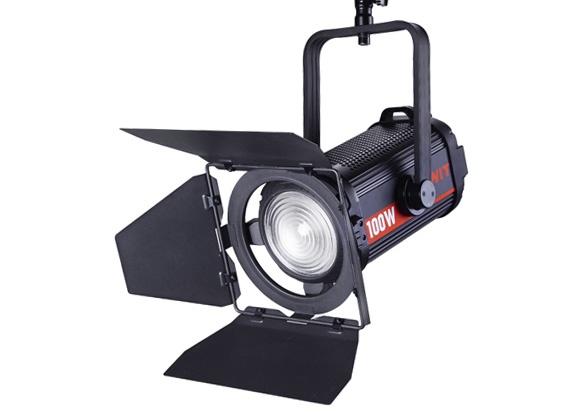

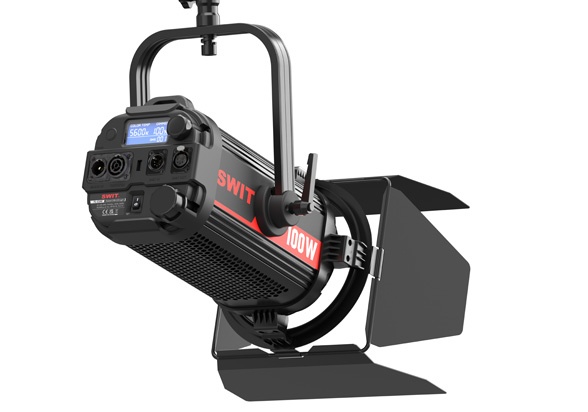

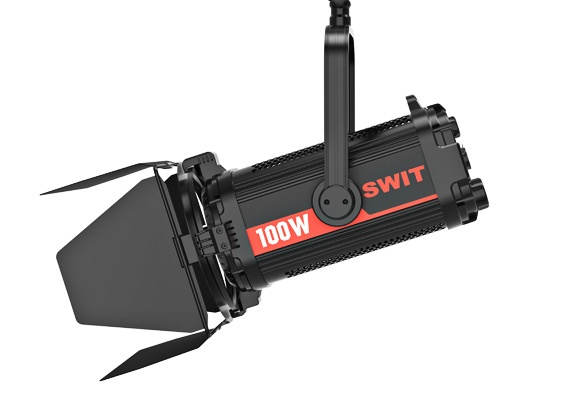

100W Fanless Fresnel Light
Brighter, harder, absolutely silent
FL-C100 is a 100W COB-LED fresnel light of daylight color
temperature, 60,000Lux @1m high bright, with DMX
control, high CRI/TLCI and accurate color performance,
and no fan, no noise at all, for broadcast studio, theatre,
film set install applications.
12°-26° Spot/Flood Adjust
FL-C100 outputs 12°-26° beam angle by adjusting
position of LED board internally, 0 to 100% PWM digital
dimming, smoothly and non-flickering.
IEC 62471 Photobiological Safe Certificated
The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.
5600K Daylight Color Temp
FL-C100 outputs accruate and stable 5600K color
temperature for daylight studio application.
Accurate Color Render
CRI 96; TLCI 97
CRI (Color Rendering Index) is a measure of the
ability of a light source to reveal the colors of various
objects faithfully in comparison with a natural light
source. And TLCI (Television Lighting Consistency
Index) is special for the color reveal ability by camera
sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while
FL-C100 offers the ultra high CRI at 96 and TLCI at
97, and will not lose the object original colors.

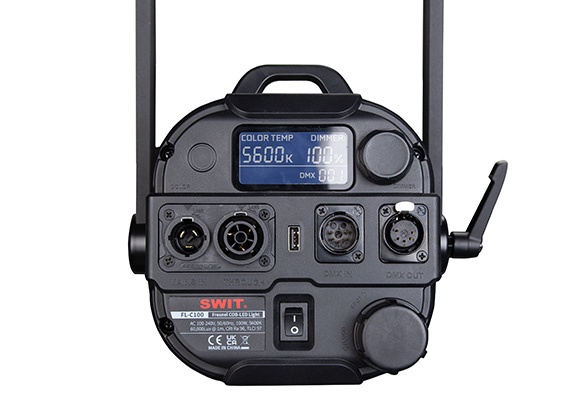

DMX, AC IN & LOOP
FL-C100 provides 5-pin XLR DMX512 in and out,
with a 5V USB-A socket to power wireless DMX
receiver. For convenient studio installation, the
FL-C100 provides PowerCON True 1 AC in and loop
out sockets, which will loop through more than 25x
FL-C100 lights under 220V AC voltage, and 13x
FL-C100 lights under 110V voltage.
4-leaf Metal Barn Door
FL-C100 is equipped with 4-leaf metal barn doors,
dismountable and rotatable. The light also provides
a special black-out cloth to prevent the light
leakage.

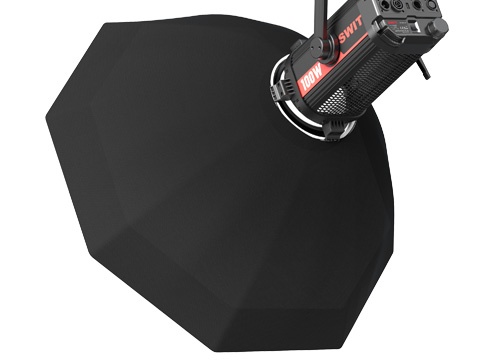

Optional Diffuser Box
Provide Octangle Diffuser Box as optional
accessory. Compatible with all 90mm
diameter fresnel lights includes SWIT
FL-C100, FL-C100D, FL-C200D, FL-C400D,
etc, with dual diffuser layers and eggcrate.
Part Number: LA-BC90.
LED | COB Chip-on-board LED |
Spot angle | 12° - 26° adjust |
Illuminance | 60,000Lux@1m/Spot |
Color Temperature | 5600K |
CRI | 96 |
TLCI | 97 |
Power | 100W |
USB | 5V USB-A power out |
DMX | DMX512, 5pin XLR IN & OUT |
AC Power | PowerCON TRUE1 AC 100-240V 50/60Hz input & output |
Dimension | 160×160×364mm; Shipping carton 525×330×315mm |
Weight | 5.2kg; With package 7.5kg |
MSRP
MSRP
MSRP
-

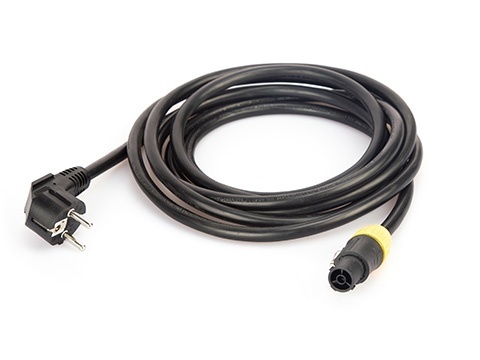

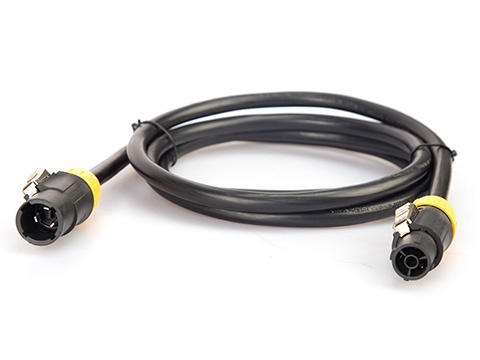

PowerCON TRUE1 AC cable
-

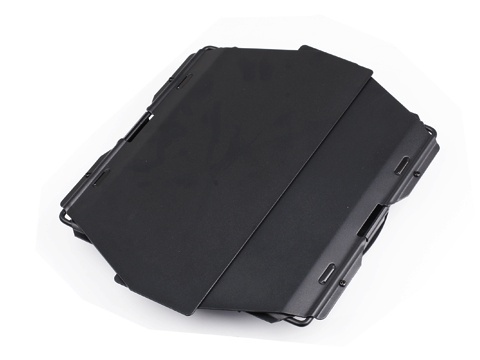

Barn door kit
-

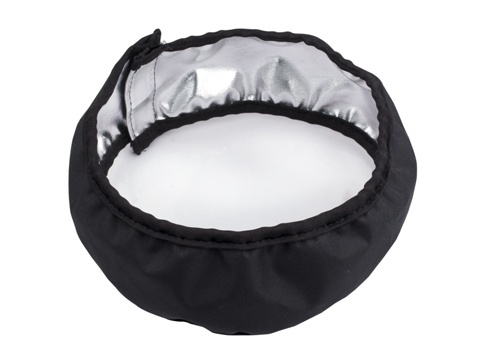

Black out cloth
-

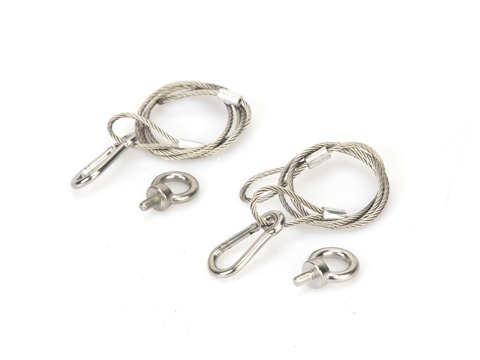

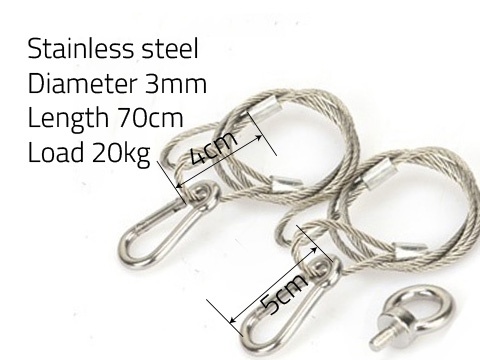

Safety rope
-
LA-BC90
Octangle Diffuser Box with dual diffuser layers and eggcrate, Compatible with all 90mm diameter fresnel lights includes SWIT FL-C100, FL-C100D, FL-C200D, FL-C400D, etc -

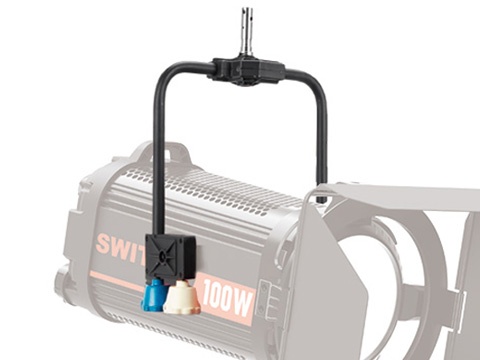

LA-POC100
2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. Dedicated size for SWIT FL-C100 and FL-C100D studio fresnel lights -
PA-LC20
PowerCON TRUE1 loop out cable, 2meters, 16A load, AC 220V: Max 25x FL-C100 looped AC 110V: Max 13x FL-C100 looped
-
FL-C100D
100W Bi-color Fanless Studio Fresnel Light
COB-LED, 12-26° adjust, 55,000Lux@1m, 2700-6500K, CRI 97, TLCI 99, no fan, no noise
