› 400W COB LED Fresnel studio light
› Equivalent to 2000W Halogen bulb light
› 15-50° Flood/Spot angle adjust
› Optional E-motor adjust spot angle by DMX
› 130,000Lux@1m high bright hard light
› Silent mode by fans switching off
› Fresnel and Fly's eye compound lens
› 2700K-6500K continuously adjust
› 0-100% flick-free dimming
› CRI Ra 97, TLCI 99, SSI(D55) 75
› DMX512 In & out dimmer control
› Dimmer/Color Temp/Fan off DMX addresses
› USB power out for wireless DMX receiver
› LCD display menu operation system
› Strong filter mounting bracket
› PowerCON TRUE1 AC in and loop out
› 4-leaf metal barn doors and Yoke bracket

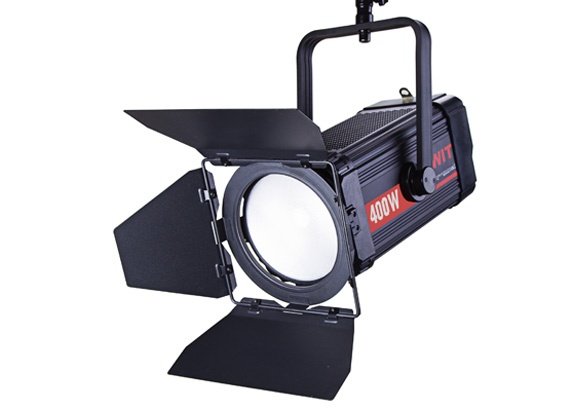

400W COB-LED Fresnel Light
2000W Halogen Equivalent High intensity
FL-C400D is a 400W Bi-color COB-LED fresnel light, 130,000Lux @1m high bright, equivalent to a 2000W halogen bulb light, with DMX control, high CRI/TLCI and accurate color performance, for broadcast studio, theatre, film set install applications.
15°-50° Spot/Flood Adjust
FL-C400D outputs 15°- 50° beam angle by adjusting
position of LED board internally, 0 to 100% PWM digital
dimming, smoothly and non-flickering.
Fresnel and Fly's Eye Lens
FL-C400D is equipped with double side compound lens - front fresnel rings to converge the lights and rear fly's eye array to eliminate yellow halo, and get an even distributed spot light.
2700K-6500K Continuous
FL-C400D COB-LED includes 400W 2700K and 400W 6500K LED, and can be continuously adjusted between 2700K and 6500K. The light outputs 400W
at any color temperature.
IEC 62471 Photobiological Safe Certificated
The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.
Accurate Color Render
CRI 97; TLCI 99
CRI (Color Rendering Index) is a measure of the
ability of a light source to reveal the colors of various
objects faithfully in comparison with a natural light
source. And TLCI (Television Lighting Consistency
Index) is special for the color reveal ability by camera
sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while
FL-C400D offers the ultra high CRI at 97 and TLCI at
99, and will not lose the object original colors.

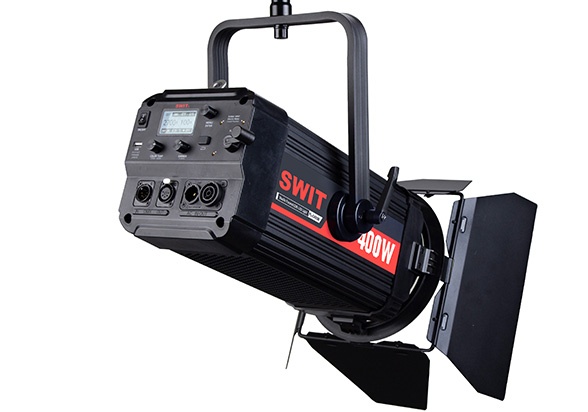

DMX, AC IN & LOOP
FL-C400D provides 5-pin XLR DMX512 in and out, with a 5V USB-A socket to power wireless DMX receiver, and support PowerCon True1 AC input and loop output for easy cable works when building studio.

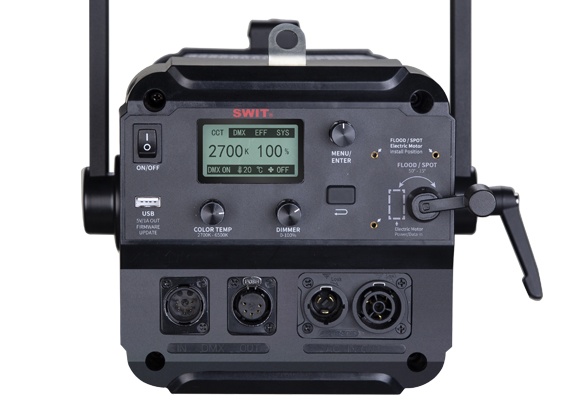

Menu Operating System
Optional Spot Angle E-motor
FL-C400D supports external electro-motor installed to adjust the spot/flood angle by Menu knob or by DMX control. The optional E-motor is easily user installed (Part number LA-M50).
You can also order the light with factory pre-installed E-motor, SKU model FL-C400DM.

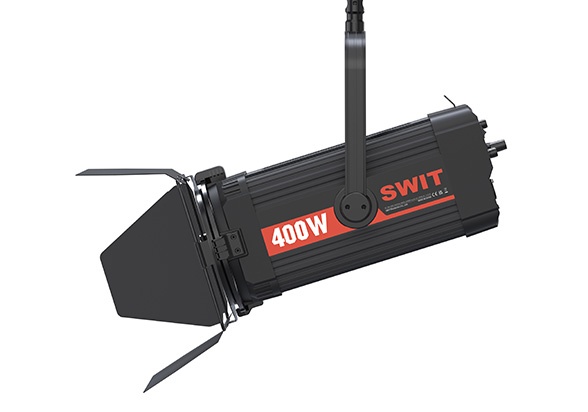

4-leaf Metal Barn Door
FL-C400D is equipped with 4-leaf metal barn
doors, dismountable and rotatable.

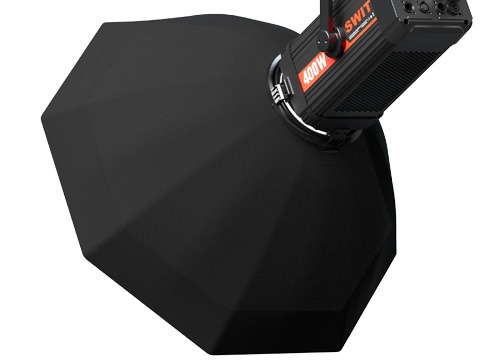

Optional Diffuser Box
Provide Octangle Diffuser Box as optional
accessory. Compatible with all 90mm
diameter fresnel lights includes SWIT
FL-C100, FL-C100D, FL-C200D, FL-C400D,
etc, with dual diffuser layers and eggcrate.
Part Number: LA-BC90.
LED | COB Chip-on-board LED |
Spot angle | 15° - 50° adjust |
Illuminance | 130,000Lux@1m/Spot |
Color Temperature | 2700K - 6500K |
CRI | 97 |
TLCI | 99 |
Power | 400W |
USB | 5V USB-A power out |
DMX | DMX512, 5pin XLR IN & OUT |
AC Power | PowerCON TRUE1 AC 100-240V 50/60Hz input & output |
Dimension | 175×175×400mm; Shipping carton 600×352×323mm |
Weight | 6.2kg; With package 9.75kg |
| IP Rating | IP20 |
| Lifespan | 100,000 hrs |
MSRP
MSRP
MSRP
-

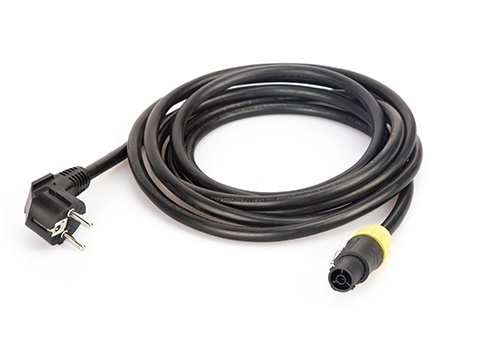

PowerCON TRUE1 AC cable
-

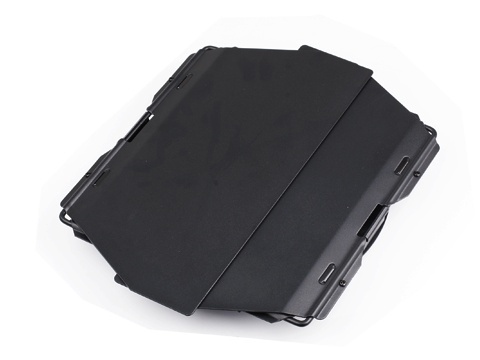

Barn door kit
-

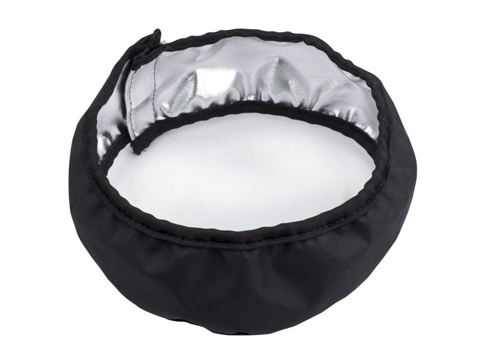

Black out cloth
-

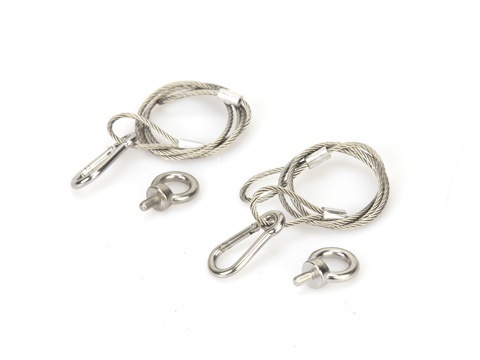

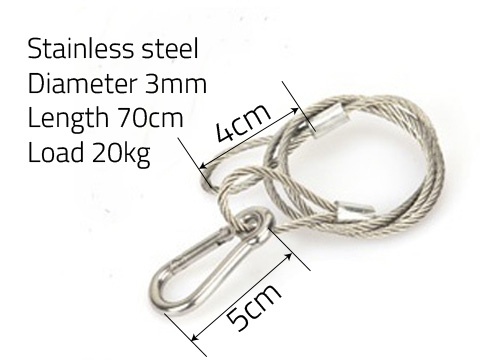

Safety rope
-
LA-BC90
Octangle Diffuser Box with dual diffuser layers and eggcrate, Compatible with all 90mm diameter fresnel lights includes SWIT FL-C100, FL-C100D, FL-C200D, FL-C400D, etc -

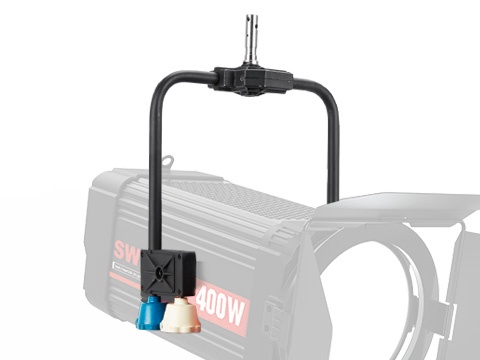

LA-POC200
2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. Dedicated size for SWIT FL-C200D and FL-C400D studio fresnel lights -

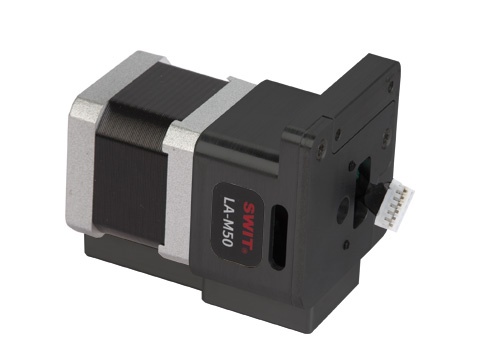

LA-M50
Optional Electro-motor to adjust Spot/Flood angle by Menu knob or by DMX. Easy to install by users.
1. Warranty Period
We provide 1 year conditional warranty for lighting products.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents, including but not limited to damage to LED emitters, circuits, or housings, personal injury, or property loss, are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with Operating Procedures
Operation, installation, or removal of equipment and accessories not in accordance with the User Manual; forcible removal of connection cables or power cables; obstruction of heat dissipation vents; direct visual exposure to LED emitters; failure to follow the prescribed sequence for startup/shutdown or wiring.
(2) Non-Compliant Power Supply and Accessories
Use of non-original SWIT power supplies, power cables, chargers, optical accessories, or other uncertified third-party accessories; powering the product with third-party power adaptors; use of extension cables or power adaptors with mismatched rated parameters.
(3) Unauthorized Modification and Repair
Unauthorized disassembly, modification, or repair of the equipment; tampering with core components or circuits; failure to contact SWIT authorized after-sales service upon equipment malfunction, resulting in unauthorized repair or aggravated damage by non-authorized personnel.
(4) Misuse and Adverse Environmental Conditions
Damage resulting from dropping, impact, compression, puncture, water immersion, exposure to high temperatures or direct sunlight, extreme cold, humidity, excessive dust, or other non-normal use environments or human-inflicted damage.
(5) Failure to Address Abnormal Conditions
Continued operation despite abnormal conditions such as overheating, abnormal odor, or abnormal noise, resulting in damage or safety incidents; use of damaged or malfunctioning accessories or batteries in violation of regulations.
(6) Out-of-Specification and Incompatible Use
Operation beyond the equipment's rated parameters; use in incompatible systems or environments; failure to implement protective measures during outdoor use, resulting in damage from severe weather conditions.
(7) Force Majeure and External Factors
Damage caused by irresistible factors (including but not limited to earthquake, flood, or typhoon), sudden voltage fluctuations, or external circuit short circuits.
(8) Natural Wear and Tear
Normal aging of LED emitters, wear of accessories, and other natural degradation of the product.
(9) Improper Storage
Failure to store equipment and accessories in accordance with prescribed specifications, resulting in moisture ingress, dust accumulation, or component corrosion.
(10) Non-Authentic Products and Ineligibility
Products not purchased through official SWIT channels, or products with altered or missing serial numbers that preclude verification of authenticity and warranty eligibility.
(11) Liability Disclaimer
All risks and consequences arising from improper use, human factors, or external factors shall be borne entirely by the user.
(12) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
