› Cine style V-mount battery
› 196Wh/13.6Ah large capacity
› 200W/16A constant high load, 270W peak
› 2×D-tap output & charging input
› 1x USB-A 5V/9V 2A 18W output
› 1x USB-C 65W output & 60W input
› OLED remaining run time display
› Rear LED torch for dark environment
› Strong housing 1.2m drop-off proof
› BMS multiple circuit protections
CINE V-Mount Battery
The CIMO series cine class V-mount batteries
featured high power load, 2× D-tap, 65W USB-C,
OLED power info display, battery life inspection
and 1.2m drop-off proof for professional
cinematographers.

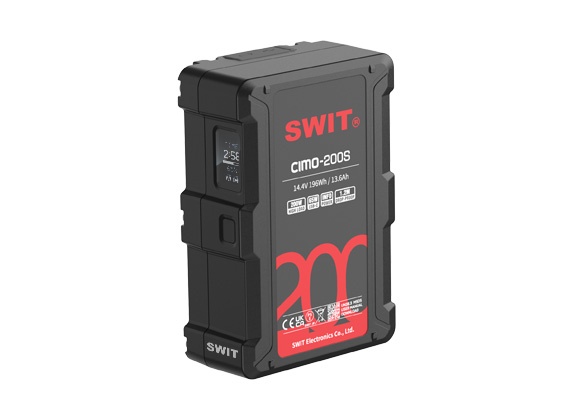

14.4V, 196Wh Capacity
CIMO-200S consists of 16pcs ternary lithium
cells, 14.4V nominal voltage, 196Wh, 13.6Ah
large capacity.
The ternary lithium cells provide higher energy
density, achieve higher capacity with a smaller
size, and excellent low-temperature
performance, capable of supplying power under
-20°C cold environment.
200W Constant / 270W Peak High Load Output
CIMO-200S outputs at least 200W/16A high load
even at 1% capacity (Peak load up to 270W), to drive
high power Cine cameras and on-camera devices
together. The high load cells will also ensure battery
life comparing to normal load batteries if long time
full load output.
100W 6A Fast Charging
CIMO-200S supports 100W/6A fast charging by
SWIT PC-P461S / MATRIX-S8 / S-3812S chargers,
twice the charging speed, and the 6A fast charging
will not affect the lifespan of ternary lithium cells.
The 196Wh battery can be charged from 0 to 80%
after 1.7 hours, and fully charged within 2.75 hours.

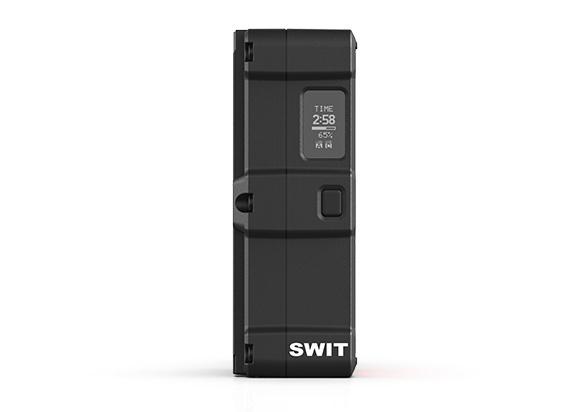

OLED Power Info / Health Level Display
CIMO-200S battery provides an OLED screen to display battery status and
power information, includes power percentage, remaining running time, and
long press the power check button to display battery cycle times, health level
for battery management.

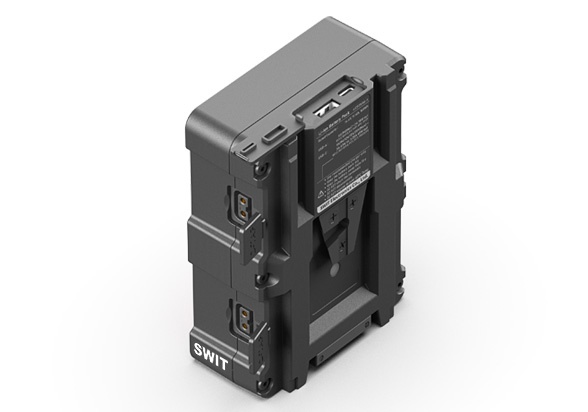

2×D-tap, USB-A & USB-C
CIMO-200S provides with
2x D-tap 200W in total;
1x USB-A 5V/9V 2A out;
1x USB-C 60W input and 65W output
for various on-camera devices.
USB-C 65W Output
The USB-C port of CIMO-200S outputs
5V/9V/12V/15V 3A, 20V(Max) 3.25A, 65W
high power for laptops and various smart
devices, with BC1.2, QC2.0/3.0, FCP, SCP,
PD2.0/3.0 universally compatible protocols.
USB-C 60W Charging Input
The battery can also be charged by USB-C charger
of PD2.0/3.0 ≥60W power, fully charged within 4.5
hours.
* Please note that<60W low power USB-C
chargers are unable to charge this battery.
LED Torch
You can double press the Power Check button to switch on
LED torch on the rear side of the battery, to help you to find
V-mount plate in dark production environment.
Double press the Power Check button again to switch the
light off, and it will be automatically switched off after 60
seconds.
1.2 meters Drop-off Proof
CIMO series batteries are dual housing designed
and can survive from 1.2 meters drop-off at any
angles, strong and reliable for filmmakers.
Battery plate | V-mount |
Nominal voltage | 14.4V |
Capacity | 196Wh, 13.6Ah |
Power Load | 200W, 16A constant; 270W peak |
Power IN&OUT | Electrodes: 200W 16A out, 16.8V 8A(Max) in |
D-tap×2: (Plug 1×D-tap) 200W 16A out (Plug 2×D-tap) 200W 16A out in total Charging through D-tap: 16.8V 8A(Max) in | |
| USB-A: 5V/9V(Max) 2A out, 18W | |
USB-C out: 65W, 5V/9V/12V/15V/20V(Max)=3.25A BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP USB-C charging in: USB-C to C Charger Request - PD2.0/3.0, Power ≥60W USB-A to C Charger Request - 5V only | |
Dimension | 144×100×51mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C |
Net weight | Net 1.085kg; With package 1.127kg |
